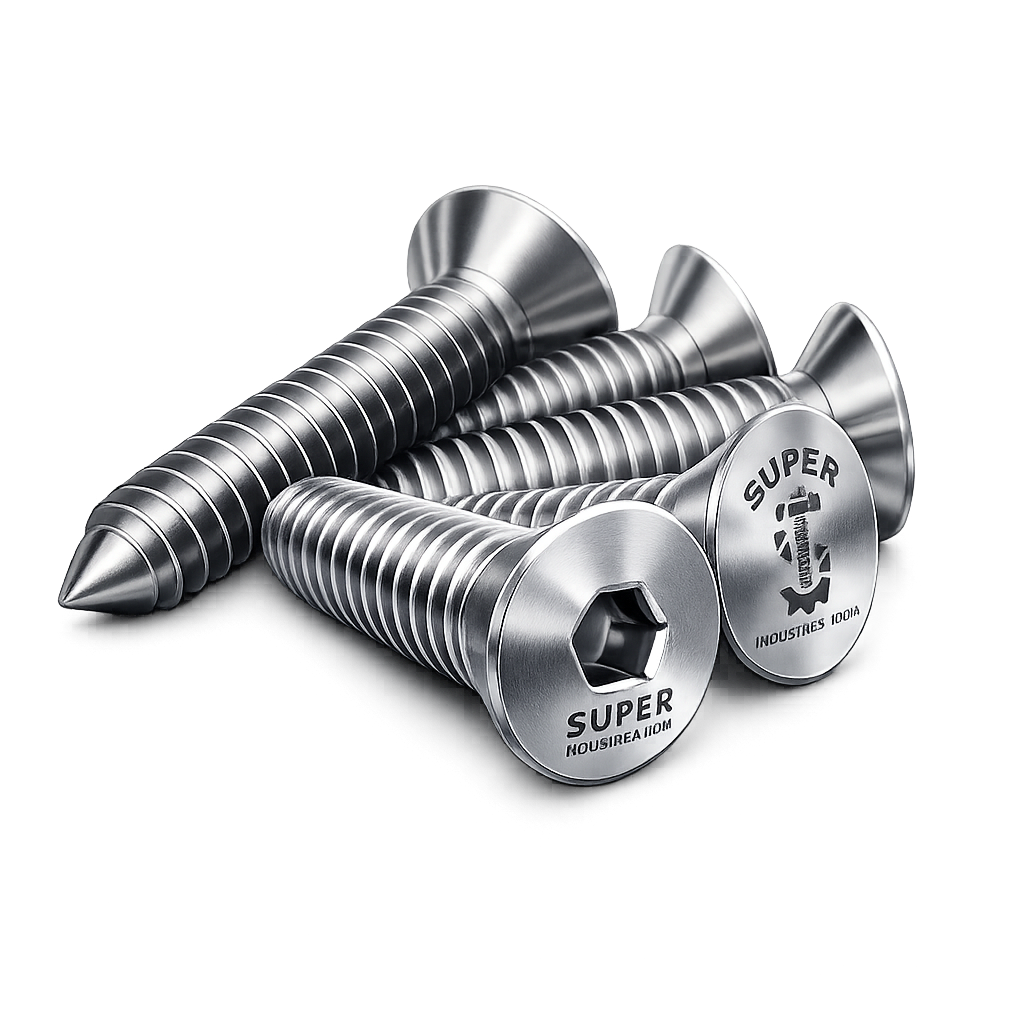

ALLEN CSK SCREWS

Socket Countersunk Head Cap Screws for Precision, Flush-Mount, and EPC-Critical Assemblies

Manufacturer & Global Exporter: Super Industries
Website: https://superindustriesindia.in

---

Industry Context

Why Allen CSK Screws Are Critical in Precision Assemblies, Flush-Surface Designs, and High-Integrity Joints

In engineered assemblies where surface continuity, dimensional accuracy, and controlled load transfer are non-negotiable, fastener selection directly influences functional performance and lifecycle reliability. Allen CSK Screws—also known as socket countersunk head cap screws—are specified where the fastener head must sit flush with or below the mating surface without compromising clamp force or joint integrity.

Across EPC, OEM, and export-grade industrial systems, Allen CSK screws are selected to satisfy one or more of the following engineering requirements:

• Elimination of head protrusion to avoid interference with moving components
• Maintenance of aerodynamic, hygienic, or clearance-critical surfaces
• Precise location and alignment of components in assemblies with tight tolerances
• Improved fatigue behavior by controlling stress concentration at the head interface
• Compatibility with automated or controlled-torque installation processes

These requirements are common in machinery housings, tooling plates, automation systems, energy equipment, and modular industrial assemblies. In such environments, conventional hex bolts or socket head cap screws are unsuitable due to protruding heads or inconsistent seating behavior. Allen CSK screws address this by integrating geometry-driven load transfer with flush-mount functionality.

From an EPC and consultant perspective, Allen CSK screws are not decorative fasteners. They are precision components whose geometry, material condition, and dimensional control must align with recognized standards and documented quality systems.

---

Technical Definition

What Allen CSK Screws Are and How Socket Countersunk Geometry Functions

An Allen CSK Screw is a threaded fastener characterized by:

• A countersunk head with a defined included angle
• An internal hexagonal (Allen) drive for torque application
• A flush or sub-flush seating condition when installed into a matching countersink
• Metric or inch thread forms depending on standard and application

Unlike socket head cap screws, which rely on a cylindrical head to generate clamp force through bearing contact, Allen CSK screws transfer load through a conical interface between the screw head and the countersunk recess in the mating component.

This distinction has several engineering implications:

• Clamp load is shared between axial tension in the screw and compressive bearing stress along the countersink interface
• Proper seating depends on accurate countersink angle matching
• Head geometry directly influences stress distribution and fatigue performance

Allen CSK screws differ fundamentally from hex fasteners and pan-head screws, which rely on flat bearing surfaces and external drive geometries. The countersunk design is intentional and must be treated as a system-level interface, not just a head shape.

---

Head Geometry & Countersink Engineering

Countersink Angles, Seating Behavior, and Stress Distribution

The engineering performance of Allen CSK screws is governed primarily by head geometry and its interaction with the mating countersink.

Countersink Angle

Standard Allen CSK screws are manufactured with defined included angles, typically:

• 90° — most common in metric and ISO/DIN applications
• 82° — commonly used in inch-series and some ASTM-related applications

EPC specifications require angle matching between the screw head and the countersunk hole. Any mismatch leads to:

• Line contact instead of full-surface seating
• Elevated localized stresses
• Reduced preload retention
• Increased risk of head cracking or joint loosening

Seating Behavior

When correctly installed:

• The head seats uniformly along the countersink
• The top surface remains flush with the component
• Clamp load is distributed evenly

Improper countersink depth or angle results in false torque readings and incomplete seating—conditions routinely flagged during consultant inspections.

Stress Distribution

Countersunk heads introduce radial and axial stress components. Proper geometry minimizes stress concentration at the head-to-shank transition, which is critical in cyclic or vibration-exposed service.

---

Drive System & Torque Transmission

Hex Socket Geometry, Torque Control, and Cam-Out Resistance

Allen CSK screws utilize an internal hexagonal drive, selected for its:

• High torque transmission efficiency
• Reduced risk of tool slippage compared to slotted drives
• Compatibility with controlled-torque installation tools

Hex Socket Accuracy

Engineering performance depends on:

• Socket depth and flat-to-flat accuracy
• Sharp internal corners with controlled radii
• Consistency across production batches

Poorly broached sockets lead to:

• Rounding under load
• Tool disengagement
• Inconsistent torque application

For EPC and export projects, socket integrity is a functional quality parameter, not a cosmetic feature.

Torque Control

Because countersunk heads rely on conical seating, torque values must be applied with attention to:

• Surface finish of countersink
• Lubrication condition
• Material pairing

Excessive torque can induce radial cracking in brittle materials or excessive embedment in softer substrates.

---

Thread Form & Load Behavior

Metric Coarse vs Fine Threads and Load Transfer Paths

Allen CSK screws are available in metric coarse and metric fine thread forms. Thread selection influences:

• Tensile load capacity
• Engagement length requirements
• Resistance to loosening under vibration

Engagement Length

Engineering practice typically requires:

• Minimum thread engagement of 1× nominal diameter in steel
• Increased engagement in softer materials such as aluminum

Insufficient engagement shifts load concentration to the countersunk head, increasing the likelihood of joint failure.

Tensile vs Shear Behavior

Allen CSK screws are primarily tension-loaded fasteners. Shear loads should be resisted by joint friction or dowel features, not by the screw shank alone. Using CSK screws as shear pins is generally discouraged unless explicitly engineered.

---

Engineering Relevance

Alignment, Surface Continuity, Vibration Resistance, and Fatigue Performance

Allen CSK screws are selected where geometry-driven performance is required:

• Alignment: Flush seating maintains planar surfaces and component alignment
• Surface continuity: Essential in sliding, rotating, or sealed interfaces
• Vibration resistance: Improved when combined with correct preload and engagement
• Fatigue performance: Controlled stress flow reduces crack initiation risk

In EPC projects, these attributes are critical in rotating machinery covers, modular skids, and precision-mounted components.

---

Material & Standard Alignment

Carbon Steel, Alloy Steel, Stainless Steel — Standards and Service Conditions

Material selection for Allen CSK screws is driven by mechanical requirements, environment, and applicable standards.

Common Materials

• Carbon steel: General industrial use; requires protective coating
• Alloy steel: Higher strength for compact designs and higher preload
• Stainless steel: Corrosion resistance for exposed or hygienic environments

Standards

Allen CSK screws are typically manufactured to:

• DIN 7991
• ISO 10642

These standards define head geometry, socket dimensions, and mechanical properties. EPC and consultant reviews routinely verify compliance with these references.

---

Manufacturing & Quality Discipline

From Cold Heading to Final Inspection

The manufacturing route directly affects functional reliability:

1. Cold heading to form head geometry
2. Socket broaching with controlled depth and profile
3. Thread rolling to enhance fatigue strength
4. Heat treatment to specified property class
5. Surface finishing or coating
6. Dimensional and mechanical inspection

Quality discipline includes:

• Head angle verification
• Socket gauging
• Hardness testing
• Batch traceability

For export and EPC use, undocumented or mixed-lot fasteners are unacceptable.

---

Procurement, Installation & Inspection View

What EPC Engineers and Consultants Verify

During procurement and site inspection, the following are routinely checked:

• Standard compliance (DIN / ISO)
• Head angle accuracy
• Socket condition
• Thread form and pitch
• Material certificates and heat numbers
• Surface finish consistency

Improper countersink fit or socket damage is a common cause of rejection during FAT or site audits.

---

Application Mapping

Where Allen CSK Screws Are Technically Appropriate

Allen CSK screws are widely used in:

• Machinery and equipment housings
• Tooling plates and fixtures
• Automation and robotics systems
• Energy equipment enclosures
• Modular industrial infrastructure

They are not intended for primary structural joints or pressure-retaining applications unless explicitly engineered and approved.

---

Professional Technical Tables

Diameter & Length Ranges (Indicative)

Diameter Range	Typical Length Range
M3 – M6	6 – 50 mm
M8 – M12	12 – 80 mm
M16 – M24	20 – 120 mm

---

Head Angle & Socket Size

Standard	Head Angle	Drive Type
DIN 7991	90°	Hex socket
ISO 10642	90°	Hex socket

---

Material Grades & Property Classes

Material	Typical Property Class
Carbon steel	Medium to high strength
Alloy steel	High strength
Stainless steel	Corrosion resistant

---

Surface Finishes & Coatings

Finish	Purpose
Zinc-based	General corrosion protection
Black oxide	Dimensional stability
Passivated SS	Corrosion resistance

---

Custom Manufacturing Options

• Special lengths
• Non-standard head angles (project-specific)
• Controlled hardness ranges
• Full traceability packages

---

Manufacturer-Focused Conclusion

Allen CSK Screws are precision-engineered fasteners whose performance depends on geometry accuracy, material discipline, and manufacturing control. In EPC, OEM, and export environments, they are specified to achieve flush mounting, controlled preload, and reliable long-term behavior in precision assemblies.

Super Industries manufactures Allen CSK screws with controlled countersunk geometry, verified socket accuracy, consistent mechanical properties, and EPC-aligned traceability, supporting consultant approval and dependable service performance in demanding industrial applications.
