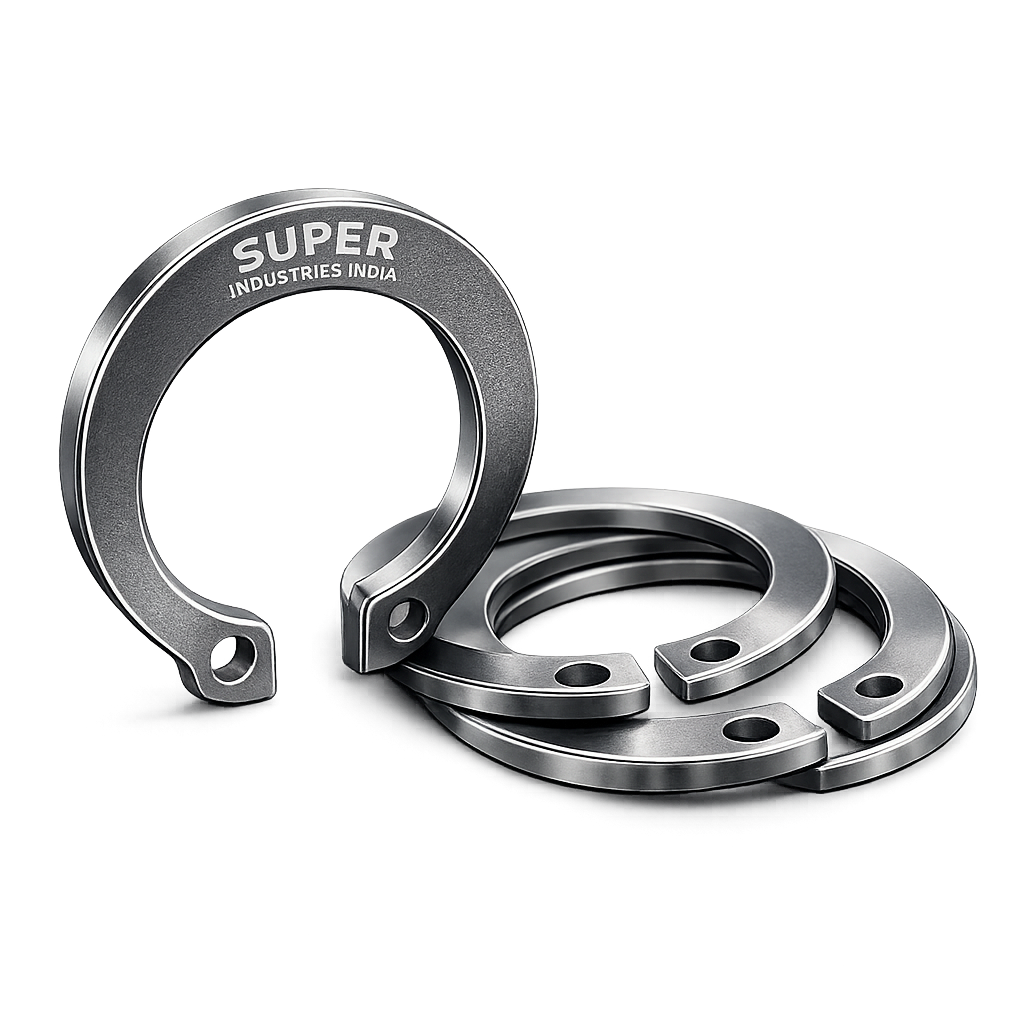

EXTERNAL CIRCLIPS
(Shaft Circlips / External Retaining Rings)
EPC / EXPORT / MNC-GRADE TECHNICAL REFERENCE
Manufacturer & Global Exporter: Super Industries
Website: https://superindustriesindia.in
1. Industry Context
Why External Circlips Are Critical in EPC Mechanical Assemblies
Across EPC-executed plants and OEM equipment, axial retention on shafts is a fundamental requirement. Bearings, gears, sprockets, spacers, thrust washers, seal carriers, and couplings must be located accurately along a shaft while allowing controlled serviceability and compact assembly. External Circlips address this requirement with a standardized, space-efficient retention method that avoids threaded hardware, welds, or permanent deformation.
In Oil & Gas, Power & Energy, Petrochemical, LNG, Hydrogen, and Infrastructure machinery, external circlips are selected because they:
- Provide defined axial positioning without increasing shaft length
- Enable fast, non-destructive assembly and disassembly
- Maintain retention under static and dynamic axial loads when correctly sized
- Eliminate threaded features that introduce stress raisers and galling risk
- Conform to internationally recognized groove standards accepted by consultants
From an EPC procurement perspective, external circlips are engineered retention components, not generic accessories. Their performance depends on shaft groove accuracy, circlip geometry, material condition, and controlled spring behavior.
2. Technical Definition
What Are External Circlips (Shaft Circlips)?
External Circlips, also known as Shaft Circlips or External Retaining Rings, are spring-steel rings designed to be installed into a machined groove on the outside diameter of a shaft. Once installed, the circlip contracts radially inward, seating firmly against the groove walls and forming an axial stop for components assembled on the shaft.
They are distinct from:
- Internal Circlips: which retain components inside bores
- General snap rings: which may not follow standardized dimensions
- Threaded retention methods: which consume space and alter stress distribution
External circlips rely on elastic spring force and geometric interference, not torque, to remain seated.
3. Functional Role in Mechanical Assemblies
Axial Retention Mechanics on Shafts
An external circlip performs three simultaneous mechanical functions:
- Axial Load Interruption
The circlip shoulder arrests axial movement of the retained component against a defined position. - Radial Groove Engagement
Elastic contraction ensures continuous circumferential contact with the groove diameter. - Load Distribution Through Elastic Compliance
Under axial load, controlled elastic deformation spreads stress along the groove wall rather than concentrating it at a single point.
External circlips are designed for axial retention, not for carrying primary thrust loads where dedicated thrust bearings or shoulders are required.
4. Engineering Relevance of Thickness, Section & Load Capacity
Cross-Section Thickness
The section thickness of an external circlip governs:
- Axial holding capacity
- Groove wall stress
- Fatigue life under cyclic loading
Increasing thickness increases retention force but also:
- Raises installation stress
- Increases groove stress concentration
- Requires precise groove machining
Free Diameter vs Installed Diameter
- Free diameter: Controls installation force and elastic preload
- Installed diameter: Determines seating security and groove contact pressure
Improper free/installed diameter relationships lead to partial seating, reduced load capacity, and fatigue failures.
Material Strength & Elastic Modulus
Spring steel properties define:
- Elastic recovery
- Long-term load stability
- Resistance to relaxation under temperature
5. Dimensional & Load Determination Logic
Correct external circlip performance requires system-level dimensional control.
Critical Shaft & Groove Parameters
- Nominal Shaft Diameter (d): Determines circlip size
- Groove Diameter (d2): Controls radial seating
- Groove Width (m): Must match circlip thickness with defined clearance
- Groove Depth (t): Governs axial engagement
- Edge Radius: Prevents notch-induced fatigue
Tolerance Discipline
DIN / ISO standards define:
- Allowable groove tolerances
- Circlip dimensional limits
- Installation clearances
Deviation outside standard limits is a common cause of premature circlip ejection.
6. Types of External Circlips & Engineering Characteristics
Standard External Circlips (DIN 471 / ISO 8748)
- Tapered cross-section
- Balanced installation force and retention capacity
- Broad EPC and consultant acceptance
Heavy-Duty External Circlips
- Increased section thickness
- Higher axial load capacity
- Used where vibration or shock loads are present
Constant-Section Circlips
- Uniform thickness
- Predictable fatigue behavior
- Used in precision rotating assemblies
Spiral Retaining Rings (Comparative Reference)
- Multi-turn spiral design
- Higher load distribution
- Different groove geometry
- Not interchangeable with DIN 471 circlips
7. Material & Standard Alignment
Governing Standards
- DIN 471 – External circlips for shafts
- ISO 8748 – International equivalent
- ASTM references – Material and heat treatment guidance
Material Options
- High-Carbon Spring Steel:
- Highest retention force
- Suitable for controlled environments
- Stainless Steel (AISI 304 / 316):
- Corrosion resistance
- Reduced spring force vs carbon steel
Environment & Temperature Considerations
- Elevated temperature reduces elastic modulus
- Corrosive media accelerates fatigue degradation
- Surface treatments must not impair spring behavior
8. Manufacturing & Quality Discipline
Manufacturing Sequence
- Precision stamping or forming
- Controlled heat treatment
- Edge deburring and conditioning
- Surface finishing (if specified)
- Dimensional inspection
- Batch marking and traceability
Quality Control Focus
- Section thickness consistency
- Free diameter verification
- Spring force uniformity
- Burr-free edges
Edge quality is critical—poor deburring damages grooves and compromises retention integrity.
9. Procurement, Installation & Inspection View
What EPC Engineers Verify
- Groove compatibility with DIN / ISO requirements
- Axial load rating vs design load
- Material suitability for environment
What Inspectors & Consultants Check
- Dimensional conformity
- Heat treatment condition
- Surface finish and edge quality
- Traceability and documentation
Installation Discipline
- Correct circlip plier engagement
- Avoiding over-expansion
- Visual confirmation of full groove seating
10. Application Mapping
External Circlips are routinely specified in:
- Oil & Gas: pump shafts, valve actuators
- Power: generator auxiliaries, turbine subsystems
- Gearboxes: gear and bearing location
- Compressors: seal and spacer retention
- Infrastructure machinery: heavy rotating equipment
11. Professional Technical Tables
Shaft Size Range (Indicative)
| Nominal Shaft Ø (mm) | Applicable DIN Size |
|---|---|
| 6 – 1000+ | DIN 471 series |
Groove Dimensions (Indicative – DIN 471)
| Shaft Ø | Groove Ø | Groove Width | Groove Depth |
|---|---|---|---|
| Standardized | Controlled | Section-matched | Defined |
Material vs Operating Environment
| Material | Environment Suitability |
|---|---|
| Carbon Spring Steel | Dry / controlled |
| SS 304 | Mild corrosion |
| SS 316 | Marine / chemical |
Custom & Project-Specific Options
- Non-standard thickness
- Modified free diameter
- Special material grades
- Controlled surface finish
12. Manufacturer-Focused Conclusion
External Circlips are precision axial-retention components whose reliability depends on geometry, material behavior, groove accuracy, and manufacturing discipline. In EPC and export-grade machinery, they must perform consistently throughout installation, operation, inspection, and maintenance cycles.
Super Industries manufactures external circlips with:
- Standards-aligned dimensional control
- Consistent spring characteristics
- Manufacturing traceability suitable for EPC approval
- Quality discipline aligned with consultant expectations
This approach ensures external circlips perform as intended—without hidden mechanical risk—across demanding industrial applications.
External Circlips (Retaining Rings) Manufacturer in India | DIN 471 & IS 3075 Specialist
Precision External Circlips: The Indispensable Fastener for Axial Shaft Retention
In the world of mechanical engineering, securing components onto a shaft is crucial for preventing lateral movement and ensuring machine reliability. Super Industries India is a premier manufacturer and supplier of External Circlips (Retaining Rings), providing the robust, high-precision fasteners demanded by industries across India.
Often referred to as Retaining Rings for Shafts or External Snap Rings, these simple yet vital components are designed to fit into a machined groove on the outside diameter of a shaft. They act as a permanent, load-bearing shoulder that keeps parts—like gears, pulleys, and bearings—securely fastened and prevents them from sliding off the end of the shaft.
Why Choose Super Industries India External Circlips?
As a leading External Circlip Manufacturer in India, we engineer our products to deliver superior performance and value:
- Guaranteed Axial Retention: Our circlips are precision-formed and heat-treated to maintain constant radial pressure against the shaft groove, ensuring maximum thrust load capacity and secure component retention.
- Compliance with Core Standards: We manufacture rings according to stringent international and national specifications, including DIN 471 (Retaining rings for shafts) and IS 3075 Part 1.
- Cost-Effective Assembly: External circlips are a budget-friendly and compact alternative to using costly machined shoulders, locknuts, or threaded components, significantly reducing material and assembly time.
- Simplified Maintenance: Featuring precision-punched lugs (holes), our external circlips are designed for quick installation and removal using standard external circlip pliers, making maintenance swift and non-destructive.
Comprehensive Product Range: Types and Dimensions
We offer an extensive inventory of external circlips, available in standard, heavy-duty, and specialized configurations to meet every industrial requirement.
Our Core External Circlip Range
| Type | Standard | Description | Primary Use |
| Standard External Circlip | DIN 471 / IS 3075 Pt 1 | Features a tapered section for superior flexibility and contact in the groove. | General industrial, automotive, and machine tool assemblies. |
| Heavy-Duty External Circlip | IS 3075 Heavy Series | Thicker cross-section for maximum resistance to high thrust loads and severe impact. | Heavy machinery, high-stress bearings, and construction equipment. |
| E-Type Circlips (E-Clips) | DIN 6799 | Radially fitted retaining ring that provides a large shoulder on small shaft diameters. | Low-to-moderate thrust loads; often used in toys and small appliances. |
| Crescent Rings / C-Clips | Custom Specifications | Provides a large retaining shoulder but is not axially installed with lugs. | Quick assembly/disassembly where lug-installed rings are not suitable. |
Available Sizes and Custom Manufacturing
We maintain ready stock for a wide range of shaft diameters, from compact industrial sizes to large-scale applications:
- Metric Sizes: Full range of standard shaft diameters (e.g., 10mm external circlips, 30mm external retaining rings).
- Large Diameter Circlips: Stock available for shafts up to 300mm and custom-made for larger projects.
- Custom Retaining Rings: Provide us with your technical drawing, and our precision manufacturing unit can produce non-standard external circlips tailored to unique groove sizes, thicknesses, and materials.
Material Excellence and Surface Treatments
The performance of an external circlip is critically dependent on the quality of its material and the consistency of its heat treatment. We only use certified, high-grade materials.
High-Quality Materials
- Carbon Spring Steel (e.g., EN 42J, EN 47): This is the industry standard for strength and resilience, offering the optimal combination of flexibility for installation and rigidity for retention. All carbon steel rings are subjected to a controlled austempering process to achieve the required hardness and spring properties.
- Stainless Steel (SS 304 & SS 316): Ideal for applications demanding exceptional corrosion resistance, such as in marine, pharmaceutical, or chemical processing environments.
- Alloy Steel: Available for specific high-temperature or extreme-load scenarios upon request.
Corrosion-Resistant Finishes
To ensure durability, we offer a range of finishes that protect the external circlips from environmental degradation:
- Phosphate and Oil: Provides essential corrosion protection, wear resistance, and lubrication for smooth operation.
- Zinc Plating (Trivalent Chromate): Offers enhanced, long-lasting resistance to surface rust and atmospheric corrosion.
- Black Oxide: Provides a sleek, anti-glare, dark finish with mild resistance to corrosion.
Applications Across different Industries
Our External Retaining Rings are foundational components in sectors that demand reliable fastening solutions:
- Automotive: Securing wheel assemblies, axle shafts, universal joints, and gear clusters in vehicles.
- Machine Tools: Locking collars, bearings, and cutting tool heads onto rotating shafts.
- Industrial Pumps & Compressors: Essential for retaining impellers and shaft seals, enduring high rotational speeds.
- Agricultural Equipment: Used in tractor linkages, PTO shafts, and heavy-duty transmission components.
- Power Transmission: Key in securing pulleys, sprockets, and clutches to power shafts.
The Super Industries India Quality Assurance
Every external circlip leaving our facility undergoes strict quality checks to ensure:
- Geometric Precision: Verified dimensions to guarantee perfect fit and performance in the shaft groove.
- Hardness Consistency: Checks to confirm the material’s spring properties align with DIN and IS standards.
- Surface Integrity: Inspection for burrs, cracks, or surface defects that could compromise the ring’s function under load.
Secure your shafts with confidence. Choose Super Industries India for high-performance, precision-manufactured External Circlips. Our expertise in materials and adherence to global standards ensure your assemblies achieve maximum integrity and operational lifespan.
Contact us today to discuss your specific shaft diameter, load requirements, or to request a quote for bulk orders. Partner with India’s trusted source for axial retention solutions.
