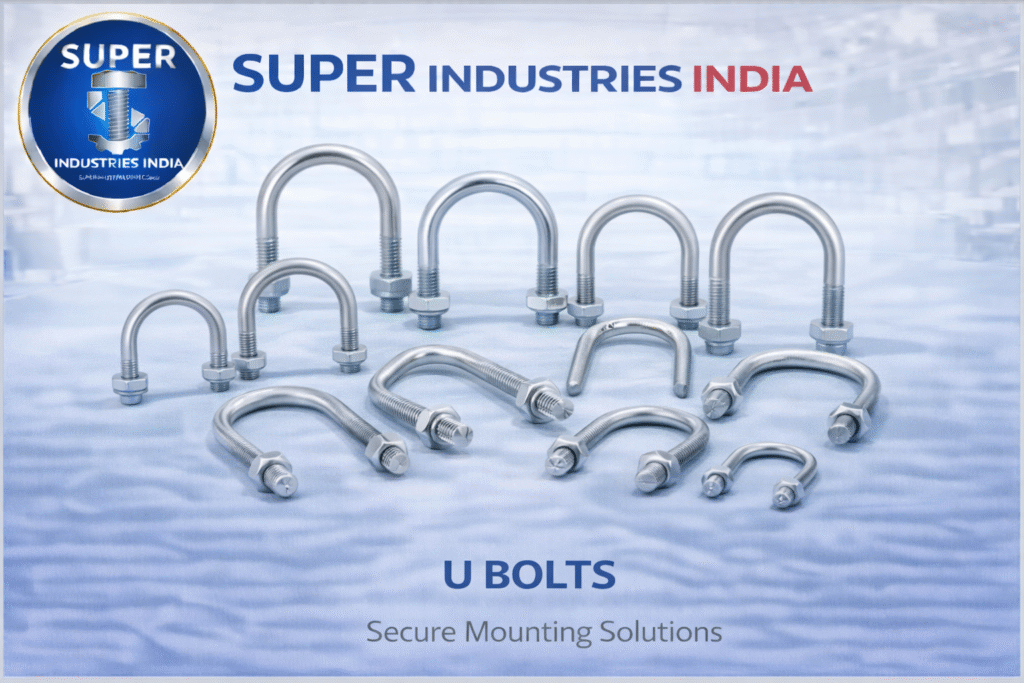

U-BOLTS

Pipe Support, Restraint & Alignment Hardware — EPC / Export / MNC Standard

Manufacturer & Global Exporter: Super Industries
Website: https://superindustriesindia.in

---

1️⃣ Industry Context

Role of U-Bolts in EPC Pipe Support and Restraint Systems

In EPC-driven Oil & Gas, Power, Petrochemical, LNG, Hydrogen, and Infrastructure projects, U-bolts are classified as pipe support and restraint hardware, not pressure-retaining fasteners. Their function is mechanical positioning, restraint, and support of piping and equipment—not sealing or flange bolting.

Within modern EPC execution, U-bolts are routinely specified for:

• Pipe rack support systems
• Guide and restraint assemblies
• Equipment mounting and secondary steel connections
• Non-pressure, non-flanged pipe holding applications

From a piping stress and support design perspective, U-bolts play a load-management role, controlling pipe movement while transferring forces safely into structural members.

Their selection directly affects:

• Pipe stress distribution
• Local pipe wall integrity
• Coating protection
• Long-term alignment and maintenance behavior

---

2️⃣ Technical Definition

What U-Bolts Are and How They Differ from Stud Bolts and Clamps

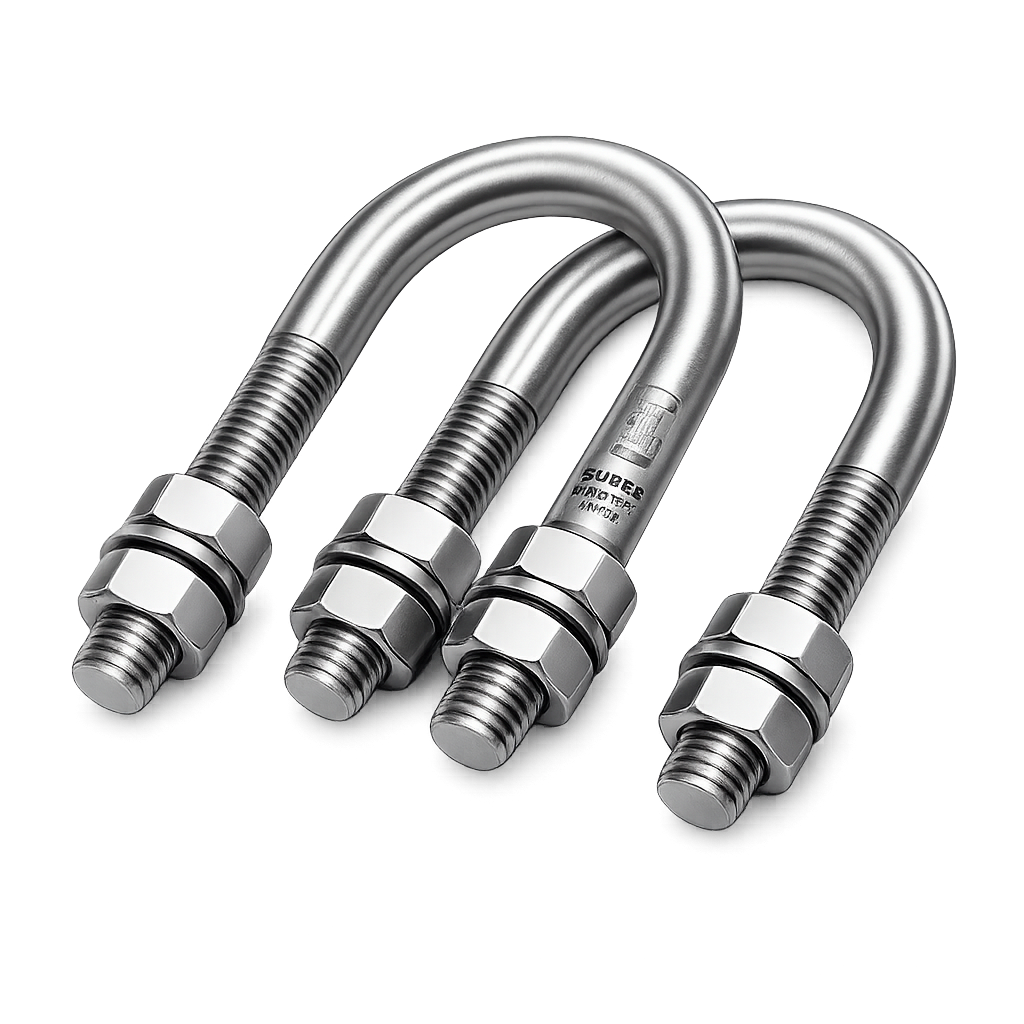

A U-bolt is a U-shaped threaded fastener with two parallel legs and a curved or angled bend, designed to wrap around pipes, tubes, or structural members and secure them to a support.

Key defining features:

• Continuous rod bent into a U shape
• Threads on both legs (typically rolled)
• Used in conjunction with nuts and, where required, saddles or liners

Critical distinction:

• U-bolts: Load-bearing support and restraint hardware
• Stud bolts: Pressure joint fastening elements
• Pipe clamps: Distributed-load support devices

U-bolts must never be used as substitutes for:

• Flange bolting
• Pressure-retaining fasteners
• Structural tension members without engineering verification

---

3️⃣ Functional Engineering Purpose

U-bolts serve multiple mechanical functions depending on support configuration:

Pipe Holding

Maintaining pipe position relative to the supporting steel or concrete structure.

Axial Restraint

Restricting longitudinal movement of piping where guides or anchors are required.

Lateral Guidance

Allowing controlled axial movement while preventing transverse displacement.

Equipment & Secondary Steel Mounting

Securing small vessels, cable trays, or mechanical assemblies to frames or beams.

Each function carries different load assumptions, which must be reflected in sizing and material selection.

---

4️⃣ Load Behavior & Stress Distribution

Primary Load Modes

U-bolts experience combined stresses:

• Tensile stress in threaded legs
• Bending stress at the curved section
• Bearing stress at pipe contact points

Clamp Force vs Pipe Ovalization

Excessive tightening can:

• Ovalize thin-wall pipes
• Damage internal linings
• Compromise corrosion allowance

For this reason, EPC specifications frequently mandate:

• Maximum allowable torque limits
• Use of pipe saddles or elastomeric liners
• Controlled preload procedures

U-bolts are support elements, not high-preload fasteners.

---

5️⃣ Dimensional Parameters & Design Logic

Correct U-bolt performance depends on strict dimensional control:

Rod Diameter

Governs tensile capacity and stiffness.

Inside Width

Must accommodate:

• Nominal pipe OD
• Pipe coating thickness
• Liners or saddles (if specified)

Bend Radius

Critical for:

• Stress concentration control
• Fatigue performance
• Consistent load distribution

Thread Length

Must allow:

• Full nut engagement
• Washer use where required
• Adequate adjustment range

Leg Length Tolerances

Improper leg length leads to:

• Uneven load sharing
• Skewed pipe seating
• Installation difficulties

---

6️⃣ Types of U-Bolts

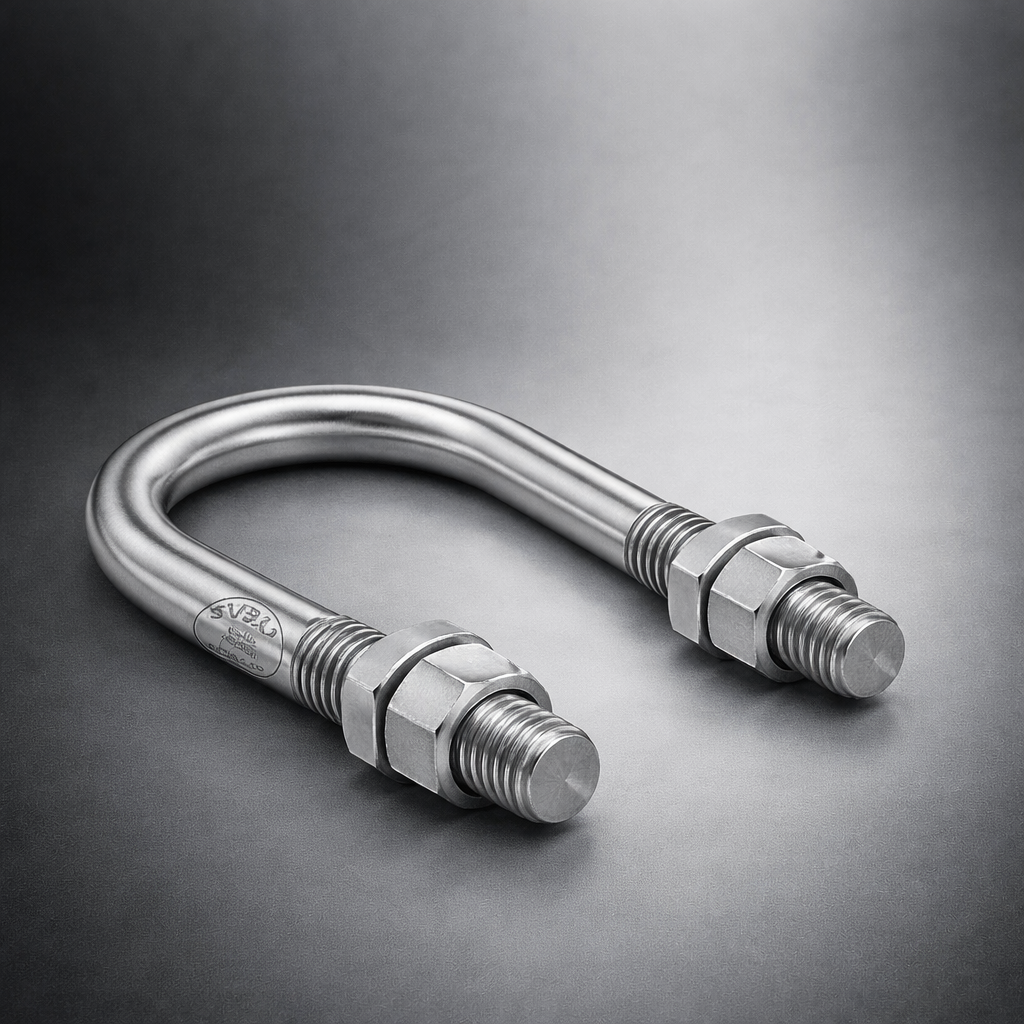

Round Bend U-Bolts

• Standard for circular pipes
• Common in pipe racks and sleepers

Square Bend U-Bolts

• Used for square or rectangular members
• Structural steel applications

Long Tangent vs Short Tangent

• Long tangent: Reduced stress concentration, preferred for cyclic loads
• Short tangent: Compact installations with lower load demand

Pipe Support vs Structural U-Bolts

Pipe support U-bolts are dimensioned and finished differently from structural restraint U-bolts, particularly regarding coating systems and tolerance control.

---

7️⃣ Material Selection & Service Conditions

Material choice is driven by environmental exposure, not pressure rating.

Carbon Steel

• Indoor or protected environments
• Requires coating for corrosion resistance

Alloy Steel

• Higher load capacity
• Controlled heat treatment required
• Limited corrosion resistance without coating

Stainless Steel

• Corrosive, offshore, or washdown environments
• Lower yield strength than alloy steel
• Galling risk must be addressed

Duplex & Super Duplex

• Chloride-rich environments
• Offshore and marine exposure
• High strength and corrosion resistance

Nickel Alloys

• High-temperature or aggressive chemical environments
• Specialized applications only

---

8️⃣ Standards & Code Alignment

U-bolts fall under support hardware standards, not pressure codes.

Typical EPC alignment includes:

• Dimensional standards for threaded fasteners
• Material specifications for rods and bars
• Coating and surface protection requirements

Explicit exclusion:
U-bolts are not governed by ASME pressure boundary codes and must not be specified as such.

---

9️⃣ Manufacturing & Quality Discipline

Forming Method

• Hot bending: Large diameters, heavy sections
• Cold forming: Smaller sizes, consistent geometry

Thread Rolling

Preferred over cut threads for:

• Improved fatigue performance
• Better surface finish
• Dimensional consistency

Heat Treatment

Applied where mechanical properties must meet defined grades.

Coating Integrity

Critical for:

• Long-term corrosion protection
• Coating adhesion at bend radius
• Avoidance of hydrogen embrittlement (where applicable)

---

🔟 Installation, Torque & Inspection View

Torque Control

• Excessive torque is a common failure cause
• Torque must align with pipe material, liner use, and support type

Liner Usage

Mandatory where:

• Coated pipes are installed
• Thin-wall pipes are supported
• Stress engineers specify load distribution requirements

Common Installation Failures

• Over-tightening without torque control
• Incorrect inside width selection
• Missing washers or liners
• Misaligned support steel

---

1️⃣1️⃣ EPC Procurement & Consultant Review Perspective

During approval, EPC teams verify:

• Dimensional compliance with pipe OD and coating
• Material grade suitability for environment
• Load calculations from piping stress analysis
• Coating system compatibility
• Traceability and inspection documentation

U-bolts are rejected if:

• Proposed for pressure-retaining use
• Used as flange fasteners
• Load data is undefined or assumed

---

1️⃣2️⃣ Application Mapping

Approved EPC applications include:

• Oil & Gas pipe racks
• Power plant auxiliary piping
• Refineries and petrochemical units
• LNG terminals and modules
• Hydrogen and specialty process piping
• Infrastructure and utility corridors

---

1️⃣3️⃣ Professional Technical Tables

Pipe Size vs Typical U-Bolt Dimensions

Nominal Pipe Size	Typical Rod Diameter
≤ 2″	M10 – M12
3″ – 6″	M16 – M20
8″ – 12″	M24 – M30
≥ 14″	Project-specific

---

Rod Diameter vs Indicative Load Range

Rod Ø	Typical Support Duty
M12	Light pipe supports
M20	Medium-duty racks
M30	Heavy-duty restraint

---

Material Grades vs Environment

Material	Environment
Carbon Steel	Indoor / dry
Stainless Steel	Corrosive / outdoor
Duplex	Offshore / marine
Nickel Alloy	High-temp / chemical

---

Coating Options

Coating	Purpose
HDG	General corrosion protection
PTFE	Chemical resistance
Xylan	Low friction & corrosion
Epoxy	Coated pipe compatibility

---

Approved vs Non-Approved Applications

Application	Status
Pipe support & guides	Approved
Equipment mounting	Approved
Flange bolting	Not permitted
Pressure joints	Not permitted

---

Custom Fabrication Options

• Non-standard inside widths
• Extended leg lengths
• Special bend radii
• Project-specific materials
• Full traceability and inspection records

---

1️⃣4️⃣ Manufacturer-Focused Conclusion

U-Bolts are critical pipe support and restraint components whose performance directly influences piping integrity, coating life, and stress behavior. Their correct application requires dimensional accuracy, load awareness, and strict exclusion from pressure-retaining misuse.

Super Industries manufactures U-bolts with engineering-controlled geometry, verified materials, and EPC-aligned quality discipline, ensuring suitability for demanding capital projects where pipe support reliability is non-negotiable.
