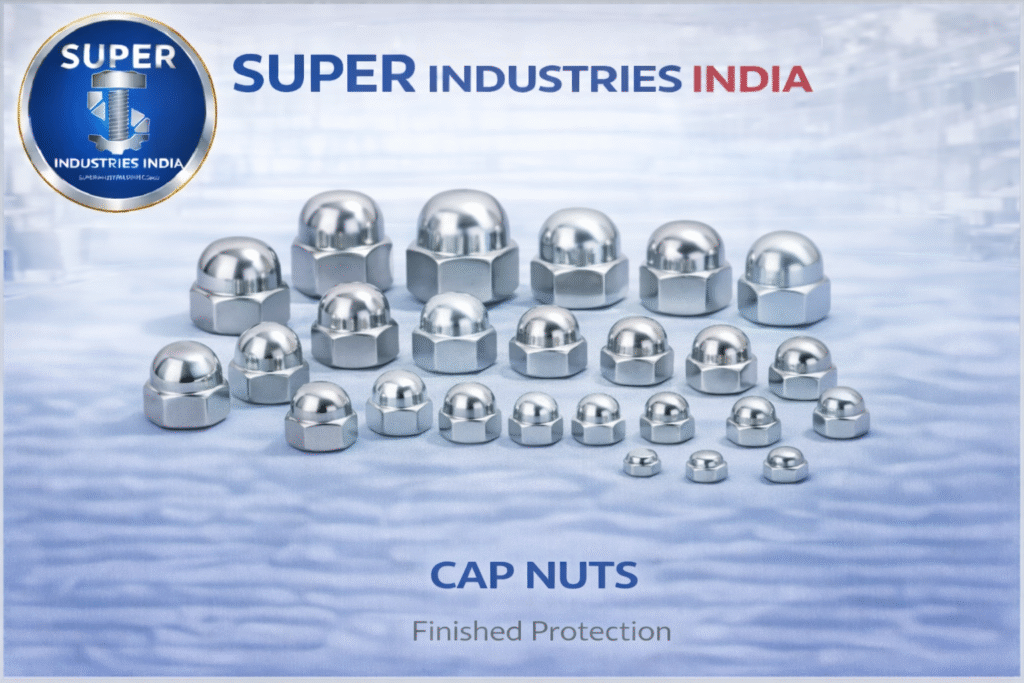

CAP NUTS

Protective Fastening for Personnel Safety, Thread Protection & Corrosion Control

Manufacturer & Global Exporter: Super Industries
Website: https://superindustriesindia.in

---

1️⃣ Industry Context

Why Cap Nuts Exist in EPC and Industrial Systems

In EPC, capital-project, and export-driven industrial environments, fasteners are not selected solely for load capacity. In many assemblies—particularly non-pressure, non-structural interfaces—fasteners must also address personnel safety, environmental exposure, and long-term maintainability.

Cap nuts, also known as dome nuts or acorn nuts, exist specifically to solve problems that standard hex nuts do not address:

• Exposed stud ends creating injury hazards
• Thread damage due to corrosion, contamination, or mechanical impact
• Poor aesthetics or snag points in walkways, enclosures, and guarded equipment
• Accumulation of dirt, chemicals, or moisture on exposed threads

Within EPC practice, cap nuts are protective fasteners, not structural upgrades. Their use is intentional and limited to applications where thread coverage and safety are more important than preload maximization or load transfer.

---

2️⃣ Technical Definition

What Cap Nuts Are and How the Closed-End Design Functions

A cap nut is a hex nut with a closed, domed end. Unlike a standard hex nut, which leaves the threaded fastener exposed, a cap nut fully encloses the protruding stud or bolt end up to a defined internal depth.

Key defining characteristics:

• Internal threads identical to a standard hex nut (same pitch and tolerance)
• Closed-end dome that prevents further stud protrusion
• External hex geometry for wrench engagement

The dome is not decorative by default. In industrial-grade cap nuts, the dome is a functional safety and protection feature.

---

3️⃣ Functional Engineering Purpose

What Cap Nuts Are Designed to Do

Cap nuts serve three primary engineering purposes:

Thread-End Protection

By enclosing the stud end, cap nuts protect threads from:

• Corrosion initiation
• Mechanical damage during maintenance
• Accidental cross-threading during reassembly

Injury Prevention

In walkways, access platforms, enclosures, and guards, exposed threads are a recognized hazard. Cap nuts eliminate:

• Laceration risk
• Clothing or glove snagging
• Impact injuries in confined spaces

Contamination Control

In dusty, chemical, or outdoor environments, the dome prevents:

• Dirt accumulation on threads
• Chemical ingress
• Moisture pooling at the thread root

---

4️⃣ Load & Joint Integrity Considerations

Why Cap Nuts Do Not Increase Load Capacity

A critical EPC clarification: cap nuts do not improve joint strength.

• Load capacity is governed by thread engagement, nut thickness, and material strength
• The dome does not contribute to load-bearing area
• The closed end can reduce usable thread engagement if incorrectly selected

Cap nuts must never be misinterpreted as:

• Structural fasteners
• High-load substitutions for heavy hex nuts
• Pressure-joint components

Their role is protective, not load-enhancing.

---

5️⃣ Types of Cap Nuts

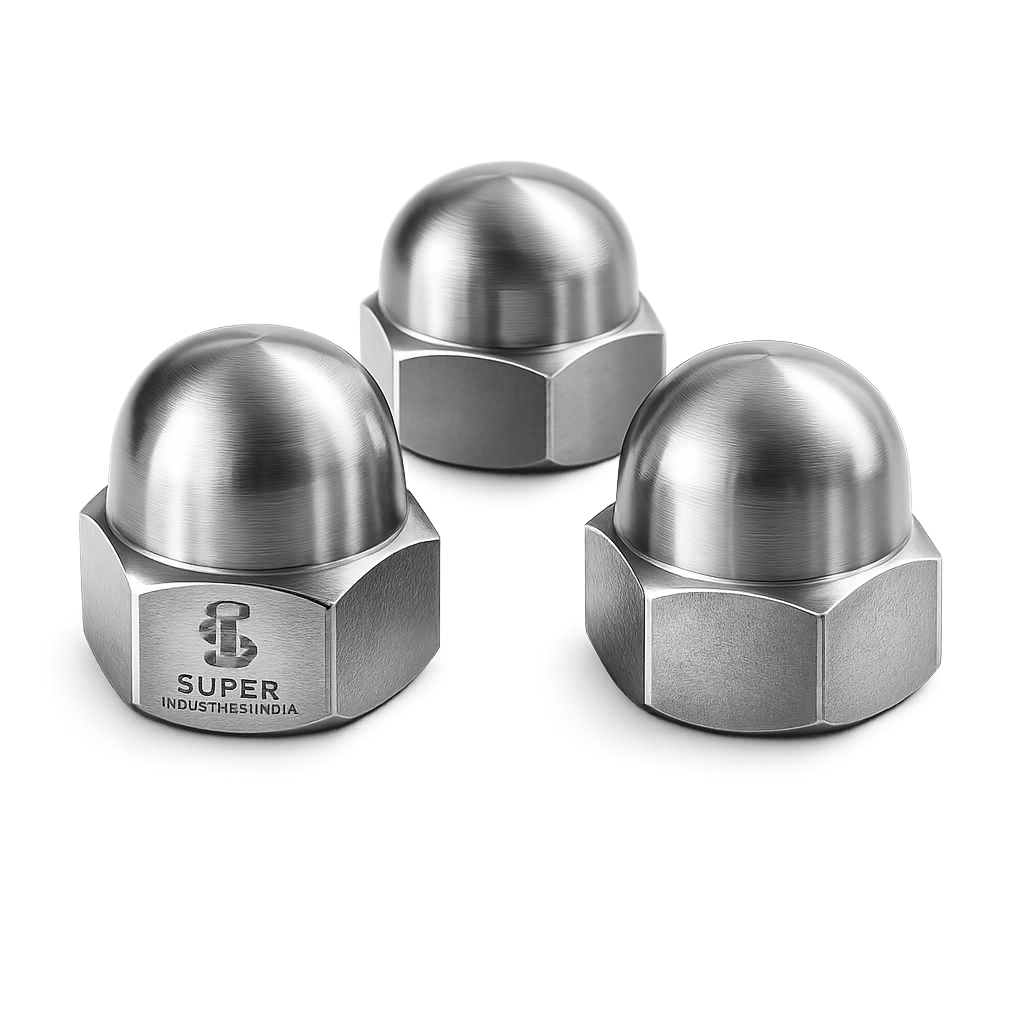

Dome (Acorn) Cap Nuts

The most common industrial form. Characterized by:

• Rounded dome
• Moderate internal depth
• Balanced protection and compact size

Low-Profile vs High-Dome Designs

Design	Engineering Intent
Low-profile	Minimal protrusion, limited internal clearance
High-dome	Greater stud coverage, higher internal depth

Decorative vs Industrial-Grade Cap Nuts

Decorative variants focus on appearance only. Industrial-grade cap nuts prioritize:

• Thread accuracy
• Dome concentricity
• Material and coating performance

EPC applications always require industrial-grade construction.

---

6️⃣ Dome Geometry & Clearance Logic

Internal Depth, Stud Protrusion & False Torque Risk

One of the most critical engineering risks with cap nuts is false torque.

This occurs when:

• The stud end contacts the inside of the dome
• The nut bottoms out internally
• Torque is applied without generating proper preload

Key engineering controls:

• Internal dome depth must exceed stud protrusion after tightening
• Stud length must be verified during design and installation
• Cap nuts must never be used to “hide” excess stud length

Incorrect dome selection leads to joint under-preload, not safety improvement.

---

7️⃣ Material Selection & Service Behavior

Carbon Steel

• General industrial use
• Requires coating for corrosion protection
• Limited outdoor durability without surface treatment

Stainless Steel

• Excellent corrosion resistance
• Suitable for outdoor, coastal, or washdown environments
• Galling risk must be managed with lubrication

Brass

• Non-sparking
• Corrosion-resistant in mild environments
• Limited mechanical strength

Material choice is driven by environment, not load.

---

8️⃣ Standards & Specification Alignment

Cap nuts are defined by dimensional and thread standards rather than pressure or structural codes. Common references include:

• Metric and unified thread standards
• Dimensional consistency for dome height and hex geometry
• Surface finish and marking rules

EPC acceptance boundaries typically exclude cap nuts from:

• Pressure joints
• Structural steel connections
• Load-path-critical assemblies

---

9️⃣ Manufacturing & Quality Discipline

Forming vs Machining

• Cold-formed cap nuts: Consistent geometry, good surface finish
• Machined cap nuts: Used for specialty alloys or tight tolerances

Dome Concentricity

The dome must be concentric with the thread axis to:

• Avoid uneven wall thickness
• Prevent stress concentrations
• Ensure predictable internal clearance

Thread Finish & Coating Integrity

Threads must be:

• Fully formed to tolerance
• Free from coating buildup that alters fit
• Verified with gauges

---

🔟 Installation, Torque & Inspection View

Torque Practice

Torque values are identical to standard nuts only if:

• Full thread engagement is achieved
• No internal bottoming occurs

Stud Length Verification

Installers must verify:

• Maximum allowable stud protrusion
• Internal dome clearance

Inspection Failure Indicators

• Nut feels “tight” prematurely
• No visible thread engagement at the bearing face
• Inconsistent torque readings

---

1️⃣1️⃣ EPC Procurement & Consultant Review Perspective

Cap nuts are approved where:

• Personnel safety is a concern
• Exposed threads present injury or corrosion risk
• Assemblies are non-pressure and non-structural

Cap nuts are rejected where:

• Preload accuracy is critical
• Structural load paths are involved
• Pressure containment depends on the fastener

---

1️⃣2️⃣ Application Mapping

Typical approved EPC applications include:

• Equipment guards and covers
• Electrical and instrumentation enclosures
• Handrails and access platforms
• Light equipment assemblies
• Temporary or frequently accessed panels

They are explicitly excluded from:

• Flanged pressure joints
• Structural steel bolting
• High-vibration load-bearing assemblies

---

1️⃣3️⃣ Professional Technical Tables

Thread Sizes & Standards

Thread System	Typical Range
Metric	M6 – M30
Unified	¼″ – 1¼″

---

Dome Height & Internal Depth (Indicative)

Size	Dome Height Range
M10	10–14 mm
M20	18–25 mm
M30	26–35 mm

---

Maximum Allowable Stud Protrusion

Nut Size	Max Protrusion (Typical)
M10	≤ 8 mm
M20	≤ 14 mm
M30	≤ 20 mm

---

Material Grades vs Environments

Material	Suitable Environment
Carbon Steel	Indoor, dry
Stainless Steel	Outdoor, corrosive
Brass	Non-sparking, mild

---

Approved vs Non-Approved Applications

Application	Approval Status
Guards & enclosures	Approved
Handrails	Approved
Pressure joints	Not permitted
Structural bolting	Not permitted

---

Project-Specific Customization Options

Option	Availability
Custom dome height	EPC-defined
Special alloys	On request
Coatings	As specified
Full traceability	Mandatory

---

1️⃣4️⃣ Manufacturer-Focused Conclusion

Cap Nuts (Dome Nuts / Acorn Nuts) are safety-oriented fastening components intended for thread protection, injury prevention, and environmental shielding. They are not load-enhancing devices and must be applied with strict awareness of their limitations.

Super Industries manufactures cap nuts with controlled internal depth, verified thread accuracy, and material integrity, ensuring EPC-safe application where protection—not load transfer—is the governing requirement.
