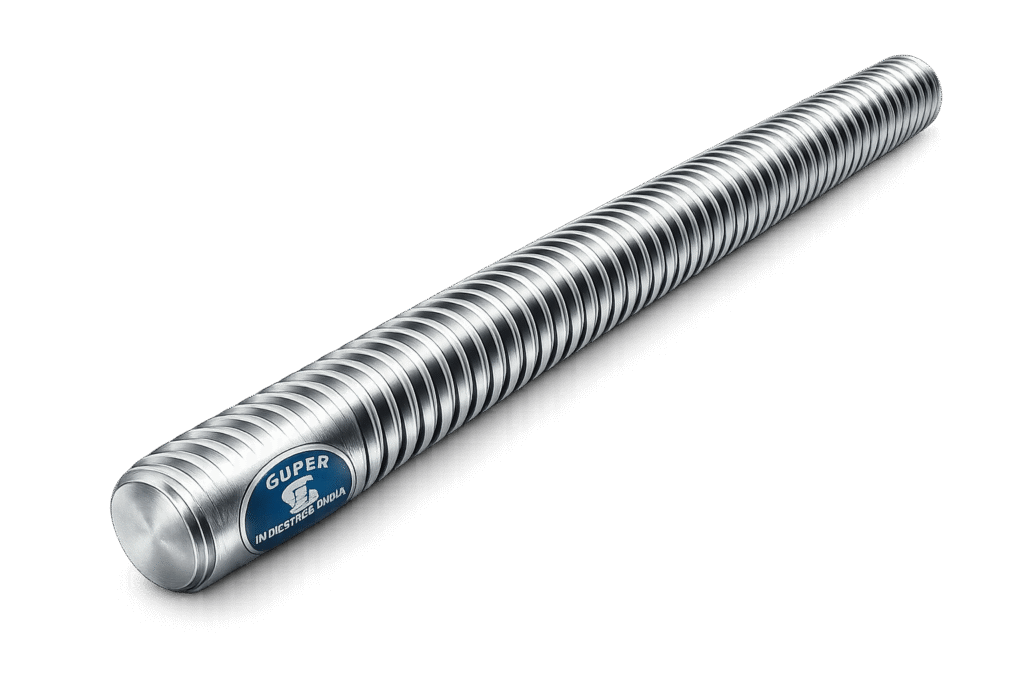

ZINC PLATED THREADED RODS

Continuously Threaded Rods for EPC, Industrial & Infrastructure Applications

Manufacturer & Global Exporter: Super Industries
Website: https://superindustriesindia.in

1️⃣ Industry Context

Why Zinc Plated Threaded Rods Are Essential in EPC Anchoring, Suspension, and Structural Fastening Systems

In EPC-driven projects, fastening systems are selected not only for strength but for predictability, adjustability, and lifecycle suitability. Zinc plated threaded rods are specified where engineers require continuous axial load paths combined with installation flexibility and controlled corrosion protection.

These rods are widely used across EPC scopes because they allow:

• Precise on-site adjustment of elevation and alignment
• Uniform tensile load transfer through nuts and washers
• Compatibility with modular support systems
• Economical corrosion protection for indoor and semi-protected environments

Unlike bolts or studs with fixed heads, zinc plated threaded rods function as linear tension members, making them indispensable in HVAC suspension, pipe supports, cable tray systems, and light structural bracing within industrial plants and infrastructure facilities.

Their specification is deliberate: zinc plated threaded rods are selected when hot-dip galvanizing is unnecessary or dimensionally restrictive, and when bare carbon steel would not meet corrosion expectations.

---

2️⃣ Technical Definition

What Zinc Plated Threaded Rods Are and Their Functional Intent

Zinc plated threaded rods are carbon steel rods with continuous external threading along the full length, finished with a controlled zinc coating applied by electroplating or mechanical plating.

Key defining characteristics:

• Full-length, uniform thread profile
• Supplied in standard bars or custom cut lengths
• Zinc coating thickness typically 5–25 μm
• Designed for use with standard hex nuts, coupling nuts, and washers

The functional intent is axial load transfer with positional flexibility, not head-bearing or shear resistance. Zinc plating provides initial corrosion protection while preserving tight thread tolerances essential for reliable nut engagement.

---

3️⃣ Mechanical Function

Tension Loading, Axial Force Transfer, and Clamping Behavior

Zinc plated threaded rods operate almost exclusively in tension. Load is transferred through:

1. The rod shank and threads
2. Nut-to-thread engagement
3. Washer-to-bearing surface interface

The continuous threading allows:

• Multiple nut positions along the length
• Easy adjustment of preload and elevation
• Uniform distribution of tensile stress across engaged threads

Because there is no head, the rod does not introduce localized bearing stresses typical of bolts. This makes threaded rods ideal for suspension and anchoring systems, where axial force continuity is critical.

---

4️⃣ Thread Geometry & Engagement

Pitch, Tolerance Class, Engagement Length, and Galling Prevention

Thread performance governs the mechanical reliability of threaded rods.

Engineering considerations include:

• Thread form: ISO metric or Unified (UNC/UNF)
• Pitch: Coarse threads preferred for site robustness; fine threads used where adjustment precision is required
• Tolerance class: Ensures predictable fit and preload behavior
• Engagement length: Adequate nut engagement is required to develop full tensile capacity

Thread rolling is the preferred manufacturing method because it:

• Preserves material grain flow
• Improves fatigue resistance
• Produces smoother surface finish
• Enhances thread flank strength

Zinc plating, when properly controlled, also helps reduce galling risk in steel-to-steel nut engagement, provided torque values are respected.

---

5️⃣ Zinc Plating Purpose

Corrosion Protection Mechanism and Service Environment Suitability

Zinc plating provides sacrificial corrosion protection. Zinc corrodes preferentially to steel, protecting the base metal until the zinc layer is consumed.

Typical service suitability:

• Indoor industrial environments
• HVAC plant rooms and utility corridors
• Covered infrastructure and enclosed facilities
• Mild outdoor exposure without constant moisture

Not intended for:

• Marine or coastal exposure
• Chemical splash zones
• Permanent outdoor structural exposure

For such environments, HDG or specialty coatings are engineered instead. Zinc plating is chosen when dimensional accuracy, clean threads, and controlled torque behavior are higher priorities than long-term atmospheric resistance.

---

6️⃣ Types of Threaded Rods

Fully Threaded, Manufacturing Method, and Length Configuration

Fully Threaded Rods

• Continuous threads along entire length
• Maximum flexibility for nut placement and coupling

Cut Thread vs Rolled Thread

• Rolled threads: Preferred for EPC use due to higher fatigue strength and dimensional consistency
• Cut threads: Used only where rolling is not feasible; reduced fatigue performance

Standard vs Custom Lengths

• Standard bar lengths (commonly 1 m, 2 m, 3 m)
• Factory cut-to-length rods with chamfered ends for EPC packages

---

7️⃣ Material Grades & Properties

Carbon Steel Selection and Mechanical Relevance

Zinc plated threaded rods are typically produced from low to medium carbon steels selected for balanced strength and ductility.

Key mechanical considerations:

• Yield strength sufficient for sustained tensile loading
• Adequate elongation to accommodate installation preload
• Compatibility with zinc plating processes

Material selection is driven by:

• Design load requirements
• Thread rolling feasibility
• Coating adhesion and durability

---

8️⃣ Standards & Specification Alignment

ASTM, ASME, DIN, and ISO Relevance

Zinc plated threaded rods are specified and verified against multiple international standards, depending on project geography and EPC practice.

Common references include:

• ASTM standards for material and dimensional requirements
• ISO / DIN standards for metric threads and tolerances
• Zinc coating standards defining thickness and adhesion

EPC documentation typically calls out:

• Thread standard (metric or inch)
• Material grade
• Coating type and thickness
• Inspection and certification requirements

---

9️⃣ Manufacturing & Quality Discipline

Thread Rolling, Plating Control, and Traceability

Thread Rolling

• Ensures consistent pitch and flank geometry
• Improves fatigue resistance
• Maintains straightness over long lengths

Straightness Control

• Critical for suspension systems to avoid bending stresses

Zinc Plating Process

• Controlled surface preparation
• Uniform coating deposition
• Post-plating passivation where specified

Hydrogen Embrittlement Control

• Process controls and baking (where required) for applicable strength grades

Traceability

• Heat number identification
• Batch-wise inspection records
• Material Test Certificates (MTCs)

---

🔟 Installation & Site Practices

Cutting, Coupling, Torque Control, and Handling

EPC-recommended practices include:

• Cutting rods using methods that preserve thread integrity
• Using compatible nuts and washers with matching tolerances
• Avoiding over-torque that may damage zinc coating
• Maintaining alignment to prevent secondary bending stresses

Coupling nuts are commonly used to extend rod length, and proper engagement on both sides is essential for load continuity.

---

1️⃣1️⃣ Inspection & EPC Verification

What Engineers, Inspectors, and Consultants Verify

Typical verification points:

• Diameter and thread pitch compliance
• Thread tolerance and surface finish
• Zinc coating thickness and uniformity
• Straightness over full length
• Review of MTCs and compliance documents

These checks ensure the threaded rod performs predictably within the engineered fastening system.

---

1️⃣2️⃣ Application Mapping

Where Zinc Plated Threaded Rods Are Used

Zinc plated threaded rods are widely used in:

• HVAC suspension systems
• Pipe support hangers and trapezes
• Cable tray suspension and alignment
• Light structural bracing
• Infrastructure service supports

They are not intended for primary load-bearing structural connections but are essential in secondary support systems that directly impact reliability and maintainability.

---

1️⃣3️⃣ Professional Technical Tables

Diameter & Length Ranges

Diameter	Typical Lengths
M6 – M24	1 m, 2 m, 3 m
¼” – 1”	3 ft, 6 ft, 10 ft

---

Thread Standards & Tolerances

Thread System	Typical Use
ISO Metric	Global EPC projects
UNC / UNF	US-based specifications

---

Zinc Coating Type & Thickness

Plating Method	Typical Thickness
Electro zinc	5–12 μm
Mechanical zinc	12–25 μm

---

Material Grades vs Applications

Material Type	Typical Application
Carbon steel (general)	HVAC, pipe supports
Higher-strength variants	Bracing, heavier suspended loads

---

Applicable Standards (Indicative)

Category	Reference
Threads	ISO / DIN / ASTM
Material	ASTM carbon steel grades
Coating	Zinc plating standards

---

Project-Specific Customization Options

• Cut-to-length supply
• Thread tolerance adjustment
• Project-specific marking and packaging
• EPC documentation packs

---

1️⃣4️⃣ Manufacturer-Focused Conclusion

Zinc Plated Threaded Rods are precision fastening elements whose reliability depends on:

• Consistent thread geometry
• Controlled zinc coating thickness
• Predictable mechanical properties
• EPC-aligned inspection and documentation

Super Industries manufactures zinc plated threaded rods with engineering discipline, ensuring:

• Rolled-thread accuracy
• Controlled plating processes
• Dimensional consistency across batches
• Documentation suitable for EPC and consultant approval

The result is technically dependable fastening performance in industrial and infrastructure environments where accuracy, cleanliness, and controlled corrosion protection are required.
