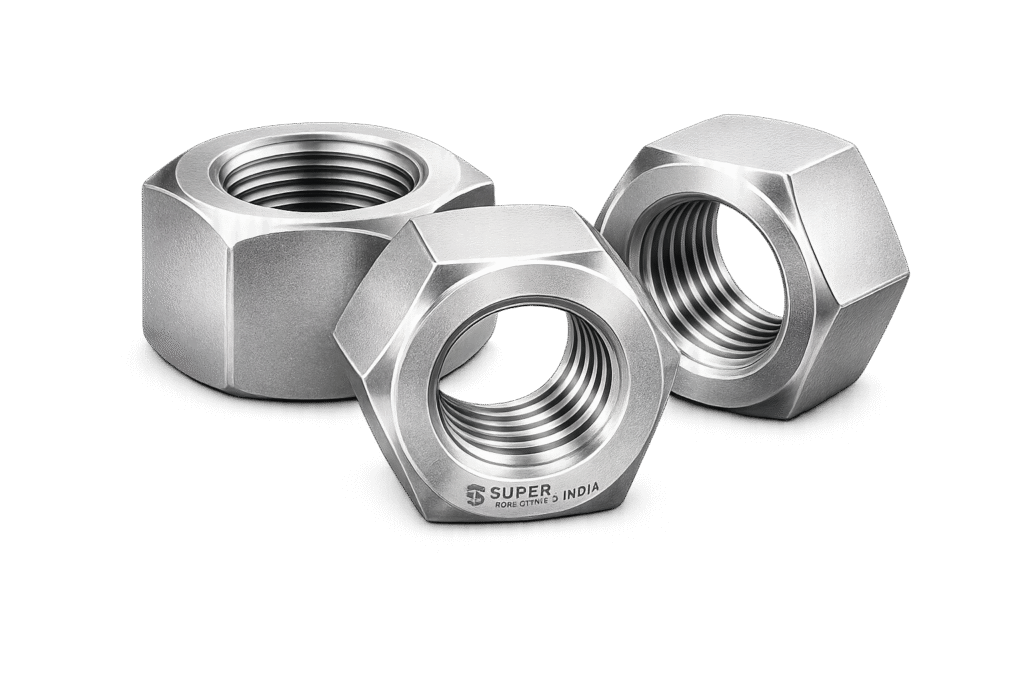

HEX NUTS

Primary Load-Bearing Fastening Interface for EPC, Pressure & Structural Assemblies

Manufacturer & Global Exporter: Super Industries
Website: https://superindustriesindia.in

---

1️⃣ Industry Context

Why Hex Nuts Are the Primary Fastening Interface in EPC Projects

Across EPC, capital projects, and export-driven industrial systems, hex nuts remain the most widely approved and technically predictable fastening element. Their continued dominance is not historical convenience—it is rooted in engineering logic, standardization maturity, and joint-integrity performance.

Hex nuts are used wherever:

• Preload must be accurately generated and retained
• Load paths are axial and well defined
• Inspection, replacement, and traceability are mandatory
• Global standards alignment is required

In pressure systems, structural steel, rotating equipment foundations, and high-temperature assemblies, the nut is the final controlling element of joint integrity. EPC consultants therefore treat hex nuts as primary load-bearing components, not accessories.

---

2️⃣ Technical Definition

What Hex Nuts Are and How They Function in Bolted Joints

A hex nut is a six-sided internally threaded fastener designed to mate with a bolt or stud, converting applied torque into axial clamping force. Its geometry allows:

• Controlled wrench engagement
• Uniform load transfer into the joint
• Predictable preload development

Unlike specialty locking nuts, a standard hex nut relies on:

• Proper thread engagement
• Adequate bearing surface contact
• Correct material strength relative to the bolt

The nut does not merely “hold” the bolt—it defines preload stability and directly influences fatigue life.

---

3️⃣ Role in Joint Integrity

Preload Generation, Load Transfer & Fatigue Behavior

In engineered joints, preload is the design objective, not torque. Hex nuts enable preload by:

• Advancing along the bolt thread under applied torque
• Compressing joint members between nut and bolt head

Key joint-integrity roles:

• Clamping force: Keeps joint members in compression
• Load sharing: External loads are resisted by friction until preload is overcome
• Fatigue resistance: Adequate preload minimizes stress cycling in the bolt

Loss of preload—due to relaxation, embedment, or incorrect nut selection—directly compromises joint reliability.

---

4️⃣ Geometry & Dimensional Logic

Why Across-Flats, Thickness & Bearing Face Matter

Hex nut geometry is fully standardized because dimensional variation alters stress distribution.

Critical geometric features:

• Across-Flats (AF): Determines wrench contact area and tightening stability
• Thickness (Height): Controls thread shear capacity and stripping resistance
• Bearing Face: Distributes compressive load into joint surface
• Chamfers: Protect threads during assembly and prevent edge loading

Insufficient thickness or bearing area increases:

• Localized bearing pressure
• Risk of thread stripping
• Long-term relaxation under load

---

5️⃣ Types of Hex Nuts

Standard Hex Nuts

• General EPC use
• Balanced geometry for most bolted joints

Heavy Hex Nuts

• Increased thickness and bearing area
• Preferred for structural and pressure bolting

Thin Hex Nuts

• Space-constrained applications only
• Not load-bearing substitutes

Structural Hex Nuts

• Designed for structural steel connections
• Used with high-strength structural bolts

Selection is driven by joint demand, not interchangeability.

---

6️⃣ Engineering Relevance of Nut Thickness & Mass

Stress Distribution & Relaxation Control

Nut thickness directly affects:

• Thread engagement length
• Shear stress per thread
• Resistance to embedment

Heavier nuts:

• Reduce bearing stress on joint surfaces
• Improve preload retention
• Offer better performance under cyclic loading

In pressure and structural systems, heavy hex nuts are often mandated to maintain safety margins.

---

7️⃣ Material Selection & Mechanical Properties

Carbon Steel

• Widely used for general EPC bolting
• Cost-effective, predictable behavior

Alloy Steel

• Higher strength classes
• Used where preload levels are elevated

Stainless Steel

• Corrosion resistance priority
• Lower yield strength must be considered

Duplex & Super Duplex

• High strength + corrosion resistance
• Used in offshore and chloride environments

Nickel Alloys

• High temperature or aggressive media
• Applied selectively due to cost

Material choice must match:

• Bolt grade
• Service temperature
• Corrosion exposure

---

8️⃣ Standards & Specification Alignment

Hex nuts are governed by globally harmonized standards covering:

• Dimensions
• Mechanical properties
• Material chemistry
• Inspection requirements

Common EPC-referenced frameworks:

• ASTM / ASME
• ISO
• DIN
• EN

Consultants verify:

• Grade compatibility with bolts
• Dimensional compliance
• Heat treatment conformity

Non-standard nuts are typically rejected unless explicitly approved.

---

9️⃣ Manufacturing & Quality Discipline

Forging vs Machining

• Forging: Preferred for grain flow and fatigue resistance
• Machining: Used for special alloys or tight tolerances

Heat Treatment

• Establishes mechanical properties
• Must be controlled and documented

Thread Accuracy

• Ensures uniform load sharing
• Prevents galling and stress concentration

Traceability & Inspection

• Heat number marking
• Dimensional checks
• Mechanical testing

Manufacturing discipline directly influences joint reliability, not just compliance.

---

🔟 Installation, Torque & Inspection View

Torque–Tension Relationship

• Torque is an indirect control method
• Friction variability affects achieved preload

Lubrication Effects

• Changes torque coefficient
• Must be accounted for in tightening procedures

Inspection Checkpoints

• Correct nut orientation
• Full thread engagement
• Surface damage or galling

QA/QC teams focus on assembly correctness, not just component certification.

---

1️⃣1️⃣ EPC Procurement & Consultant Review Perspective

Before approval, EPC teams verify:

• Nut grade matches bolt grade
• Dimensions comply with referenced standard
• Material certification and traceability
• Coating compatibility

Hex nuts are rarely challenged when correctly specified, but quickly rejected when mismatched.

---

1️⃣2️⃣ Application Mapping

Hex nuts are standard in:

• Oil & Gas pressure piping
• Power plant equipment
• Structural steel connections
• LNG and hydrogen systems
• Infrastructure bolting

Their predictability makes them the default fastening interface in engineered systems.

---

1️⃣3️⃣ Professional Technical Tables

Thread Sizes & Standards

Thread Standard	Typical Range
Metric	M6 – M100
Unified	¼″ – 4″

---

Hex Nut Dimensions (Indicative)

Type	Thickness	Bearing Area
Standard Hex	Medium	Standard
Heavy Hex	Increased	Larger

---

Mechanical Grades & Property Classes

Standard	Example Grades
ASTM	A194, A563
ISO	8, 10, 12
DIN	Property-class based

---

Material Grades vs Service Conditions

Material	Typical Use
Carbon Steel	General EPC
Alloy Steel	High preload
Stainless Steel	Corrosive
Duplex	Offshore

---

Coating & Surface Finish Options

Finish	Purpose
Plain	Controlled environments
Zinc / Hot-Dip	Atmospheric protection
PTFE / Special	Controlled friction

---

Project-Specific Customization Options

Option	Availability
Special materials	EPC-approved
Non-standard dimensions	On request
Traceability marking	Mandatory

---

1️⃣4️⃣ Manufacturer-Focused Conclusion

Hex Nuts are not commodity items in EPC projects—they are critical joint-integrity components. Their geometry, material, and manufacturing discipline directly influence preload stability, fatigue life, and long-term safety.

Super Industries manufactures hex nuts with strict dimensional control, metallurgical discipline, and EPC-aligned quality systems, supporting pressure, structural, and high-reliability applications without deviation from engineering intent.
