SOCKET HEAD CAP SCREWS

Precision High-Tensile Fasteners for EPC, Heavy Equipment & Export Projects

Manufacturer & Global Exporter: Super Industries
Website: https://superindustriesindia.in

---

Industry Context

Why Socket Head Cap Screws Are Critical in Precision Assemblies, High-Load Joints, and Space-Constrained EPC Systems

In EPC, heavy equipment manufacturing, and capital-intensive industrial projects, fasteners are selected not for convenience but for controlled load transfer, repeatable preload, and geometric compatibility with compact assemblies. Socket Head Cap Screws (SHCS) are a primary fastening solution wherever:

• High tensile strength is required in limited envelope space
• Accurate preload must be applied and maintained
• External wrench clearance is restricted
• Machined assemblies demand precise head seating and alignment

Across Oil & Gas skids, compressors, pumps, rotating machinery, power-generation equipment, LNG modules, hydrogen systems, and infrastructure machinery, SHCS are specified because they deliver high clamp force per unit diameter, with predictable behavior under cyclic loading.

From an EPC and consultant standpoint, Socket Head Cap Screws are treated as engineered fasteners, not commodity hardware. Approval depends on material grade, heat treatment, dimensional accuracy, surface integrity, and traceability. Improvised or downgraded substitutions are routinely rejected during audits.

This page documents Socket Head Cap Screws strictly as engineering components, written for EPC engineers, inspectors, and procurement specialists.

---

Technical Definition

What Socket Head Cap Screws Are, Their Geometry, and How They Differ from Hex Bolts and Countersunk Screws

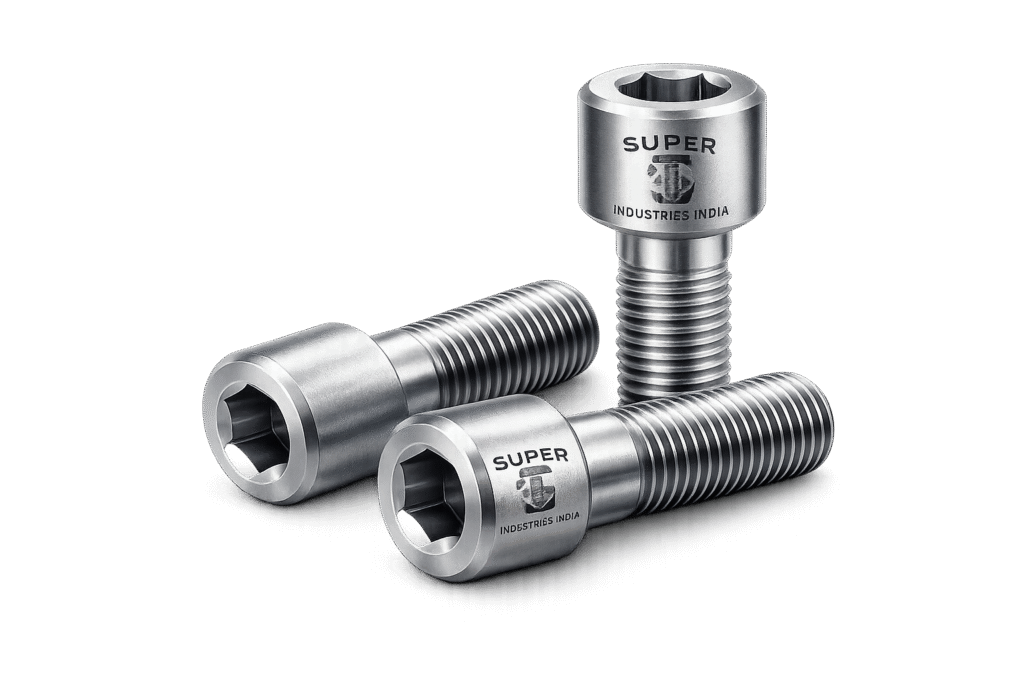

A Socket Head Cap Screw is a cylindrical-head fastener with an internal hexagonal (Allen) drive, designed to be tightened using a hex key or torque tool. Unlike hex bolts, torque is applied internally rather than on external flats.

Defining Characteristics

• Cylindrical head with flat bearing surface
• Internal hex socket for torque application
• Typically manufactured to high tensile strength classes
• Optimized for compact, machined assemblies

Distinction from Other Fasteners

Socket Head Cap Screws vs Hex Bolts

• SHCS allow tightening where spanner clearance is limited
• Higher tensile strength for the same nominal diameter
• More consistent torque-to-tension behavior

Socket Head Cap Screws vs Countersunk Screws

• SHCS provide bearing-face clamping, not flush seating
• Countersunk screws rely on head-angle contact and are not equivalent in clamp integrity

In EPC specifications, these distinctions are explicitly enforced.

---

Engineering Performance Characteristics

Clamping Force, Preload Consistency, Tensile Strength, and Fatigue Behavior

Clamping Force & Preload

Socket Head Cap Screws are selected where controlled preload is critical. Their cylindrical head provides:

• Uniform bearing pressure
• Minimal head deformation
• Predictable friction behavior

When correctly lubricated and torqued, SHCS provide repeatable preload, essential in rotating and pressure-adjacent equipment.

Tensile Strength

Typical alloy-steel SHCS exceed the tensile strength of standard hex bolts of similar diameter. This allows:

• Smaller fastener diameters
• Reduced joint footprint
• Higher clamp load in compact designs

Fatigue Resistance

Fatigue performance depends on:

• Thread form and surface finish
• Correct grip length selection
• Avoidance of shear loading across threads

In EPC machinery, SHCS are normally installed so that shear planes pass through the unthreaded shank whenever possible.

---

Drive & Head Geometry Logic

Internal Hex Accuracy, Head Height, Bearing Surface, and Torque Transfer

Internal Hex Drive

The hex socket is precision-broached and must meet strict dimensional tolerances:

• Proper tool engagement
• Minimal cam-out
• Uniform torque transfer

Deviations in socket depth or corner geometry are common rejection points during inspection.

Head Geometry

• Head height is standardized to balance strength and compactness
• Flat bearing face ensures even load distribution
• Chamfered edges prevent stress concentration

From a consultant perspective, head geometry directly affects joint reliability.

---

Socket Head Cap Screw Types & Variants

Standard, Low-Head, Shoulder Variants, and Thread Configurations

Standard Socket Head Cap Screws

• Most widely used
• High tensile capacity
• Suitable for general machinery and EPC fabrication

Low-Head Socket Screws

• Reduced head height
• Used where vertical clearance is extremely limited
• Lower load capacity than standard SHCS

Shoulder Variants

• Precision ground shoulder for alignment or pivoting
• Used in equipment assemblies, fixtures, and tooling

Thread Configurations

• Coarse thread: general-purpose, higher stripping resistance
• Fine thread: improved preload control, vibration resistance

Metric series dominate EPC and export projects.

---

Material & Standard Alignment

ASTM, ASME, DIN, ISO Compliance and Service-Condition Selection

Common Materials

Alloy Steel (Quenched & Tempered)

• High tensile and yield strength
• Standard for heavy-duty machinery
• Typically supplied with black oxide finish

Stainless Steel (A2 / A4 Classes)

• Corrosion resistance
• Lower tensile strength than alloy steel
• Used where environmental exposure dictates

Standards Framework

Socket Head Cap Screws are typically manufactured in alignment with:

• ISO / DIN dimensional standards
• ASTM material logic where applicable
• ASME pressure-system compatibility requirements (by application)

Consultants verify standard compliance, not just nominal size.

---

Manufacturing & Quality Discipline

Cold Forging, Thread Rolling, Heat Treatment, and Inspection Control

High-integrity SHCS manufacturing requires:

• Controlled raw-material chemistry
• Precision cold forging for head consistency
• Accurate internal hex broaching
• Thread rolling (not cutting) for fatigue resistance
• Heat treatment for uniform hardness
• Surface finishing without micro-cracking

Inspection regimes typically include:

• Dimensional checks
• Hardness testing
• Visual and surface integrity inspection
• Lot-wise traceability

---

Procurement, Installation & Inspection View

What EPC Engineers, Inspectors, and Consultants Verify

During vendor approval and site inspection, the following are reviewed:

• Grade and strength class markings
• Head and socket dimensions
• Thread form and pitch
• Surface condition and finish
• Material test certificates (when specified)
• Batch traceability

Improper substitution of lower-grade socket screws is a known non-conformance risk.

---

Application Mapping

Where Socket Head Cap Screws Are Legitimately Used

Typical EPC Applications

• Pumps and compressors
• Gearboxes and drive systems
• Turbines and power equipment
• Oil & Gas skids and modules
• LNG and hydrogen systems
• Heavy industrial machinery
• Infrastructure equipment assemblies

Explicit Exclusions

• Applications requiring flush surfaces (use CSK screws)
• Situations demanding external wrench access only
• Improvised structural use without design validation

---

Professional Technical Tables

Sizes & Length Ranges

Diameter	Typical Length Range
M4 – M6	Precision assemblies
M8 – M12	Machinery & equipment
M16 – M24	Heavy EPC systems

---

Strength Classes & Grades

Material	Typical Use
Alloy steel (high tensile)	Heavy machinery
Stainless steel	Corrosive environments

---

Material Options vs Applications

Environment	Recommended Material
Indoor machinery	Alloy steel
Outdoor / corrosive	Stainless steel

---

Surface Finish & Coating Options

Finish	Purpose
Black oxide	Dimensional accuracy
Plain / oiled	Assembly flexibility
Passivated SS	Corrosion resistance

---

Custom Manufacturing Capabilities

• Non-standard lengths
• Special head heights
• Controlled tolerance classes
• Project-specific batches

---

Manufacturer-Focused Conclusion

Socket Head Cap Screws are fundamental to precision engineering in EPC, energy, and industrial systems. Their performance is defined not by appearance, but by material quality, geometric accuracy, heat treatment discipline, and installation integrity.

When incorrectly manufactured or substituted, they introduce preload loss, fatigue cracking, and joint instability. When engineered and controlled correctly, they deliver reliable clamp force, repeatable assembly, and long-term service stability in demanding environments.

Super Industries manufactures Socket Head Cap Screws with controlled metallurgy, precise geometry, consistent heat treatment, and documented traceability, supporting EPC, OEM, and export projects where engineering accountability is mandatory.
