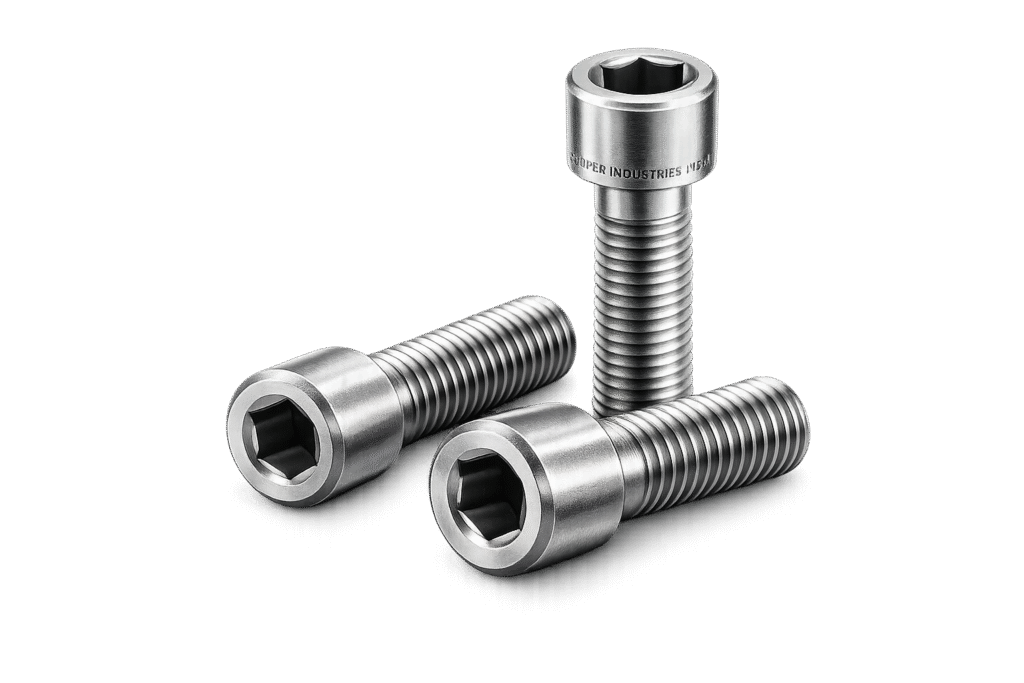

ALLEN CAP BOLTS

Hex Socket Head Cap Screws for High-Strength, Precision EPC Assemblies

Manufacturer & Global Exporter: Super Industries
Website: https://superindustriesindia.in

---

1️⃣ Industry Context

Why Allen Cap Bolts Are Preferred in High-Strength, Space-Constrained, Precision Assemblies

In EPC projects, the selection of a fastener is dictated not by convenience but by load path, space availability, assembly accuracy, and long-term reliability. Allen cap bolts—technically known as hex socket head cap screws—are specified where traditional external-drive bolts are either impractical or structurally inefficient.

Across power plants, refineries, LNG modules, rotating equipment skids, compressors, pumps, and precision machinery, Allen cap bolts are used because they allow high clamp force within a compact head envelope. This makes them particularly suitable for:

• Dense mechanical layouts with limited wrench swing
• High-strength joints requiring predictable preload
• Repetitive assembly and disassembly during maintenance
• Equipment interfaces where alignment accuracy is critical

From an EPC perspective, Allen cap bolts are not chosen for appearance; they are chosen because their geometry and mechanical behavior align with engineering constraints commonly encountered in industrial equipment and packaged systems.

---

2️⃣ Technical Definition

What Allen Cap Bolts Are: Geometry and Dimensional Logic

Allen cap bolts are cylindrical-head fasteners driven by an internal hexagonal socket. Unlike hex bolts, the drive feature is recessed into the head, allowing torque to be applied without external flats.

Core geometric characteristics include:

• Cylindrical head with defined head height
• Internal hex socket with controlled depth and corner radii
• Precision-rolled threads with standardized pitch
• Bearing surface under the head designed for direct contact

The dimensional logic of Allen cap bolts is governed by international standards to ensure consistent head height, socket size, and load capacity across manufacturers. This consistency is essential for EPC projects where fasteners may be sourced globally but must remain interchangeable.

---

3️⃣ Functional Engineering Logic

Internal Hex Drive and Torque Transmission

The internal hex drive of Allen cap bolts enables high torque transmission without increasing head diameter. From an engineering standpoint, this provides several advantages:

• Torque is applied concentrically, reducing eccentric loading
• No external wrench clearance is required
• Tool engagement remains stable even in recessed locations

Because torque is transferred through the internal socket walls, the accuracy of socket geometry directly affects installation quality. Poorly formed sockets lead to rounding, reduced torque capacity, and installation damage—conditions unacceptable in EPC-controlled assemblies.

---

4️⃣ Load & Preload Behavior

Tensile Loading, Clamp Force, and Preload Consistency

Allen cap bolts are primarily designed to operate in tension, generating clamp force that holds joint members together through friction. Key considerations include:

• Tensile stress in the shank and threaded portion
• Preload accuracy achieved during tightening
• Resistance to fatigue under cyclic loading

Compared to external-drive bolts of similar diameter, Allen cap bolts often achieve higher usable preload due to their high-strength material classes and efficient head geometry. This makes them suitable for machinery joints where vibration and dynamic loads are present.

---

5️⃣ Head Design & Space Efficiency

Compact Geometry for Constrained Installations

One of the defining reasons Allen cap bolts are specified is space efficiency. The cylindrical head:

• Requires minimal radial clearance
• Can be recessed into counterbored holes
• Allows flush or near-flush assembly surfaces

In skid-mounted equipment, pump housings, gearboxes, and structural brackets, this compact geometry allows designers to reduce overall envelope size without compromising joint strength.

---

6️⃣ Mechanical Property Classes

Strength Levels and Fatigue Relevance

Allen cap bolts are commonly manufactured in high-tensile alloy steel and stainless steel grades. Mechanical properties considered during specification include:

• Yield strength, which governs elastic behavior
• Tensile strength, which defines ultimate capacity
• Elongation, which influences ductility and fatigue resistance

High-strength classes are selected where preload retention and vibration resistance are critical, while stainless grades are used where corrosion resistance takes priority over maximum strength.

---

7️⃣ Standards Alignment

ASTM, ASME, DIN, and ISO Governance

Allen cap bolts are governed by well-established international standards that define:

• Head dimensions and socket geometry
• Thread form and tolerance class
• Mechanical property requirements

Alignment with ASTM, DIN, and ISO standards ensures that Allen cap bolts supplied into EPC projects meet consultant-approved dimensional and mechanical expectations, simplifying technical submittals and inspections.

---

8️⃣ Manufacturing & Quality Discipline

From Raw Material to Finished Fastener

The performance of an Allen cap bolt depends on manufacturing control at every stage:

1. Cold forging to form the head and shank
2. Precision broaching of the internal hex socket
3. Thread rolling to improve fatigue resistance
4. Heat treatment to achieve specified mechanical properties
5. Dimensional inspection of head, socket, and threads

Socket accuracy is particularly critical. In EPC environments, socket rounding or inconsistent depth is treated as a quality defect due to its direct impact on installation torque and reusability.

---

9️⃣ Surface Finish & Corrosion Protection

Selection Based on Environment and Function

Common surface finishes for Allen cap bolts include:

• Black oxide: Minimal dimensional impact, indoor or controlled environments
• Zinc plating: Moderate corrosion resistance for general industrial use
• Stainless steel: Corrosion-resistant material for aggressive or hygienic environments

Finish selection is made based on service environment, inspection criteria, and torque consistency, not aesthetics.

---

🔟 Installation & Torque Control

Proper Tool Engagement and Assembly Practice

Correct installation of Allen cap bolts requires:

• Properly sized hex keys or torque tools
• Clean socket engagement without debris
• Controlled tightening to specified torque or preload

Over-torqueing or using worn tools leads to socket damage, which compromises both preload accuracy and future maintenance. EPC procedures therefore emphasize tool control and torque discipline.

---

1️⃣1️⃣ EPC Procurement & Inspection View

What Engineers and Inspectors Verify

During procurement and site inspection, EPC teams verify:

• Dimensional conformity of head, socket, and thread
• Mechanical property compliance via MTCs
• Surface finish and coating thickness (if applicable)
• Lot traceability and marking

These checks ensure that Allen cap bolts installed in critical equipment meet the same quality expectations as other load-bearing components.

---

1️⃣2️⃣ Application Mapping

Where Allen Cap Bolts Are Commonly Used

Allen cap bolts are widely used in:

• Pumps, compressors, and rotating equipment
• Gearboxes and drive assemblies
• Power generation equipment
• Skid-mounted process units
• Structural brackets and machinery frames

In each application, the common requirement is high clamp force in limited space, coupled with predictable mechanical behavior.

---

1️⃣3️⃣ Professional Technical Tables

Diameter & Length Ranges

Diameter	Typical Length Range
M3 – M64	6 mm – 300 mm
¼” – 2½”	¼” – 12”

---

Thread Standards

System	Thread Form
Metric	ISO coarse / fine
Inch	UNC / UNF

---

Property Classes & Materials

Material	Typical Use
Alloy steel	High-strength machinery joints
Stainless steel	Corrosive environments

---

Surface Finishes vs Environment

Finish	Environment
Black oxide	Indoor, dry
Zinc plated	General industrial
Stainless	Corrosive / hygienic

---

Applicable Standards

Category	Reference
Dimensions	DIN / ISO
Materials	ASTM / ISO
Threads	ISO / ASME

---

Customization Options

• Special lengths and tolerances
• Fine thread variants
• Project-specific marking
• Export-compliant packaging

---

1️⃣4️⃣ Manufacturer-Focused Conclusion

Allen Cap Bolts are precision fasteners whose performance depends on:

• Accurate internal hex geometry
• Controlled mechanical properties
• Consistent thread quality
• EPC-aligned inspection and documentation

Super Industries manufactures Allen cap bolts with engineering discipline and process control, ensuring suitability for high-strength, space-constrained, and inspection-critical EPC applications.
