SHOULDER BOLTS

Precision Alignment & Shear-Controlled Fasteners — EPC / OEM / Export Standard

Manufacturer & Global Exporter: Super Industries
Website: https://superindustriesindia.in

---

1️⃣ Industry Context

Role of Shoulder Bolts in Precision Alignment and Controlled-Motion Assemblies

In EPC projects, OEM equipment supply, and capital machinery packages, shoulder bolts occupy a fundamentally different role from conventional structural or pressure fasteners. They are not selected for maximum clamp force; they are selected for dimensional accuracy, alignment control, and predictable shear behavior.

Across Oil & Gas packages, Power equipment skids, Petrochemical machinery, LNG modules, Hydrogen systems, and industrial automation, shoulder bolts are routinely specified where:

• Rotational or sliding motion must be controlled
• Components must remain precisely aligned over time
• Shear loads dominate over tensile loads
• Repeatable assembly and disassembly are required

From an engineering standpoint, shoulder bolts sit at the intersection of fastening, alignment, and machine design. Their misuse as general-purpose bolts is a common failure mode that EPC consultants actively screen out during technical review.

---

2️⃣ Technical Definition

What Shoulder Bolts Are — and What They Are Not

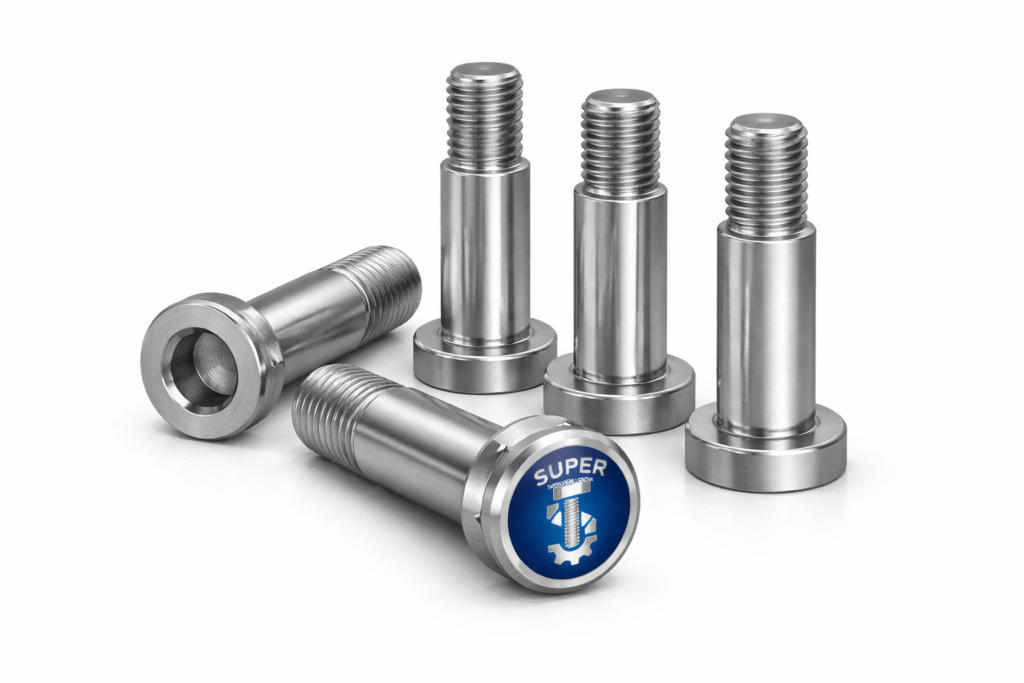

A shoulder bolt (also called a shoulder screw) is a precision fastener consisting of:

• A smooth, unthreaded shoulder with controlled diameter and length
• A short threaded section used primarily for retention, not load bearing
• A defined fillet radius between shoulder and thread
• A machined or ground surface finish on the shoulder

Key distinctions:

Fastener Type	Primary Load Role
Shoulder bolt	Shear, alignment, rotation
Hex bolt	Tensile preload, clamping
Stud bolt	Pressure joint fastening
Dowel pin	Alignment only (no retention)

A shoulder bolt combines alignment accuracy (like a dowel) with retention capability (like a bolt)—but it is not a substitute for either in incorrect applications.

---

3️⃣ Functional Engineering Purpose

Shoulder bolts are intentionally selected to perform controlled mechanical functions, including:

Alignment

Maintaining concentricity between mating components such as linkages, levers, and brackets.

Pivoting

Providing a fixed-diameter journal for rotating parts without fretting or ovalization.

Sliding & Linear Motion

Acting as a guide pin where controlled linear travel is required.

Spacing

Defining precise stand-off distances between components without relying on washers or shims.

Repeatable Assembly

Allowing disassembly without loss of positional accuracy.

Each of these functions depends on shoulder geometry, not thread engagement.

---

4️⃣ Shear vs Tensile Load Behavior

Why the Shoulder Carries the Load

A defining engineering principle of shoulder bolts is that shear load must be carried by the shoulder, not the threads.

Correct Load Path

• Applied load transfers into the smooth shoulder
• Contact occurs over the full cylindrical surface
• Stress is distributed uniformly

Incorrect Load Path

• Load transfers into threaded section
• Stress concentrations occur at thread roots
• Premature fatigue or shear failure results

For this reason, EPC specifications often state explicitly:

“Threaded portion shall not be located in shear plane.”

---

5️⃣ Dimensional Logic

Geometry That Governs Performance

Shoulder bolts are dimension-critical components. Each parameter has a defined mechanical role.

Shoulder Diameter

• Governs shear capacity
• Controls fit (clearance, transition, or interference)

Shoulder Length

• Must fully span the shear plane
• Should not bottom out before clamping occurs

Thread Length

• Provides retention only
• Must allow full nut or tapped-hole engagement

Fillet Radius

• Reduces stress concentration
• Critical for fatigue resistance

Concentricity

• Misalignment leads to uneven wear and binding

Unlike general bolts, shoulder bolts cannot tolerate dimensional ambiguity.

---

6️⃣ Tolerance & Surface Finish Control

Why Precision Matters

In EPC and OEM environments, shoulder bolts are frequently specified with tight tolerance classes:

• Diameter tolerance: H7 / h6 / equivalent
• Roundness & cylindricity: Controlled for rotation
• Surface roughness: Typically Ra ≤ 0.8–1.6 µm for bearing surfaces

Poor surface finish leads to:

• Accelerated wear
• Galling in stainless steels
• Loss of positional accuracy

Precision grinding is often required when shoulder bolts function as journals or guide pins.

---

7️⃣ Types of Shoulder Bolts

Standard Shoulder Screws

• Commercial tolerance
• Suitable for moderate alignment and shear

Precision Ground Shoulder Bolts

• Tight diameter control
• Used in rotating or sliding assemblies

Custom Shoulder Length Bolts

• Designed to suit specific stack-ups
• Common in OEM equipment

Metric vs Inch Series

• Metric: ISO-based systems
• Inch: ASME / ANSI-based equipment

Selection depends on fit class, motion requirement, and inspection philosophy.

---

8️⃣ Material Selection & Heat Treatment

Material choice is driven by wear behavior, fatigue life, and environment, not pressure rating.

Alloy Steel (Heat Treated)

• High shear strength
• Good fatigue resistance
• Requires corrosion protection

Stainless Steel

• Corrosion resistance
• Lower hardness unless work-hardened
• Galling risk must be addressed

Special Alloys

• Used where temperature or chemical exposure demands
• Typically custom-engineered

Heat treatment must balance:

• Core strength
• Surface hardness
• Dimensional stability

---

9️⃣ Standards & Specification Alignment

Shoulder bolts are governed by precision fastener standards, not pressure codes.

Typical alignment includes:

• ISO / DIN dimensional standards
• ASME / ASTM material specifications
• OEM-specific drawings and tolerances

Consultants focus less on nominal grade and more on:

• Dimensional inspection records
• Surface finish documentation
• Process repeatability

---

🔟 Manufacturing & Quality Discipline

Machining Sequence

1. Turning of blank
2. Shoulder grinding (where required)
3. Thread rolling or cutting
4. Heat treatment
5. Final inspection

Critical Controls

• Shoulder-to-thread concentricity
• Diameter repeatability
• Surface integrity after heat treatment

Quality discipline is what differentiates a precision shoulder bolt from a modified hex bolt.

---

1️⃣1️⃣ Installation & Inspection View

Assembly Considerations

• Shoulder must seat fully in shear plane
• Threads must not carry transverse load
• Torque applied only to retain, not preload

Inspection Focus

• Shoulder wear patterns
• Fretting or scoring
• Loss of fit over service life

Replacement intervals are often based on wear, not failure.

---

1️⃣2️⃣ EPC Procurement & Consultant Review Perspective

During approval, EPC engineers and inspectors verify:

• Dimensional drawings and tolerances
• Material certificates and heat treatment records
• Surface finish compliance
• Application justification (shear vs tensile use)

Shoulder bolts are rejected when:

• Proposed as flange bolts
• Used in pressure-retaining joints
• Dimensional control is undocumented

---

1️⃣3️⃣ Application Mapping

Approved industrial applications include:

• Rotating machinery linkages
• Actuators and valve mechanisms
• Automation and robotics assemblies
• OEM equipment and skids
• Industrial tooling and fixtures

They are not pressure fasteners and must never be represented as such.

---

1️⃣4️⃣ Professional Technical Tables

Shoulder Diameter vs Indicative Shear Capacity*

Shoulder Ø	Typical Duty
≤ 6 mm	Light mechanisms
8–12 mm	Medium assemblies
≥ 16 mm	Heavy equipment

*Indicative only; project calculations govern.

---

Shoulder Length vs Application

Length Type	Typical Use
Short	Compact joints
Medium	Standard pivots
Custom	Multi-part stack-ups

---

Material Grades vs Use Cases

Material	Typical Environment
Alloy Steel	High shear, indoor
Stainless Steel	Corrosive
Special Alloy	High temp / chemical

---

Dimensional Tolerance Ranges

Feature	Typical Control
Diameter	h6–h7
Length	±0.02–0.05 mm
Concentricity	Tight OEM-defined

---

Custom Manufacturing Options

• Ground shoulders
• Non-standard diameters
• Special fillet radii
• Coatings for wear control
• Full inspection documentation

---

1️⃣5️⃣ Manufacturer-Focused Conclusion

Shoulder Bolts are precision-engineered components whose performance depends on geometry, tolerance, and surface control, not marketing claims or nominal grades. Their correct use ensures alignment integrity, predictable shear behavior, and long-term reliability in mechanical systems.

Super Industries manufactures shoulder bolts with process-controlled machining, verified dimensions, and EPC-aligned inspection discipline, making them suitable for critical OEM and capital-project applications where precision is non-negotiable.
