Nickel–Iron–Chromium Alloys for High-Temperature & Corrosive Service | EPC / Export / MNC Standard
Manufacturer & Global Exporter: Super Industries
Website: https://superindustriesindia.in
1️⃣ Industry Context
Why Incoloy Alloys Are Essential in EPC and Capital Projects
In EPC-driven industries, material selection failures most often occur at the intersection of elevated temperature, sustained pressure, and aggressive chemical exposure. Standard stainless steels lose strength at high temperatures, while many nickel-rich alloys optimized for corrosion alone may not deliver the required creep resistance or long-term dimensional stability.
Incoloy alloys were developed specifically to address this gap. Their nickel–iron–chromium base chemistry provides a balanced combination of:
- High-temperature mechanical stability
- Resistance to oxidation, carburization, and metal dusting
- Controlled thermal expansion behavior
- Compatibility with pressure equipment and piping codes
For EPC contractors and consultants, Incoloy is not a specialty material used sparingly—it is a strategic alloy system routinely specified in fired heaters, reformers, heat exchangers, pressure vessels, high-temperature piping, and auxiliary systems across Oil & Gas, Power, Petrochemical, LNG, Hydrogen, and Fertilizer projects.
2️⃣ Technical Definition
What Incoloy Is and How It Differs from Other Alloy Systems
Incoloy refers to a family of nickel–iron–chromium alloys engineered to provide high-temperature strength and corrosion resistance while retaining good fabricability and cost efficiency compared with fully nickel-based systems.
Alloying Philosophy
- Iron forms a significant portion of the matrix, improving cost-efficiency and thermal expansion compatibility
- Nickel stabilizes the austenitic structure and enhances high-temperature strength
- Chromium provides oxidation and corrosion resistance
Comparison with Other Materials
- Austenitic stainless steels: Limited creep strength and oxidation resistance above ~600 °C
- Monel: Excellent corrosion resistance, but limited high-temperature capability
- Hastelloy: Superior corrosion resistance, but often higher cost and less optimized for long-term creep
- Inconel: Higher nickel content, optimized for extreme temperature and stress, typically used where Incoloy reaches its limits
Incoloy alloys are selected when long-term thermal stability and corrosion resistance must coexist under pressure.
3️⃣ Engineering & Service Relevance
High-Temperature Strength, Oxidation & Long-Term Stability
High-Temperature Strength
Incoloy alloys maintain mechanical integrity over extended service periods at elevated temperatures, making them suitable for components subjected to creep and stress rupture conditions.
Oxidation and Carburization Resistance
Chromium content provides a stable oxide layer, while nickel limits carburization and metal dusting in hydrocarbon-rich environments.
Corrosion Behavior
Incoloy alloys perform well in:
- High-temperature aqueous environments
- Acidic and neutral process streams
- Mixed gas atmospheres
Long-Term Dimensional Stability
Controlled grain size and stable austenitic structure reduce distortion and loss of tolerance in long-duration service.
4️⃣ Chemical Composition & Metallurgical Logic
Role of Key Elements in Incoloy Alloys
Nickel
- Stabilizes austenitic structure
- Enhances creep strength
- Improves resistance to thermal fatigue
Iron
- Provides structural backbone
- Improves thermal expansion compatibility with carbon steel systems
Chromium
- Forms protective oxide layer
- Improves resistance to oxidation and sulfidation
Aluminum & Titanium (Selected Grades)
- Promote precipitation strengthening
- Improve high-temperature strength and stability
Carbon (Controlled)
- Grain-boundary strengthening in high-temperature grades
- Controlled to avoid embrittlement
The precise balance of these elements determines whether an Incoloy grade is optimized for creep resistance, corrosion resistance, or combined service.
5️⃣ Incoloy Grades & Selection Logic
Matching Alloy Grade to Service Conditions
Incoloy 800 / 800H / 800HT
- Designed for high-temperature service
- Excellent resistance to oxidation and carburization
- 800H/HT grades feature controlled carbon and grain size for creep resistance
Incoloy 825
- Enhanced corrosion resistance due to higher nickel and molybdenum
- Suitable for acid environments and wet process streams
Incoloy 901
- Precipitation-hardened alloy
- High strength at elevated temperatures
- Used in high-stress, high-temperature rotating or structural components
Selection Logic Summary
- Sustained high temperature: Incoloy 800H / 800HT
- Corrosive aqueous service: Incoloy 825
- High stress + temperature: Incoloy 901
6️⃣ Mechanical Properties & Service Behavior
Creep Resistance, Fatigue & Fabrication Implications
Mechanical Performance
Incoloy alloys provide:
- High yield and tensile strength at temperature
- Resistance to creep deformation
- Stable ductility over long service life
Temperature Capability
Depending on grade, continuous service temperatures can exceed 800 °C, subject to design code limits.
Fatigue Behavior
In cyclic thermal service, Incoloy alloys resist crack initiation due to stable microstructure and controlled grain size.
Fabrication Implications
- Higher strength requires controlled forming operations
- Machining parameters must account for work hardening
- Welding procedures must maintain grain structure and alloy chemistry
7️⃣ Standards & Specification Alignment
Incoloy alloys are covered by major international standards, ensuring EPC acceptance.
Applicable Standards
- ASTM: Pipes, tubes, fittings, flanges, bars, fasteners
- ASME Section II: Material properties and allowable stresses
- EN / ISO / DIN: International and regional project compliance
This alignment enables global sourcing and consultant approval without deviation.
8️⃣ Manufacturing & Quality Discipline
Melting & Refining
Controlled melting routes (VIM / AOD) ensure:
- Precise chemistry
- Low inclusion content
- Consistent high-temperature behavior
Forging & Machining Control
- Controlled deformation ratios
- Grain flow aligned with service loads
Heat Treatment
- Solution annealing
- Stabilization or aging where applicable
- Grain-size control for creep performance
Traceability & Inspection Philosophy
- Heat-wise traceability
- PMI verification
- Dimensional and surface inspection aligned with EPC ITPs
9️⃣ Procurement, Fabrication & Inspection View
EPC and Consultant Verification Focus
During approval and execution, EPC teams verify:
- Certified chemical composition
- Mechanical and creep properties
- Heat-treatment records
- PMI and NDT results
- Welding procedure qualification
Incoloy components are typically reviewed with high scrutiny due to their role in pressure and temperature-critical systems.
🔟 Application Mapping
Oil & Gas
Fired heaters, reformers, high-temperature piping.
Power
Boilers, superheaters, heat recovery systems.
Petrochemical
Cracking units, reformers, high-temperature reactors.
LNG
Process heaters and auxiliary systems.
Hydrogen
High-temperature, high-purity systems.
Fertilizer & Chemical Processing
Reforming units, acid handling at elevated temperatures.
Infrastructure
High-temperature industrial installations.
1️⃣1️⃣ Professional Technical Tables
Chemical Composition – Typical Ranges
| Grade | Ni % | Fe % | Cr % | Mo % |
|---|---|---|---|---|
| Incoloy 800 | ~32 | Balance | ~21 | – |
| Incoloy 800H/HT | ~32 | Balance | ~21 | – |
| Incoloy 825 | ~42 | ~30 | ~21 | ~3 |
| Incoloy 901 | ~42 | ~30 | ~13 | – |
Mechanical Properties (Indicative)
| Grade | Yield Strength (MPa) | Tensile Strength (MPa) |
|---|---|---|
| 800 | ~210 | ~520 |
| 800H/HT | ~240 | ~550 |
| 825 | ~240 | ~550 |
| 901 | ~700 | ~1030 |
Maximum Typical Service Temperatures
| Grade | Approx. Limit |
|---|---|
| 800 | ~800 °C |
| 800H/HT | ~870 °C |
| 825 | ~600 °C |
| 901 | ~650 °C |
Corrosion Resistance vs Environment
| Environment | Suitability |
|---|---|
| Oxidizing atmospheres | Excellent |
| Carburizing gases | Very good |
| Acidic aqueous service | Grade-dependent |
| Chlorides | Good |

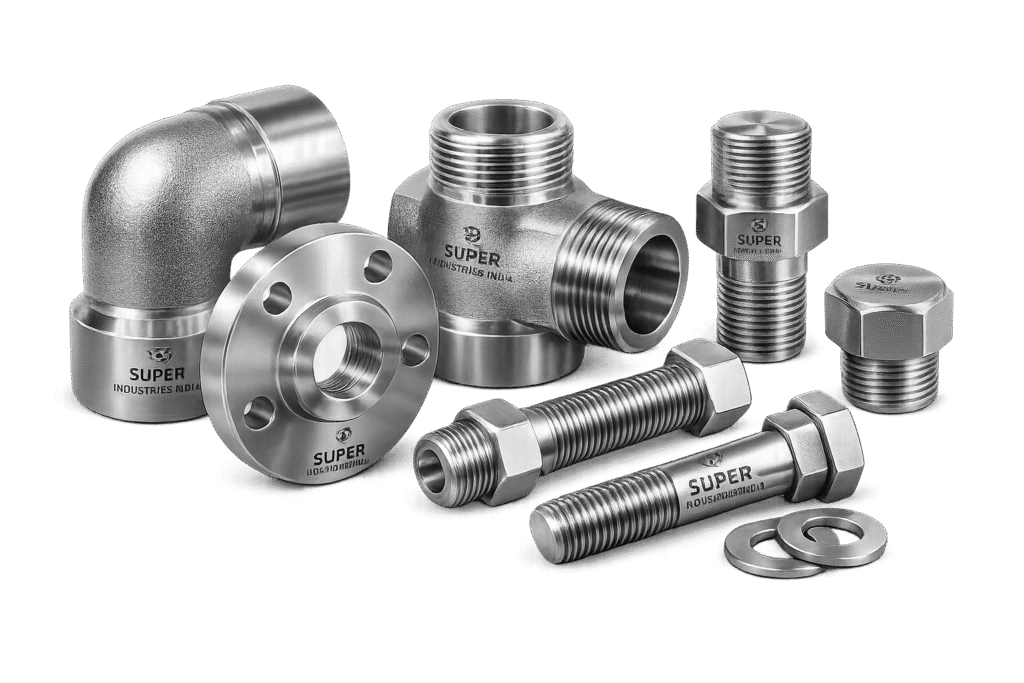

Typical Product Forms
| Product | Availability |
|---|---|
| Pipes & Tubes | Seamless / welded |
| Forged Fittings | Elbows, tees, outlets |
| Flanges | All pressure classes |
| Fasteners | Bolts, studs, nuts |
Incoloy Grades vs Applications
| Application | Recommended Grade |
|---|---|
| Fired heaters | 800H / 800HT |
| Acid service piping | 825 |
| High-stress components | 901 |
Project-Specific Customization Options
| Parameter | Options |
|---|---|
| Product form | Pipe, fitting, flange, fastener |
| Size & rating | As per EPC MTO |
| Heat treatment | As specified |
| Inspection | PMI, UT, PT |
| Certification | EN 10204 3.1 / 3.2 |
1️⃣2️⃣ Manufacturer-Focused Conclusion
Incoloy alloys are selected when long-term exposure to heat, pressure, and aggressive environments makes conventional materials unreliable. Their performance depends on alloy chemistry, grain-size control, heat treatment discipline, and rigorous inspection.
Super Industries manufactures and supplies Incoloy components under controlled metallurgical and quality systems aligned with EPC and consultant expectations. Our materials-engineering expertise, traceability discipline, and export-ready documentation support safe alloy selection and reliable service in high-temperature and corrosion-critical applications.
Unyielding Performance: Incoloy Fasteners for High-Temperature, High-Pressure Service
For industrial applications demanding exceptional resistance to both high heat and aqueous corrosion, specialized materials are essential. Super Industries India, a leading manufacturer and supplier of high-integrity fasteners in India, provides a comprehensive range of Incoloy fasteners. These unique Nickel-Iron-Chromium alloys are the go-to choice for severe service in furnace, heat-treating, and chemical environments across India and the globe.
What are Incoloy Alloys? The Iron-Nickel Superalloys
Incoloy is a family of superalloys distinguished by a high percentage of Iron (typically 25%−45%) along with Nickel and Chromium. This balanced composition grants them the strength and corrosion resistance of nickel-based alloys at a potentially lower cost and improved formability compared to pure Nickel-Chromium alloys like Inconel.
The key benefit of Incoloy alloys is their superior resistance to various forms of deterioration:
- Oxidation and Carburization: Excellent stability and strength retention in high-temperature air and controlled furnace atmospheres.
- Aqueous Corrosion: Strong resistance to sulfuric acid, nitric acid, and caustics.
- Stress Corrosion Cracking (SCC): High resistance, especially in chloride and caustic environments.
- Creep and Rupture Strength: Maintains mechanical properties under prolonged exposure to high temperatures and stress.
Essential Incoloy Grades for Critical Fastener Applications
At Super Industries India, our focus is on manufacturing fasteners from the most reliable and widely specified Incoloy grades, ensuring optimum material performance for your specific needs.
1. Incoloy 800 / 800H / 800HT (UNS N08800 / N08810 / N08811)
This series of alloys is the base material for high-temperature structural integrity.
- Incoloy 800: Excellent resistance to oxidation and carburization.
- Incoloy 800H/800HT: These variations have controlled carbon content and are annealed at higher temperatures, resulting in superior creep-rupture strength at temperatures above 600∘C (1110∘F).
- Applications: Heat exchangers, industrial furnace components, cracking tubes, and high-temperature bolting in chemical processing.
2. Incoloy 825 (UNS N08825)
- Composition: Contains additions of Molybdenum, Copper, and Titanium, which significantly boost its resistance to aqueous corrosion.
- Properties: Offers exceptional resistance to sulfuric and phosphoric acids, as well as excellent protection against pitting, crevice corrosion, and chloride ion stress corrosion cracking.
- Applications: Fasteners for equipment handling highly corrosive chemicals, acid production, spent nuclear fuel reprocessing, and oil & gas well tubing (sour gas service).
3. Incoloy 925 (UNS N09925)
- Composition: A precipitation-hardenable version of Incoloy 825. It contains controlled amounts of Titanium and Aluminum.
- Properties: By undergoing aging heat treatment, this alloy achieves very high strength (comparable to some Inconel grades) while retaining the superb corrosion resistance of Incoloy 825.
- Applications: High-strength bolting for sour gas service (NACE MR0175 compliance), downhole oil and gas components, and critical marine fasteners.
Manufacturing Standards and Fastener Integrity
Manufacturing fasteners from specialty alloys like Incoloy requires precise control over hot-working temperatures and subsequent heat treatments to achieve the necessary mechanical properties. Super Industries India employs advanced techniques in its facility to ensure every component meets the strictest specifications.
Key Compliance and Testing
Our Incoloy fasteners are certified to meet major international material standards:
- ASTM B407: For Incoloy 800/800H/800HT Seamless Pipe and Tube (raw material guidance).
- ASTM B425: For Incoloy 825 Rod, Bar, and Wire.
- ASTM B805: For Incoloy 925 Rod and Bar.
- NACE MR0175 / ISO 15156: Critical certification for sour service applications in the oil and gas industry, frequently required for Incoloy 825 and 925.
- Material Test Certificates (MTCs): Provided for all critical components, ensuring full traceability and verified chemistry.
Incoloy Fastener Product Range
We supply a comprehensive portfolio of Incoloy components, often customized to project specifications:
- Incoloy Stud Bolts & Hex Bolts: Used for flange connections on pressure vessels and piping.
- Incoloy Heavy Hex Nuts: Designed for high-stress applications with maximum bearing surface.
- Incoloy Threaded Rods: Custom cut and chamfered to precise lengths.
- Custom Forged Parts: Manufactured to specific drawings for valves, pumps, and reactors.
Incoloy Fasteners: Securing India’s Future Energy and Chemical Processing
As a dedicated Incoloy Fastener Supplier in India, Super Industries India plays a crucial role in supporting the nation’s heavy industries. Our fasteners are vital for preventing costly equipment failures and ensuring continuous operation in sectors such as:
- Petrochemical & Chemical: Bolting for reactors and heat exchangers exposed to corrosive acids and high heat.
- Oil & Gas Exploration: Fasteners for wellhead equipment and processing plants handling sour gas and corrosive fluids.
- Heat Treating Industry: Fixtures, baskets, and furnace elements requiring stability above 1000∘C.
- Power Generation: Superheater and reheater components in thermal power plants.
Require high-temperature and corrosion-resistant Incoloy 825 or high-strength Incoloy 925 fasteners?
Contact Super Industries India—Your expert partner for the supply of certified Incoloy and other Nickel Alloy fastening solutions.
