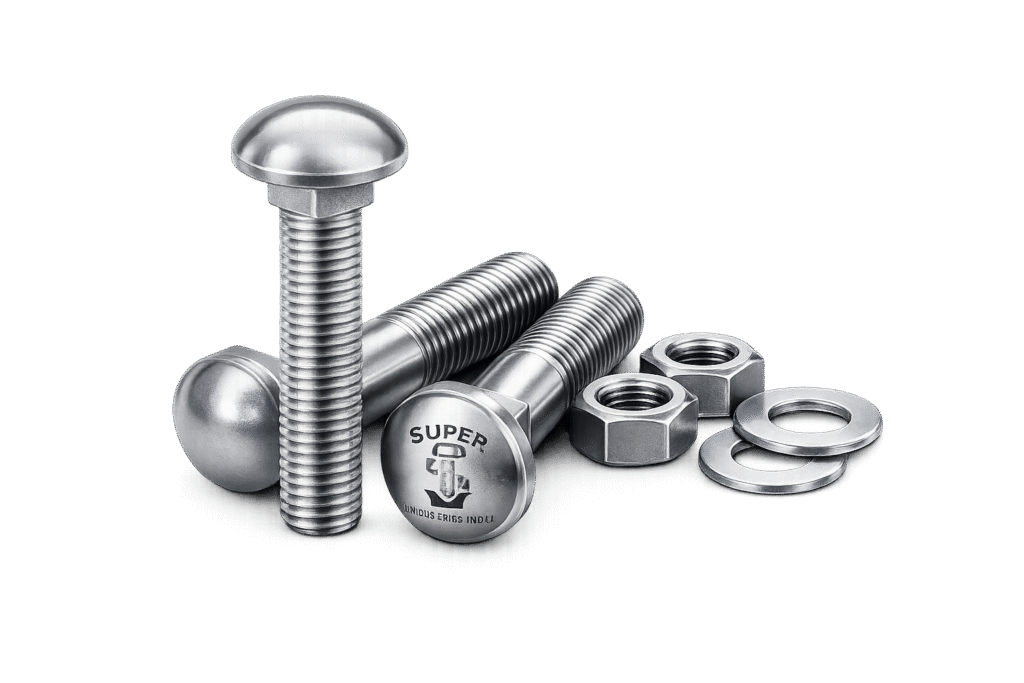

CARRIAGE BOLTS

Round Head Square Neck Bolts for Anti-Rotation and Shear-Dominant EPC Assemblies

Manufacturer & Global Exporter: Super Industries
Website: https://superindustriesindia.in

---

1️⃣ Industry Context

Why Carriage Bolts Are Used Where Tamper Resistance, Flush Surfaces, and Controlled Rotation Matter

In EPC and export-driven industrial projects, fastener selection is governed by load direction, assembly access, surface requirements, and operational security. Carriage bolts—defined by their round head and square neck—are specified in applications where a smooth external surface and anti-rotation during tightening are required without reliance on a spanner at the bolt head.

Across infrastructure frameworks, equipment skids, fabricated assemblies, and secondary structural systems, carriage bolts are used when:

• Access is available on only one side of the joint
• External surfaces must remain smooth, snag-free, or tamper-resistant
• Shear forces dominate over high tensile preload requirements
• Assembly speed and repeatability are required in fabrication yards

Unlike hex bolts, carriage bolts are not selected for maximum tensile performance. They are selected because their geometry solves a specific assembly and operational constraint commonly encountered in EPC fabrication and installation environments.

---

2️⃣ Technical Definition

What Carriage Bolts Are: Round Head with Square Neck Geometry

Carriage bolts are fasteners characterized by:

• A domed or round head with no external drive features
• A square neck directly beneath the head
• A partially threaded shank or fully threaded shank, depending on standard
• A nut-driven tightening mechanism from the exposed end

The round head provides a smooth external finish, while the square neck is designed to seat into a matching square or tight-tolerance round hole, preventing bolt rotation when torque is applied to the nut.

This geometry differentiates carriage bolts from hex bolts, countersunk bolts, and socket head fasteners, making them suitable for one-sided tightening and anti-tamper applications.

---

3️⃣ Functional Engineering Logic

Anti-Rotation Through Square Neck Engagement

The defining functional feature of a carriage bolt is the square neck. During installation:

1. The square neck is pulled into the base material or a prepared square recess
2. As the nut is tightened, the neck resists rotational forces
3. Torque is transferred axially, not rotationally, through the bolt

From an engineering standpoint, the square neck provides passive anti-rotation, eliminating the need for a tool on the bolt head. This is particularly valuable in:

• Fabrication assemblies where rear access is restricted
• Installations where bolt heads must remain inaccessible
• Structures exposed to vibration where head rotation could loosen surface interfaces

The effectiveness of this mechanism depends on neck dimensional accuracy and material hardness, both of which are controlled during manufacturing.

---

4️⃣ Load Behavior

Shear-Dominant vs Tensile-Dominant Applications

Carriage bolts are primarily used in shear-loaded joints rather than high-preload tensile joints. Engineering considerations include:

• Shear loading: The unthreaded shank (where present) provides a consistent shear plane
• Tensile loading: Limited compared to high-strength hex or socket head bolts
• Bearing stress: Distributed through the square neck and bearing surface

In EPC design, carriage bolts are specified where:

• Joint slip is controlled by bearing and shear rather than friction
• Excessive preload is unnecessary or undesirable
• Structural alignment is maintained through geometry rather than clamp force

They are not intended for pressure boundary joints or high-fatigue tensile applications.

---

5️⃣ Head & Neck Design Relevance

Why Round Heads and Square Necks Are Selected

The round head serves multiple engineering purposes:

• Eliminates protruding edges that could snag cables, clothing, or equipment
• Provides a visually clean and low-profile external surface
• Reduces tampering risk, as no drive feature is accessible

The square neck complements this by:

• Locking the bolt against rotation during nut tightening
• Providing consistent alignment within the joint
• Transferring installation torque into axial clamping force

Together, this geometry is particularly effective in fabricated steel, timber interfaces, and light structural connections commonly found in infrastructure and equipment support systems.

---

6️⃣ Material Strength & Property Classes

Mechanical Performance Considerations

Carriage bolts are manufactured in several material categories, each selected based on service conditions rather than maximum strength alone:

• Carbon steel: General structural and fabrication use
• Alloy steel: Higher strength requirements where permitted by design
• Stainless steel: Corrosion resistance in outdoor or aggressive environments

Key mechanical properties considered include:

• Yield strength for elastic performance
• Tensile strength for ultimate capacity
• Ductility for installation tolerance and impact resistance

EPC specifications typically align material selection with load case, corrosion environment, and inspection regime.

---

7️⃣ Standards Alignment

ASTM, ASME, DIN, and ISO Governance

Carriage bolts are produced in accordance with international standards that define:

• Head diameter and height
• Square neck dimensions
• Thread form and tolerance
• Mechanical property requirements

Alignment with ASTM, DIN, and ISO standards ensures interchangeability and acceptance across EPC projects, simplifying consultant review and third-party inspection.

---

8️⃣ Manufacturing & Quality Discipline

From Forging to Finished Fastener

The performance of a carriage bolt is directly tied to manufacturing discipline:

1. Cold or hot forging of the head and square neck
2. Thread rolling to improve fatigue resistance and dimensional accuracy
3. Heat treatment where required for mechanical properties
4. Dimensional inspection of neck size, head geometry, and threads

Square neck accuracy is critical. Undersized necks lead to rotation during tightening; oversized necks cause installation damage. EPC-grade supply therefore emphasizes tight dimensional control and repeatable forging quality.

---

9️⃣ Surface Finish & Corrosion Protection

Selection Logic Based on Environment

Common finishes for carriage bolts include:

• Plain / self-finish: Indoor, controlled environments
• Zinc plated: General industrial and fabrication use
• Hot-dip galvanized: Outdoor and infrastructure exposure
• Stainless steel: Corrosive or hygienic environments

Finish selection affects not only corrosion resistance but also fit of the square neck and nut torque behavior, which are considered during specification.

---

🔟 Installation & Assembly Considerations

Hole Preparation, Seating, and Torque Practices

Proper installation of carriage bolts requires attention to:

• Hole size and tolerance to ensure square neck seating
• Alignment of joint members before tightening
• Controlled nut tightening to avoid crushing softer materials

Inspection during assembly typically verifies that the square neck is fully seated and that no rotation occurs during tightening—an immediate indicator of correct fit.

---

1️⃣1️⃣ EPC Procurement & Inspection View

What Engineers and Inspectors Verify

During procurement and site inspection, EPC teams focus on:

• Dimensional conformity of head, neck, and thread
• Material certification and mechanical properties
• Surface finish and coating thickness
• Batch traceability and marking

These checks ensure that carriage bolts perform as intended within their designed shear and alignment roles.

---

1️⃣2️⃣ Application Mapping

Typical EPC and Infrastructure Uses

Carriage bolts are commonly used in:

• Infrastructure frameworks and secondary steel
• Power and utility structures
• Equipment skids and base frames
• Fabricated assemblies with one-sided access

Their role is consistently tied to anti-rotation, smooth surfaces, and shear-controlled joints.

---

1️⃣3️⃣ Professional Technical Tables

Diameter & Length Ranges

Diameter	Typical Length Range
M6 – M24	20 mm – 300 mm
¼” – 1”	¾” – 12”

---

Thread Standards

System	Thread Form
Metric	ISO coarse
Inch	UNC

---

Material Grades & Properties

Material	Typical Application
Carbon steel	Structural fabrication
Alloy steel	Higher load joints
Stainless steel	Corrosive environments

---

Surface Finishes vs Environment

Finish	Environment
Plain	Indoor
Zinc plated	General industrial
HDG	Outdoor / infrastructure
Stainless	Aggressive / corrosive

---

Applicable Standards

Category	Reference
Dimensions	ASTM / DIN / ISO
Materials	ASTM / ISO
Threads	ISO / ASME

---

Customization Options

• Special neck dimensions
• Custom lengths
• Project-specific coatings
• Export packaging and marking

---

1️⃣4️⃣ Manufacturer-Focused Conclusion

Carriage Bolts are engineered fasteners selected for anti-rotation, smooth external surfaces, and shear-dominant load paths. Their performance depends on:

• Accurate square neck geometry
• Controlled forging and threading
• Appropriate material and finish selection
• EPC-aligned inspection and documentation

Super Industries manufactures carriage bolts with dimensional discipline and process control, ensuring suitability for infrastructure, fabrication, and EPC assemblies where functional geometry matters more than appearance.
