Engineering Reference for Integrally Reinforced Branch Connections in EPC Piping Systems

Manufacturer & Global Exporter: Super Industries
Website: https://superindustriesindia.in

1️⃣ Industry Context

Why Weldolets Are Critical Branch Connection Components in EPC Projects

In EPC and capital projects, branch connections are among the most stress-sensitive and failure-prone locations in a piping system. Historically, branch connections fabricated using simple stub-ins or pad-reinforced designs introduced high local stresses, complex welding sequences, and inspection uncertainty.

Weldolets were developed to address these engineering limitations. Today, they are widely specified across Oil & Gas, Power, Petrochemical, LNG, Hydrogen, and Infrastructure projects as integrally reinforced branch fittings that simplify design compliance and enhance long-term pressure integrity.

From an EPC execution standpoint, weldolets contribute directly to:

Reduced welding complexity at branch locations
Predictable reinforcement without external pads
Improved stress distribution and fatigue resistance
Easier compliance with piping codes and stress analysis assumptions
Cleaner inspection and documentation records

For consultants and third-party inspectors, weldolets represent a standardized, code-recognized solution to one of the most critical aspects of piping design: branch reinforcement.

As a top manufacturer of weldolet, Super Industries India supplies a wide range of Weldolets used across oil & gas, petrochemical, power plants, chemical processing, and water infrastructure projects. This guide explains everything you need to know about Weldolets — types, sizes (including 1-inch Weldolet and 2-inch Weldolet), materials, applications, supplier selection, and how to procure Weldolet effectively.

2️⃣ Technical Definition

What Weldolets Are and Where They Are Used

A weldolet is a forged, integrally reinforced branch outlet fitting designed to provide a full-strength branch connection from a run pipe to a branch pipe without the need for separate reinforcement pads.

Core Design Characteristics

Contoured base: Matches the curvature of the run pipe
Integral reinforcement: Built into the fitting geometry
Butt-weld branch end: Provides full-penetration weld to branch pipe
Smooth stress transition: Eliminates abrupt section changes

Functional Role in Piping Systems

Weldolets are used where:

Branch connections are welded directly to the run pipe
High pressure or cyclic service is present
Piping codes require defined reinforcement area
Stress analysis models assume integrally reinforced branches

They are commonly applied on main headers, process lines, and critical service piping.

3️⃣ Engineering Relevance

Stress Distribution, Pressure Integrity & Fatigue Behavior

Stress Redistribution at Branch Junctions

At a branch connection, internal pressure and external loads concentrate stress around the opening in the run pipe. Weldolets mitigate this by:

Increasing effective wall thickness locally
Redistributing hoop and longitudinal stresses
Providing gradual geometry transitions

Pressure Integrity

Because the reinforcement is integral, there are:

No crevices between pad and pipe
No additional fillet welds required for reinforcement
Fewer inspection interfaces

This improves long-term pressure containment reliability.

Fatigue and Cyclic Loading

In systems subjected to thermal cycling, vibration, or pressure fluctuation, weldolets exhibit superior fatigue performance compared to fabricated stub-ins due to reduced stress concentration factors.

4️⃣ Design & Reinforcement Logic

How Weldolets Achieve Code-Compliant Reinforcement

Branch-to-Run Geometry

The weldolet geometry is engineered so that the reinforcement area provided by the fitting meets or exceeds the area removed from the run pipe by the branch opening.

Integrally Reinforced Design

Unlike pad-reinforced designs:

Reinforcement is inherent to the fitting
No additional calculations for pad sizing are required
Welding is simplified and standardized

Load Path Continuity

Weldolets maintain continuous load paths between:

Run pipe wall
Branch fitting body
Branch pipe

This continuity is essential for accurate stress analysis and predictable behavior under load.

5️⃣ Types of Weldolets & Branch Outlets

Selection Logic for EPC Applications

Standard Weldolets

Used where branch size is smaller than run size and standard reinforcement is sufficient.

Reducing Weldolets

Allow connection of a smaller branch to a larger run with controlled geometry.

Heavy-Wall Applications

Specified for higher pressure classes or thicker run pipes.

Comparison with Other Branch Outlets

Sockolets: Socket-weld branch outlets for smaller sizes
Threadolets: Threaded outlets for low-pressure or utility service
Latrolets: Lateral branch connections at angles other than 90°

Weldolets are preferred when butt-weld integrity and full pressure rating are required.

6️⃣ Material & Standard Alignment

Applicable Standards

MSS SP-97: Integrally reinforced forged branch outlet fittings
ASME B31 series: Piping design and reinforcement requirements
ASTM standards: Material specifications
ASME Section II: Material properties
EN / ISO standards: International project alignment

Common Materials

Carbon steel (ASTM A105, A350)
Low-temperature carbon steel
Alloy steel (ASTM A182 F11/F22)
Stainless steel (ASTM A182 F304/F316)
Duplex and special alloys (project-specific)

Material selection is governed by pressure, temperature, corrosion, and project specifications.

7️⃣ Manufacturing & Quality Discipline

Forging Process

Weldolets are hot-forged to ensure:

Uniform grain flow
High toughness
Consistent mechanical properties

Heat Treatment

Controlled heat treatment achieves required strength, ductility, and impact properties.

Machining Accuracy

Critical dimensions include:

Branch bore size
Contour radius matching run pipe OD
Bevel geometry for welding

Traceability & Inspection Philosophy

Heat number traceability
Dimensional inspection
Visual and surface examination
Documentation aligned with EPC ITPs

This discipline ensures repeatable acceptance during consultant and third-party inspection.

8️⃣ Welding, Installation & Inspection View

Welding Considerations

Full-penetration butt welds at branch connection
Qualified WPS/PQR specific to material and thickness
Controlled heat input to avoid distortion

Installation Discipline

Accurate layout on run pipe
Proper fit-up without forced alignment
Compliance with isometric orientation

Inspection & Acceptance

Inspectors verify:

Weld profile and penetration
NDT results (RT/UT/MT/PT as specified)
Dimensional conformity
Material certification

Weldolets simplify inspection by eliminating reinforcement pad interfaces.

9️⃣ Application Mapping

Oil & Gas

Process headers, transmission lines, compressor stations.

Power

High-pressure steam and auxiliary piping.

Petrochemical

Reactor feeds, column connections, cyclic service lines.

LNG

Cryogenic and transition piping sections.

Hydrogen

Emerging piping systems with strict integrity requirements.

Infrastructure & Chemical

Utility and industrial piping networks.

🔟 Professional Technical Tables

Run Pipe Size vs Branch Size (Typical)

Run Size (NB)	Branch Size Range
50	15 – 40
100	25 – 80
200	25 – 150
300	50 – 250

Pressure Class & Schedule Compatibility

Run Pipe Schedule	Typical Pressure Class
STD / SCH 40	Class 150 – 300
SCH 80	Class 300 – 600
XS / XXS	Project-specific

Material Grades vs Service Conditions

Material	Typical Service
ASTM A105	General hydrocarbon
ASTM A350	Low-temperature
ASTM A182 F316	Corrosive service
Alloy steels	High temperature

Standards & Code References

Standard	Scope
MSS SP-97	Branch outlet design
ASME B31	Piping systems
ASTM	Materials
EN / ISO	International projects

Project-Specific Customization Options

Parameter	Options
Run & branch size	Project-defined
Material	CS, SS, alloy
Heat treatment	As specified
NDT	RT / UT / PMI
Certification	EN 10204 3.1 / 3.2

1️⃣1️⃣ Manufacturer-Focused Conclusion

In EPC and capital projects, Weldolets are not commodity fittings; they are engineered reinforcement components that directly influence piping integrity, stress behavior, and inspection acceptance. Their correct performance depends on forged geometry, material discipline, machining accuracy, and welding compatibility.

Super Industries manufactures weldolets in accordance with MSS SP-97 and international piping standards, supported by controlled forging, heat treatment, machining, and inspection systems. Our engineering-driven manufacturing discipline, traceability control, and EPC-aligned documentation support predictable performance, consultant confidence, and long-term reliability in critical branch connection applications.

Introduction to Weldolets

In industrial piping systems, connecting branch lines to main pipes in a reliable, stress-distributing, and efficient way is essential for safety and performance. One of the most commonly used fittings for this purpose is the Weldolet — a high-quality reinforcement branch fitting designed specifically for piping applications.

What Is a Weldolet?

A Weldolet is a branch outlet fitting that provides a smooth and strong connection between a main pipe and a smaller branch pipe. Unlike traditional tees, Weldolets are smaller, stronger, and easier to install because they are welded directly onto the main pipe. They minimize stress concentration in the run pipe and ensure a more reliable joint in high-pressure or high-temperature systems.

Weldolets are widely used in:

Oil & Gas Pipelines
Petrochemical Plants
Power Generation
Refineries
Process Piping
Steam & Water Systems

The most common use cases include connecting smaller branch connections like 1-inch Weldolet, 2-inch Weldolet, and larger sizes to main piping systems without compromising the structural integrity of the run line.

Why Use Weldolets?

Weldolets are preferred in many industrial setups because they offer:

1. Strength & Structural Integrity

Weldolets distribute stress more evenly around the branch connection compared to traditional tees or fabricated connections.

2. Space-Saving Design

Weldolets have a compact design that reduces the need for extra pipe lengths and support structures.

3. Ease of Installation

Weldolets are welded directly to the pipe, eliminating the need for additional preparation and reducing installation time.

4. Better Flow Characteristics

With fewer turbulences inside the line, Weldolets maintain flow efficiency compared to welded tees.

5. Cost-Effective

For many pipe sizes and branching requirements, using a Weldolet can be more economical than fabricating a tee or specialty fitting on site.

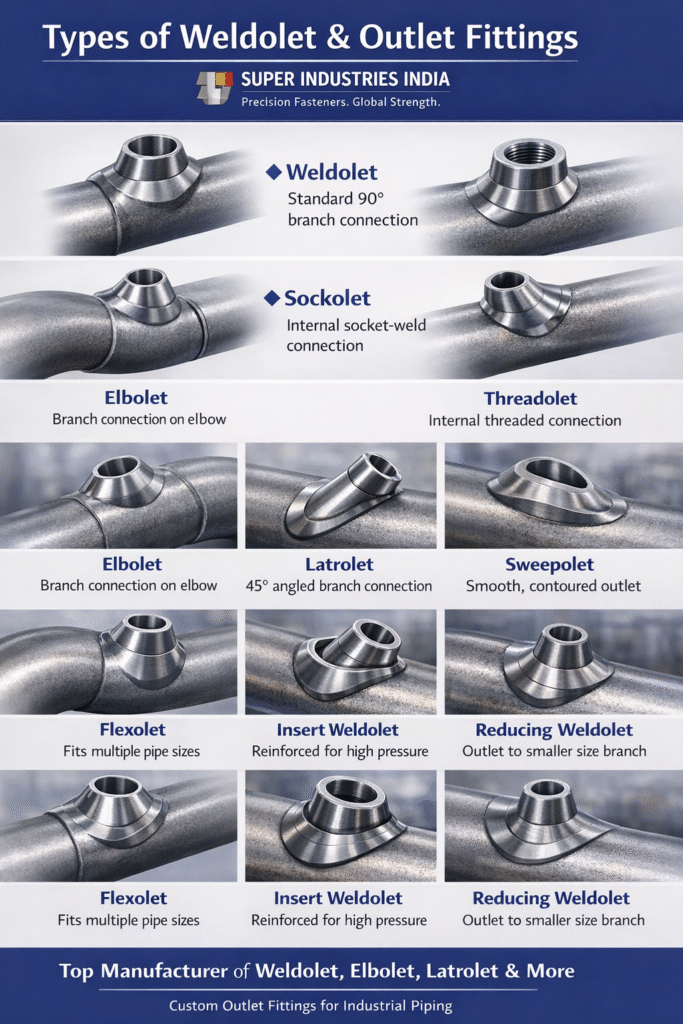

Types of Weldolets

Weldolets come in a variety of configurations depending on the connection style, branch size, and piping requirements.

1. Standard Weldolets

Standard Weldolets are the most widely used type. They are installed directly on the pipe surface and provide a smooth transition from the main pipe to the branch line.

👉 Example sizes:

1-inch Weldolet
2-inch Weldolet
3-inch, 4-inch, 6-inch and upwards
(Standard sizes usually go up to the range of the main pipe size.)

2. Sockolets

Sockolets are similar to Weldolets but are smaller and used for relatively light-duty applications. They are suitable for smaller branch sizes and lower pressure systems.

3. Threadolets

Threadolets include internal threads so that the branch pipe can be screwed directly into the Weldolet. This makes them suitable for smaller diameters like 1-inch Weldolet, where threading saves welding time and simplifies installation.

4. Nipolets

Nipolets are similar to Weldolets but designed for specific structural or fabrication requirements.

5. Sweepolets

Sweepolets have a smoother curvature than standard Weldolets, which reduces turbulence and provides better flow characteristics, especially for larger size transitions.

Key features:

Smooth contoured design
Minimal turbulence and pressure drop
Stronger than standard Weldolet

Used in:

High-flow lines
Critical service piping
Large diameter pipelines

6. Elbolet

An Elbolet is used when the branch connection is required on an elbow instead of a straight pipe.

Key features:

Installed on long-radius elbows
Saves space in compact piping layouts
Reduces additional fittings and welding

Applications:

Refineries
Chemical plants
Offshore platforms

7. Latrolet

A Latrolet is designed for branch connections that are angled at 45° to the run pipe.

Key features:

Used when flow direction change is required
Provides smoother flow than fabricated angled tees
Better stress distribution

Applications:

Process piping
Oil & gas pipelines
High-pressure systems

8. Flexolet

A Flexolet is a special outlet fitting that can fit multiple run pipe diameters.

Key features:

One outlet fits several pipe sizes
Reduces inventory requirements
Flexible installation

Applications:

Maintenance projects
Multi-size piping systems

9. Insert Weldolet / Contoured Outlet

Used when reinforcement pads are required for very high pressure.

Key features:

Added reinforcement strength
Suitable for extreme pressure and temperature
Used in critical pipelines

10. Reducing Weldolet

A Reducing Weldolet connects a smaller branch pipe to a much larger run pipe.

Key features:

Smooth reduction transition
Prevents stress concentration
Used when size difference is significant

Materials Used in Weldolets

Being used in high-pressure and critical piping systems, Weldolets are manufactured using materials that can withstand intense stress, temperature, and corrosive environments.

Common materials include:

Carbon Steel (CS)
Stainless Steel (SS304, SS316, SS316L)
Alloy Steel
Duplex & Super Duplex Steel
Nickel Alloys (Inconel, Monel)

As a top manufacturer of weldolet, Super Industries India supplies Weldolets in all these materials to suit customer specifications and industry applications.

Weldolet Sizes – From 1-Inch to Larger Diameters

Weldolets are available in a wide range of sizes to match both the run pipe diameter and the branch pipe diameter. Common size categories include:

📌 1-Inch Weldolet

Used for small branch connections
Ideal for instrumentation lines, small water or steam lines
Often used with threaded or socket connections

📌 2-Inch Weldolet

Popular in industrial setups
Suitable for medium-sized branch lines
Frequently used in chemical and oil & gas applications

📌 Other Sizes

3-Inch Weldolet
4-Inch Weldolet
6-Inch Weldolet
Larger sizes (up to main pipe sizes in engineered applications)

Each Weldolet size ensures that the branch connection has adequate strength and flow continuity. As a reputable fastener and fitting supplier, Super Industries India offers Weldolets (1-inch, 2-inch, and larger sizes) manufactured as per industry standards and customer requirements.

Standards & Specifications for Weldolets

Weldolets are manufactured according to recognized international standards to ensure compatibility, quality, and safety:

📌 Common Standards:

ASME B16.11
ASME B16.9
ANSI Standards
DIN & ISO (on request)

These standards define:

Dimensions
Wall thickness
Welding compatibility
Material grades
Inspection criteria

When you procure weldolet, always check that the fittings comply with the relevant standard for your application and geographic market.

Applications of Weldolets

Weldolets are used in a wide range of industries where branch connections must be reliable, strong, and easy to install:

🛢️ Oil & Gas

Weldolets are extensively used in pipelines, offshore platforms, refineries, and processing units where high pressure and temperature are common.

🧪 Chemical & Petrochemical

In chemical plants, Weldolets help connect instrumentation, sampling lines, and process piping efficiently.

⚡ Power Plants

Steam and feed water distribution systems in power plants often rely on Weldolets for branch connections.

🏗️ Construction & Infrastructure

Weldolets are used in building utilities, HVAC systems, and industrial water pipelines.

🏭 Manufacturing & Fabrication Units

Automated industrial lines and fabrication systems use Weldolets for robust branch connections.

How to Procure Weldolet (Complete Buyer’s Guide)

Procuring Weldolets may seem straightforward, but selecting the right type, material, and specification is critical for long-term performance.

🔍 Step 1: Understand Your Requirements

Define the following:

Run pipe size
Branch pipe size (1-inch, 2-inch, etc.)
Operating temperature & pressure
Material requirement
Applicable standards

📋 Step 2: Choose the Right Type

Decide whether you need:

Standard Weldolet
Threadolet (for threaded connections)
Sweepolet (for improved flow)
Sockolet / Nipolet (for specific applications)

🛠 Step 3: Check Material & Coating

Material selection depends on:

Corrosion environment
Pressure conditions
Fluid handled
Project standards

Common options include carbon steel, SS304, SS316, and alloy steel.

📐 Step 4: Verify Compliance

Ensure the fittings comply with:

ASME B16.11 / B16.9
EN / ISO on request
Project specifications

A top manufacturer of weldolet like Super Industries India will always provide compliance documentation.

📦 Step 5: Packaging & Documentation

Export or project-ready packing should include:

Material Test Certificates (MTC)
Mill test reports
Packing list
Inspection records

When you procure Weldolet through a reputable supplier, these documents ensure traceability and acceptance during project audits.

🚚 Step 6: Logistics & Delivery

Coordinate:

Delivery timelines
Export requirements (if international)
Inspection before shipment

A reliable manufacturer and supplier helps coordinate all logistics and export support.

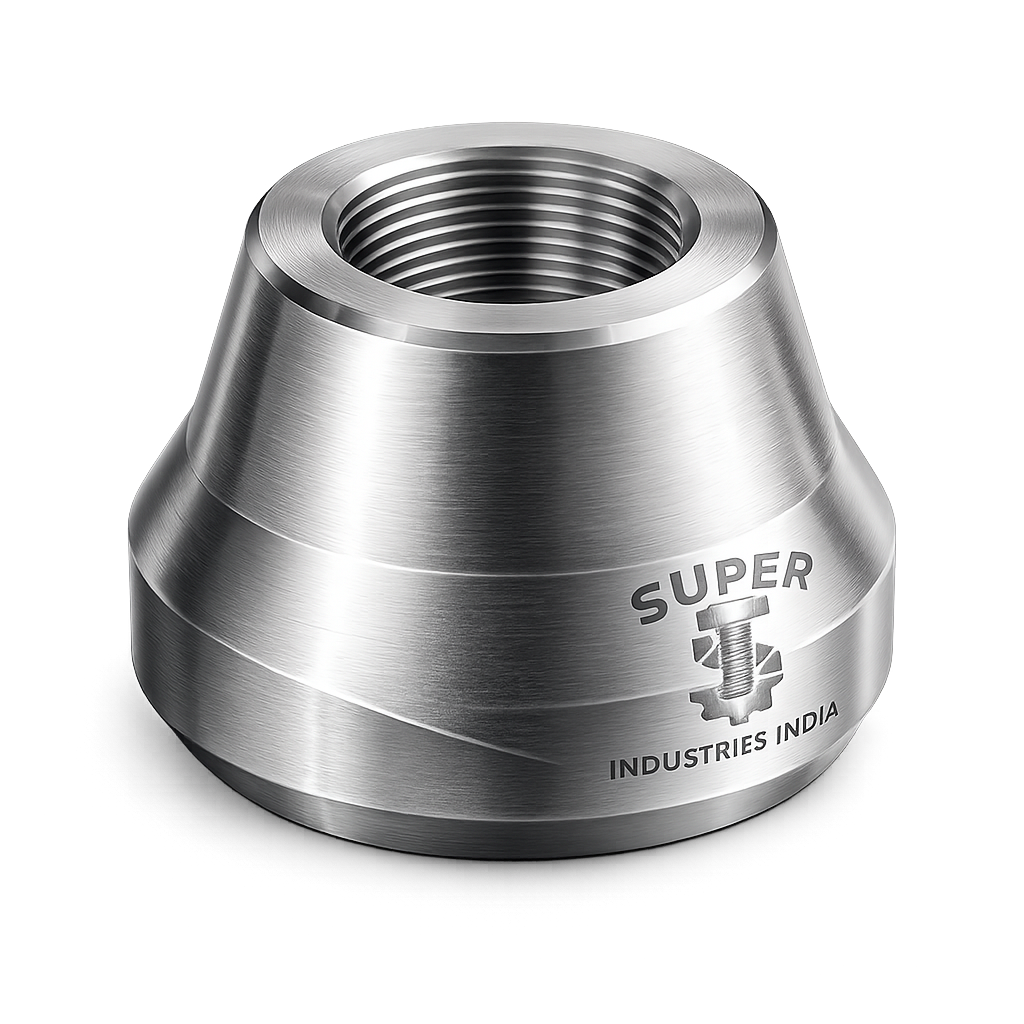

Why Choose Super Industries India as Your Top Manufacturer of Weldolet

As a trusted industry leader, Super Industries India offers:

✔ Premium Quality Weldolets

Manufactured to meet strict standards and project specifications.

✔ Wide Range of Sizes

From 1-inch Weldolet and 2-inch Weldolet to larger sizes, with flexible configurations.

✔ Multiple Material Options

Carbon steel, stainless steel, and alloy steel fittings—customized as needed.

✔ Compliance & Certifications

Material test certificates, dimensional reports, and production documentation.

✔ Export & Domestic Support

Reliable export packing, documentation, and on-time delivery for global buyers.

✔ Customer-Centric Service

Technical support, specification guidance, and industry expertise.

Conclusion

Weldolets are essential fittings in industrial piping systems, providing a strong, efficient, and stress-minimizing branch connection. Whether you need a 1-inch Weldolet, 2-inch Weldolet, or larger sizes for critical applications, choosing the right type, material, and supplier is crucial.

As a top manufacturer of Weldolet, Super Industries India delivers high-performance fittings designed to meet international standards and project requirements. If you’re looking to procure Weldolet with confidence—whether for domestic projects or global exports—contact our team for expert guidance and competitive quotes.

“As a top manufacturer of Weldolet, Elbolet, Latrolet, Sweepolet, and related outlet fittings, Super Industries India supplies customized solutions for industrial piping systems worldwide.”

CONNECT NOW
