Introduction to Flange Outlets

Flange outlets are critical pressure-retaining components used in piping and pressure vessel systems to create branch connections with superior strength, leak resistance, and load distribution. Unlike threaded or socket-weld outlet fittings, flange outlets provide a bolted connection, making them ideal for high-pressure, high-temperature, and critical service applications.

At Super Industries India, we manufacture and export standard and custom flange outlets for global industries including oil & gas, petrochemical, power generation, refineries, offshore platforms, heavy engineering, shipbuilding, and industrial piping systems. Our flange outlets are engineered to meet international standards, project specifications, and customized dimensional requirements.

This page is written for engineers and manufacturers who require detailed technical understanding, material options, standards, and application guidance for flange outlets.

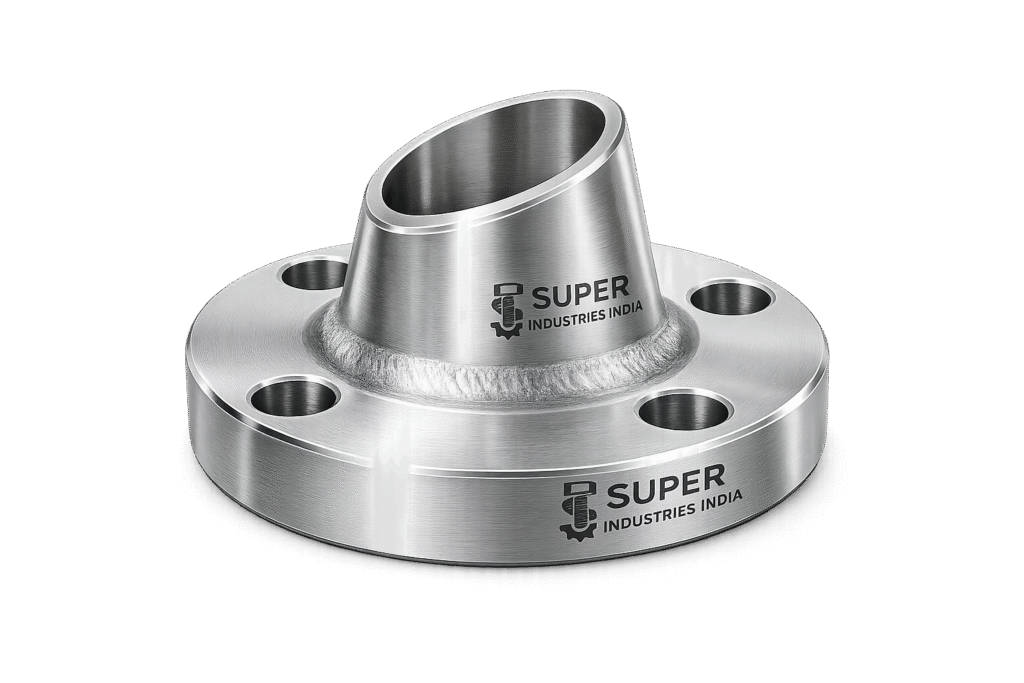

What Is a Flange Outlet?

A flange outlet is a type of branch connection fitting that combines:

• A reinforced outlet body (similar in principle to weldolets or sweepolets)
• An integral or welded flange at the branch end

This design allows a branch pipe to be connected to the main header using bolting instead of welding, enabling:

• Easier installation
• Maintenance and disassembly
• Improved sealing reliability in cyclic service

Flange outlets are typically welded to the run pipe (header) and flanged at the branch connection.

Why Flange Outlets Are Used in Industrial Systems

Flange outlets are preferred when systems require:

✔ High pressure integrity
✔ High temperature resistance
✔ Easy inspection and maintenance
✔ Reduced stress concentration
✔ Compliance with project specifications

They are commonly used where frequent dismantling, valve connections, or instrument connections are required.

Design Philosophy of Flange Outlets

The engineering design of flange outlets follows the principle of reinforcement of openings in pressure vessels and piping systems.

Key Design Objectives

• Maintain pipe strength after creating a branch
• Reduce stress intensification at the junction
• Ensure smooth flow transition
• Meet pressure code requirements

At Super Industries India, flange outlets are designed based on:

• ASME reinforcement rules
• Finite stress distribution principles
• Project-specific load conditions

Types of Flange Outlets

1. Welded Flange Outlets

These are welded directly to the header pipe and have a weld neck or slip-on flange at the branch.

Advantages:

• High structural integrity
• Suitable for high pressure
• Long service life

2. Integral Flange Outlets

The flange and outlet body are forged or machined as a single piece.

Advantages:

• No weld at flange junction
• Lower risk of leakage
• Superior fatigue resistance

3. Reducing Flange Outlets

Used when the branch size is smaller than the flange size.

Applications:

• Instrumentation lines
• Auxiliary piping
• Control systems

4. Custom-Designed Flange Outlets

Super Industries India specializes in non-standard and project-specific flange outlets, including:

• Non-standard angles
• Special flange faces
• Increased reinforcement thickness
• Heavy-wall piping systems

Flange Types Used in Flange Outlets

Flange outlets can be supplied with various flange configurations:

Weld Neck (WN) Flange

• Best for high pressure and cyclic loads
• Smooth stress distribution

Slip-On (SO) Flange

• Easier alignment
• Cost-effective for moderate pressure

Blind Flange

• Used for future expansion points

Lap Joint Flange

• Used with stub ends
• Allows easy alignment

Flange Face Types

Depending on sealing requirements:

• Raised Face (RF)
• Flat Face (FF)
• Ring Type Joint (RTJ)

RTJ flange outlets are commonly supplied for oil & gas and refinery projects.

Manufacturing Process at Super Industries India

Our flange outlet manufacturing follows strict quality control:

1. Raw Material Selection

• Fully traceable billets or plates
• Certified mill test certificates (MTC)

2. Forging / Machining

• CNC machining for dimensional accuracy
• Controlled tolerances for flange faces

3. Welding (If Applicable)

• Qualified welding procedures (WPS)
• Skilled welders
• Controlled heat input

4. Heat Treatment

• Normalizing
• Quenching & tempering
• Stress relieving (as required)

5. Final Machining

• Bolt hole accuracy
• Flange face finish
• Dimensional inspection

Material Grades Offered

Super Industries India manufactures flange outlets in a wide range of materials:

Carbon Steel

• ASTM A105
• ASTM A350 LF2

Alloy Steel

• ASTM A182 F11
• ASTM A182 F22
• ASTM A182 F91

Stainless Steel

• ASTM A182 F304 / F304L
• ASTM A182 F316 / F316L
• Duplex & Super Duplex (on request)

Applicable International Standards

Our flange outlets comply with major global standards:

Flange Standards

• ASME B16.5
• ASME B16.47
• EN 1092-1
• DIN standards

Outlet & Reinforcement

• ASME Section VIII
• ASME B31.3 / B31.1
• MSS-SP-97 (design principles reference)

Pressure Classes

• Class 150
• Class 300
• Class 600
• Class 900
• Class 1500
• Class 2500

Dimensional & Pressure Customization

We provide fully customized flange outlets based on:

✔ Pipe OD & thickness
✔ Branch size
✔ Pressure class
✔ Flange face type
✔ Corrosion allowance
✔ Project code requirements

Custom drawings and calculations are supported.

Quality Control & Inspection

Each flange outlet undergoes:

• Dimensional inspection
• Visual inspection
• PMI (Positive Material Identification)
• NDT (RT / UT / MT / PT as required)
• Hydrostatic testing (on request)

Inspection by third-party agencies such as TUV, BV, Lloyd’s, or SGS can be arranged.

Applications of Flange Outlets

Flange outlets manufactured by Super Industries India are used in:

• Oil & gas pipelines
• Refineries & petrochemical plants
• Power generation
• Offshore platforms
• Shipbuilding
• Heavy process industries
• Pressure vessels and headers

Advantages of Choosing Super Industries India

✔ Manufacturer, not trader
✔ Export-focused production
✔ Custom engineering solutions
✔ Global standards compliance
✔ Competitive Indian manufacturing cost
✔ Reliable delivery schedules

We supply flange outlets to buyers across the USA, Middle East, Europe, and Asia.

Packaging & Export Logistics

• Wooden crates
• Palletized packing
• Anti-corrosion protection
• Export documentation support

Request a Quote – Flange Outlets

To receive a quotation, please share:

• Pipe size & schedule
• Branch size
• Material grade
• Pressure class
• Quantity
• Drawing or specification (if available)

👉 Get Manufacturer Quote

Conclusion

Flange outlets are essential components in modern piping and pressure systems, providing strength, reliability, and serviceability. With advanced manufacturing capability and global export experience, Super Industries India delivers standard and fully customized flange outlet solutions that meet the demanding requirements of engineers and manufacturers worldwide.
