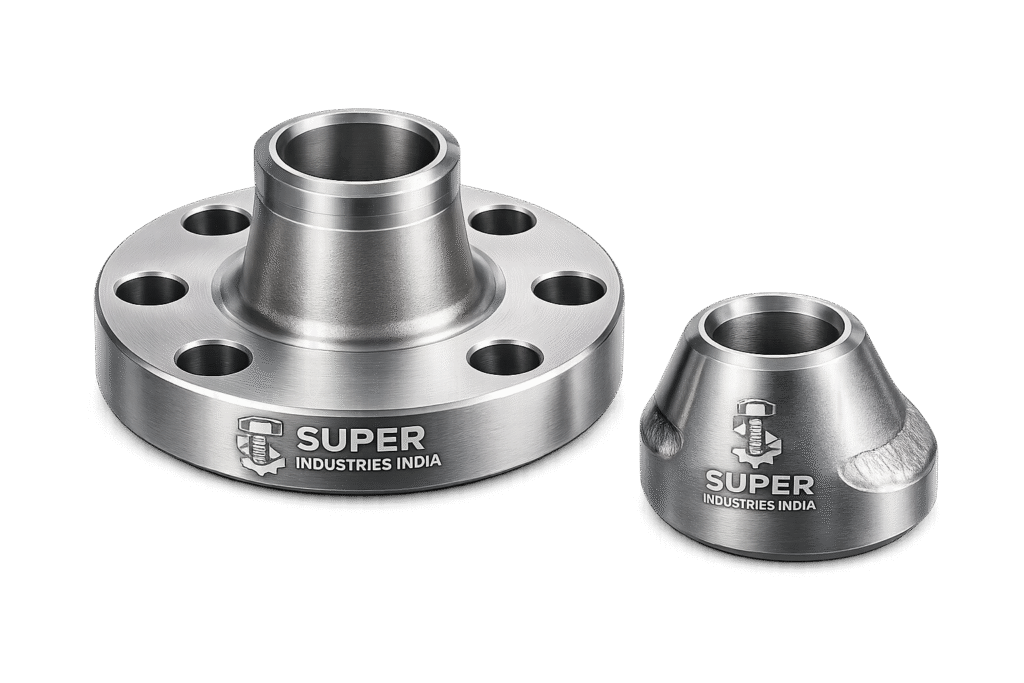

Flange Outlet vs Weldolet

Flange Outlet vs Weldolet – Engineering Comparison for Industrial Piping Systems

Manufacturer & Exporter – Super Industries India

In branch connection design, the choice between a Flange Outlet and a Weldolet directly affects pressure integrity, flexibility, maintenance strategy, installation cost, and long-term reliability. While both serve the same basic purpose—creating a branch connection from a run pipe—their engineering philosophy, structural behavior, and application suitability are fundamentally different.

This detailed comparison explains when, why, and how engineers should select Flange Outlets vs Weldolets, based on codes, stress behavior, pressure class, fabrication practices, and lifecycle considerations.

At Super Industries India, we manufacture both weldolets and custom-engineered flange outlets, enabling us to provide unbiased, application-driven solutions to global buyers.

1. Basic Definition

Weldolet

A weldolet is a forged, self-reinforced branch connection fitting that is directly welded to the run pipe and connected to the branch pipe by butt weld, socket weld, or threaded joint.

It is a permanent connection, compact in design, and widely standardized.

Flange Outlet

A flange outlet is a branch connection that includes a flanged interface, allowing the branch piping or equipment to be connected using bolting and gaskets rather than welding.

Flange outlets can be standard or fully custom-engineered.

2. Structural & Stress Behavior (Critical Engineering Difference)

Weldolet – Integral Reinforcement

• Designed using integral reinforcement theory
• Forged geometry compensates for metal removed from the run pipe
• Stress flows smoothly through the outlet
• Very low stress concentration
• Excellent fatigue resistance

➡ Superior for cyclic pressure & vibration

Flange Outlet – External Load Transfer

• Reinforcement depends on:
  • Outlet neck thickness
  • Reinforcement pads (if used)
  • Flange stiffness
• Introduces external loads from bolting and connected equipment
• Higher localized stresses if poorly designed

➡ Requires engineering validation (ASME B31.3 / Section VIII)

3. Pressure Handling Capability

Aspect	Weldolet	Flange Outlet
Pressure rating	High (self-reinforced)	High if engineered
Pressure cycling	Excellent	Depends on design
Class limitation	Based on pipe rating	Can exceed ASME classes
Ultra-high pressure	✔ Preferred	✔ Only custom designs

➡ Weldolets are naturally pressure-efficient, while flange outlets require engineering calculations to match performance.

4. Code & Standardization

Weldolet Standards

• MSS SP-97
• ASME B31.3
• ASTM material standards

➡ Pre-qualified dimensions & reinforcement

Flange Outlet Standards

• ASME B16.5 / B16.47 (reference)
• ASME Section VIII (design basis)
• Customer project specifications

➡ Often engineered-to-order, not catalog-based

5. Installation & Maintenance

Weldolet

• Requires field welding
• Skilled welders mandatory
• No dismantling after installation
• Repairs require cutting and re-welding

Flange Outlet

• Bolted connection
• Easy disassembly
• Ideal for:
  • Valves
  • Instruments
  • Equipment nozzles
• Simplifies maintenance and future modifications

➡ Flange outlets win for maintainability

6. Space & Layout Considerations

Weldolet

• Compact
• Minimal footprint
• Ideal for congested piping racks

Flange Outlet

• Requires space for:
  • Flange OD
  • Bolt tightening
  • Gasket seating
• Not ideal in tight layouts

7. Leak Risk Comparison

Factor	Weldolet	Flange Outlet
Leak points	Weld only	Gasket + bolts
Long-term sealing	Excellent	Depends on gasket & bolting
Thermal cycling	Very good	Risk if bolting relaxes

➡ Weldolets offer fewer leak paths

8. Material & Size Flexibility

Weldolet

• Limited to standard sizes
• Branch sizes usually smaller
• Large sizes become impractical

Flange Outlet

• Unlimited size range
• Suitable for:
  • Large bore branches
  • Equipment nozzles
  • Special geometries
• Custom metallurgy available

➡ Flange outlets dominate in large & special applications

9. Cost Comparison (Lifecycle View)

Weldolet

• Lower material cost
• Higher welding labor cost
• Lower maintenance cost
• Best for permanent connections

Flange Outlet

• Higher initial material cost
• Lower installation labor
• Higher gasket/bolt maintenance
• Best for serviceability

➡ Cost depends on project lifecycle, not just purchase price.

10. Typical Application Comparison

Application	Recommended
High-pressure process piping	Weldolet
Cyclic pressure systems	Weldolet
Valves & instruments	Flange Outlet
Equipment connections	Flange Outlet
Offshore platforms	Weldolet (space & fatigue)
Maintenance-intensive systems	Flange Outlet

11. Welding & Fabrication Complexity

Weldolet

• Precision fit-up required
• Welding procedure critical
• Post-weld inspection essential

Flange Outlet

• More machining
• Less critical welding (if any)
• Bolting quality is critical

12. Fatigue & Vibration Resistance

• Weldolets perform better in vibration-prone systems
• Flange outlets need stiffeners or supports in vibrating service

13. Customization Capability

At Super Industries India:

✔ Standard MSS SP-97 Weldolets
✔ Large-size & heavy-wall Weldolets
✔ Custom flange outlets
✔ High-pressure engineered outlets
✔ Non-standard materials & geometries

We manufacture based on application, not preference.

14. Engineering Selection Guide

Choose Weldolet if:

• High pressure
• Fatigue loading
• Permanent connection
• Limited space

Choose Flange Outlet if:

• Equipment connection
• Maintenance access required
• Large or non-standard branch
• Custom geometry needed

15. Conclusion – Which Is Better?

There is no universal winner.

• Weldolets are structurally superior for permanent, pressure-critical piping.
• Flange outlets provide flexibility, serviceability, and customization.

The correct choice depends on engineering conditions, not cost alone.
