Hexagon Nuts
Hexagon Nuts (Style 1)
Manufacturer, Supplier & Exporter – Super Industries India
(Website-ready | Engineer-focused | Export SEO | ~2000+ words)

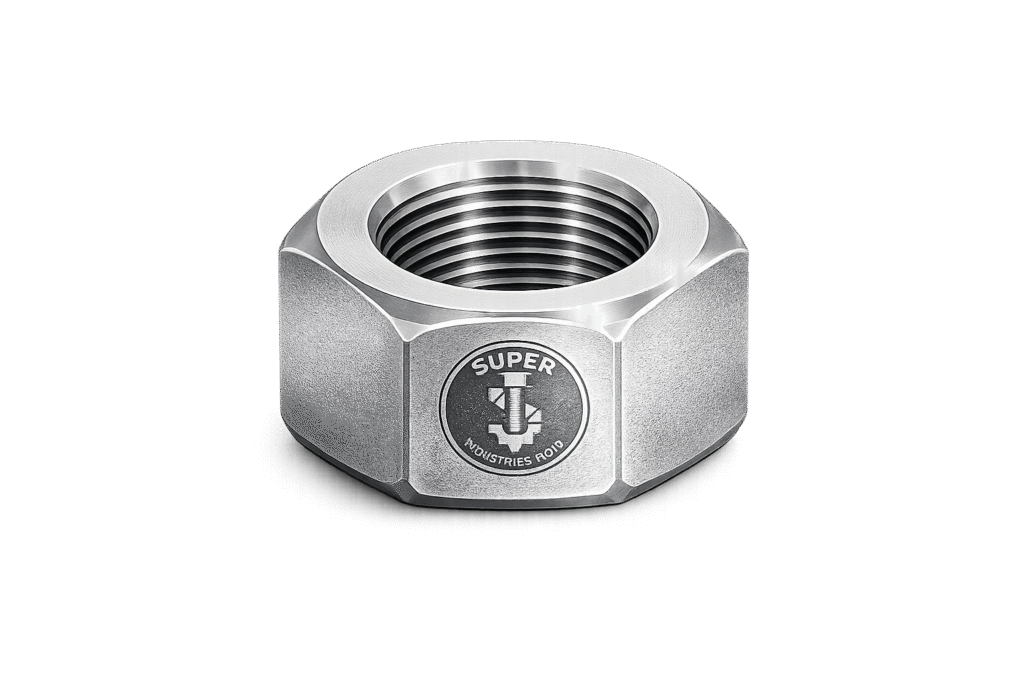

1. Introduction to ISO 4032 Hexagon Nuts
ISO 4032 Hexagon Nuts are the most commonly used metric nuts in bolted joint assemblies worldwide. Designed to be used with ISO hex bolts, studs, and threaded rods, these nuts provide reliable clamping force, load distribution, and long-term joint integrity.
At Super Industries India, we manufacture ISO 4032 hex nuts for critical industrial, infrastructure, oil & gas, and export applications, ensuring strict compliance with international standards.
2. What Is ISO 4032?
ISO 4032 defines:
- Metric hexagon nuts
- Style 1 (normal height)
- Metric coarse thread
- Property classes as per ISO 898-2
DIN Equivalent:
👉 DIN 934
ISO 4032 is the internationally recognized replacement for DIN 934.
Super Industries
Global Manufacturer of Heavy & Custom Engineered Fasteners & Flanges
3. Role of Hex Nuts in Bolted Joints
ISO 4032 nuts play a vital role in:
✔ Maintaining preload
✔ Preventing joint separation
✔ Distributing tensile load
✔ Allowing easy disassembly
They are essential in:
- Structural joints
- Machinery assemblies
- Piping systems
- Automotive components
4. ISO 4032 vs Other Nut Types
| Nut Type | Height | Application |
|---|---|---|
| ISO 4032 | Standard | General engineering |
| ISO 4033 | Thin | Locking / space saving |
| ISO 4035 | Thin | Jam nut applications |
| ISO 7040 | Prevailing torque | Vibration resistance |
5. Dimensional Scope of ISO 4032
ISO 4032 covers:
- M1.6 to M64 (standard range)
- Larger sizes on request
Key Dimensions:
- Thread diameter (d)
- Width across flats (s)
- Nut thickness (m)
6. ISO 4032 Dimensional Table (Representative)
| Size | Pitch | Width (s) | Thickness (m) |
|---|---|---|---|
| M8 | 1.25 | 13 mm | 6.5 mm |
| M10 | 1.5 | 17 mm | 8 mm |
| M12 | 1.75 | 19 mm | 10 mm |
| M16 | 2.0 | 24 mm | 13 mm |
| M20 | 2.5 | 30 mm | 16 mm |
7. Mechanical Properties – ISO 4032
Mechanical properties are defined by ISO 898-2.
Common Property Classes
| Class | Proof Load |
|---|---|
| 5 | Low strength |
| 8 | Medium strength |
| 10 | High strength |
| 12 | Extra high strength |
👉 Nut class must match or exceed bolt class.
8. Nut-Bolt Compatibility Guide
| Bolt Grade | Compatible Nut |
|---|---|
| 8.8 | Class 8 or 10 |
| 10.9 | Class 10 |
| 12.9 | Class 12 |
9. Materials Used by Super Industries India
ISO 4032 nuts are manufactured in:
- Carbon steel
- Alloy steel
- Stainless steel (A2 / A4)
- Special alloy steels
10. Manufacturing Process
✔ Hot forging
✔ Cold forging (small sizes)
✔ Thread tapping
✔ Heat treatment (if required)
11. Heat Treatment & Strength Control
For higher property classes:
- Quenching & tempering
- Hardness testing
- Proof load testing
12. Surface Finish Options
Available finishes:
- Plain / black
- Zinc plated
- Hot dip galvanized
- Mechanical galvanizing
- PTFE / Xylan
13. Corrosion Resistance Selection
| Environment | Recommended Finish |
|---|---|
| Indoor | Black / Zinc |
| Outdoor | HDG |
| Marine | Stainless A4 |
| Chemical | PTFE |
14. Marking & Traceability
Each ISO 4032 nut includes:
✔ Property class
✔ Manufacturer identification
Example: “10 SII”
15. Applications of ISO 4032 Nuts
- Structural steel
- Pressure vessels
- Pipelines
- Heavy machinery
- Automotive assemblies
16. ISO 4032 in Export Markets
Widely accepted in:
✔ USA
✔ Europe
✔ Middle East
✔ Africa
✔ Southeast Asia
17. Quality Control & Inspection
✔ Dimensional checks
✔ Proof load testing
✔ Thread gauge inspection
✔ Coating thickness testing
18. ISO 4032 vs DIN 934
| Feature | ISO 4032 | DIN 934 |
|---|---|---|
| Standard | International | German |
| Export compliance | High | Limited |
| Preferred for exports | ✔ Yes | ❌ No |
19. Custom ISO 4032 Nuts
Super Industries India offers:
✔ Non-standard thickness
✔ Special coatings
✔ Bulk OEM supply
✔ Project-specific packaging
20. Why Choose Super Industries India?
✔ ISO-compliant manufacturing
✔ Export-ready quality
✔ Engineering support
✔ Competitive pricing
21. How to Procure ISO 4032 Nuts
Provide:
1️⃣ Size & thread
2️⃣ Property class
3️⃣ Surface finish
4️⃣ Quantity
5️⃣ Destination country
22. Conclusion
ISO 4032 hexagon nuts are fundamental fastening components ensuring joint integrity across industrial and structural applications. When paired correctly with ISO bolts, they deliver safe, durable, and efficient assemblies.
With Super Industries India, you gain access to precision-manufactured, globally compliant ISO hex nuts backed by engineering expertise and export excellence.
