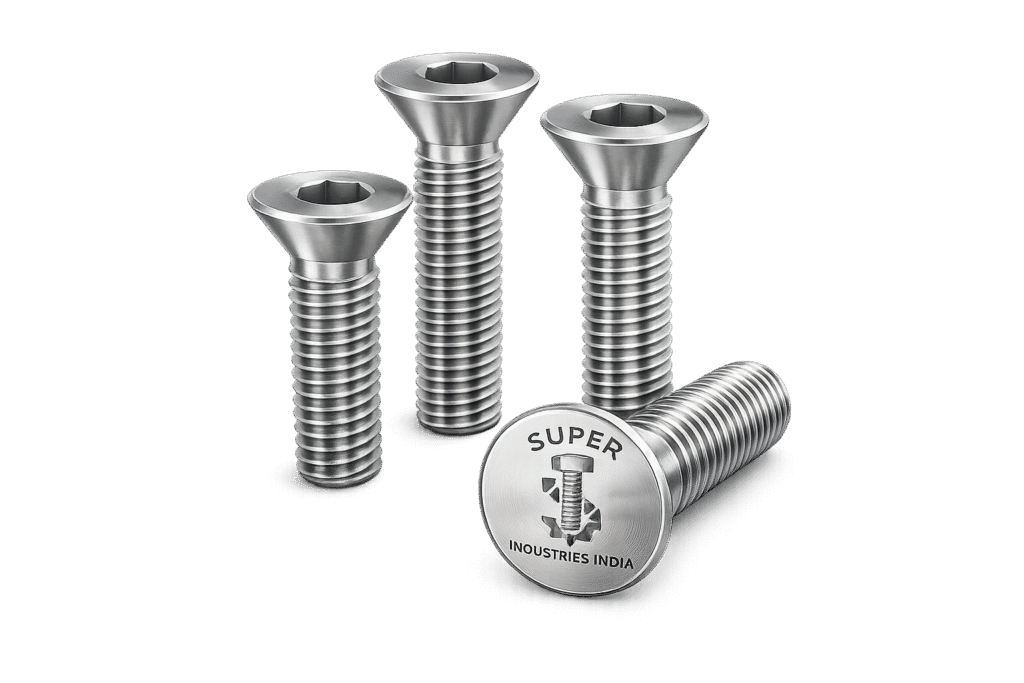

Hexagon Socket Countersunk Head Screws
Hexagon Socket Countersunk Head Screws
Manufacturer, Supplier & Exporter – Super Industries India
(Website-ready | Engineer-focused | Flush-fit applications | Export-grade content)
1. Introduction to ISO 10642 Countersunk Screws
ISO 10642 Hexagon Socket Countersunk Head Screws are high-precision fasteners designed for applications where:
- A flush or level surface finish is required
- Aerodynamics, safety, or aesthetics matter
- High tensile strength is still needed
- Space constraints prevent external heads
These screws feature a flat countersunk head with an internal hex (Allen) drive, allowing the fastener head to sit completely flush with the surface after installation.
At Super Industries India, ISO 10642 screws are widely supplied to automotive, aerospace-support, machinery, tooling, and architectural export projects.
2. What Is ISO 10642?
ISO 10642 specifies:
- Metric countersunk socket head screws
- Internal hexagon drive
- 90-degree countersunk angle
- Product grade A
- Metric threads (coarse & fine)
Equivalent / Replaced Standards:
- DIN 7991
- EN ISO 10642
ISO 10642 has fully replaced DIN 7991 in international engineering specifications.
Super Industries
Global Manufacturer of Heavy & Custom Engineered Fasteners & Flanges
3. Why ISO 10642 Screws Are Used
✔ Flush mounting
✔ Clean surface finish
✔ Reduced snagging or airflow resistance
✔ High preload capability
✔ Modern engineering aesthetics
4. Common Applications of ISO 10642
- Automotive body & chassis
- Aerospace interior assemblies
- Machine covers
- Tooling fixtures
- Robotics & automation
- Structural panels
5. ISO 10642 vs ISO 4762 vs ISO 7380
| Feature | ISO 10642 | ISO 4762 | ISO 7380 |
|---|---|---|---|
| Head type | Countersunk | Cylindrical | Button |
| Surface finish | Flush | Protruding | Slightly raised |
| Strength | High | Very High | Medium-High |
| Appearance | Sleek | Industrial | Decorative |
6. Countersunk Head Geometry
ISO 10642 screws have:
- 90° head angle
- Full head seating into countersink
- Uniform load transfer into material
Correct countersinking is essential to avoid:
❌ Head cracking
❌ Uneven load distribution
7. Dimensional Range
ISO 10642 screws are available in:
- Sizes: M3 to M24
- Lengths: Up to 200 mm+ (custom lengths available)
8. ISO 10642 Dimensional Example
| Size | Thread Pitch | Head Dia | Head Height | Allen Key |
|---|---|---|---|---|
| M6 | 1.0 | 12 mm | 3.3 mm | 4 mm |
| M8 | 1.25 | 16 mm | 4.4 mm | 5 mm |
| M10 | 1.5 | 20 mm | 5.5 mm | 6 mm |
| M12 | 1.75 | 24 mm | 6.5 mm | 8 mm |
9. Mechanical Properties (ISO 898-1)
ISO 10642 screws are supplied in:
- 8.8
- 10.9
- Stainless steel A2-70 / A4-80
⚠️ Grade 12.9 is rare due to countersunk head stress concentration.
10. Materials Offered by Super Industries India
✔ Alloy steel
✔ Carbon steel
✔ Stainless steel
✔ Special alloy materials (project-based)
11. Manufacturing Process
- Cold forging / hot forging
- Precision head forming
- Thread rolling
- Heat treatment (Q&T)
- Surface finishing
12. Surface Finishes Available
- Black oxide
- Zinc plated
- Nickel plated
- Dacromet / Geomet
- PTFE / Xylan
13. Corrosion Resistance Selection
| Environment | Recommended Finish |
|---|---|
| Indoor | Black oxide |
| Outdoor | Zinc / Geomet |
| Chemical | PTFE |
| Marine | Stainless A4 |
14. Allen Drive Advantages
✔ Clean installation
✔ No external wrench clearance needed
✔ Higher torque than Phillips or slotted
15. Flush-Fit Engineering Considerations
✔ Accurate countersink angle
✔ Proper depth control
✔ Avoid overtightening
✔ Use torque values correctly
16. Marking & Identification
ISO 10642 screws are marked with:
✔ Property class
✔ Manufacturer mark (SII)
17. Quality Control
✔ Dimensional inspection
✔ Head angle verification
✔ Mechanical testing
✔ Coating thickness checks
18. Packaging & Export Supply
- Bulk cartons
- Small boxes
- Palletized export packing
- Custom private labeling
19. Custom ISO 10642 Solutions
Super Industries India provides:
✔ Extra-long countersunk screws
✔ Special head angles
✔ Fine pitch threads
✔ Custom coatings
20. Installation Best Practices
✔ Use correct countersink tool
✔ Avoid mismatched angles
✔ Use torque wrench
✔ Ensure material compatibility
21. Why Choose Super Industries India?
✔ ISO-compliant manufacturing
✔ Export-focused quality
✔ Custom fastener expertise
✔ Competitive global pricing
22. Conclusion
ISO 10642 countersunk screws are essential for flush-fit, high-performance assemblies where both aesthetics and engineering integrity matter.
With Super Industries India, buyers receive precision-engineered ISO 10642 fasteners trusted in demanding global applications.
