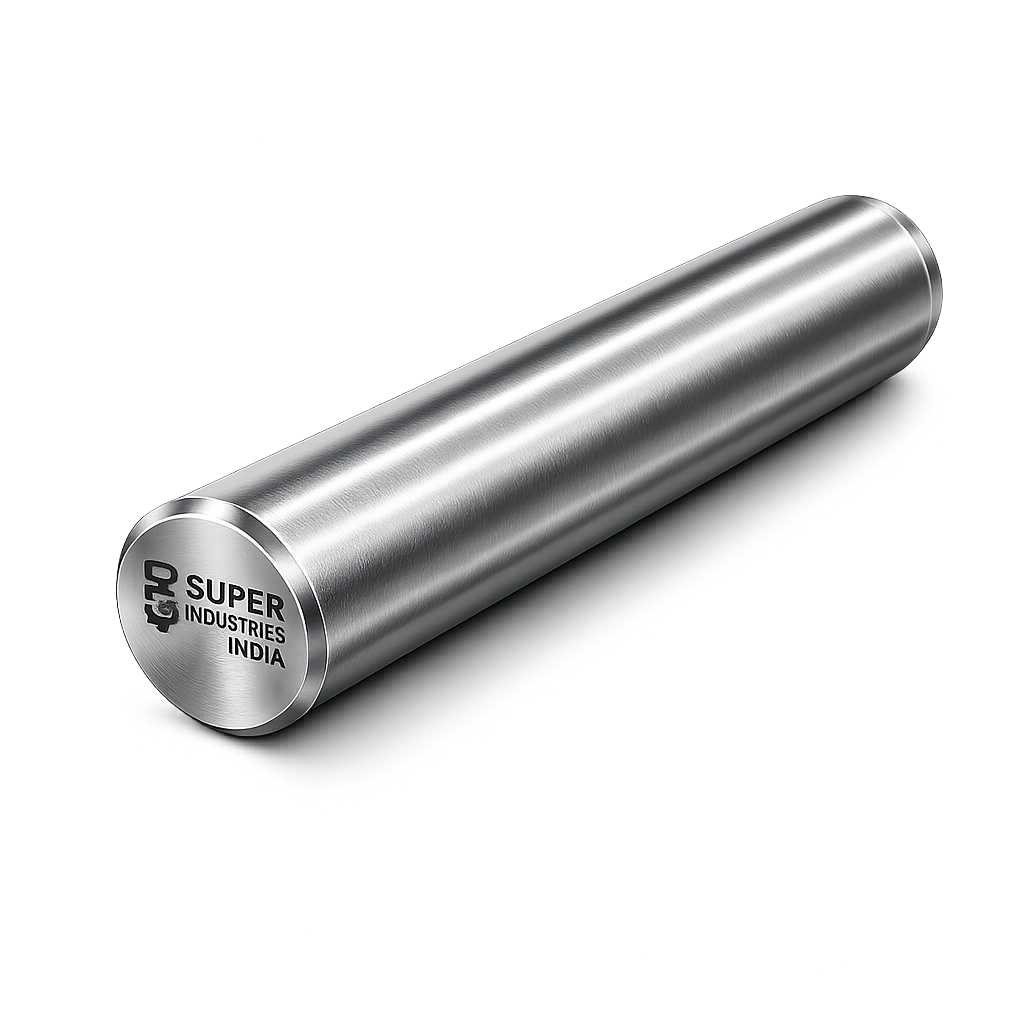

ISO 8734
Parallel Dowel Pins (Hardened & Ground)
Precision Alignment Pins for High-Accuracy Mechanical Assemblies
Manufacturer & Exporter: Super Industries India
1. Overview of ISO 8734
ISO 8734 specifies parallel dowel pins, hardened and ground, used primarily for accurate positioning and alignment of components rather than for clamping. These pins create repeatable location between parts, ensuring assemblies return to the same exact position after disassembly and reassembly.
Where bolts and screws generate preload, ISO 8734 dowel pins define geometry.
Super Industries
Global Manufacturer of Heavy & Custom Engineered Fasteners & Flanges
2. Engineering Purpose & Use-Cases
Engineers specify ISO 8734 when:
- Precise alignment is critical
- Components must be repeatedly assembled with minimal positional error
- Shear loads must be transferred without relying on threads
- Motion accuracy affects performance (gears, molds, tooling)
They are indispensable in precision engineering.
3. Geometry & Tolerances
- Shape: Cylindrical, parallel
- Ends: Chamfered for insertion
- Tolerance: m6 (tight interference fit)
- Surface finish: Ground for dimensional accuracy
The m6 tolerance ensures a secure press fit in the locating component.
4. Dimensional Range
Typical ISO 8734 sizes:
- Diameter: 1 mm to 50 mm
- Length: 4 mm to 200 mm
Super Industries India supplies:
- Standard ISO sizes
- Special lengths and diameters for OEM tooling
5. Fit Philosophy (Hole–Pin Relationship)
Common practice:
- Pin: m6 tolerance
- Hole (press fit side): H7
- Hole (slip side): H8 or H9
This allows:
- One fixed locating point
- One floating locating point (thermal expansion accommodation)
Super Industries
Global Manufacturer of Heavy & Custom Engineered Fasteners & Flanges
6. Material & Metallurgy
Standard material:
- Hardened carbon steel
Optional materials:
- Alloy steel
- Stainless steel (corrosion-resistant environments)
Material choice depends on load, wear, and environment.
7. Heat Treatment & Hardness
ISO 8734 pins are:
- Through hardened
- Ground after heat treatment
Typical hardness:
- 58–62 HRC
This provides:
- Excellent wear resistance
- Long service life under repetitive contact
8. Surface Finish & Protection
- Bright ground finish (standard)
- Black oxide (optional)
- Stainless steel passive finish
Protective coatings are selected to preserve tolerance accuracy.
9. Installation Guidelines
✔ Press-fit using arbor or hydraulic press
✔ Avoid hammering (can distort pin)
✔ Ensure hole alignment before insertion
✔ Insert pin before tightening fasteners
Correct installation preserves positional accuracy.
10. Removal & Maintenance
- Removal using pullers or extraction tools
- Not intended for frequent removal
- Reusability depends on interference condition
In tooling applications, replace pins if wear is detected.
11. Load & Performance Characteristics
- Excellent shear load capacity
- Not designed for tensile loads
- Superior positional stability
ISO 8734 pins work with fasteners, not instead of them.
12. ISO 8734 vs Spring Pins
| Feature | ISO 8734 | ISO 8752 |
|---|---|---|
| Function | Precision location | Retention |
| Fit | Interference | Elastic |
| Accuracy | Very high | Moderate |
| Vibration Resistance | Moderate | Very high |
| Reusability | Limited | Higher |
13. Typical Applications
- Injection molds
- Machine tool assemblies
- Gearboxes
- Jigs & fixtures
- Automotive engine components
- Industrial automation systems
14. Advantages of ISO 8734
✔ High positional accuracy
✔ Excellent wear resistance
✔ Predictable fit behavior
✔ Ideal for precision tooling
15. Limitations
❌ Requires precise hole machining
❌ Not suitable for vibration damping
❌ Removal can be difficult
16. Manufacturing Capabilities – Super Industries India
We produce ISO 8734 dowel pins with:
- Controlled steel chemistry
- Precision grinding
- Tight tolerance inspection
- Export-grade consistency
17. Customization Options
- Non-standard lengths
- Special diameters
- Stainless steel variants
- OEM bulk supply
18. Quality Control & Inspection
- Diameter & length measurement
- Hardness verification
- Surface finish inspection
- Batch traceability
19. Export Markets Served
- Tooling manufacturers
- Automotive OEMs
- Industrial machinery exporters
- Global EPC & trading companies
20. Conclusion
ISO 8734 dowel pins are essential for precision alignment and repeatable assembly in high-accuracy mechanical systems.
Super Industries India delivers ISO 8734 pins engineered to meet global tolerance, hardness, and performance expectations.
