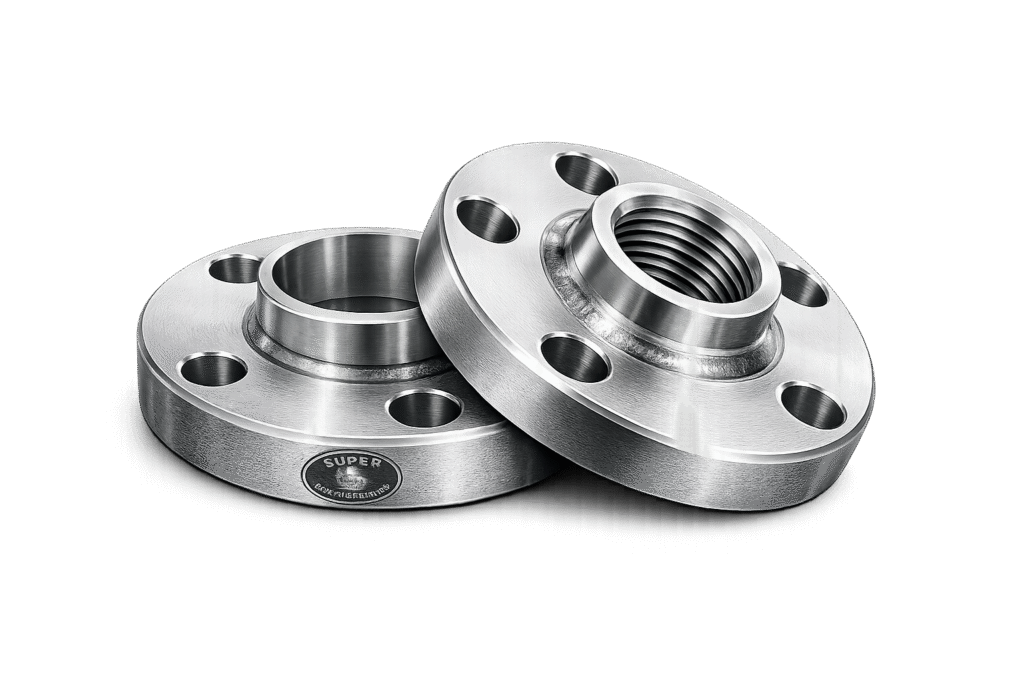

MALE FEMALE FLANGES

Super Industries
“Global Manufacturer of Heavy & Custom Engineered Fasteners for Oil & Gas, Power & EPC Contractors.”

1. Industry Context & System Relevance

Role of Male Female Flanges in Pressure Piping Systems

Male Female Flanges are deployed in pressure-retaining bolted joints where alignment precision and controlled gasket compression are critical to system integrity. These flange configurations are specifically engineered to address leakage risks associated with misalignment, over-compression, and gasket displacement.

In high-consequence piping systems, the failure mode is typically not structural collapse of the flange but loss of sealing integrity at the gasket interface. Male Female Flanges mitigate this risk through mechanically guided face engagement.

Functional Role in System Design

Male Female Flanges serve the following functions:

• Provide positive alignment during assembly
• Ensure controlled gasket seating
• Prevent gasket extrusion under pressure
• Maintain consistent sealing stress across the flange face
• Reduce dependency on installer skill for alignment accuracy

Typical Applications

These flange configurations are used in:

Oil & Gas Upstream and Midstream

• Wellhead piping
• Flowlines
• High-pressure manifolds

Refineries

• Hydroprocessing units
• Crude distillation systems
• High-temperature transfer lines

Power Plants

• Boiler feedwater systems
• Steam lines (high pressure/high temperature)
• Turbine auxiliary piping

LNG Terminals

• Cryogenic service lines
• Loading/unloading arms
• Storage tank piping

Chemical Processing

• Corrosive fluid transfer systems
• High-purity process lines

Offshore Platforms

• Space-constrained piping systems
• Vibration-prone installations

Why Male Female Configuration is Selected

Compared to Raised Face (RF) and Flat Face (FF) flanges:

Parameter	Male Female Flanges	Raised Face (RF)	Flat Face (FF)
Alignment	Positive mechanical alignment	Manual alignment	Manual alignment
Gasket Control	Controlled via recess	Limited	No control
Leakage Risk	Lower	Moderate	Higher
Gasket Containment	High	Moderate	Low
Suitability	Critical services	General service	Low-pressure systems

Selection Justification:
Male Female Flanges are chosen when:

• Gasket compression must be controlled precisely
• Misalignment cannot be tolerated
• Pressure cycling is significant
• Leakage consequences are severe

2. Technical Definition

Male Female Flanges are defined as:

A precision-machined flange pair consisting of:

• One flange with a protruding male face
• One flange with a matching recessed female face
  Designed to achieve controlled gasket compression and self-alignment during assembly

Face Geometry Configuration

• Male Face:
  • Raised projection
  • Typically 1.6 mm to 6.4 mm height depending on class
• Female Face:
  • Recessed groove
  • Depth designed to accommodate male face + gasket

Gasket Containment Principle

The gasket is:

• Located within the female recess
• Confined radially by the recess walls
• Compressed axially by bolt load

This results in:

• Reduced lateral gasket movement
• Uniform compression
• Improved sealing efficiency

Difference from RF and FF

Feature	Male Female	Raised Face	Flat Face
Gasket Position	Inside recess	On raised face	Entire face
Compression Control	High	Moderate	Low
Alignment	Self-aligning	External	External
Surface Contact	Partial	Partial	Full

3. Engineering & Sealing Principle

Face Engagement Mechanics

During assembly:

1. Male face enters female recess
2. Flanges achieve concentric alignment
3. Gasket is confined within recess
4. Bolting applies axial compressive load

Controlled Gasket Seating

The depth of the female recess determines:

• Maximum allowable compression
• Prevention of over-compression
• Uniform stress distribution

Bolt Preload Distribution

Bolt tightening results in:

• Axial compressive force
• Load transfer through flange faces
• Gasket compression within controlled limits

Sealing Reliability Under Pressure Cycling

Male Female Flanges maintain sealing integrity due to:

• Gasket confinement
• Reduced relaxation effects
• Uniform stress distribution
• Resistance to vibration-induced displacement

Leakage Prevention Mechanism

Leakage is prevented through:

• Controlled gasket stress
• Elimination of misalignment gaps
• Reduced gasket creep
• Stable contact surface

4. Pressure & Load Engineering

Pressure Class Range

• Class 150
• Class 300
• Class 600
• Class 900
• Class 1500
• Class 2500

Internal Pressure Containment

Internal pressure generates:

• Axial separation force
• Radial expansion stress

These are resisted by:

• Bolt preload
• Flange rigidity
• Gasket sealing stress

Axial and Radial Load Distribution

• Axial Loads: Managed through bolt tension
• Radial Loads: Controlled by flange stiffness and face engagement

Thermal Expansion Behavior

• Differential expansion handled via:
  • Elastic deformation
  • Gasket compressibility
• Male Female configuration reduces:
  • Misalignment due to thermal growth

Fatigue and Cyclic Loading

Suitable for:

• Pressure cycling systems
• Thermal cycling environments

Due to:

• Stable gasket positioning
• Reduced stress concentration

Bolt Load vs Pressure Interaction

System equilibrium condition:

• Bolt preload ≥ internal pressure force + gasket seating stress

Dimensional & Design Logic

Critical Design Parameters

• Male face height
• Female recess depth
• Bolt circle diameter (BCD)
• Flange thickness
• Bore alignment

Geometric Control Requirements

Concentricity

• Ensures alignment between pipe bore and flange faces

Perpendicularity

• Face must be perpendicular to bore axis

Surface Finish Requirements

Typical Ra values:

• 3.2 µm to 6.3 µm (serrated finish)
• Ensures:
  • Gasket grip
  • Controlled sealing interface

Machining Precision

• CNC-controlled machining
• Tight tolerance adherence
• Face flatness control

5. Applicable Standards

Male Female Flanges are manufactured and validated in accordance with international pressure equipment and piping standards. Compliance ensures interchangeability, pressure integrity, and acceptance across EPC projects.

Primary Dimensional Standards

ASME B16.5

• Covers: NPS ½” to 24”
• Pressure Classes: 150 to 2500
• Defines:
  • Flange dimensions
  • Facing types (including Male Female)
  • Tolerances
  • Bolt patterns

ASME B16.47 (Series A & B)

• Covers: NPS 26” to 60”
• Used for:
  • Large-diameter pipelines
  • Offshore and transmission systems

Material Standards (ASTM)

Category	Standard	Scope
Carbon Steel	ASTM A105	Forged carbon steel for ambient/high temp
Low Temperature CS	ASTM A350 LF2	Impact-tested for low temperature service
Stainless Steel	ASTM A182	Alloy and stainless forged flanges
Alloy Steel	ASTM A182 F11/F22	High temp and creep-resistant alloys

European Standards

• EN 1092-1
  • Metric flange system
  • PN ratings (PN10 to PN100)
• DIN Standards
  • DIN 2527 / DIN 2633 / DIN 2635 (depending on type/class)

Standard Mapping to Engineering Parameters

Standard	Pressure Rating System	Temperature Basis	Application
ASME B16.5	Class 150–2500	Material-dependent	Oil & Gas, Power
ASME B16.47	Class 75–900	Material-dependent	Large pipelines
EN 1092-1	PN system	Defined temp curves	EU projects

Relevance to Male Female Flanges

• Face configurations (male/female) are standardized under ASME B16.5
• Dimensional tolerances ensure:
  • Proper face engagement
  • Gasket seating reliability
• Compliance ensures interchangeability across global projects

6. Material & Grade Options

Material selection for Male Female Flanges is driven by:

• Pressure rating
• Temperature range
• Corrosion environment
• Fluid characteristics

Carbon Steel

ASTM A105

• General-purpose forged carbon steel
• Suitable for:
  • Ambient to moderately high temperatures
• Good machinability and strength

ASTM A350 LF2

• Low-temperature carbon steel
• Impact-tested
• Suitable for:
  • Sub-zero service (down to -46°C or lower)

Stainless Steel

ASTM A182 F304

• Austenitic stainless steel
• Good corrosion resistance
• Suitable for:
  • General chemical processing

ASTM A182 F316

• Molybdenum-bearing stainless steel
• Enhanced resistance to:
  • Chlorides
  • Marine environments

Alloy Steel

ASTM A182 F11 / F22

• Chromium-molybdenum alloys
• Designed for:
  • High-temperature service
  • Creep resistance
• Common in:
  • Power plants
  • Refineries

Duplex / Super Duplex Stainless Steel

• Dual-phase microstructure
• High strength + corrosion resistance
• Suitable for:
  • Offshore platforms
  • Seawater systems
  • Aggressive chemical environments

Material Comparison Table

Material Grade	Yield Strength (MPa)	Tensile Strength (MPa)	Temperature Range	Corrosion Resistance	Typical Application
ASTM A105	~250	485–620	-29°C to 425°C	Moderate	Oil & gas piping
ASTM A350 LF2	~250	485–620	Down to -46°C	Moderate	Cryogenic systems
ASTM A182 F304	~205	515–720	Up to 870°C	Good	Chemical processing
ASTM A182 F316	~205	515–720	Up to 870°C	High	Marine, offshore
ASTM A182 F11	~275	415–585	Up to 540°C	Moderate	Power plants
ASTM A182 F22	~415	585–760	Up to 600°C	Moderate	High-temp service
Duplex SS	~450	620–880	-50°C to 300°C	Very High	Offshore, seawater

7. Heat Treatment Information

Heat treatment is applied to achieve:

• Required mechanical properties
• Microstructural stability
• Resistance to brittle fracture

Normalizing

• Applied to carbon steel
• Refines grain structure
• Improves:
  • Strength
  • Uniformity

Quenching & Tempering (Q&T)

• Used for alloy steels
• Process:
  • Rapid cooling (quenching)
  • Controlled reheating (tempering)

Effect:

• Increased strength
• Improved toughness

Solution Annealing

• Applied to stainless steels
• Dissolves carbides
• Restores corrosion resistance

Stress Relieving

• Removes residual stresses from:
  • Forging
  • Machining

Hardness Control

• Ensures compliance with:
  • NACE requirements (if applicable)
• Prevents:
  • Sulfide stress cracking

Impact Testing

• Required for low-temperature service
• Conducted as per:
  • ASTM A370
• Ensures:
  • Toughness at operating temperature

8. Manufacturing Process

Manufacturing of Male Female Flanges follows a controlled, traceable, multi-stage process.

1. Raw Material Inspection

• Verification of:
  • Mill test certificates
  • Chemical composition
• PMI (Positive Material Identification)

2. Forging

• Closed-die or open-die forging
• Produces:
  • Refined grain flow
  • Improved mechanical strength

3. Rough Machining

• Initial shaping of:
  • Outer diameter
  • Bore
  • Thickness

4. CNC Machining of Faces

Critical stage for Male Female Flanges:

• Machining of:
  • Male projection
  • Female recess
• Controlled parameters:
  • Depth
  • Height
  • Concentricity

5. Groove Precision Control

• Ensures:
  • Proper gasket fit
  • Controlled compression

6. Drilling

• Bolt holes drilled as per:
  • BCD
  • Tolerance limits
• Angular accuracy maintained

7. Heat Treatment

• Applied as per material specification

8. Surface Finishing

• Serrated or smooth finish
• Coating application (if required)

9. Final Inspection

• Dimensional verification
• NDT (if required)
• Surface quality check

10. Marking & Traceability

Includes:

• Heat number
• Material grade
• Pressure class
• Manufacturer identification

Surface Finish Options

Surface condition affects:

• Corrosion resistance
• Handling durability
• Sealing performance

Common Surface Treatments

Phosphate Coating

• Temporary corrosion protection
• Used for carbon steel

Zinc Plating

• Electroplated coating
• Moderate corrosion resistance

Hot-Dip Galvanizing

• Thick zinc coating
• Suitable for outdoor exposure

PTFE Coating

• Chemical resistance
• Low friction surface

Passivation (Stainless Steel)

• Removes free iron
• Enhances corrosion resistance

Black Oxide

• Minimal protection
• Used for indoor applications

Surface Roughness (Ra Values)

• Typical: 3.2 – 6.3 µm
• Achieved via:
  • Phonographic serrations
• Function:
  • Enhances gasket grip
  • Prevents slippage

Impact on Sealing Performance

Surface finish directly influences:

• Gasket seating stress
• Leak tightness
• Long-term sealing stability

9. Dimensional Engineering Tables

Dimensional control in Male Female Flanges is governed by ASME B16.5 / B16.47 tolerances, with additional precision applied to face geometry (male height & female recess depth) to ensure controlled gasket compression.

A. Representative Dimension Table (ASME B16.5 – Male Female Flanges)

Values indicative for engineering reference. Project-specific drawings govern final supply.

NPS (in)	Pressure Class	Flange OD (mm)	Bolt Circle (BCD mm)	Bolt Size	No. of Bolts	Male Face Height (mm)	Female Depth (mm)	Flange Thickness (mm)
1”	150	108	79	M14	4	1.6	2.0	14.3
2”	300	165	127	M16	8	1.6	2.4	20.6
4”	600	273	216	M20	8	3.2	3.6	38.1
6”	900	381	318	M24	12	3.2	4.0	55.6
8”	1500	483	406	M30	12	6.4	6.8	79.4
10”	2500	584	495	M36	16	6.4	7.2	108.0

Dimensional Engineering Notes

• Female depth > Male height ensures:
  • No metal-to-metal contact before gasket compression
• Face concentricity tolerance: typically ≤ 0.25 mm
• Perpendicularity tolerance: critical for uniform bolt load transfer
• Bolt hole positional tolerance: ensures stress symmetry

Pressure Rating Table

Pressure-temperature ratings are governed by material group and ASME classification.

B. Pressure Rating (Indicative – ASTM A105)

Class	38°C (bar)	100°C (bar)	200°C (bar)	300°C (bar)	400°C (bar)
150	19.6	17.7	15.5	13.4	11.0
300	51.1	46.0	40.0	34.5	28.3
600	102.1	91.9	79.9	68.9	56.6
900	153.2	137.9	119.8	103.4	84.9
1500	255.3	229.8	199.6	172.4	141.5
2500	425.5	382.9	332.7	287.4	235.8

Engineering Interpretation

• Pressure rating decreases with temperature due to:
  • Material strength reduction
• Male Female configuration does not change rating, but:
  • Improves sealing reliability within rating limits

Torque Chart

Torque application is critical to achieve:

• Required gasket seating stress
• Leak-tight performance
• Bolt stress within allowable limits

C. Torque Values (Indicative – Carbon Steel Bolting, B7 / 2H)

Bolt Size	Lubricated Torque (Nm)	Dry Torque (Nm)	Target Bolt Stress (% Yield)
M16	110 – 130	150 – 170	60–70%
M20	220 – 260	300 – 340	60–70%
M24	380 – 450	520 – 580	60–70%
M30	750 – 880	1000 – 1150	60–70%
M36	1300 – 1500	1700 – 1900	60–70%

Torque Application Notes

• Lubrication reduces friction → improves preload accuracy
• Torque variation tolerance: typically ±10%
• Use calibrated torque wrench or hydraulic tensioners for critical joints

Preload Calculation Guide

Correct bolt preload is fundamental to sealing integrity.

D. Bolt Load Formula



Where:

• F = Required bolt load per bolt
• P = Internal pressure
• A = Effective gasket area
• n = Number of bolts
• Fg = Gasket seating force

Bolt Stress Formula



Where:

• σ = Bolt stress
• F = Bolt force
• Ab = Bolt stress area

Sample Calculation

Given:

• Pressure (P) = 100 bar
• Gasket effective area (A) = 5000 mm²
• Number of bolts (n) = 8
• Gasket seating force (Fg) = 20 kN

Calculation:

• Pressure force = 100 × 5000 = 500,000 N
• Load per bolt = 500,000 / 8 = 62,500 N
• Total bolt load = 62,500 + 20,000 = 82,500 N per bolt

Safety Factor

• Typical design factor: 1.5 to 2.0
• Ensures:
  • Compensation for relaxation
  • Thermal effects
  • Installation variability

Engineering Considerations

• Over-tightening → gasket crushing
• Under-tightening → leakage
• Male Female design helps limit over-compression

Mechanical Properties Table

E. Mechanical Properties

Material	Yield Strength (MPa)	Tensile Strength (MPa)	Elongation (%)	Hardness (HB)
ASTM A105	≥250	485–620	≥22	137–187
ASTM A350 LF2	≥250	485–620	≥22	137–187
ASTM A182 F304	≥205	515–720	≥30	≤201
ASTM A182 F316	≥205	515–720	≥30	≤217
ASTM A182 F22	≥415	585–760	≥20	170–220

Engineering Relevance

• Higher yield strength → higher allowable bolt preload
• Elongation → ductility for flange deformation tolerance
• Hardness → resistance to wear and indentation

Corrosion Comparison Table

F. Corrosion Resistance Comparison

Material	General Corrosion	Chloride Resistance	Sulfide Stress Resistance	Marine Suitability
A105	Low	Poor	Moderate	Not suitable
LF2	Low	Poor	Moderate	Not suitable
F304	Moderate	Limited	Moderate	Limited
F316	High	Good	Moderate	Suitable
Duplex SS	Very High	Excellent	High	Highly suitable

Material Selection Insight

• Chloride environments → F316 or Duplex
• Sour service → controlled hardness + NACE compliance
• Offshore → Duplex preferred

10. Inspection & Quality Control

Inspection ensures compliance with:

• Design specifications
• Material standards
• Dimensional tolerances

Incoming Material Verification

• Mill Test Certificate (MTC) validation
• PMI (Positive Material Identification)
• Heat number traceability

Non-Destructive Testing (NDT)

Ultrasonic Testing (UT)

• Detects internal discontinuities

Magnetic Particle Inspection (MPI)

• Surface/subsurface crack detection (ferromagnetic materials)

Dye Penetrant Inspection (DPI)

• Surface crack detection (all materials)

Dimensional Inspection

Critical checks include:

• Male face height
• Female recess depth
• Flange thickness
• Bolt hole alignment
• BCD accuracy

Hardness Testing

• Ensures compliance with:
  • Material specifications
  • NACE limits (if applicable)

Hydrostatic Testing (If Applicable)

• Verifies:
  • Pressure integrity
  • Leak tightness of assembled joint (system-level)

Surface Finish Verification

• Roughness measurement (Ra value)
• Serration profile inspection

Certification

• EN 10204 3.1 – Manufacturer certification
• EN 10204 3.2 – Third-party inspection (if required)

Third-Party Inspection

Common agencies:

• TPI as per EPC requirement
• Witness and hold points include:
  • Raw material inspection
  • Final dimensional check
  • NDT verification

Traceability System

Each flange is marked with:

• Heat number
• Material grade
• Size and pressure class
• Manufacturer identification

Quality Assurance Outcome

The inspection protocol ensures:

• Dimensional compliance
• Material authenticity
• Sealing reliability
• EPC acceptance readiness

11. Industries Served

Male Female Flanges are deployed in pressure-critical and leakage-sensitive piping systems where alignment accuracy and gasket control are required to meet design integrity and operational reliability criteria.

Oil & Gas (Upstream / Midstream / Downstream)

Applications include:

• Wellhead and Christmas tree piping
• High-pressure flowlines and manifolds
• Refinery process units (hydrocracking, reforming)

Engineering Requirement:

• Resistance to pressure cycling
• Controlled sealing under fluctuating loads
• Compatibility with hydrocarbon service

Petrochemical & Chemical Processing

Applications include:

• Corrosive fluid transfer systems
• Reactor inlet/outlet piping
• Solvent and acid handling lines

Engineering Requirement:

• Material compatibility (F316, Duplex)
• Leak prevention in hazardous media
• Controlled gasket confinement

Power Generation (Thermal / Nuclear / Combined Cycle)

Applications include:

• Boiler feedwater systems
• Main steam lines
• Turbine auxiliary piping

Engineering Requirement:

• High-temperature strength (F11 / F22)
• Resistance to creep and fatigue
• Stability under thermal expansion

LNG & Cryogenic Systems

Applications include:

• LNG storage and transfer pipelines
• Cryogenic process lines
• Vapor return systems

Engineering Requirement:

• Low-temperature toughness (LF2, Stainless Steel)
• Impact resistance at sub-zero temperatures
• Gasket integrity under thermal contraction

Offshore & Marine Installations

Applications include:

• Platform piping systems
• Subsea modules
• Seawater cooling systems

Engineering Requirement:

• Resistance to chloride-induced corrosion
• Vibration tolerance
• Compact alignment-friendly design

General Industrial & Process Plants

Applications include:

• High-pressure utility lines
• Chemical dosing systems
• Specialized process piping

Engineering Requirement:

• Standard compliance
• Maintainability
• Interchangeability

12. Export Capability

Super Industries operates as a manufacturer and global exporter of Male Female Flanges, aligned with EPC procurement frameworks and international compliance requirements.

Export Regions

• United States (ASME-based projects)
• European Union (EN / PED compliance)
• Middle East (Oil & Gas EPC projects)
• Southeast Asia & Far East
• Africa (Energy and infrastructure projects)

Packaging Standards

• Wooden crates (ISPM 15 compliant)
• Moisture barrier wrapping
• Anti-corrosion protection (VCI / oil coating)
• Individual flange protection for facing surfaces

Objective:

• Prevent mechanical damage
• Preserve machined face integrity
• Avoid corrosion during transit

Documentation Package

Supplied documentation typically includes:

• Mill Test Certificates (EN 10204 3.1 / 3.2)
• Dimensional inspection reports
• NDT reports (UT / MPI / DPI)
• Heat treatment records
• PMI reports
• Compliance declarations (ASME / EN)

Logistics Capability

• Containerized shipments (FCL / LCL)
• Project-based dispatch planning
• Marking aligned with EPC tagging systems
• Batch traceability through shipment

13. Procurement & Installation Engineering View

Alignment Requirements

Male Female Flanges reduce dependency on external alignment, but proper installation still requires:

• Clean flange faces
• Verification of concentricity
• Absence of foreign particles

Gasket Positioning

• Gasket must be placed within female recess
• Ensure:
  • Correct size
  • Proper seating
  • No folding or damage

Bolt Tightening Procedure

Cross-Pattern Tightening

Sequence:

1. Initial snug tightening
2. 30% torque (cross pattern)
3. 60% torque (cross pattern)
4. 100% torque (final pass)

Torque Application Control

• Use calibrated torque wrench or hydraulic tensioner
• Apply uniform torque across all bolts
• Avoid sequential tightening

Re-Torque Practices

• Re-torque after:
  • Initial pressurization
  • Thermal stabilization (if applicable)

Inspection Checkpoints During Installation

• Face cleanliness
• Gasket alignment
• Bolt lubrication condition
• Torque verification
• Gap uniformity check

Common Installation Risks

Issue	Cause	Impact
Misalignment	Improper assembly	Uneven gasket stress
Over-tightening	Excess torque	Gasket crushing
Under-tightening	Insufficient preload	Leakage
Contamination	Dirty faces	Seal failure

Custom Engineering Capabilities

Super Industries provides project-specific manufacturing of Male Female Flanges aligned with EPC specifications and design deviations.

Custom Design Options

• Non-standard male face heights
• Modified female recess depths
• Special gasket seating configurations
• Custom bore sizes

Non-Standard Drilling

• Project-specific bolt hole patterns
• Compatibility with legacy systems

Heavy Thickness & High-Pressure Designs

• Increased flange thickness for:
  • High-pressure service
  • Fatigue resistance

Material Customization

• Duplex / Super Duplex
• High alloy materials
• NACE-compliant materials

Marking & Traceability

• Project-specific tagging
• QR / barcode traceability (if required)
• Heat-wise traceability maintained

Engineering Summary & System-Level Conclusion

Male Female Flanges represent a precision-engineered flange facing configuration developed to address limitations in conventional flange designs related to:

• Gasket misalignment
• Uncontrolled compression
• Leakage under cyclic loading

Engineering Advantages

• Controlled gasket compression via recess geometry
• Self-alignment during assembly
• Improved sealing reliability under pressure and temperature variations
• Reduced risk of gasket extrusion and displacement

Design Suitability

Recommended for:

• High-pressure systems
• Critical sealing applications
• Cyclic loading environments
• Hazardous fluid service

Standards Compliance

Manufactured in accordance with:

• ASME B16.5 / B16.47
• ASTM material standards
• EN / DIN equivalents (as required)

EPC Evaluation Outcome

From an EPC and consultant evaluation perspective:

• Face geometry demonstrates understanding of sealing mechanics
• Manufacturing controls indicate dimensional discipline
• Inspection protocols ensure traceability and compliance
• Material selection reflects application-specific engineering judgment

Final Engineering Position

Male Female Flanges are not a general-purpose solution but a targeted engineering configuration applied where:

• Sealing reliability is critical
• Alignment tolerance is minimal
• Operational consequences of leakage are high

Their use reflects a design-driven selection approach, aligned with pressure system integrity requirements and international piping standards.
