Spectacle Blind Flange Outlets

Spectacle Blind Flange Outlet Manufacturer & Exporter from India | Super Industries India

1. Introduction

In industrial piping systems, safe isolation of process flow is a critical requirement during maintenance, shutdowns, or operational changeovers. Spectacle Blind Flange Outlets provide a reliable, visible, and mechanical means of isolating branch connections without dismantling the piping system.

Spectacle blind flange outlets are widely used in oil & gas, petrochemical, refinery, chemical processing, and power generation plants, where positive isolation is mandatory for safety and regulatory compliance.

At Super Industries India, we manufacture and export Spectacle Blind Flange Outlets in compliance with ASME, ASTM, DIN, and EN standards, supplying standard and customized solutions to global customers.

This page is written for engineers, plant operators, and manufacturers who require a detailed understanding of spectacle blind flange outlets, their design philosophy, and application.

2. What Is a Spectacle Blind Flange Outlet?

A Spectacle Blind Flange Outlet is a reinforced branch connection fitting that:

• Is welded to the run pipe (header), and
• Incorporates a spectacle blind assembly at the branch flange.

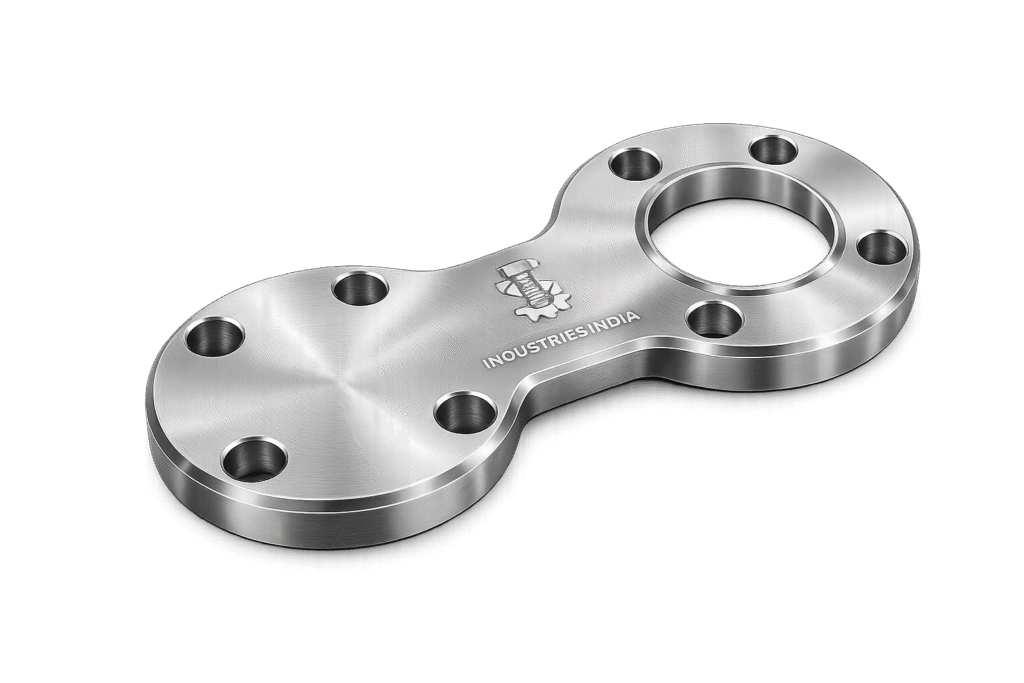

The spectacle blind consists of:

• A solid blind plate, and
• A spacer ring, connected by a metal web (resembling spectacles).

By rotating the assembly, operators can:

• Block flow completely (blind position)
• Allow flow through (spacer position)

3. Engineering Philosophy of Spectacle Blind Flange Outlets

Spectacle blind flange outlets are designed to:
✔ Provide positive mechanical isolation
✔ Offer clear visual confirmation of isolation
✔ Eliminate reliance on valve sealing integrity
✔ Improve plant safety during maintenance

Design codes ensure that spectacle blinds can withstand full system pressure in the blind position.

Applicable Codes

• ASME B31.3 – Process Piping
• ASME Section VIII
• ASME B16.48 – Line Blanks

4. Why Choose Spectacle Blind Flange Outlets?

Spectacle blind flange outlets are selected when:

✔ Absolute isolation is required
✔ Safety is critical
✔ Valves alone are not sufficient
✔ Frequent isolation is needed

They are especially important in hazardous fluid service.

5. Spectacle Blind Flange Outlet vs Valve Isolation

Parameter	Spectacle Blind	Valve
Isolation	Positive	Conditional
Visual confirmation	Yes	No
Leakage risk	Zero (blind)	Possible
Maintenance	Simple	Complex
Safety level	Very high	Moderate

Super Industries India recommends spectacle blind flange outlets for high-risk services.

6. Design Features of Spectacle Blind Flange Outlets

6.1 Reinforced Outlet Body

• Restores pipe strength
• Supports flange loads
• Minimizes stress concentration

6.2 Spectacle Blind Assembly

• Blind plate (solid)
• Spacer ring (with bore)
• Connecting web for rotation

6.3 Flange Faces

• Raised Face (RF)
• Flat Face (FF)
• Ring Type Joint (RTJ)

7. Spectacle Blind Types

• Type A – Raised Face
• Type B – Flat Face
• Type C – RTJ

Each type is selected based on pressure class and service conditions.

8. Pressure Classes & Size Range

Pressure Classes

• ASME Class 150
• Class 300
• Class 600
• Class 900
• Class 1500

Size Range

• Customized branch sizes
• Run pipe sizes as per project

9. Materials Used

9.1 Carbon Steel

• ASTM A105
• ASTM A350 LF2

9.2 Alloy Steel

• ASTM A182 F11
• ASTM A182 F22

9.3 Stainless Steel

• ASTM A182 F304 / 304L
• ASTM A182 F316 / 316L

9.4 Special Materials

• Duplex & Super Duplex
• Nickel alloys

10. Applicable Standards

• ASME B16.48 (Line Blanks)
• ASME B16.5 / B16.47 (Flanges)
• ASME B31.3 / B31.1
• ASTM material standards

11. Manufacturing Process at Super Industries India

1️⃣ Raw material verification
2️⃣ CNC machining of outlet body
3️⃣ Machining of spectacle blind components
4️⃣ Flange machining & drilling
5️⃣ Welding with qualified WPS
6️⃣ Heat treatment (if required)
7️⃣ Final inspection & finishing

12. Welding & Installation Considerations

• Correct orientation of spectacle blind
• Proper bolt tightening sequence
• Torque control
• Clearance for rotation

13. Inspection & Quality Control

Each spectacle blind flange outlet undergoes:

✔ Dimensional inspection
✔ Visual inspection
✔ Blind thickness verification
✔ NDT (UT / MT / PT)
✔ PMI testing (on request)

14. Safety & Operational Advantages

• Visual verification of isolation
• Reduced maintenance risk
• Compliance with safety standards
• Improved plant reliability

15. Applications of Spectacle Blind Flange Outlets

Used in:

• Oil & gas processing
• Refineries
• Petrochemical plants
• Chemical plants
• Power generation
• Offshore platforms

16. Customization Capabilities

✔ Custom blind thickness
✔ Special materials
✔ Project-specific designs
✔ Non-standard pressure classes

17. Export Packaging & Documentation

• Heavy-duty crates
• Protective flange covers
• Anti-corrosion coating
• Export documentation

18. Why Choose Super Industries India

✔ Manufacturer (not trader)
✔ Export-focused production
✔ Engineering & drawing support
✔ Global standards compliance
✔ Competitive pricing

19. RFQ – Spectacle Blind Flange Outlet

Please share:

• Run pipe size & schedule
• Branch size
• Pressure class
• Material grade
• Quantity
• Applicable standard

👉 Request Manufacturer Quote

20. Conclusion

Spectacle Blind Flange Outlets provide absolute safety and positive isolation in industrial piping systems. Their reliability and visual confirmation make them indispensable in high-risk applications.

With strong manufacturing capability and global export expertise, Super Industries India is a trusted supplier of Spectacle Blind Flange Outlets worldwide.
