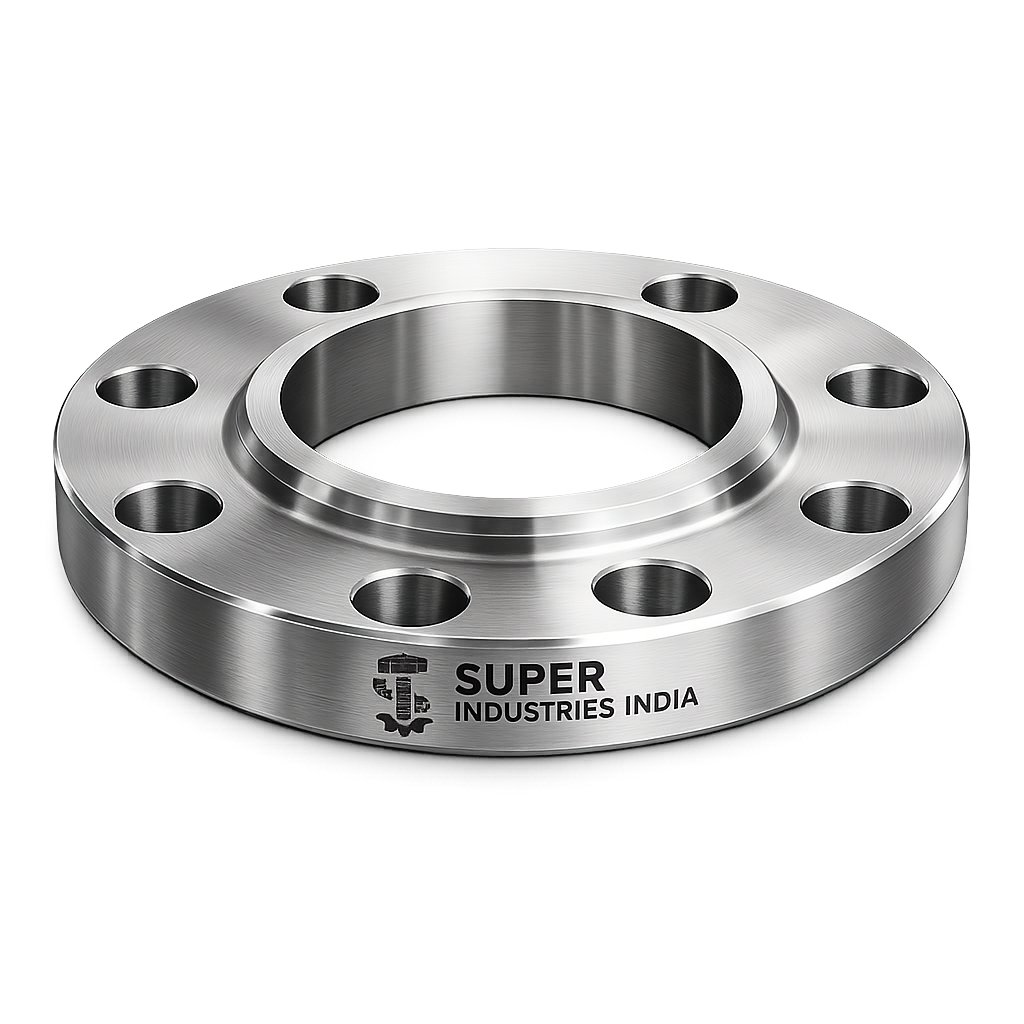

DIN FLANGES

Super Industries
“Global Manufacturer of Heavy & Custom Engineered Fasteners for Oil & Gas, Power & EPC Contractors.”

1. Industry Context & System Relevance

Role of DIN Flanges in Pressure Piping Systems

DIN Flanges serve as mechanical connection interfaces in pressurized piping networks, enabling:

• Assembly and disassembly of piping systems
• Integration of valves, pumps, and equipment
• Inspection, maintenance, and replacement without cutting or welding

They function as pressure boundary components, maintaining system integrity under:

• Internal pressure
• Thermal expansion
• External mechanical loads

Application Across Industrial Sectors

Oil & Gas (Upstream / Midstream / Downstream)

• Pipeline manifolds
• Wellhead connections
• Process skids
• Compressor stations

Refineries & Petrochemical Plants

• High-temperature hydrocarbon lines
• Reactor connections
• Distillation units

Power Generation

• Steam lines (high pressure / high temperature)
• Boiler feedwater systems
• Turbine connections

Chemical Processing Plants

• Corrosive fluid handling
• Acid and solvent pipelines
• Reactor vessels

Water & Wastewater Treatment

• Pumping stations
• Filtration systems
• Municipal pipeline networks

Shipbuilding & Marine Systems

• Ballast systems
• Cooling water circuits
• Fuel transfer lines

Infrastructure & Utility Pipelines

• District cooling
• Irrigation systems
• Industrial utilities

Why Flanged Joints Are Used

Comparison with Welded Joints

Parameter	Flanged Joint	Welded Joint
Disassembly	Possible	Not possible
Maintenance	Easy	Difficult
Installation	Faster (bolting)	Slower (welding + NDT)
Leak Risk	Controlled via gasket	Minimal if weld integrity maintained
Use Case	Equipment connections	Permanent pipelines

Conclusion:
Flanges are preferred where periodic maintenance, inspection, or equipment removal is required.

Comparison with Threaded Joints

Parameter	Flanged Joint	Threaded Joint
Pressure Capacity	High	Limited
Leakage Risk	Controlled via gasket	Higher risk
Size Range	Large diameters possible	Limited to small sizes
Application	Industrial systems	Low-pressure services

Conclusion:
Threaded joints are unsuitable for high-pressure, large-diameter, or critical service systems, where DIN Flanges are applied.

2. Technical Definition of DIN Flanges

Fundamental Definition

DIN Flanges are:

• Pressure-retaining bolted joints
• Designed as circular mechanical interfaces
• Manufactured to DIN / EN dimensional standards
• Utilizing gasket-based sealing systems
• Engineered for axial compressive sealing between mating faces

Functional Components of a Flanged Joint

A complete DIN flange connection consists of:

1. Two mating flanges
2. Gasket (sealing element)
3. Bolting system (bolts, nuts, washers)
4. Pipe or equipment interface

DIN Flange Types (EN 1092-1 Classification)

1. Weld Neck Flange (Type 11)

• Long tapered hub
• Butt-welded to pipe
• Suitable for:
  • High pressure
  • High temperature
  • Cyclic loading

2. Slip-On Flange (Type 01 / 02)

• Pipe inserted into bore
• Fillet welded (internal + external)
• Used in:
  • Moderate pressure systems
  • Utility pipelines

3. Blind Flange (Type 05)

• No bore
• Used for:
  • Line termination
  • Pressure testing

4. Threaded Flange (Type 13)

• Internal threads
• No welding required
• Limited to:
  • Low pressure
  • Non-critical systems

5. Lap Joint Flange (Type 02 with Stub End)

• Used with stub end
• Allows rotational alignment
• Applied where:
  • Frequent dismantling required
  • Expensive materials used (stub end only)

Pressure Rating System (PN System)

DIN Flanges are classified using PN (Pressure Nominal) ratings:

PN Rating	Nominal Pressure (bar)
PN6	6 bar
PN10	10 bar
PN16	16 bar
PN25	25 bar
PN40	40 bar
PN63	63 bar
PN100	100 bar

Note:
PN rating is a reference classification, not the actual allowable pressure at all temperatures.

3. Engineering & Sealing Principle

Bolt Preload Mechanics

Flange sealing depends on controlled bolt tension.

When bolts are tightened:

• Bolt elongates elastically
• Generates compressive force across flange faces
• Compresses gasket material

This preload must:

• Exceed internal pressure forces
• Maintain sealing under operating conditions

Gasket Compression Behavior

Gaskets function by:

• Filling surface irregularities
• Creating a leak-tight barrier

Critical parameters:

• Seating stress (initial compression)
• Operating stress (maintained during service)
• Recovery capability (ability to rebound under load variation)

Flange Face Types

1. Flat Face (FF)

• Entire surface contacts gasket
• Used in:
  • Cast iron systems
  • Low-pressure pipelines

2. Raised Face (RF equivalent in EN)

• Elevated sealing surface
• Concentrates load on gasket
• Common in:
  • PN16–PN40 systems

3. Tongue & Groove (T&G)

• Interlocking faces
• Provides:
  • Improved alignment
  • Enhanced sealing

4. Ring Type Joint (RTJ)

• Metal-to-metal sealing with ring gasket
• Used in:
  • High-pressure systems
  • Critical hydrocarbon services

Surface Finish & Its Impact on Sealing

Surface roughness directly affects gasket performance.

Typical Ra values:

Gasket Type	Recommended Ra
Soft gasket	3.2 – 6.3 µm
Spiral wound	3.2 – 5.0 µm
RTJ	Smooth precision finish

Too smooth → insufficient grip
Too rough → leakage paths

Sealing Stress vs Internal Pressure

Sealing condition:

Bolt preload ≥ Internal pressure force + safety margin

If:

• Bolt load decreases (relaxation, temperature)
• Internal pressure increases

→ Leakage may occur

Leakage Prevention Theory

Leak-free performance depends on:

• Proper gasket selection
• Correct bolt preload
• Uniform load distribution
• Controlled surface finish
• Flange rigidity

4. Pressure & Load Engineering

PN Rating vs Actual Pressure-Temperature Relationship

PN rating is defined at reference temperature (typically 20°C).

As temperature increases:

• Material strength decreases
• Allowable pressure reduces

This requires temperature derating based on material standards.

Static vs Cyclic Loading

Static Loading

• Constant internal pressure
• Minimal stress variation

Cyclic Loading

• Pressure fluctuations
• Thermal cycles
• Causes:
  • Fatigue
  • Bolt loosening
  • Gasket degradation

Thermal Expansion Stress

Pipelines expand due to temperature:



This induces:

• Axial forces
• Bending moments at flanges

Pipeline Bending Stress

Misalignment or external loads generate:

• Bending stress at flange interface
• Uneven gasket compression
• Potential leakage

Fatigue Loading

Repeated stress cycles may cause:

• Bolt fatigue failure
• Crack initiation in flange hub
• Loss of preload

Bolt Load vs Gasket Seating Stress

Two critical conditions:

1. Initial Seating Condition
   • Sufficient stress to compress gasket
2. Operating Condition
   • Maintain stress despite pressure and temperature

Safety Factor Philosophy

Engineering design incorporates:

• Material safety factors
• Bolt load margins
• Gasket stress margins

To ensure:

• Leak-free performance
• Structural integrity
• Long-term reliability

Dimensional & Design Logic

Key Geometrical Parameters

1. Bolt Circle Diameter (PCD)

• Determines bolt load distribution
• Must align precisely with mating flange

2. Number of Bolt Holes

• Increases with:
  • Diameter
  • Pressure rating

3. Flange Thickness

• Provides structural rigidity
• Prevents rotation under load

4. Hub Dimensions (Weld Neck Flange)

• Tapered hub reduces stress concentration
• Improves fatigue resistance

5. Facing Dimensions

• Defines gasket seating area
• Must comply with EN tolerances

Tolerance Requirements (EN Standards)

Controlled parameters:

• Flatness
• Parallelism
• Concentricity
• Bore tolerance

These ensure:

• Proper alignment
• Uniform gasket compression

Surface Roughness

Specified in Ra (µm)

Critical for:

• Gasket sealing
• Frictional grip

Geometric Accuracy Requirements

Parameter	Importance
Flatness	Prevent leakage
Parallelism	Uniform load
Concentricity	Alignment
Surface finish	Seal integrity

5. Applicable Standards (CORE SECTION)

DIN EN 1092-1 (Primary Governing Standard)

DIN Flanges are primarily manufactured in accordance with:

DIN EN 1092-1 — Flanges and their joints — Circular flanges for pipes, valves, fittings and accessories, PN designated

This standard defines:

• Flange types (Type 01, 02, 05, 11, 13, etc.)
• PN pressure ratings
• Dimensional requirements (DN sizes, PCD, thickness)
• Facing types and surface finish
• Tolerances and permissible deviations
• Marking and identification requirements

It serves as the primary dimensional and pressure reference for DIN flange systems across Europe and international EPC projects.

DIN Legacy Standards (Pre-EN Harmonization)

Prior to EN standardization, DIN flanges were governed by individual standards:

DIN Standard	Description
DIN 2501	General flange dimensions
DIN 2573	PN6 plate flanges
DIN 2576	PN10 plate flanges
DIN 2633	PN16 weld neck flanges
DIN 2635	PN40 weld neck flanges

Engineering Relevance:

• Still referenced in brownfield projects
• Used in replacement and retrofit systems
• Dimensional equivalence is often required during project execution

EN 1759 (Class-Designated Flanges)

EN 1759 introduces Class-based flanges aligned with ASME systems:

• Class 150
• Class 300
• Class 600

Used when:

• Projects require compatibility with ASME-based systems
• Hybrid specifications exist (EN + ASME)

ASTM Material Standards (Material Compliance)

DIN Flanges use materials compliant with ASTM standards for global acceptance:

Material Type	ASTM Standard
Carbon Steel	ASTM A105
Low Temperature CS	ASTM A350 LF2
Stainless Steel	ASTM A182
Alloy Steel	ASTM A182 F11 / F22

These define:

• Chemical composition
• Mechanical properties
• Heat treatment requirements

ISO Standards (Supplementary Alignment)

ISO standards provide:

• General dimensional harmonization
• Inspection and testing frameworks
• Quality management alignment

Comparison: DIN PN vs ASME Class

Approximate equivalence used for global project referencing:

DIN PN Rating	Approx. ASME Class
PN6	Class 150 (lower range)
PN10	Class 150
PN16	Class 150
PN25	Class 300
PN40	Class 300
PN63	Class 600
PN100	Class 600+

Important Engineering Note:

• This is not a direct substitution
• Pressure-temperature ratings differ
• Material group and temperature must be verified before interchange

6. Material & Grade Options

Material selection for DIN Flanges is governed by:

• Pressure requirements
• Temperature range
• Corrosion environment
• Fluid characteristics

Carbon Steel Grades

ASTM A105

• Standard forging grade
• Used for:
  • Ambient to moderate temperature systems
  • Oil & gas pipelines

P250GH (EN 10222)

• European pressure vessel steel
• Suitable for:
  • Elevated temperature service
  • Boiler and pressure systems

Low Temperature Carbon Steel

ASTM A350 LF2

• Designed for sub-zero applications
• Impact tested (Charpy V-notch)
• Used in:
  • LNG systems
  • Cold climate pipelines

Stainless Steel Grades

ASTM A182 F304 / F304L

• General corrosion resistance
• Suitable for:
  • Water systems
  • Chemical service (non-chloride)

ASTM A182 F316 / F316L

• Enhanced corrosion resistance
• Molybdenum addition improves:
  • Chloride resistance
  • Pitting resistance

Duplex Stainless Steel

F51 / F60

• Dual-phase microstructure
• High strength + corrosion resistance
• Used in:
  • Offshore platforms
  • Seawater systems

Alloy Steel Grades

F11 / F22

• Chromium-molybdenum steels
• High temperature strength
• Used in:
  • Power plants
  • Steam systems

Material Comparison Table

Grade	Yield Strength (MPa)	Tensile Strength (MPa)	Temperature Range	Corrosion Resistance	Typical Applications
ASTM A105	~250	485–620	-20°C to 425°C	Low	Oil & gas pipelines
P250GH	~250	410–540	Up to 450°C	Moderate	Pressure vessels
ASTM A350 LF2	~250	485–620	Down to -46°C	Low	LNG, low-temp service
F304	~205	515–720	-196°C to 425°C	Good	Water, chemicals
F316	~205	515–720	-196°C to 550°C	Very good	Marine, chlorides
Duplex F51	~450	620–880	-50°C to 300°C	Excellent	Offshore
F11	~275	415–585	Up to 540°C	Moderate	Steam lines
F22	~415	585–760	Up to 600°C	Moderate	High-temp power

Material Selection Logic

Condition	Recommended Material
High pressure, ambient temp	A105
Low temperature	A350 LF2
Corrosive environment	F316
Marine / offshore	Duplex F51
High temperature steam	F11 / F22

7. Heat Treatment Information

Heat treatment ensures:

• Required mechanical properties
• Grain refinement
• Stress relief

Normalizing

• Heating above critical temperature
• Air cooling

Effect:

• Refines grain structure
• Improves toughness

Quenching & Tempering

• Rapid cooling (quenching)
• Controlled reheating (tempering)

Effect:

• Increased strength
• Controlled hardness

Used for:

• Alloy steel flanges

Solution Annealing (Stainless Steel)

• Heating to high temperature
• Rapid quenching

Effect:

• Dissolves carbides
• Improves corrosion resistance

Stress Relieving

• Heating below transformation temperature

Purpose:

• Remove residual stresses from:
  • Forging
  • Machining

Grain Structure Control

Critical for:

• Fatigue resistance
• Impact strength
• Structural integrity

Impact Testing (Charpy V-Notch)

Required for:

• Low-temperature applications

Measures:

• Energy absorption during fracture

Hardness Ranges (Typical)

Material	Hardness (HB)
A105	120–187
LF2	120–200
F11/F22	150–220
Stainless Steel	140–200

8. Manufacturing Process

DIN Flanges are manufactured through a controlled sequence ensuring compliance with dimensional and material standards.

1. Raw Material Verification

• Mill Test Certificate (MTC) verification
• Chemical composition check
• Heat number traceability

2. Forging Process

Open Die Forging

• Used for:
  • Large diameter flanges
  • Custom sizes

Closed Die Forging

• Used for:
  • Standard sizes
  • High repeatability

Engineering Benefit:

• Improved grain flow
• Enhanced mechanical strength

3. Rough Machining

• Removal of excess material
• Preparation for final machining

4. CNC Finish Machining

• Precision machining of:
  • Bore
  • Facing
  • Bolt holes

Ensures:

• Tight tolerances
• Surface finish compliance

5. Facing & Drilling

• Serrated or smooth finish applied
• Bolt holes drilled as per PCD

6. Heat Treatment

Performed as per:

• Material specification
• Project requirement

7. Surface Coating

Based on service conditions:

• Anti-corrosion protection
• Temporary storage protection

8. Final Inspection

Includes:

• Dimensional verification
• Surface finish inspection
• NDT (if required)

9. Marking & Traceability

Each DIN flange is marked with:

• Standard (DIN EN 1092-1)
• Material grade
• DN size
• PN rating
• Heat number
• Manufacturer identification

Surface Finish Options

Protective Coatings

Finish Type	Application
Anti-rust oil	Temporary protection
Black painting	General industrial use
Zinc plating	Corrosion resistance
Hot-dip galvanizing	Outdoor / marine
PTFE coating	Chemical resistance
Passivation (SS)	Corrosion resistance
Shot blasting	Surface cleaning

Facing Surface Finish (Critical)

Finish Type	Ra Value (µm)	Application
Smooth finish	≤ 3.2	Metal gaskets
Serrated finish	3.2 – 6.3	Soft gaskets
RTJ groove finish	Precision machined	High-pressure systems

Engineering Importance

Surface finish affects:

• Gasket seating
• Frictional resistance
• Leak prevention

A. DIN Flange Dimension Tables (Representative – EN 1092-1)

The following tables provide indicative dimensional data for commonly used DIN Flanges. Final dimensions must always be verified against DIN EN 1092-1 based on flange type and facing.

PN16 DIN Flange Dimensions (Type 11 / Type 01 – Representative)

DN (mm)	Flange OD (mm)	Thickness (mm)	PCD (mm)	Bolt Size	No. of Bolts
15	95	14	65	M12	4
25	115	16	85	M12	4
50	165	18	125	M16	4
80	200	20	160	M16	8
100	220	22	180	M16	8
150	285	24	240	M20	8
200	340	26	295	M20	12
300	460	28	410	M20	12

PN40 DIN Flange Dimensions (Representative)

DN (mm)	Flange OD (mm)	Thickness (mm)	PCD (mm)	Bolt Size	No. of Bolts
15	95	16	65	M12	4
25	115	18	85	M12	4
50	165	20	125	M16	4
80	200	24	160	M16	8
100	235	26	190	M20	8
150	300	30	250	M20	8
200	375	34	320	M24	12
300	515	40	450	M24	16

Dimensional Engineering Notes

• PCD (Pitch Circle Diameter) governs bolt load distribution
• Increasing PN rating → higher thickness & bolt size
• Bolt quantity increases to maintain uniform gasket compression
• Weld neck flanges include additional hub geometry (not shown in table)

B. Pressure Rating Table (PN System)

Nominal Pressure vs Actual Pressure

PN Rating	Pressure (bar)	Pressure (MPa)
PN6	6	0.6
PN10	10	1.0
PN16	16	1.6
PN25	25	2.5
PN40	40	4.0
PN63	63	6.3
PN100	100	10.0

Temperature Derating Concept

Actual allowable pressure is a function of:

• Material strength at temperature
• Design safety factor

Example (Carbon Steel A105)

Temperature (°C)	Allowable Pressure (% of PN)
20°C	100%
200°C	~85%
300°C	~70%
400°C	~50%

Engineering Interpretation

• PN rating is not constant across temperature
• High temperature → reduced allowable pressure
• Material selection must align with pressure-temperature envelope

C. Torque Chart

Bolt tightening torque ensures required preload for sealing.

Torque Values (Indicative – Lubricated vs Dry)

Bolt Size	Grade	Torque (Nm) Lubricated	Torque (Nm) Dry
M12	8.8	70	90
M16	8.8	170	220
M20	8.8	330	420
M24	8.8	570	720
M30	8.8	1100	1400
M20	10.9	470	600
M24	10.9	800	1000
M30	10.9	1500	1900
3/4”	B7	250	320
1”	B7	500	650
1-1/4”	B7	900	1150

Torque Engineering Notes

• Lubrication reduces friction → lower torque required
• Dry tightening increases variability
• Torque must align with:
  • Bolt grade
  • Gasket type
  • Flange rating

D. Preload Calculation Guide

Bolt Stress Formula



Where:

• σ = Bolt stress (MPa)
• F = Applied force (N)
• A = Bolt cross-sectional area (mm²)

Preload Force Formula



Torque–Preload Relationship



Where:

• T = Torque (Nm)
• K = Torque coefficient (≈ 0.18–0.25)
• F = Preload (N)
• d = Nominal bolt diameter (m)

Sample Calculation

Given:

• Bolt: M20 (Area ≈ 245 mm²)
• Target stress: 200 MPa

Step 1: Preload Force

F = 200 × 245 = 49,000 N

Step 2: Torque Calculation

Assume:

• K = 0.2
• d = 0.02 m

T = 0.2 × 49,000 × 0.02 = 196 Nm

Gasket Seating Stress

Gasket requires:

• Minimum seating stress
• Maintained stress during operation

Typical values:

Gasket Type	Seating Stress (MPa)
Soft gasket	10–30
Spiral wound	50–100
RTJ	150+

Safety Margin

Preload must account for:

• Relaxation
• Temperature variation
• Pressure fluctuations

Engineering practice:

Apply 1.5–2.0 safety factor on required gasket stress

E. Mechanical Property Table

Material	Yield Strength (MPa)	Tensile Strength (MPa)	Elongation (%)	Hardness (HB)	Impact (J)
A105	250	485–620	20	120–187	Not mandatory
LF2	250	485–620	22	120–200	≥ 27 J @ -46°C
F304	205	515–720	30	≤ 200	High
F316	205	515–720	30	≤ 200	High
Duplex F51	450	620–880	25	≤ 290	High
F11	275	415–585	20	150–220	Moderate
F22	415	585–760	18	150–220	Moderate

F. Corrosion Resistance Table

Material	Marine	Acidic	High Humidity	Hydrocarbon
Carbon Steel	Poor	Poor	Moderate	Good
SS304	Moderate	Moderate	Good	Good
SS316	Good	Good	Excellent	Good
Duplex F51	Excellent	Excellent	Excellent	Excellent
Alloy Steel	Poor	Poor	Moderate	Excellent

Engineering Interpretation

• Carbon steel requires coating in corrosive environments
• SS316 preferred for chloride exposure
• Duplex used for combined strength + corrosion resistance

9. Inspection & Quality Control Methods

Material Verification

PMI (Positive Material Identification)

• Confirms alloy composition
• Ensures correct grade

Non-Destructive Testing (NDT)

Ultrasonic Testing (UT)

• Detects internal flaws

Magnetic Particle Inspection (MPI)

• Surface crack detection (ferromagnetic materials)

Dye Penetrant Inspection (DPI)

• Surface defects (non-magnetic materials)

Dimensional Inspection

Verification of:

• OD, ID
• Thickness
• PCD
• Bolt hole alignment

Using:

• Vernier calipers
• CMM (Coordinate Measuring Machine)

Hydro Testing (Assembly Level)

• Applied when flange is part of assembled system
• Verifies:
  • Leak-tightness
  • Structural integrity

Hardness Testing

• Confirms heat treatment effectiveness
• Ensures compliance with material standards

Third-Party Inspection

Conducted by:

• Independent inspection agencies

Scope includes:

• Dimensional verification
• Material validation
• Documentation review

Certification

EN 10204 3.1

• Manufacturer test certificate

EN 10204 3.2

• Third-party validated certificate

Traceability Requirements

Each DIN flange is traceable through:

• Heat number
• Material batch
• Inspection records

10. Industries Served

DIN Flanges are deployed across multiple sectors where pressure integrity, maintainability, and standardization are required.

Oil & Gas Industry

Upstream

• Wellhead connections
• Flowlines
• Gathering systems

Midstream

• Transmission pipelines
• Pumping stations
• Metering skids

Downstream

• Refinery process units
• Storage terminals
• Loading/unloading systems

Engineering Requirements:

• High pressure capability
• Resistance to hydrocarbons
• Compliance with inspection standards

Refineries & Petrochemical Plants

Applications include:

• Distillation columns
• Heat exchangers
• Reactor piping systems

Key Considerations:

• Elevated temperatures
• Corrosive process fluids
• Cyclic operating conditions

Power Generation

Thermal Power Plants

• Steam lines (high temperature / high pressure)
• Boiler connections

Combined Cycle Plants

• Gas turbine auxiliaries
• Cooling water systems

Nuclear (Non-safety Class Applications)

• Auxiliary piping systems

Engineering Focus:

• Thermal fatigue resistance
• Alloy steel material selection (F11 / F22)

Chemical Processing Industry

Used in:

• Acid handling pipelines
• Solvent systems
• Process reactors

Material Selection Priority:

• Stainless steel (F316 / F316L)
• Duplex stainless steel

Water & Wastewater Systems

Applications:

• Pumping stations
• Treatment plants
• Distribution networks

Requirements:

• Corrosion resistance
• Cost-effective material selection
• Long service life

Marine & Shipbuilding

Used in:

• Ballast systems
• Cooling water circuits
• Fuel systems

Critical Factors:

• Saltwater corrosion
• Vibration and fatigue resistance

Infrastructure & Utility Pipelines

Includes:

• District cooling
• Irrigation systems
• Industrial utilities

Focus:

• Standardization
• Ease of installation and maintenance

11. Export Capability & Global Supply

Super Industries supplies DIN Flanges aligned with international EPC procurement frameworks.

Export Regions

Europe

• Compliance with DIN EN 1092-1 mandatory
• Documentation and traceability critical

Middle East

• Oil & gas and infrastructure projects
• Third-party inspection requirements

Southeast Asia

• Power and chemical industries
• Mixed DIN / ASME project specifications

United States (Project-Based Supply)

• Supplied under equivalence evaluation
• DIN to ASME compatibility review required

Packaging Standards

• Wooden crates (ISPM-15 compliant)
• Moisture protection wrapping
• Anti-corrosion coating before dispatch

Export Documentation

Provided documentation includes:

• Commercial invoice
• Packing list
• Mill Test Certificates (EN 10204 3.1 / 3.2)
• Inspection reports
• Country of origin certificate

Project Logistics

• Batch-wise traceability maintained
• Segregation by:
  • Size (DN)
  • PN rating
  • Material grade
• Coordination with:
  • Freight forwarders
  • EPC logistics teams

Compliance Documentation

• Material certificates
• Heat treatment records
• NDT reports
• Dimensional inspection reports

11. Procurement & Installation View

This section aligns with site-level execution requirements for EPC contractors.

Bolt Tightening Sequence

Correct tightening ensures uniform gasket compression.

Cross Pattern Tightening

Typical sequence:

1 → 3 → 5 → 7 → 2 → 4 → 6 → 8

Engineering Outcome:

• Even load distribution
• Reduced flange distortion

Torque Control Procedure

• Initial snug tightening
• Intermediate torque (50%)
• Final torque (100%)
• Verification pass

Gasket Installation Guidelines

• Ensure clean flange faces
• Align gasket centrally
• Avoid reuse of gaskets
• Select gasket based on:
  • Pressure
  • Temperature
  • Fluid compatibility

Re-Torque Practices

Required when:

• High temperature operation
• Gasket relaxation expected

Performed:

• After initial pressure cycle
• At ambient condition (if applicable)

Inspection Checkpoints (Site)

• Flange face condition
• Bolt grade verification
• Torque value confirmation
• Alignment and parallelism

Storage Conditions

• Dry, covered storage
• Protection from:
  • Moisture
  • Dust
  • Mechanical damage
• Use of:
  • End protectors
  • Anti-rust coatings

12. Custom Engineering Capabilities

Super Industries supports project-specific DIN Flanges beyond standard catalog dimensions.

Non-Standard DN Sizes

• Large diameter flanges
• Project-specific pipeline requirements

Special Drilling Patterns

• Custom bolt hole configurations
• Interface compatibility with existing systems

Increased Thickness / Reinforced Designs

• Higher pressure applications
• Structural reinforcement for:
  • Bending loads
  • External forces

Special Coatings

• PTFE for chemical resistance
• Epoxy coatings for buried service
• Galvanizing for marine exposure

Project Marking & Identification

• Client-specific stamping
• Tag numbers
• Heat traceability integration

Final Engineering Conclusion

DIN Flanges are standardized pressure-retaining components designed to provide:

• Reliable sealing under controlled bolt preload
• Dimensional compatibility across global systems
• Maintainability through bolted connections

Their performance depends on:

• Correct material selection
• Compliance with DIN EN 1092-1
• Controlled manufacturing processes
• Proper installation and torque application

For EPC and capital projects, DIN Flanges must be evaluated based on:

• Pressure-temperature ratings
• Mechanical properties
• Inspection and certification compliance
• Dimensional accuracy and tolerance control

Super Industries manufactures DIN Flanges aligned with:

• DIN / EN standards
• International material specifications
• Inspection and traceability requirements

This enables integration into:

• Oil & gas systems
• Power generation facilities
• Chemical processing plants
• Infrastructure pipelines

Where pressure integrity, compliance, and maintainability are mandatory engineering requirements.
