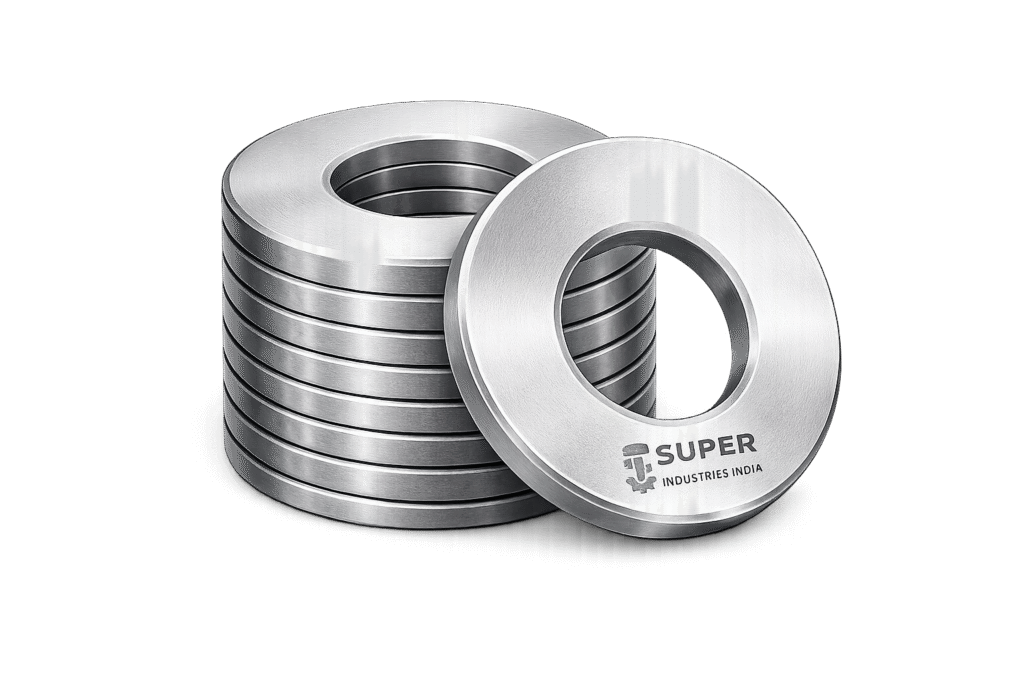

Flat Washers

Flat Washers (Plain Washers, Normal Series)

Load Distribution, Surface Protection & Joint Stability

Manufacturer & Exporter: Super Industries India

1. Role of Flat Washers (ISO 7089) in a Bolted Joint (Washer-First Perspective)

ISO 7089 flat washers are not passive components.
They directly influence:

• Load distribution
• Surface protection
• Torque accuracy
• Long-term joint reliability

In many failures, the washer—not the bolt—is the missing or incorrect element.

ISO 7089 defines plain, round flat washers for use with metric bolts, nuts, and screws in normal load conditions.

2. What ISO 7089 Replaced & Why It Matters

ISO 7089 is the global replacement for:

• DIN 125 (Type A)
• DIN 126 (partial overlap)

Why this matters:

• Global interchangeability
• Unified dimensional tolerances
• Export-friendly standardization

Super Industries India supplies ISO 7089 washers as DIN 125 replacements for international projects.

3. Functional Purpose of ISO 7089 Washers

ISO 7089 washers serve four critical purposes:

3.1 Load Distribution

Spreads compressive force over a larger area, preventing:

• Surface indentation
• Material creep
• Bolt embedment

3.2 Surface Protection

Protects:

• Painted surfaces
• Soft metals (aluminum, brass)
• Machined faces

3.3 Torque Stability

Reduces friction variability between:

• Nut/bolt head
• Clamped surface

3.4 Assembly Consistency

Ensures uniform joint behavior across production batches.

4. Dimensional Scope of ISO 7089

• Washer type: Flat, round
• Inner diameter: Matches nominal bolt size
• Outer diameter: Normal series
• Thickness: Standardized for consistent stiffness

Available sizes:
M1.6 to M64

5. ISO 7089 vs Other Washer Standards

Standard	OD Size	Use Case
ISO 7089	Normal	General engineering
ISO 7090	Large OD	Soft materials
ISO 7091	Countersunk	Structural
ISO 7092	Small OD	Compact assemblies

ISO 7089 is the default washer unless design dictates otherwise.

6. Washer Hardness & Why It Matters

ISO 7089 washers are available in:

• 200 HV (standard)
• 300 HV (hardened)

Engineering rule:

Washer hardness must be ≥ mating surface hardness
to avoid washer deformation and preload loss.

7. Washer Selection by Bolt Grade

Bolt Grade	Recommended Washer
8.8	ISO 7089 – 200 HV
10.9	ISO 7089 – 300 HV
12.9	Hardened washer mandatory

Super Industries India supplies washers matched to bolt grade.

8. Materials Offered

• Carbon steel
• Stainless steel A2 / A4
• Alloy steel
• Non-standard materials on request

9. Surface Finishes & Compatibility

Finish	Typical Application
Plain / oiled	Indoor machinery
Zinc plated	General corrosion
HDG	Outdoor / structural
Stainless	Marine & chemical

Washer finish should match bolt and nut finish to prevent galvanic corrosion.

10. Washer Behavior Under Load

Flat washers:

• Do not provide locking
• Do not resist vibration
• Function by maintaining surface integrity

For vibration:
→ Use spring washers or locking systems

11. Manufacturing Process (Washer-Specific)

• Punching or laser cutting
• Deburring
• Heat treatment (if hardened)
• Surface finishing
• Flatness control

Super Industries India ensures:
✔ Burr-free edges
✔ Parallel faces
✔ Consistent thickness

12. Inspection Parameters

• Inner/outer diameter tolerance
• Thickness measurement
• Hardness testing
• Coating thickness

13. Common Application Areas

• Structural steel joints
• Machinery assemblies
• Automotive components
• Pumps & valves
• OEM equipment

14. Failure Scenarios from Wrong Washer Choice

• Washer cupping (too soft)
• Surface indentation
• Loss of preload
• Uneven clamping

Correct washer selection prevents hidden joint failure.

15. Export Supply Capability

Super Industries India supplies ISO 7089 washers in:

• Bulk export packaging
• Mixed-size kits
• Project-specific labeling

Export markets include:
USA | Europe | Middle East | Asia

16. Custom Washer Supply

Available on request:

• Non-standard thickness
• Special OD/ID
• Hardened stainless washers
• Project coatings

17. ISO 7089 Washer Pairing Guide

Best paired with:

• ISO 4014 bolts
• ISO 4017 bolts
• ISO 934 / ISO 4032 nuts

18. Buyer FAQ (SEO-Friendly)

Q: Is ISO 7089 same as DIN 125?
Yes, ISO 7089 replaced DIN 125 Type A.

Q: Are ISO 7089 washers hardened?
Available in both standard and hardened versions.

19. When ISO 7089 Is Not Suitable

Avoid ISO 7089 when:
❌ High vibration exists
❌ Soft materials require larger OD
❌ Structural slotted holes are used

20. Conclusion

ISO 7089 flat washers are small components with major impact on joint reliability.
Correct hardness, finish, and pairing are essential.

Super Industries India supplies ISO 7089 washers engineered for dependable fastening in global applications.
