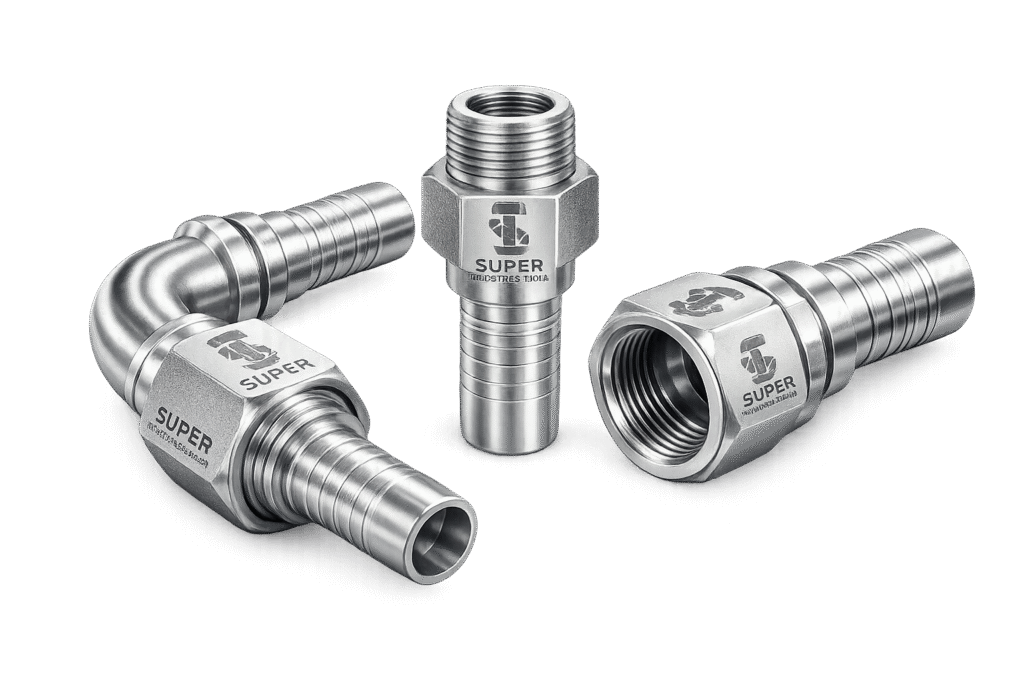

Hydraulic Hose Fittings
Hydraulic Hose Fittings – Crimped, Reusable & Push-On Types Explained
Manufactured & Exported by Super Industries India
Introduction
Hydraulic hose fittings are the critical interface between hydraulic hoses and system components such as pumps, valves, cylinders, and manifolds. While hoses carry pressurized fluid, it is the hose fitting that ensures the connection remains secure, leak-free, and safe under extreme operating conditions.
At Super Industries India, we manufacture and supply a wide range of hydraulic hose fittings designed to perform reliably in high-pressure, high-vibration, and demanding industrial environments. This article provides a comprehensive technical guide to hydraulic hose fittings, focusing on crimped, reusable, and push-on types, along with their construction, materials, pressure ratings, applications, and selection criteria.
What Are Hydraulic Hose Fittings?
Hydraulic hose fittings are mechanical connectors used to attach hydraulic hoses to:
- Equipment ports
- Adapters
- Other hydraulic components
They are designed to:
✔ Withstand high internal pressure
✔ Maintain sealing integrity
✔ Resist vibration and impulse loads
✔ Prevent hose pull-off
A properly selected hose fitting is just as important as the hose itself.
Why Hose Fittings Are Critical in Hydraulic Systems
Hydraulic hose fittings play a vital role in system safety and performance:
✔ Prevent fluid leakage
✔ Ensure pressure containment
✔ Enable system flexibility
✔ Reduce maintenance downtime
Most hydraulic failures occur at connection points, making hose fitting quality and installation extremely important.
Basic Construction of Hydraulic Hose Fittings
A typical hydraulic hose fitting consists of:
1️⃣ Insert (Nipple)
Fits inside the hydraulic hose and provides internal support.
2️⃣ Ferrule or Sleeve
Compresses the hose over the insert during crimping.
3️⃣ Connection End
Connects to ports or adapters (BSP, NPT, JIC, ORFS, Metric).
4️⃣ Sealing Interface
O-ring, flare seat, or tapered thread.
At Super Industries India, hose fittings are precision-machined to ensure perfect hose retention and sealing performance.
Classification of Hydraulic Hose Fittings
Hydraulic hose fittings are commonly classified into:
1️⃣ Crimped Hose Fittings
2️⃣ Reusable Hose Fittings
3️⃣ Push-On Hose Fittings
Each type serves different pressure, maintenance, and application needs.
1️⃣ Crimped Hydraulic Hose Fittings
What Are Crimped Hose Fittings?
Crimped hose fittings are permanent fittings that are attached to hydraulic hoses using a crimping machine. The ferrule is compressed uniformly around the hose, locking it securely onto the insert.
Key Features of Crimped Hose Fittings
✔ High-pressure capability
✔ Strong mechanical retention
✔ Excellent vibration resistance
✔ Long service life
These fittings are the most widely used type in industrial and mobile hydraulics.
Materials Used
- Carbon steel
- Stainless steel
- Alloy steel
Super Industries India manufactures crimped hose fittings using export-grade raw materials.
Pressure Ratings
- Medium pressure: 3000 PSI
- High pressure: 6000 PSI and above
Pressure rating depends on:
- Hose type
- Fitting design
- Crimp specification
Applications
- Construction equipment
- Hydraulic presses
- Mobile machinery
- Oil & gas equipment
Advantages
✔ Highest reliability
✔ Suitable for severe duty
✔ Low risk of hose blow-off
Limitations
❌ Requires crimping equipment
❌ Not reusable
2️⃣ Reusable Hydraulic Hose Fittings
What Are Reusable Hose Fittings?
Reusable hose fittings are designed to be assembled and disassembled without crimping equipment. The fitting is screwed onto the hose using standard tools.
Key Features of Reusable Hose Fittings
✔ Can be reused multiple times
✔ No crimping machine required
✔ Ideal for field repairs
These fittings are popular in maintenance and service applications.
Construction
- Two-piece design (socket + insert)
- Mechanical locking through threads
Pressure Ratings
- Medium pressure applications
- Lower than crimped fittings
Applications
- Maintenance operations
- Agricultural equipment
- Emergency hose repairs
Advantages
✔ Easy installation
✔ Reduced downtime
✔ Cost-effective for repairs
Limitations
❌ Lower pressure capability
❌ Not ideal for high-vibration environments
Super Industries India supplies precision-machined reusable hose fittings for controlled applications.
3️⃣ Push-On Hydraulic Hose Fittings
What Are Push-On Hose Fittings?
Push-on hose fittings allow hoses to be pushed directly onto the fitting without clamps or ferrules. They rely on hose elasticity and barb design for retention.
Key Features of Push-On Hose Fittings
✔ Fast installation
✔ No tools required
✔ Lightweight design
Pressure Ratings
- Low to medium pressure
- Not suitable for high-pressure hydraulics
Applications
- Return lines
- Lubrication systems
- Pneumatic-hydraulic crossover systems
Advantages
✔ Extremely quick installation
✔ Ideal for frequent hose changes
Limitations
❌ Limited pressure capacity
❌ Not suitable for impulse loads
Thread Types Used in Hydraulic Hose Fittings
Hydraulic hose fittings are available in multiple thread standards:
🔹 BSP (BSPP / BSPT)
🔹 NPT
🔹 Metric
🔹 JIC (37° flare)
🔹 ORFS (O-ring face seal)
Super Industries India manufactures hose fittings compatible with global hydraulic standards.
Sealing Methods in Hose Fittings
🔹 O-Ring Sealing
- Excellent leak prevention
- Used in ORFS and metric fittings
🔹 Metal-to-Metal Sealing
- Durable and reusable
- Used in JIC fittings
🔹 Thread Sealing
- Requires sealant
- Used in BSPT and NPT
Materials Used in Hydraulic Hose Fittings
Carbon Steel
- Most common
- High strength
Stainless Steel
- Corrosion resistant
- Marine & chemical industries
Brass
- Low-pressure systems
At Super Industries India, all fittings undergo surface finishing and corrosion protection.
Installation Best Practices
✔ Recommended Practices:
- Match hose and fitting specifications
- Use correct crimp diameter
- Avoid over-tightening
- Inspect for leaks after installation
Common Causes of Hose Fitting Failure
❌ Incorrect crimping
❌ Wrong fitting selection
❌ Poor-quality material
❌ Improper installation
Choosing hose fittings from a reliable manufacturer like Super Industries India reduces system failure risks.
Why Choose Super Industries India for Hydraulic Hose Fittings
✔ Precision CNC machining
✔ Export-quality materials
✔ Wide range of fitting types
✔ Custom thread standards available
✔ Trusted global exporter
Conclusion
Hydraulic hose fittings are vital components that directly affect system safety, efficiency, and service life. Understanding the differences between crimped, reusable, and push-on fittings allows engineers and buyers to select the right solution for their application.
As a trusted manufacturer and exporter, Super Industries India delivers hydraulic hose fittings engineered to meet international quality standards and demanding industrial conditions.
