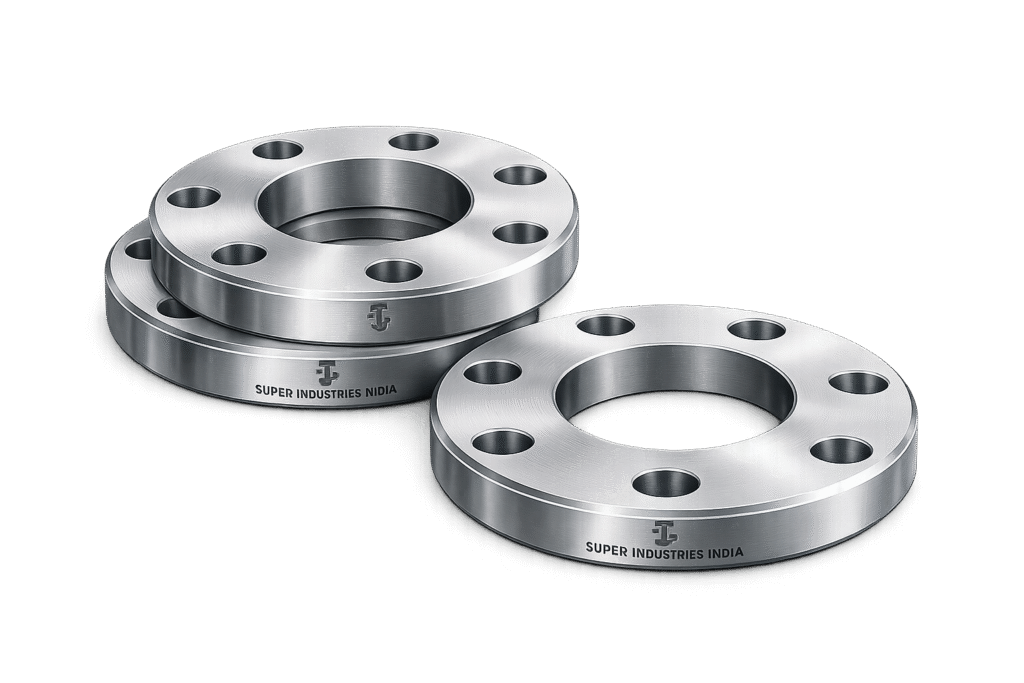

PLATE FLANGES

Super Industries
“Global Manufacturer of Heavy & Custom Engineered Fasteners for Oil & Gas, Power & EPC Contractors.”

1. Industry Context & System Relevance

Plate Flanges are widely utilized in low to medium pressure piping systems where cost efficiency, fabrication flexibility, and dimensional adaptability are prioritized over high-pressure structural performance. Within EPC project environments, these flanges serve as a practical solution for utility-grade piping, non-critical process lines, and infrastructure networks.

From a system design standpoint, Plate Flanges are primarily applied where:

• Internal pressures remain within moderate limits
• Temperature cycles are not severe
• Structural fatigue is minimal
• Ease of fabrication and replacement is required

Functional Role in Piping Systems

Plate Flanges provide a detachable, bolted connection interface between:

• Pipe-to-pipe joints
• Pipe-to-valve connections
• Pipe-to-equipment nozzles

Unlike forged flanges, which are integrally shaped for strength, Plate Flanges are cut and machined from flat plate material, making them more suitable for applications where:

• Structural loading is predictable and moderate
• System criticality is low to intermediate
• Fabrication cost optimization is required

Typical Applications

Plate Flanges are extensively used across the following sectors:

Water & Wastewater Systems

• Pump discharge lines
• Treatment plant distribution systems
• Clarifier and filtration piping

HVAC & Utility Systems

• Chilled water pipelines
• Cooling tower connections
• Air handling unit piping

Firefighting Systems

• Sprinkler system mains
• Hydrant pipelines
• Firewater distribution networks

Low-Pressure Oil & Gas Lines

• Utility service lines
• Drain and vent systems
• Non-critical hydrocarbon transfer

Chemical & Process Plants

• Low-pressure chemical transfer lines
• Utility headers (steam condensate, cooling water)

Infrastructure & Civil Projects

• Municipal pipelines
• Irrigation systems
• Industrial utility corridors

Why Plate Flanges Are Used Instead of Forged Flanges

From an EPC procurement and engineering evaluation perspective, the selection of Plate Flanges over forged flanges is driven by several technical and economic considerations:

a. Cost Efficiency

• Plate material is significantly less expensive than forged billets
• Lower machining complexity reduces manufacturing cost
• Ideal for bulk procurement in infrastructure projects

b. Fabrication Flexibility

• Can be manufactured in large diameters not easily achievable with forging
• Custom drilling patterns can be introduced
• Thickness can be tailored to project-specific requirements

c. Material Availability

• Plate stock is widely available across carbon steel and stainless steel grades
• Reduced lead time compared to forged components

Cost vs Pressure Trade-Off

The primary limitation of Plate Flanges lies in their structural performance under pressure and temperature.

Parameter	Plate Flanges	Forged Flanges
Manufacturing Cost	Lower	Higher
Pressure Capability	Limited	High
Structural Integrity	Moderate	Superior
Grain Structure	Rolled	Forged (refined)
Fatigue Resistance	Lower	Higher

Engineering Interpretation:

• Plate Flanges are acceptable where pressure containment is not critical
• Forged flanges are mandatory in high-pressure, high-temperature, cyclic loading environments

Fabrication Advantages

From a manufacturing engineering standpoint:

• No forging dies required
• CNC cutting enables precise profiling
• Reduced material wastage
• Scalability for large-diameter flanges (>60”)

This makes Plate Flanges particularly suitable for EPC bulk supply contracts where consistency and cost control are essential.

2. Technical Definition of Plate Flanges

Plate Flanges are defined as:

Flat, circular metallic components manufactured from rolled plate material, machined to incorporate a central bore and bolt holes, and used to form bolted connections in piping systems.

Structural Characteristics

Key features include:

• Flat profile (no hub)
• Uniform thickness across the cross-section
• Machined bore matching pipe OD or ID requirement
• Bolt circle drilled as per standard or custom pattern

Unlike Weld Neck Flanges:

• No tapered hub
• No stress transition geometry
• Lower resistance to bending and stress concentration

Configuration: Slip-On Compatibility

Plate Flanges are typically used in:

Slip-On Welding Configuration

• Pipe is inserted into the bore
• Fillet weld applied internally and externally
• Provides moderate strength and sealing capability

Engineering Implication:

• Reduced welding complexity
• Suitable for non-critical systems
• Lower fatigue resistance compared to butt weld joints

Facing Types

Plate Flanges are commonly supplied in:

a. Flat Face (FF)

• Entire flange face is flat
• Used with soft gaskets
• Common in:
  • Cast iron systems
  • Low-pressure pipelines

b. Raised Face (RF)

• Raised sealing surface around bore
• Concentrates gasket load
• Improves sealing performance

Face Finish Consideration:

• Typically serrated (phonographic or concentric)
• Enhances gasket grip and sealing integrity

Pressure Limitations

Plate Flanges are generally used in:

• ASME Class 150
• Occasionally Class 300 (with caution)

Limitations arise due to:

• Absence of forged grain structure
• Lower resistance to bending stress
• Reduced load distribution capability

Structural Comparison vs Forged Flanges

Feature	Plate Flanges	Forged Flanges
Grain Flow	Random (rolled)	Directional (forged)
Strength	Moderate	High
Stress Resistance	Limited	Superior
Crack Propagation	Higher risk	Lower risk
Load Distribution	Uniform but weaker	Optimized

3. Engineering & Sealing Principle

The sealing performance of Plate Flanges is governed by bolt preload, gasket compression, and internal pressure interaction.

Bolt Preload Mechanics

When bolts are tightened:

• Tensile force is induced in bolts
• Compressive force is applied on flange faces
• Gasket is compressed between mating surfaces

Preload Objective:

• Achieve sufficient gasket stress to prevent leakage

Gasket Compression Behavior

Gasket performance depends on:

• Material type (soft vs metallic)
• Surface finish
• Applied compressive load

Key Principle:

Sealing occurs when gasket stress exceeds internal fluid pressure.

Sealing Stress vs Internal Pressure

• Internal pressure tends to separate flange faces
• Bolt preload must counteract this force

Failure Condition:

Leakage occurs when:

• Bolt load < pressure-induced separating force
• Gasket stress falls below sealing threshold

Load Distribution Across Plate Flanges

Due to the absence of a hub:

• Load distribution is less efficient
• Bending stresses are higher
• Flange rotation may occur under load

Engineering Limitation:

• Plate Flanges are more prone to:
  • Flange face distortion
  • Uneven gasket compression

Gasket Seating Stress

Initial tightening must achieve:

• Minimum seating stress (y-value)
• Ensures gasket conforms to surface irregularities

Then during operation:

• Maintain operating gasket stress (m-factor)

Face Finish Impact

Surface roughness affects:

• Gasket grip
• Micro-leakage paths
• Long-term sealing reliability

Typical finish:

• 3.2 – 6.3 µm Ra (serrated finish)

Leakage Prevention Theory

Leakage prevention depends on balancing:

• Bolt preload
• Gasket compression
• Internal pressure forces

Plate Flanges have limitations because:

• Lower rigidity leads to flange rotation
• Reduced ability to maintain uniform gasket stress

Engineering Limitation in High-Pressure Sealing

Plate Flanges are not suitable for:

• High-pressure hydrocarbon systems
• High-temperature cyclic service
• Critical containment applications

Reasons include:

• Lack of structural reinforcement
• Increased susceptibility to deformation
• Reduced fatigue resistance

4. Pressure & Load Engineering

Pressure Capability Overview

Plate Flanges are typically used in:

• Low to moderate pressure systems
• Systems where design pressure is predictable and stable

Internal Pressure vs Bolt Load

Internal pressure generates:

• Axial separating force
• Radial stress on flange

Bolt load must:

• Maintain compression
• Prevent separation

Thermal Expansion Considerations

Thermal effects introduce:

• Differential expansion between pipe and flange
• Bolt relaxation
• Gasket stress reduction

Plate Flanges are less suitable because:

• Lower stiffness amplifies deformation

Structural Rigidity Limitations

Compared to forged flanges:

• Plate Flanges exhibit higher deflection
• Increased risk of leakage under load variation

Suitability Boundary

Plate Flanges are acceptable when:

• Pressure < moderate range
• Temperature < moderate range
• System criticality is low

They are not recommended for:

• High-pressure steam lines
• Offshore hydrocarbon systems
• High-temperature process units

Dimensional & Design Logic

Key Dimensions

Plate Flanges are defined by:

• Outside Diameter (OD)
• Thickness (t)
• Bore Diameter (ID)
• Bolt Circle Diameter (BCD)
• Number of Bolt Holes
• Bolt Hole Diameter
• Facing Type (RF/FF)

ASME B16.5-Dimensional Compatibility

Although not forged, Plate Flanges are often:

• Machined to match ASME B16.5 drilling patterns
• Compatible with standard mating flanges

Important Distinction:

• Dimensional compatibility ≠ full compliance

Thickness vs Pressure Relationship

Thickness is selected based on:

• Internal pressure
• Bolt load requirements
• Flange rigidity

General principle:

Higher pressure → increased thickness required to resist bending.

Bore Diameter Logic

Bore is machined to:

• Match pipe OD (slip-on)
• Ensure proper fit and weldability

Bolt Circle Design

Bolt circle determines:

• Load distribution
• Clamping force uniformity

Incorrect BCD leads to:

• Uneven gasket compression
• Leakage risk

Design Limitation Summary

• No hub → higher stress concentration
• Flat geometry → reduced stiffness
• Plate origin → lower mechanical strength

5. Applicable Standards (ASTM / DIN / ISO / ASME)

Plate Flanges operate within a framework of dimensional compatibility standards and material specifications, rather than full forging-based compliance standards. For EPC evaluation, it is critical to distinguish between geometry conformity and material/process qualification.

ASME B16.5 — Dimensional Compatibility

ASME B16.5 defines:

• Flange outside diameters
• Bolt circle diameters (BCD)
• Bolt hole sizes and quantity
• Facing types (RF, FF)
• Pressure class envelope (Class 150, 300, etc.)

Engineering Interpretation:

Plate Flanges are often machined to match ASME B16.5 drilling and facing dimensions, ensuring interchangeability with:

• Forged slip-on flanges
• Weld neck flanges
• Blind flanges

However:

Plate Flanges are not inherently ASME B16.5 compliant unless manufactured from approved materials and validated through applicable design rules.

DIN EN 1092-1 — Plate Flange Standardization

DIN EN 1092-1 provides:

• Standardized plate flange types (Type 01, Type 05)
• PN pressure ratings (PN6, PN10, PN16, PN25, etc.)
• European drilling standards

Relevance:

• Widely used in water, HVAC, and infrastructure projects
• Preferred in EU-based EPC contracts

ISO Standards

Relevant ISO frameworks include:

• ISO 7005 (Metallic flanges)
• ISO 15649 (Piping systems fabrication)

These standards define:

• General flange geometry
• System-level requirements

ASTM Material Standards

Material compliance for Plate Flanges is governed by ASTM specifications:

Carbon Steel

• ASTM A36 (structural plate)
• ASTM A105 (only if plate meets equivalent requirements and is normalized)

Stainless Steel

• ASTM A240 (plate material for 304, 316 grades)

Alloy & Duplex Steels

• ASTM A387 (alloy plate)
• ASTM A240 (duplex grades when available in plate form)

Forged vs Plate Compliance Distinction

Parameter	Forged Flanges	Plate Flanges
Governing Standard	ASME B16.5 + ASTM A105	Dimensional + ASTM Plate Standards
Grain Structure	Forged	Rolled
Certification	Fully standardized	Conditional
Design Validation	Codified	Engineering judgement required

Certification Limitations

Plate Flanges may face limitations in:

• High-pressure code acceptance
• Critical service approvals
• Nuclear or offshore compliance

Typical certification includes:

• EN 10204 3.1 Material Test Certificate (MTC)
• Dimensional inspection reports
• Optional third-party inspection

6. Material & Grade Options

Material selection directly impacts:

• Pressure capability
• Temperature resistance
• Corrosion performance
• Weldability

Carbon Steel Plate Flanges

ASTM A36

• Most widely used plate grade
• Good weldability
• Moderate strength

ASTM A105 (Plate Equivalent Condition)

• Used when plate is normalized and meets forging-equivalent properties
• Higher strength than A36

Applications:

• Water systems
• Utility pipelines
• Low-pressure oil & gas

Stainless Steel Plate Flanges

ASTM A240 Type 304

• General corrosion resistance
• Suitable for atmospheric and mild chemical exposure

ASTM A240 Type 316

• Enhanced resistance to chlorides
• Suitable for marine and chemical environments

Alloy Steel Plate Flanges

Used in limited scenarios where:

• Elevated temperature resistance required
• Moderate pressure conditions exist

Common grades:

• ASTM A387 (Cr-Mo steels)

Duplex & Super Duplex Plate Flanges

Where plate availability permits:

• Duplex (e.g., UNS S31803)
• Super Duplex (e.g., UNS S32750)

Advantages:

• High strength
• Excellent corrosion resistance

Limitation:

• Availability and cost

Material Comparison Table

Grade	Yield Strength (MPa)	Tensile Strength (MPa)	Temperature Range	Corrosion Resistance	Typical Industry Use
ASTM A36	~250	400–550	-29°C to 400°C	Low	Water, infrastructure
ASTM A105 (Normalized)	~250–300	485–620	-29°C to 425°C	Low	Oil & gas utilities
ASTM A240 304	~205	515–750	-196°C to 870°C	Moderate	Food, water, HVAC
ASTM A240 316	~205	515–750	-196°C to 870°C	High	Chemical, marine
Duplex S31803	~450	620–880	-50°C to 300°C	Very High	Offshore, chemical
Super Duplex S32750	~550	750–950	-50°C to 300°C	ممتاز	Aggressive environments

Engineering Interpretation

• Carbon steel plate flanges are cost-effective but corrosion-prone
• Stainless steel provides corrosion resistance but lower yield strength compared to duplex
• Duplex offers strength + corrosion resistance, but fabrication control is critical

7. Heat Treatment Information

Heat treatment of plate materials significantly influences:

• Mechanical properties
• Residual stress levels
• Grain structure

Plate Rolling Condition

Plate material is typically supplied as:

• Hot rolled
• Controlled rolled

Characteristics:

• Non-directional grain structure
• Residual stresses from rolling

Normalizing (Carbon Steel)

Process:

• Heating above transformation temperature
• Air cooling

Effects:

• Refines grain structure
• Improves toughness
• Enhances uniformity

Stress Relieving

Applied after machining or welding:

• Reduces residual stresses
• Minimizes distortion during service

Solution Annealing (Stainless Steel)

Process:

• Heating to high temperature
• Rapid quenching

Effects:

• Restores corrosion resistance
• Dissolves carbides
• Improves ductility

Grain Structure Comparison

Feature	Plate Material	Forged Material
Grain Orientation	Random	Directional
Defect Closure	Limited	Enhanced
Mechanical Uniformity	Moderate	High

Mechanical Property Impact

Heat treatment improves:

• Yield strength consistency
• Toughness
• Crack resistance

However:

Plate materials do not achieve the same structural refinement as forged components.

8. Manufacturing Process of Plate Flanges

Manufacturing is based on subtractive machining from rolled plate, requiring strict dimensional control.

Plate Procurement & Inspection

• Raw material sourced as per ASTM standards
• Verification of:
  • Chemical composition
  • Mechanical properties
  • Plate thickness tolerance

CNC / Profile Cutting

• Plasma, laser, or waterjet cutting
• Circular blank preparation

Objective:

• Achieve near-net shape with minimal distortion

Machining of Bore

• Precision boring operation
• Ensures correct fit for slip-on configuration

Tolerance control is critical for:

• Weld quality
• Alignment

Facing Machining (RF / FF)

• Lathe machining to achieve:
  • Flat Face (FF)
  • Raised Face (RF)

Surface finish:

• Serrated for gasket seating

Drilling of Bolt Holes

• CNC drilling for positional accuracy
• Bolt holes aligned with BCD requirements

Edge Finishing

• Deburring
• Chamfering

Prevents:

• Handling damage
• Stress concentration

Surface Preparation

• Cleaning
• Shot blasting (if required)

Final Inspection

• Dimensional verification
• Surface finish check
• Visual inspection

Marking & Traceability

Each Plate Flange is marked with:

• Material grade
• Size (NPS)
• Pressure class
• Heat number
• Manufacturer identification

9. Surface Finish Options

Surface treatment is essential for:

• Corrosion protection
• Storage stability
• Service life

Anti-Rust Oil Coating

• Temporary protection
• Used for carbon steel flanges

Black Coating

• Basic corrosion resistance
• Suitable for indoor storage

Hot-Dip Galvanizing

• Zinc coating for corrosion protection
• Suitable for:
  • Water systems
  • Outdoor pipelines

Epoxy Coating

• Chemical-resistant barrier
• Used in aggressive environments

Passivation (Stainless Steel)

• Chemical treatment
• Enhances corrosion resistance
• Removes surface contaminants

Surface Finish & Gasket Seating

Critical factors:

• Surface roughness must match gasket type
• Excessively smooth surface → leakage risk
• Excessively rough surface → gasket damage

Engineering Consideration

Surface finish must be selected based on:

• Fluid type
• Environmental exposure
• Storage duration
• Installation timeline

10. Inspection & Quality Control Methods

Plate Flanges, being manufactured from rolled plate material, require enhanced inspection discipline to ensure dimensional accuracy, material integrity, and suitability for EPC applications.

Positive Material Identification (PMI)

• Verifies chemical composition of material
• Confirms compliance with specified ASTM grade
• Typically performed using:
  • XRF analyzers
  • Optical emission spectroscopy (OES)

Application:

• Mandatory for alloy and stainless steel flanges
• Recommended for EPC-critical supply chains

Dimensional Inspection

Critical parameters inspected:

• Outside Diameter (OD)
• Bore Diameter (ID)
• Thickness
• Bolt Circle Diameter (BCD)
• Bolt hole diameter and spacing
• Facing height (RF)

Tolerance Reference:

• Based on ASME B16.5 or project-specific drawings

Ultrasonic Testing (UT)

Applicable when:

• Plate thickness is significant
• Internal defects are a concern

Detects:

• Laminations
• Internal voids
• Inclusion defects

Dye Penetrant Inspection (DPI)

Used for:

• Surface crack detection
• Machined surface inspection

Particularly relevant for:

• Stainless steel flanges
• Critical sealing surfaces

Visual Inspection

Baseline inspection for:

• Surface defects
• Machining quality
• Coating uniformity
• Marking accuracy

Documentation & Certification

Typical deliverables include:

• EN 10204 3.1 Material Test Certificate
• Dimensional inspection report
• Heat number traceability
• Coating certification (if applicable)

Third-Party Inspection

EPC projects may require inspection by:

• Independent agencies
• Client-appointed inspectors

Scope includes:

• Witnessing dimensional checks
• Reviewing MTCs
• Verifying marking and traceability

A. Technical Dimension Tables (ASME B16.5 Compatibility)

Indicative dimensions for Plate Flanges (Class 150, Raised Face)

NPS	OD (mm)	Thickness (mm)	BCD (mm)	Bolt Size	No. of Bolts
1/2″	89	11	60	M12	4
1″	108	13	79	M12	4
2″	152	16	120	M16	4
4″	229	19	190	M16	8
6″	279	21	241	M20	8
8″	343	24	298	M20	8
10″	406	26	362	M24	12
12″	483	28	432	M24	12

Engineering Note:

• Values are indicative; final dimensions must align with project specification
• Thickness may be increased for Plate Flanges to compensate for reduced rigidity

B. Pressure Rating Table (Indicative)

ASME Class	Pressure @ 38°C (bar)	Pressure @ 200°C (bar)	Typical Use
Class 150	~19.6	~15	Water, HVAC
Class 300	~51	~40	Limited process use

Important:

• Plate Flanges are typically restricted to Class 150 applications
• Use in Class 300 requires engineering validation

C. Torque Chart

Indicative bolt tightening torque values (carbon steel bolts, standard lubrication conditions)

Bolt Size	Torque (Nm) – Lubricated	Torque (Nm) – Dry
M12	70	95
M16	170	230
M20	330	450
M24	570	770
M27	830	1100
M30	1150	1500

Torque Application Notes

• Lubrication reduces friction → lower torque required
• Dry tightening increases variability in preload
• Torque must be applied in cross-pattern sequence

D. Preload Calculation Guide

Bolt preload is critical to achieving leak-tight flange joints.

Bolt Stress Formula

\[
\sigma = \frac{F}{A}
\]

Where:

• ( \sigma ) = Bolt stress
• ( F ) = Bolt preload force
• ( A ) = Tensile stress area

Preload Force Formula

\[
F = \frac{T \times K}{d}
\]

Where:

• ( F ) = Preload force
• ( T ) = Applied torque
• ( K ) = Torque coefficient (≈ 0.18–0.25)
• ( d ) = Nominal bolt diameter

Gasket Seating Stress

\[
S_g = \frac{F}{A_g}
\]

Where:

• ( S_g ) = Gasket stress
• ( A_g ) = Effective gasket area

Sample Calculation

Given:

• Bolt size: M20
• Torque: 330 Nm (lubricated)
• Torque factor (K): 0.2
• Diameter: 20 mm

Step 1: Calculate Preload

\[
F = \frac{330 \times 0.2}{0.02} = 3300 \, \text{N}
\]

Step 2: Check Bolt Stress

\[
\sigma = \frac{3300}{A}
\]

(Where A depends on bolt thread area)

Engineering Interpretation

• Higher preload → better sealing (up to material limits)
• Excess preload → bolt yielding or gasket crushing
• Insufficient preload → leakage

E. Yield Strength Chart (Text-Based Explanation)

Yield strength defines the maximum stress before permanent deformation.

Typical hierarchy:

• Carbon Steel (A36): ~250 MPa
• Carbon Steel (A105): ~250–300 MPa
• Stainless Steel (304/316): ~205 MPa
• Duplex Steel: ~450 MPa
• Super Duplex: ~550 MPa

Implication for Plate Flanges:

• Lower yield strength → higher deformation risk
• Plate Flanges rely heavily on thickness for rigidity

F. Mechanical Property Table

Material	Yield Strength (MPa)	Tensile Strength (MPa)	Elongation (%)	Hardness (HB)
A36	250	400–550	~20	~120
A105	250–300	485–620	~22	~140
SS 304	205	515–750	~40	~150
SS 316	205	515–750	~40	~150
Duplex	450	620–880	~25	~250

G. Corrosion Resistance Table

Environment	Carbon Steel	SS 304	SS 316	Duplex
Atmospheric	Low	Good	Excellent	Excellent
Marine	Poor	Moderate	Good	Excellent
Chemical	Poor	Moderate	Good	Excellent
Water Systems	Moderate (coated)	Good	Excellent	Excellent

11. Additional Engineering Considerations

Flange Alignment

Improper alignment leads to:

• Uneven gasket compression
• Localized stress
• Leakage

Bolt Tightening Sequence

Standard method:

1. Finger tightening
2. 30% torque
3. 60% torque
4. 100% torque
5. Final circular pass

Gasket Selection

Depends on:

• Pressure
• Temperature
• Fluid type

Common types:

• Non-asbestos sheet
• Spiral wound gasket
• Rubber gasket (low pressure)

Storage & Handling

• Store in dry conditions
• Protect facing surfaces
• Avoid stacking damage

Installation Controls

• Verify flange face cleanliness
• Check bolt lubrication
• Ensure uniform torque application

Industries Served

Plate Flanges are deployed across a wide range of industries where pressure containment requirements are moderate and cost-efficiency with dimensional adaptability is required. Their application is driven by system design conditions rather than universal suitability.

Water & Wastewater Infrastructure

Plate Flanges are extensively used in:

• Raw water intake systems
• Treated water distribution lines
• Effluent discharge pipelines
• Pumping stations

Engineering Rationale:

• Low to moderate pressure range
• Corrosion can be managed via coatings or stainless steel
• Large diameter pipelines favor plate-based fabrication

HVAC & Building Services

Typical usage includes:

• Chilled water systems
• Cooling water lines
• Air handling unit piping
• District cooling networks

Key Factors:

• Stable pressure conditions
• Low cyclic loading
• Ease of installation and maintenance

Fire Protection Systems

Applications:

• Firewater mains
• Sprinkler system pipelines
• Hydrant networks

Engineering Consideration:

• Systems operate under standby conditions
• Pressure is moderate and intermittent
• Plate Flanges provide adequate sealing when properly torqued

Infrastructure & Municipal Projects

Includes:

• Irrigation systems
• Sewerage pipelines
• Urban utility corridors

Advantages:

• Cost efficiency for large-scale deployment
• Flexibility in custom drilling patterns
• Availability in large diameters

Low-Pressure Oil & Gas Applications

Used in:

• Utility pipelines
• Drain and vent systems
• Non-critical hydrocarbon services

Limitations:

• Not used in high-pressure production systems
• Not suitable for critical containment zones

Chemical & Process Plants (Utility Services)

Applicable in:

• Cooling water circuits
• Chemical transfer at low pressure
• Auxiliary process lines

Material Selection Importance:

• Stainless steel or duplex may be required
• Corrosion resistance becomes primary selection factor

12. Export Capability & Global Supply

Super Industries operates as a manufacturer and exporter of Plate Flanges, supplying to EPC contractors and global project sites with documentation aligned to international procurement practices.

Export Regions

Typical supply regions include:

• Middle East (GCC countries)
• Southeast Asia
• Africa
• Europe (for infrastructure and water systems)

Packaging Standards

Packaging is designed to prevent:

• Mechanical damage
• Corrosion during transit
• Facing surface contamination

Common methods:

• Wooden pallets / crates
• Moisture-resistant wrapping
• Plastic end protection for sealing faces

Documentation Package

Standard export documentation includes:

• Commercial Invoice
• Packing List
• EN 10204 3.1 MTC
• Dimensional Inspection Report
• Coating Certificate (if applicable)
• Third-party inspection report (if specified)

Logistics & Handling

• Bulk shipment capability for large EPC orders
• Containerized loading for export
• Marking aligned with project identification systems

Traceability

Each Plate Flange is traceable through:

• Heat number
• Material grade marking
• Inspection records

Traceability ensures:

• Compliance verification
• Audit readiness
• Field-level identification

13. Procurement & Installation View

This section reflects the practical evaluation and field-level considerations used by EPC contractors and piping engineers.

Procurement Considerations

When evaluating Plate Flanges, procurement teams assess:

a. Material Compliance

• ASTM plate certification
• Mechanical property verification

b. Dimensional Accuracy

• ASME B16.5 compatibility
• Tolerance adherence

c. Application Suitability

• Pressure rating vs system design
• Temperature limits

d. Inspection Requirements

• Availability of PMI, UT, DPI
• Third-party inspection readiness

Gasket Selection Criteria

Gasket selection must align with:

• Flange facing type (FF/RF)
• Pressure and temperature conditions
• Fluid characteristics

Examples:

• Rubber gaskets → water systems
• Spiral wound → moderate pressure
• Non-asbestos sheet → general utility

Bolt Tightening Procedure

Correct tightening is critical for sealing performance.

Recommended sequence:

1. Initial hand tightening
2. Cross-pattern tightening at ~30% torque
3. Repeat at ~60% torque
4. Final tightening at 100% torque
5. Circular pass for uniform load distribution

Torque Control

• Use calibrated torque wrench
• Apply lubrication where specified
• Maintain uniform preload across all bolts

Installation Checks

Before commissioning:

• Verify flange face cleanliness
• Ensure gasket alignment
• Confirm bolt material and grade
• Check for uniform gap closure

Storage & Handling Guidelines

To maintain integrity:

• Store in dry, covered environment
• Protect RF/FF surfaces with caps or coatings
• Avoid direct ground contact
• Prevent stacking damage

14. Custom Engineering Capabilities

Plate Flanges offer flexibility in fabrication, enabling customization based on project-specific requirements.

Custom Thickness

• Increased thickness for enhanced rigidity
• Adjusted based on pressure and bolt load

Non-Standard Drilling

• Custom bolt patterns
• Special BCD configurations
• Adaptation to legacy systems

Large Diameter Plate Flanges

• Suitable for diameters beyond forging limits
• Common in water transmission pipelines

Special Coatings

• Fusion bonded epoxy (FBE)
• Heavy-duty anti-corrosion coatings
• Marine-grade protection systems

Material Customization

• Duplex and super duplex (subject to plate availability)
• Alloy steels for elevated temperature

Engineering Conclusion

Plate Flanges serve a specific and well-defined role within piping systems. Their applicability is governed by pressure limitations, structural characteristics, and material properties.

Technical Suitability Summary

Plate Flanges are suitable for:

• Low to moderate pressure systems
• Utility and infrastructure applications
• Large-diameter piping
• Cost-sensitive EPC projects

Engineering Limitations

They are not suitable for:

• High-pressure systems
• High-temperature cyclic service
• Critical hydrocarbon containment
• Applications requiring high fatigue resistance

Structural Understanding

From an engineering standpoint:

• Lack of forged grain structure reduces strength
• Flat geometry limits rigidity
• Sealing depends heavily on bolt preload and gasket behavior

EPC Evaluation Perspective

For EPC contractors and consultants:

Plate Flanges are acceptable when design conditions fall within defined limits and when dimensional compatibility, material traceability, and inspection compliance are verified.

Final Technical Position

This document establishes that:

• Plate Flanges are dimensionally adaptable, fabrication-efficient components
• Their use requires clear understanding of mechanical limitations
• Proper design, material selection, and installation practices are essential for performance
