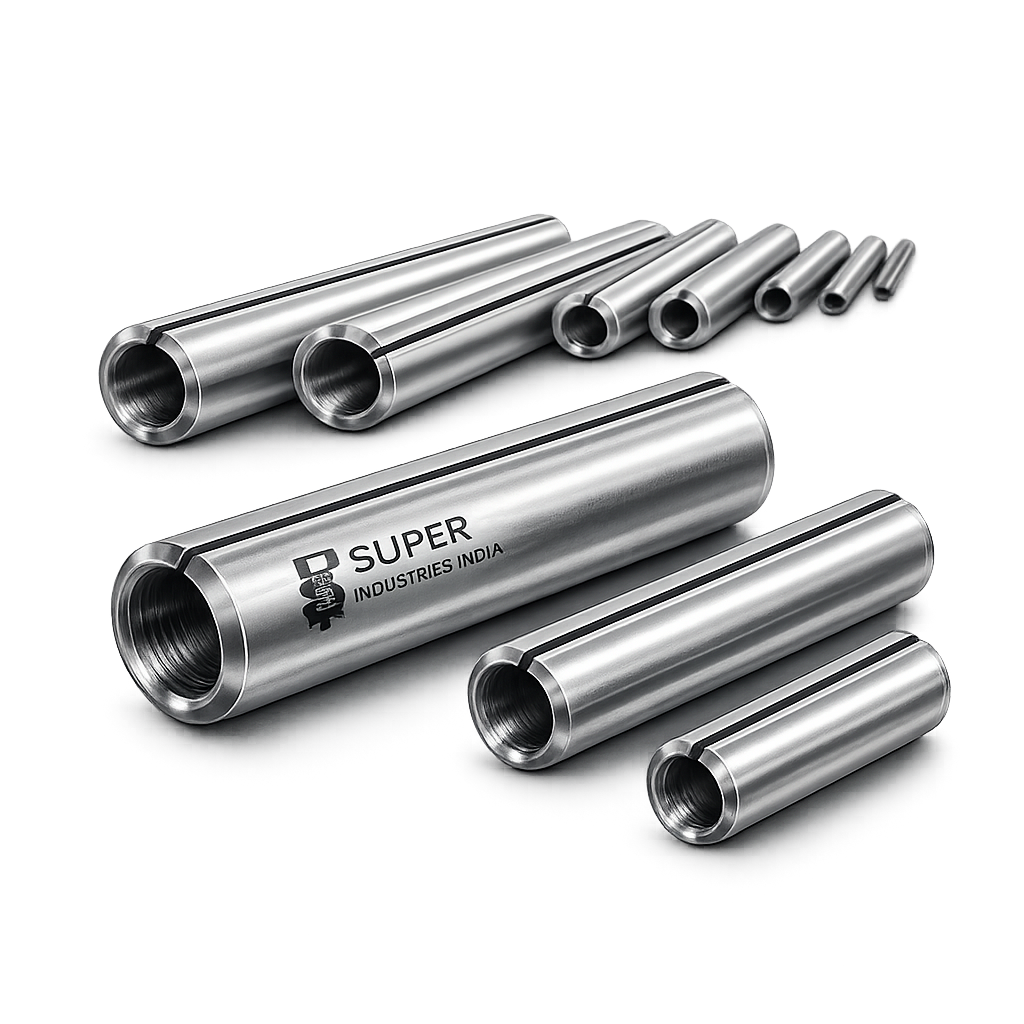

Roll Pins
Slotted Spring Pins (ISO 8752)
Self-Retaining Elastic Pins for Dynamic Mechanical Assemblies
Manufacturer & Exporter: Super Industries India
1. What is ISO 8752?
ISO 8752 specifies slotted spring pins, also known as roll pins. These are elastic cylindrical pins with a longitudinal slot that allows the pin to compress during insertion and expand inside the hole to create a self-retaining force.
Unlike solid dowel pins, ISO 8752 pins rely on spring action, not interference fit, to stay in place.
Super Industries
Global Manufacturer of Heavy & Custom Engineered Fasteners & Flanges
2. Functional Role of ISO 8752 Pins
ISO 8752 pins are used for:
- Retaining components
- Positioning moving parts
- Absorbing shock and vibration
- Acting as sacrificial shear elements
They are especially effective in dynamic assemblies where vibration or cyclic loading is present.
3. Why Engineers Choose Slotted Spring Pins
Key engineering benefits:
- No tight tolerance holes required
- Faster installation
- Excellent vibration resistance
- Self-locking behavior
- Lower installation stress on mating parts
This makes ISO 8752 ideal for mass production and field assembly.
4. ISO 8752 vs Solid Dowel Pins (Engineering Difference)
| Parameter | ISO 8752 | ISO 2338 |
|---|---|---|
| Type | Elastic | Solid |
| Retention | Spring force | Interference |
| Hole tolerance | Standard | Tight |
| Vibration resistance | Excellent | Moderate |
| Reusability | Limited | High |
5. Geometry & Design Features
- Cylindrical body
- Full-length longitudinal slot
- Chamfered ends for easy insertion
- Uniform wall thickness
The slot allows controlled compression during installation.
Super Industries
Global Manufacturer of Heavy & Custom Engineered Fasteners & Flanges
6. Dimensional Range
Standard ISO 8752 sizes:
- Diameter: 1.5 mm to 50 mm
- Length: 4 mm to 200 mm
- Metric sizing only
Lengths are measured after expansion, ensuring accurate fit.
7. Tolerance & Fit Philosophy
ISO 8752 uses a functional fit system:
- Pin diameter is intentionally larger than nominal hole
- Compression creates radial pressure
- Ensures tight retention without reaming
This simplifies machining and reduces cost.
8. Material Specifications
Super Industries India manufactures ISO 8752 pins in:
- High carbon spring steel
- Alloy spring steel
- Stainless steel (AISI 420 / 304)
Material selection depends on load and corrosion environment.
9. Heat Treatment & Mechanical Properties
Typical properties:
- High yield strength
- Excellent fatigue resistance
- Controlled elasticity
Heat treatment includes:
- Hardening
- Stress relieving
- Surface conditioning
10. Surface Finish Options
- Black phosphate (standard)
- Zinc plated
- Mechanical zinc
- Stainless natural finish
- Custom coatings for export
Phosphate coating improves corrosion resistance and reduces galling.
11. Load-Bearing Behavior
ISO 8752 pins can:
- Transmit moderate shear loads
- Absorb impact energy
- Fail progressively (safety advantage)
They are not designed for tensile loading.
12. Installation Guidelines for Engineers
✔ Drill standard hole (no reaming)
✔ Use press or hammer with guide
✔ Ensure correct pin length
✔ Avoid excessive re-use
13. Removal & Maintenance
- Removal requires pin punches
- Re-use is limited due to loss of spring force
- Recommended to replace during maintenance cycles
14. Common Engineering Applications
- Gear assemblies
- Lever mechanisms
- Automotive linkages
- Agricultural machinery
- Industrial tools
- Electric motor components
15. Failure Modes to Avoid
❌ Oversized hole
❌ Using spring pin for alignment-critical assemblies
❌ Excessive removal/reinstallation
❌ Corrosion exposure without coating
16. ISO 8752 vs ISO 8734 / ISO 2338
| Standard | Pin Type | Use Case |
|---|---|---|
| ISO 8752 | Slotted spring | Dynamic, vibration |
| ISO 8734 | Hardened dowel | Precision alignment |
| ISO 2338 | Solid dowel | Static positioning |
17. Export Supply Capabilities
Super Industries India offers:
- Bulk supply for OEMs
- Export-grade packaging
- Lot traceability
- Custom labeling
- Documentation for global buyers
18. Custom Manufacturing Options
- Special lengths
- Stainless spring pins
- Heavy-duty variants
- Industry-specific coatings
19. Industries Served
- Automotive & EV
- Heavy engineering
- Farm equipment
- Power tools
- Industrial automation
20. Conclusion
ISO 8752 slotted spring pins are a cost-effective, vibration-resistant solution for retaining and locating components in dynamic mechanical systems.
Super Industries India manufactures ISO 8752 pins to meet international performance and export standards, supporting global OEM and industrial buyers.
