1. Industry Context & System Relevance

Spade Blank Spacers are critical components within pipeline isolation systems, engineered to provide positive, verifiable, and fail-safe isolation in pressurized piping networks. Their role becomes particularly significant in shutdown, turnaround (TAR), and maintenance operations, where process integrity and personnel safety depend on absolute flow isolation.

In complex process facilities, reliance on valve isolation alone introduces uncertainty due to:

• Potential internal leakage (passing valves)
• Seal degradation over time
• Mechanical failure or incomplete closure
• Absence of visual confirmation

For this reason, positive isolation using physical barriers—such as spade blanks—is mandated in many operating procedures and international safety standards.

Functional Role in Pipeline Systems

Spade Blank Spacers are deployed to:

• Physically block fluid flow in pipelines
• Enable safe maintenance and inspection activities
• Provide double-block assurance when used alongside valves
• Ensure zero-energy state conditions in hazardous systems

They are typically installed between flanged joints, replacing or supplementing gaskets depending on the operational requirement.

Application Across Industrial Sectors

Spade Blank Spacers are used extensively in the following sectors:

Oil & Gas (Upstream & Midstream)

• Wellhead isolation
• Pipeline maintenance
• Pigging operations

Refineries

• Unit shutdown isolation
• Reactor inlet/outlet blocking
• Heat exchanger maintenance

Petrochemical Plants

• Process line isolation
• Batch system segregation
• Hazardous chemical containment

Power Generation

• Steam line isolation
• Boiler maintenance
• Turbine system shutdown

LNG Terminals

• Cryogenic pipeline isolation
• Transfer line shutdowns
• Storage tank safety isolation

Offshore Installations

• Compact piping system isolation
• Maintenance under constrained environments
• Safety-critical hydrocarbon containment

Chemical Processing

• Corrosive media isolation
• Process changeover
• Cleaning and flushing operations

Why Positive Isolation is Mandatory

Positive isolation using Spade Blank Spacers is required over valve isolation due to:

Isolation Method	Risk Level	Verification	Leakage Potential
Valve Isolation	Medium to High	Indirect	Possible
Double Valve + Bleed	Reduced	Moderate	Possible
Spade Blank Isolation	Zero (Design Basis)	Direct Visual	None

Key Engineering Justifications:

• Provides absolute mechanical separation of process fluid
• Eliminates dependence on valve sealing integrity
• Enables visual confirmation of isolation status
• Meets lock-out/tag-out (LOTO) safety procedures
• Required in hazardous service lines (toxic, flammable, high-pressure)

2. Technical Definition

A Spade Blank Spacer is a line isolation device designed to be installed between flanged joints to either:

• Completely block flow (Spade)
• Allow unrestricted flow (Spacer)

It forms part of a broader assembly known as a Spectacle Blind System, widely used in piping systems governed by ASME B16.48.

Core Components

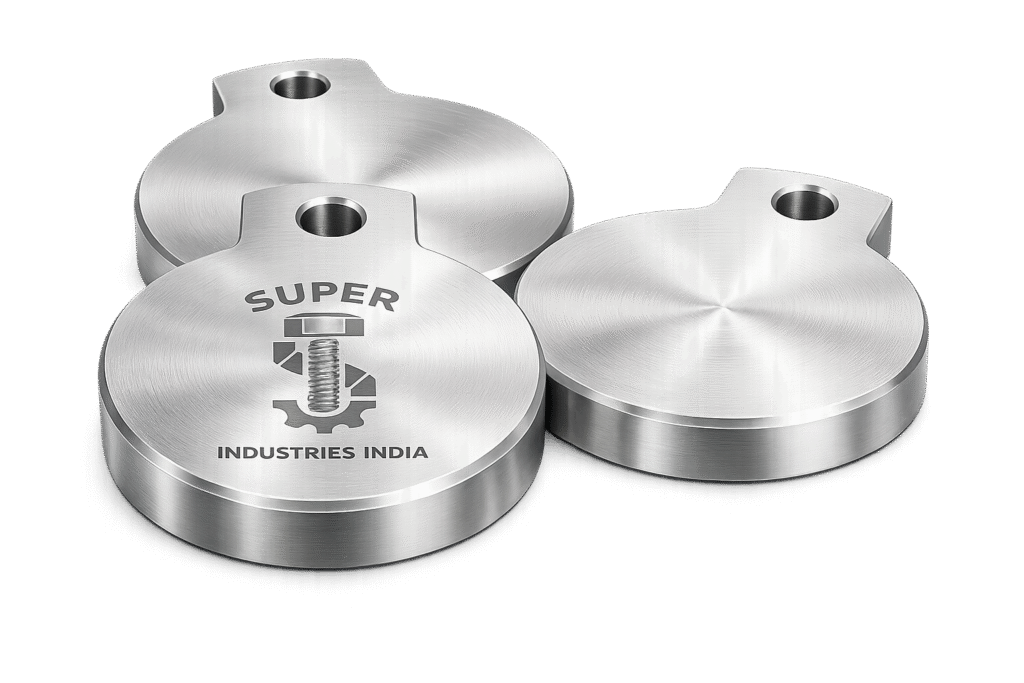

Spade (Solid Plate)

• A solid circular plate
• Installed between flanges to block flow completely
• Designed to withstand full line pressure
• Functions as a positive isolation barrier

Spacer (Ring Type)

• A ring-shaped plate with central opening
• Matches pipe internal diameter
• Allows normal process flow
• Used when the line is in operational condition

Spectacle Blind Configuration

A spectacle blind integrates both spade and spacer into a single unit, connected by a metal ligament.

Configuration Features:

• One side: Solid disc (spade)
• Other side: Open ring (spacer)
• Connected via handle/bridge section
• Rotated to switch between isolation and flow

Paddle Blinds (Alternative Configuration)

In larger sizes or higher pressure classes, separate paddle blinds are used:

• Independent spade and spacer plates
• Installed individually as required
• Require complete flange separation for changeover

Functional Classification

Type	Function	Usage
Spade	Blocks flow	Maintenance / shutdown
Spacer	Allows flow	Normal operation
Spectacle Blind	Dual function	Frequent switching
Paddle Blind	Separate units	Large size / heavy-duty systems

Temporary vs Permanent Isolation

Temporary Isolation

• Used during maintenance or inspection
• Removed after completion
• Most common application

Semi-Permanent / Operational Isolation

• Installed for extended shutdowns
• Used in commissioning or decommissioning phases

Visual Verification Advantage

One of the defining engineering advantages:

• The handle orientation provides clear visual indication:
  • Handle aligned with pipe → Spacer (flow open)
  • Handle perpendicular → Spade (flow blocked)

This eliminates ambiguity and supports:

• Operational safety audits
• Shift handover verification
• Regulatory compliance inspections

3. Engineering & Sealing Principle

The performance of Spade Blank Spacers is governed by flange mechanics, bolt preload, and gasket compression behavior under pressure.

Flange Bolting Load Transfer

When installed, the assembly consists of:

• Two flanges
• Bolting system (studs/nuts)
• Gasket (in most cases)
• Spade or spacer

Upon tightening:

1. Bolts are tensioned → generating axial preload force
2. This preload compresses the gasket and clamps the spade/spacer
3. Load is distributed across the flange faces

Gasket Compression Interaction

In both configurations:

With Spacer (Flow Condition)

• Gasket seals against flange faces
• Spacer maintains internal diameter continuity
• Minimal disturbance to flow

With Spade (Isolation Condition)

• Gasket seals against:
  • Flange face
  • Flat surface of spade
• Entire pressure load is resisted by:
  • Spade plate
  • Bolt preload
  • Gasket sealing stress

Sealing Interface Behavior

Key interfaces:

• Flange face ↔ Gasket
• Gasket ↔ Spade/Spacer surface

Engineering considerations:

• Surface flatness
• Surface finish (Ra value)
• Gasket type compatibility (spiral wound, RTJ, etc.)
• Bolt preload uniformity

Pressure Containment with Spade

When the spade is installed:

• Internal pressure acts on the full area of the blind plate
• Generates:
  • Axial force
  • Bending stress in the plate

The spade must:

• Resist deformation under pressure
• Maintain seal integrity
• Prevent leakage or blowout

Bolt Preload Interaction

Bolt preload must satisfy:

• Seating stress requirement of gasket
• Opposition to internal pressure force
• Maintenance of contact pressure under operating conditions

If preload is insufficient:

• Gasket relaxation → leakage
• Joint separation under pressure

If excessive:

• Bolt yielding
• Gasket crushing

Load Distribution Across Blind

Load path:

1. Internal pressure → acts on spade surface
2. Force transferred to flange faces
3. Bolts resist separation

Uniform load distribution depends on:

• Bolt pattern symmetry
• Controlled tightening sequence
• Proper lubrication

Effect of Thickness on Sealing

Spade thickness directly influences:

• Flexural rigidity
• Deflection under pressure
• Contact pressure retention

Thin plates:

• Higher deflection
• Risk of leakage

Thick plates:

• Improved stiffness
• Higher safety margin
• Increased weight and handling requirements

Leak-Tight Isolation vs Flow Condition

Condition	Component Installed	Engineering Behavior
Flow Mode	Spacer	Hydraulic continuity, minimal disturbance
Isolation Mode	Spade	Full pressure retention, zero flow

Critical Requirement:

Spade Blank Spacers must ensure:

Zero-leak, full-pressure isolation under design conditions

Summary of Engineering Behavior

Spade Blank Spacers operate based on:

• Mechanical blocking (solid plate)
• Controlled sealing (gasket + bolt preload)
• Structural resistance (plate thickness + material strength)
• System compatibility (flange standards)

4. Applicable Standards (ASTM / ASME / DIN / EN / ISO)

The design, manufacture, and application of Spade Blank Spacers are governed by a structured framework of international standards to ensure dimensional compatibility, pressure integrity, and material reliability.

Primary Standard: ASME B16.48

ASME B16.48 is the governing specification for:

• Line blanks (spades and spacers)
• Spectacle blinds
• Paddle blinds

It defines:

• Dimensional requirements (OD, thickness, handle dimensions)
• Pressure class ratings (Class 150 to 2500)
• Tolerance limits
• Facing requirements (RF / RTJ compatibility)

Engineering Significance:

• Ensures interchangeability with standard flanges
• Provides minimum thickness requirements based on pressure class
• Defines safe handling geometry (handles, ligaments)

Flange Compatibility Standard: ASME B16.5

Spade Blank Spacers are installed between flanges conforming to ASME B16.5 (for sizes up to 24″) and ASME B16.47 (for larger diameters).

Defines:

• Flange dimensions
• Bolt circle diameter (BCD)
• Number and size of bolts
• Facing types

Engineering Relevance:

• Ensures perfect alignment and sealing interface compatibility
• Determines bolt load distribution pattern

Material Standards (ASTM)

Material selection is governed by ASTM specifications to ensure:

• Mechanical strength
• Temperature resistance
• Corrosion performance

Common applicable standards:

• ASTM A516 – Pressure vessel quality carbon steel plates
• ASTM A105 – Forged carbon steel
• ASTM A240 – Stainless steel plates (304 / 316)
• ASTM A182 – Alloy steel forgings (F11, F22)

DIN / EN Equivalents

For European and international projects:

• EN 1092-1 – Flange standard compatibility
• EN 10028 – Pressure vessel steels
• DIN 2527 – Blind flange references (dimensional correlation)

ISO References

Used in documentation alignment and export compliance:

• ISO 9001 – Quality management systems
• ISO 15649 – Piping systems (industrial applications)

Standard Mapping to Service Conditions

Standard	Governs	Application
ASME B16.48	Dimensions & pressure rating	Primary design
ASME B16.5	Flange interface	Installation compatibility
ASTM	Material properties	Strength & durability
EN / DIN	European compliance	Export & EPC projects
ISO	Quality & documentation	Certification

5. Material & Grade Options

Material selection for Spade Blank Spacers is driven by:

• Pressure class
• Operating temperature
• Corrosive environment
• Fluid type

Carbon Steel Grades

ASTM A516 Gr.60 / Gr.70

• Pressure vessel quality steel
• High notch toughness
• Suitable for moderate to high pressure systems

ASTM A105

• Forged carbon steel
• Used for high-pressure applications
• Better grain structure compared to plate

Stainless Steel Grades

ASTM A240 Type 304

• General corrosion resistance
• Suitable for non-chloride environments

ASTM A240 Type 316

• Enhanced corrosion resistance
• Suitable for:
  • Marine environments
  • Chloride exposure
  • Chemical processing

Alloy Steel Grades

ASTM A182 F11

• Chromium-molybdenum alloy
• Suitable for elevated temperature service

ASTM A182 F22

• Higher strength and temperature resistance
• Used in power plants and refineries

Duplex / Super Duplex Stainless Steel

• High strength-to-weight ratio
• Excellent resistance to:
  • Stress corrosion cracking
  • Chloride attack
• Suitable for:
  • Offshore platforms
  • Seawater systems

Material Comparison Table

Grade	Yield Strength (MPa)	Tensile Strength (MPa)	Temperature Range (°C)	Corrosion Resistance	Typical Application
ASTM A516 Gr.70	~260	485–620	-29 to 425	Moderate	Refineries, pressure lines
ASTM A105	~250	485–620	-29 to 425	Moderate	High-pressure piping
SS 304	~215	505–750	-196 to 870	Good	General chemical service
SS 316	~205	515–750	-196 to 870	Excellent	Marine, chemical plants
F11	~275	415–585	Up to 540	Moderate	Power plants
F22	~415	585–760	Up to 600	Moderate	High-temp systems
Duplex SS	~450	620–880	-50 to 300	Very High	Offshore, seawater

Material Selection Logic

Condition	Recommended Material
High pressure, non-corrosive	A105 / A516
High temperature	F11 / F22
Marine / chloride	SS316 / Duplex
Cryogenic	SS304 / SS316
Corrosive chemicals	SS316 / Duplex

6. Heat Treatment Information

Heat treatment is applied to ensure:

• Mechanical strength
• Microstructural stability
• Resistance to cracking and deformation

Normalizing

• Applied to carbon steel
• Refines grain structure
• Improves uniformity

Quenching & Tempering (Q&T)

• Increases strength and toughness
• Used for:
  • Alloy steels (F11, F22)
• Ensures resistance to:
  • High pressure
  • Cyclic loading

Solution Annealing (Stainless Steel)

• Dissolves carbides
• Improves corrosion resistance
• Prevents sensitization

Stress Relieving

• Removes residual stresses from machining or forming
• Reduces risk of distortion during service

Mechanical Property Control

Heat treatment ensures:

• Controlled hardness
• Improved ductility
• Impact resistance

Impact Testing (Charpy V-Notch)

Required for:

• Low-temperature service
• Critical applications

Measures:

• Energy absorption capacity
• Resistance to brittle fracture

Microstructure Importance

• Uniform grain structure → consistent strength
• Avoidance of:
  • Carbide precipitation
  • Grain boundary weakness

7. Manufacturing Process

The manufacturing of Spade Blank Spacers follows a controlled, inspection-driven workflow to ensure dimensional accuracy and pressure integrity.

Raw Material Inspection

• Verification against MTC
• Chemical composition analysis
• Visual inspection for defects

Plate Cutting / Forging

Depending on size and class:

• Plate cutting (laser / plasma / waterjet)
• Closed-die forging (for high-pressure classes)

CNC Machining

Operations include:

• OD/ID machining
• Thickness control
• Edge finishing
• Handle shaping

Ensures:

• Dimensional precision
• Surface uniformity

Edge Preparation

• Deburring
• Chamfering
• Smooth edge finishing

Prevents:

• Stress concentration
• Handling injuries

Thickness Calibration

• Precision measurement
• Compliance with ASME B16.48 tolerances

Heat Treatment (If Required)

Applied as per:

• Material grade
• Project specification

Surface Finishing

• Shot blasting
• Coating application
• Passivation (SS)

Final Inspection

Includes:

• Dimensional verification
• Surface quality check
• Marking validation

Marking & Traceability

Each Spade Blank Spacer is marked with:

• Size
• Class rating
• Material grade
• Heat number
• Manufacturer identification

Ensures:

• Full traceability
• Compliance with EPC documentation

Surface Finish Options

Surface finishing is applied based on:

• Environmental exposure
• Storage duration
• Corrosion risk

Shot Blasting

• Removes mill scale
• Improves surface uniformity

Anti-Rust Oil Coating

• Temporary corrosion protection
• Suitable for short-term storage

Industrial Painting

• Long-term protection
• Color coding possible

PTFE Coating

• Chemical resistance
• Low friction surface

Galvanizing

• Zinc coating for corrosion protection
• Suitable for outdoor environments

Passivation (Stainless Steel)

• Removes free iron
• Enhances corrosion resistance

Surface Roughness Considerations

Surface finish affects:

• Gasket seating
• Sealing integrity

Typical requirement:

• Smooth, flat contact surface
• Controlled roughness (Ra value as per gasket type)

A. Dimensional Table (Reference — ASME B16.48 Aligned)

The following table provides indicative dimensions for Spade Blank Spacers. Final values must be confirmed against ASME B16.48 and project specifications.

Units: mm (unless specified)

Nominal Size (NPS)	Class	Thickness (t)	OD (Spade)	ID (Spacer)	Approx Weight (kg)
2″	150	6.4	165	52	1.2
2″	300	9.5	165	52	1.8
4″	150	6.4	229	102	2.8
4″	600	19.0	229	102	7.5
6″	300	12.7	279	154	6.5
6″	900	31.8	279	154	16.8
8″	300	15.9	343	202	11.2
8″	1500	47.8	343	202	32.5
10″	600	25.4	406	254	21.5
12″	600	28.6	483	304	32.0
16″	300	31.8	597	406	48.5
20″	150	25.4	711	508	52.0

Engineering Notes:

• Thickness increases with pressure class
• OD corresponds to flange OD compatibility
• Spacer ID aligns with pipe bore
• Weight impacts handling and lifting requirements

B. Pressure Rating Table (ASME Class vs Pressure vs Temperature)

Indicative pressure ratings for carbon steel (ASTM A516 Gr.70):

ASME Class	Pressure @ 38°C (bar)	Pressure @ 200°C (bar)	Pressure @ 400°C (bar)
150	19.6	15.3	10.2
300	51.1	40.0	26.7
600	102.1	80.1	53.4
900	153.1	120.2	80.1
1500	255.2	200.3	133.5
2500	425.4	333.8	222.5

Engineering Interpretation:

• Pressure capacity reduces with temperature increase
• Spade must be designed for maximum design pressure
• Governs minimum thickness requirement

C. Torque Chart

Torque values for flange bolting during installation of Spade Blank Spacers.

Units: Torque in Nm (approximate, based on lubricated vs dry conditions)

Bolt Size	Grade	Lubricated Torque (Nm)	Dry Torque (Nm)
M16	8.8	110	150
M16	B7	120	160
M20	8.8	220	300
M20	B7	240	320
M24	8.8	380	520
M24	B7	420	560
M27	8.8	560	750
M27	B7	600	800
M30	8.8	760	1020
M30	B7	820	1100
M36	8.8	1300	1750
M36	B7	1400	1850

Torque Application Guidelines:

• Use calibrated torque wrench
• Apply cross-tightening sequence
• Perform multi-stage tightening (30% → 60% → 100%)
• Re-torque after initial pressurization

D. Preload & Stress Calculation Guide

Bolt Stress Formula

\[
\sigma_b = \frac{F_b}{A_b}
\]

Where:

• ( \sigma_b ) = Bolt stress (MPa)
• ( F_b ) = Bolt preload force (N)
• ( A_b ) = Bolt cross-sectional area (mm²)

Force on Blind Due to Internal Pressure

\[
F_p = P \times A
\]

Where:

• ( F_p ) = Force acting on spade (N)
• ( P ) = Internal pressure (MPa)
• ( A ) = Internal pipe area (mm²)

Bending Stress in Spade (Conceptual)

\[
\sigma = \frac{P \cdot D^2}{t^2}
\]

Where:

• ( D ) = Effective diameter
• ( t ) = Thickness

Sample Calculation

Given:

• Pipe Size: 6″ (ID ≈ 154 mm)
• Pressure: 10 MPa
• Area:

\[
A = \frac{\pi D^2}{4} = \frac{3.14 \times (154)^2}{4} \approx 18600 \, \text{mm}^2
\]

\[
F_p = 10 \times 18600 = 186000 \, \text{N}
\]

Interpretation:

• Spade must withstand ~186 kN force
• Bolt preload must exceed this force with safety margin

Safety Margin Philosophy

Design ensures:

• Bolt preload ≥ 1.5 × pressure force
• Plate stress < allowable stress (material dependent)
• No permanent deformation

E. Mechanical Properties Table

Material	Yield Strength (MPa)	Tensile Strength (MPa)	Hardness (HB)	Elongation (%)	Impact (J)
A516 Gr.70	260	485–620	140–180	21	27
A105	250	485–620	120–170	22	27
SS304	215	505–750	150–200	40	50
SS316	205	515–750	150–200	40	50
F11	275	415–585	130–180	20	27
Duplex	450	620–880	250–300	25	60

F. Corrosion Resistance Comparison Table

Material	Marine	Acidic	Hydrocarbon	High Humidity
Carbon Steel	Low	Low	Good	Low
SS304	Moderate	Moderate	Excellent	Good
SS316	Excellent	Good	Excellent	Excellent
Duplex SS	Excellent	Excellent	Excellent	Excellent
Alloy Steel (F11/F22)	Low	Low	Good	Moderate

Engineering Interpretation:

• SS316 / Duplex preferred for aggressive environments
• Carbon steel requires coating or protection
• Alloy steel selected for temperature, not corrosion

8. Inspection & Quality Control

Inspection of Spade Blank Spacers is mandatory to ensure pressure integrity, dimensional accuracy, and material compliance.

Positive Material Identification (PMI)

• Confirms material grade
• Verifies alloy composition

Used for:

• Stainless steel
• Alloy steel

Ultrasonic Testing (UT)

• Detects internal defects
• Ensures material homogeneity

Applicable for:

• Thick plates
• High-pressure classes

Dye Penetrant Inspection (DPI)

• Surface crack detection
• Applied after machining

Magnetic Particle Inspection (MPI)

• Surface and near-surface defect detection
• Used for ferromagnetic materials

Dimensional Inspection

Checks:

• Thickness
• OD / ID
• Flatness
• Handle geometry

Tools:

• Vernier calipers
• Micrometers
• Height gauges

Hardness Testing

• Ensures compliance with material standards
• Detects improper heat treatment

Hydro Testing (Conditional)

• Not always mandatory
• Applied in critical applications

Certification

EN 10204 3.1

• Manufacturer-certified test report

EN 10204 3.2

• Third-party verified certification

Third-Party Inspection (TPI)

Conducted by:

• Client representatives
• Independent inspection agencies

Scope includes:

• Material verification
• Dimensional checks
• Documentation review

Traceability System

Each Spade Blank Spacer is traceable via:

• Heat number
• Batch number
• Material certificate
• Inspection records

9. Industries Served

Spade Blank Spacers are deployed across process industries where positive isolation, pressure containment, and maintenance safety are mandatory engineering requirements.

Upstream Oil & Gas

Applications include:

• Wellhead isolation during intervention
• Flowline shutdown for inspection
• Separation unit maintenance

Engineering Requirements:

• High-pressure resistance (Class 900–2500)
• Sour service compatibility (as applicable)
• Reliability under cyclic operations

Refineries

Used in:

• Crude distillation units (CDU)
• Hydrocrackers and reformers
• Heat exchanger isolation

Key Considerations:

• High temperature + pressure combination
• Hydrocarbon containment
• Compliance with shutdown procedures

Petrochemical Plants

Typical usage:

• Process unit isolation
• Batch line segregation
• Chemical containment during maintenance

Material selection driven by:

• Corrosion resistance
• Chemical compatibility

Power Generation Plants

Applications:

• Steam line isolation
• Boiler maintenance
• Turbine shutdown

Engineering requirements:

• High-temperature alloy steels (F11 / F22)
• Resistance to thermal expansion stress

LNG Terminals

Usage:

• Cryogenic pipeline isolation
• Transfer line shutdown
• Storage system maintenance

Material requirements:

• Low-temperature toughness
• Stainless steel or duplex grades

Offshore Platforms

Constraints:

• Limited space
• Corrosive marine environment

Applications:

• Process piping isolation
• Safety shutdown systems

Material preference:

• Duplex / Super Duplex stainless steel

Chemical Processing Industries

Used for:

• Acidic and corrosive fluid isolation
• Cleaning and flushing operations
• Process changeover

Material selection:

• SS316 / Duplex based on chemical compatibility

10. Export Capability & Global Supply

Super Industries
“Global Manufacturer of Heavy & Custom Engineered Fasteners for Oil & Gas, Power & EPC Contractors.”

Operates as a manufacturer and global exporter of Spade Blank Spacers, aligned with EPC procurement, inspection, and documentation protocols.

Export Regions

Supply capability includes:

• United States (ASME compliance)
• European Union (EN / PED alignment)
• Middle East (project-driven EPC supply)
• Southeast Asia (process industry demand)

Export Packaging Standards

Packaging is designed to ensure:

• Protection against corrosion
• Mechanical damage prevention
• Ease of handling at project sites

Typical methods:

• Wooden boxes (ISPM-15 compliant)
• Palletized packing
• Moisture barrier wrapping
• Rust preventive coatings

Documentation Package

Each shipment includes:

Material Test Certificates (MTC)

• Chemical composition
• Mechanical properties

Inspection Reports

• Dimensional verification
• NDT results

Compliance Certificates

• ASME / ASTM conformity
• Heat treatment records

Additional Documentation (Project-Specific)

• Third-party inspection reports
• Packing lists
• Traceability records

Project Logistics Capability

Capability includes:

• Bulk order handling
• Mixed-size shipment consolidation
• Project-wise tagging and identification
• Coordination with EPC contractors and logistics teams

11. PROCUREMENT & INSTALLATION VIEW

Installation Procedure for Spade Blank Spacers

Installation must follow controlled mechanical procedures to ensure sealing integrity and operational safety.

Pre-Installation Checks

• Verify:
  • Size (NPS)
  • Pressure class
  • Material grade
• Inspect:
  • Surface condition
  • Flatness
  • Markings and traceability

Flange Disassembly Procedure

1. Depressurize and drain line
2. Loosen bolts in cross pattern
3. Separate flange faces using controlled methods
4. Ensure no residual pressure remains

Spade / Spacer Insertion

• Insert spade or spacer between flanges
• Align with:
  • Bolt holes
  • Gasket seating area

Ensure:

• Proper gasket placement
• No misalignment

Follow cross-tightening pattern:

1. Initial tightening (30%)
2. Intermediate tightening (60%)
3. Final torque (100%)

Use:

• Calibrated torque wrench
• Lubricated threads (if specified)

Re-Torque Practice

• Perform after:
  • Initial pressurization
  • Thermal stabilization

Ensures:

• Compensation for gasket relaxation
• Long-term sealing performance

Safety Precautions

• Confirm zero pressure condition before installation
• Use appropriate lifting equipment for large sizes
• Avoid manual handling for heavy spades
• Follow plant LOTO procedures

Tagging & Identification

Each installed unit should be:

• Tagged with:
  • Isolation status (OPEN / CLOSED)
  • Date of installation
  • Responsible personnel

Ensures:

• Operational clarity
• Audit traceability

12. Custom Engineering Capabilities

Spade Blank Spacers can be engineered beyond standard specifications to meet project-specific requirements.

Non-Standard Sizes

• Large diameters beyond ASME range
• Custom OD/ID combinations

Increased Thickness Designs

• For:
  • Higher pressure applications
  • Additional safety margin

Special Handle Designs

• Reinforced handles
• Extended handles for accessibility
• Weight-reduced configurations

Exotic Material Grades

• Super Duplex (UNS S32750 / S32760)
• Nickel alloys (Inconel, Monel)
• Titanium (for specialized chemical service)

Project-Specific Marking

• Client tagging systems
• Barcode / QR traceability
• Heat number stamping

13. Engineering Compliance Summary

Spade Blank Spacers manufactured in accordance with:

• ASME B16.48 → Dimensional & pressure compliance
• ASME B16.5 → Flange compatibility
• ASTM standards → Material integrity
• EN / DIN → International project compliance

Ensure:

• Pressure containment capability
• Dimensional accuracy
• Material traceability
• Inspection readiness

Final Engineering Conclusion

Spade Blank Spacers function as critical safety components within pressurized piping systems. Their engineering significance is defined by:

• Positive isolation capability
• Zero-leak pressure containment
• Direct visual verification of line status
• Compatibility with global piping standards

They are not auxiliary accessories but pressure-retaining isolation devices that must be:

• Properly designed
• Precisely manufactured
• Correctly installed
• Fully traceable

From an EPC evaluation perspective, acceptance depends on:

• Compliance with ASME B16.48 dimensional requirements
• Verified material properties and heat treatment
• Documented inspection and testing records
• Capability to meet project-specific technical specifications

Final Technical Position

A correctly engineered and manufactured Spade Blank Spacer ensures:

Mechanical isolation independent of valve integrity, enabling safe maintenance and operational control in high-pressure piping systems.

latexpage]
