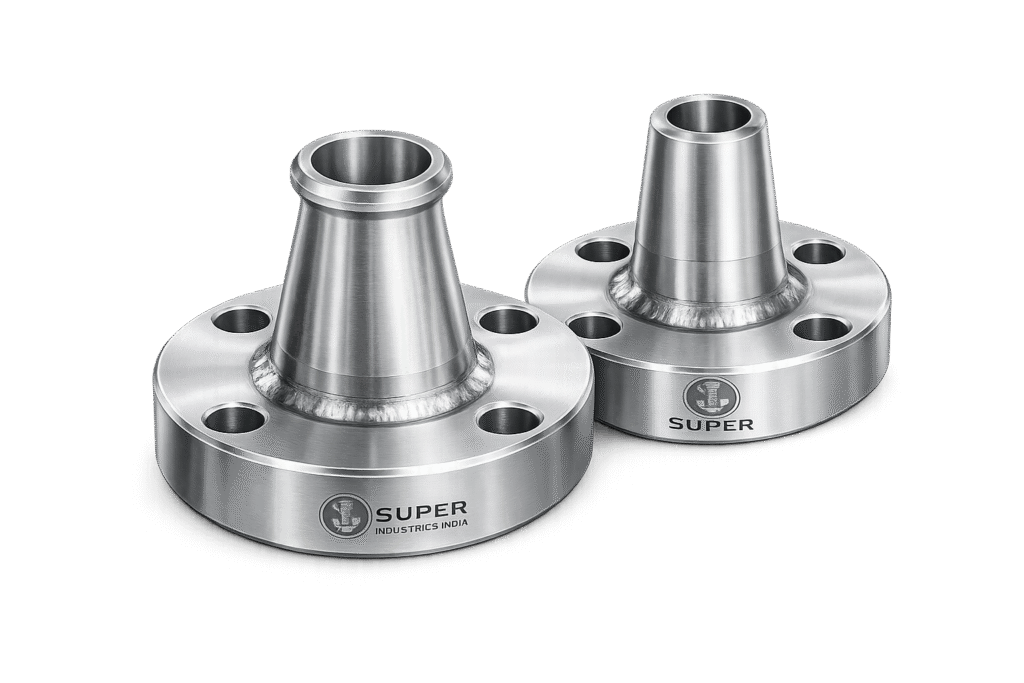

WELDO / NIPO FLANGES

Introduction

Super Industries
“Global Manufacturer of Heavy & Custom Engineered Fasteners for Oil & Gas, Power & EPC Contractors.”

Super Industries operates as a manufacturer and global exporter of Weldo / Nipolet Flanges (Weldolet / Nipolet Branch Outlet Fittings), engineered in accordance with international piping codes and designed for high-integrity branch connections in critical pressure systems.

This document is structured as a technical reference aligned with EPC contractor requirements, piping design engineering practices, and third-party inspection expectations.

1. Industry Context & System Relevance

Role of WELDO / NIPO FLANGES in Piping Systems

In pressurized piping systems, branch connections represent one of the most critical geometric discontinuities. The introduction of a branch alters the stress distribution within the pipe wall and introduces localized stress intensification.

Weldolet and Nipolet fittings are engineered solutions designed to:

• Create reinforced branch connections from a main pipeline (run pipe)
• Maintain pressure boundary integrity under internal pressure and external loads
• Optimize stress flow between header and branch
• Provide a compact and structurally efficient alternative to fabricated tees

Unlike fabricated or welded stub-in connections, these outlet fittings are designed with integral reinforcement geometry that complies with piping code requirements without requiring additional reinforcement pads.

Functional Purpose in High-Pressure Systems

Branch Connection Creation

Weldolets and Nipolets are used to connect smaller diameter branch pipes to larger diameter headers, typically in:

• Process piping networks
• High-pressure hydrocarbon lines
• Steam and condensate systems

They ensure:

• Structural continuity
• Reinforcement adequacy
• Controlled weld geometry

Reinforced Outlet Design

Branch openings inherently reduce the cross-sectional strength of the header pipe. Weldolets compensate for this by incorporating:

• Increased material thickness at the branch intersection
• Contoured geometry that redistributes stress
• Reinforcement equivalent to or exceeding code requirements

Compact Alternative to Tees

Compared to standard tees:

Parameter	Weldolet / Nipolet	Reducing Tee
Weight	Lower	Higher
Space Requirement	Minimal	High
Fabrication Complexity	Low	Moderate
Stress Performance	Optimized	Standard

Weldolets are especially beneficial where:

• Space constraints exist
• Retrofit connections are required
• Weight reduction is critical (e.g., offshore platforms)

Stress-Optimized Flow Transition

The contoured saddle design allows:

• Smooth transition of flow
• Reduced turbulence compared to sharp-edged branch connections
• Lower erosion and vibration risk

Application Domains

Weldo / Nipolet fittings are extensively used in:

Oil & Gas Pipelines

• Transmission pipelines
• Gathering systems
• Pumping stations

Refineries

• Process unit interconnections
• Utility piping systems

Power Plants

• High-pressure steam lines
• Feedwater systems

LNG Terminals

• Cryogenic service piping
• Gas distribution headers

Petrochemical Plants

• Reactor feed lines
• Chemical transfer systems

Offshore Platforms

• Weight-sensitive piping layouts
• Compact installation environments

High-Pressure Process Piping

• Systems governed by stringent design codes such as ASME B31.3

Engineering Justification Over Alternative Methods

Weldolets vs Stub-In Connections

Stub-in connections involve cutting a hole in the header pipe and welding a branch pipe directly.

Limitations of Stub-In:

• High stress concentration at weld toe
• Requires reinforcement pad (repad)
• Complex weld inspection
• Increased risk of fatigue failure

Weldolet Advantages:

• Integral reinforcement eliminates need for repad
• Reduced stress intensification factor (SIF)
• Controlled weld geometry
• Improved fatigue resistance

Nipolets for Instrumentation & Valve Take-Offs

Nipolets are specifically designed for:

• Small bore connections
• Instrumentation lines
• Pressure taps
• Drain and vent connections

They combine:

• Reinforced outlet body
• Integral nipple (threaded or socket weld)

Advantages:

• Reduced number of weld joints
• Improved leak integrity
• Simplified installation

Space, Weight, and Structural Efficiency

Space Optimization

Weldolets require significantly less axial and radial space compared to tees, making them suitable for:

• Congested piping layouts
• Skid-mounted systems
• Offshore modules

Weight Reduction

Reduced material volume leads to:

• Lower structural load on supports
• Reduced transportation cost
• Improved installation handling

Structural Efficiency

The contoured design:

• Aligns with stress flow lines
• Minimizes abrupt geometric transitions
• Enhances fatigue life under cyclic loading

Code Compliance and Reinforcement Integrity

Weldolet and Nipolet fittings are designed to meet reinforcement requirements as per:

• ASME B31.3 (Process Piping)
• ASME Section VIII (Pressure Vessel Openings)

Key compliance aspects:

• Reinforcement area equivalence
• Pressure boundary continuity
• Acceptable stress intensification factors

These fittings are considered self-reinforced branch connections, eliminating the need for additional reinforcement pads when properly selected.

2. Technical Definition

Weldolet Definition

A Weldolet is a forged branch outlet fitting designed for butt-weld connection between a branch pipe and a run pipe.

Key Characteristics:

• Butt-weld outlet
• Contoured base matching header curvature
• Full penetration weld at branch
• Self-reinforced geometry

Functional Role:

• Provides a structurally optimized branch connection
• Maintains pressure integrity
• Reduces stress concentration

Nipolet Definition

A Nipolet is a combination fitting consisting of:

• A Weldolet-type base
• An integral nipple extension

Outlet Types:

• Threaded (NPT / BSP)
• Socket weld

Typical Applications:

• Instrument connections
• Drain points
• Vent connections
• Small bore branch outlets

Self-Reinforced Outlet Concept

The self-reinforced design ensures:

• Additional material thickness at branch junction
• Load distribution across a wider area
• Compliance with reinforcement requirements without external pads

This is achieved through:

• Forged geometry
• Controlled wall thickness distribution
• Contour matching with run pipe

Integral Reinforcement Geometry

Unlike fabricated fittings, Weldolets incorporate:

• Gradual thickness transition
• Smooth curvature blending
• Stress-relieving geometry

This results in:

• Reduced stress gradients
• Improved fatigue performance
• Lower weld stress concentration

Pressure Boundary Continuity

Maintaining pressure boundary integrity is critical.

Weldolet/Nipolet design ensures:

• No abrupt discontinuities
• Full weld penetration at branch
• Uniform stress distribution across weld zones

3. Engineering & Stress Principles

Stress Concentration at Branch Intersections

Branch connections introduce:

• Geometric discontinuity
• Reduced load-bearing cross-section
• Localized stress concentration

Primary stress types:

• Hoop stress (circumferential)
• Longitudinal stress (axial)
• Shear stress at weld interface

Reinforcement Requirements (Code Basis)

Codes such as ASME B31.3 require:

• Replacement of material removed by branch opening
• Adequate reinforcement area within defined limits

Weldolets satisfy this by:

• Providing excess material around opening
• Distributing reinforcement over effective area

Load Distribution Mechanism

Weldolet geometry allows:

• Load transfer from branch to header
• Redistribution of stress away from weld toe
• Balanced stress flow

Internal Pressure Stress Flow

Under internal pressure:

• Hoop stress dominates
• Stress flows around the branch opening

Weldolet design ensures:

• Smooth redirection of stress paths
• Avoidance of sharp stress risers

Hoop vs Longitudinal Stress Interaction

At branch junction:

• Hoop stress is interrupted by opening
• Longitudinal stress must redistribute

Weldolet reinforcement:

• Compensates for hoop stress loss
• Supports axial load transfer

Weld Stress Zones

Critical regions:

• Weld toe (high stress concentration)
• Weld root (penetration quality critical)
• Heat Affected Zone (HAZ)

Weldolets reduce stress at these zones by:

• Providing smoother geometry
• Reducing weld volume compared to stub-in

Stress Intensification Reduction

Stress Intensification Factor (SIF):

• Lower in Weldolets vs fabricated connections
• Improved fatigue life under cyclic loads

Flow Dynamics & Turbulence Reduction

The contoured inlet:

• Reduces flow separation
• Minimizes turbulence
• Limits erosion and vibration

This is critical in:

• High-velocity fluid systems
• Slurry or multiphase flow lines

Comparative Engineering Advantage

Parameter	Weldolet	Stub-In	Tee
Stress Concentration	Low	High	Moderate
Reinforcement	Integral	External Pad	Built-in
Installation Complexity	Moderate	High	High
Fatigue Resistance	High	Low	Moderate

4. Applicable Standards (ASTM / ASME / MSS / DIN / EN)

MSS SP-97 — Primary Standard for Branch Outlet Fittings

The governing standard for Weldolet and Nipolet (branch outlet fittings) is:

• MSS SP-97 — Integrally Reinforced Forged Branch Outlet Fittings

Scope and Coverage:

• Dimensional requirements
• Design configuration
• Pressure-temperature ratings
• Manufacturing tolerances
• Marking and identification

Engineering Relevance:

MSS SP-97 defines:

• Self-reinforced geometry criteria
• Compatibility with pipe schedules
• Standard outlet configurations (butt weld, threaded, socket weld)

It forms the baseline for EPC technical approvals and vendor qualification.

ASME B31.3 — Process Piping Code

ASME B31.3 governs:

• Design of piping systems
• Branch reinforcement calculations
• Allowable stresses
• Flexibility and SIF considerations

Relevance to Weldo / Nipolet:

• Defines reinforcement area requirements
• Specifies acceptable stress limits
• Establishes criteria for pressure integrity

ASME Section VIII — Pressure Vessel Code

Applicable when:

• Branch connections are made on pressure vessels
• Nozzle reinforcement is required

Key Considerations:

• Opening reinforcement rules
• Stress analysis around nozzles
• Load transfer to shell

ASTM Material Standards

Material compliance is governed by ASTM specifications:

Carbon Steel

• ASTM A105 (forged fittings, ambient service)
• ASTM A350 LF2 (low temperature service)

Stainless Steel

• ASTM A182 F304 / F304L
• ASTM A182 F316 / F316L

Alloy Steel

• ASTM A182 F11
• ASTM A182 F22

Duplex / Super Duplex

• ASTM A182 F51
• ASTM A182 F53

These standards define:

• Mechanical properties
• Chemical composition
• Heat treatment conditions

DIN / EN Equivalents

For European project compliance:

ASTM Grade	EN Equivalent
A105	EN 10222-2 C22.8
A182 F304	EN 10222-5 X5CrNi18-10
A182 F316	EN 10222-5 X5CrNiMo17-12-2
A350 LF2	EN 10222-3 P355N

Pressure-Temperature Compliance Mapping

Standards collectively ensure:

• Pressure rating compatibility
• Temperature resistance
• Material suitability

Standard	Governs
MSS SP-97	Geometry & design
ASME B31.3	Stress & piping design
ASME Section VIII	Pressure vessel integration
ASTM	Material integrity
EN/DIN	Regional compliance

5. Material & Grade Options

Material selection directly influences:

• Pressure handling capability
• Corrosion resistance
• Temperature limits
• Lifecycle performance

Carbon Steel

ASTM A105

• Standard forged carbon steel
• Suitable for ambient and moderate temperature service

ASTM A350 LF2

• Designed for low-temperature applications
• Improved impact resistance

Stainless Steel

ASTM A182 F304

• General corrosion resistance
• Suitable for water and mild chemical environments

ASTM A182 F316

• Enhanced resistance to chlorides and acids
• Preferred for offshore and marine systems

Alloy Steel

F11 (Cr-Mo Steel)

• High temperature strength
• Oxidation resistance

F22

• Higher creep resistance
• Used in power plant piping

Duplex & Super Duplex Stainless Steel

• High strength-to-weight ratio
• Superior resistance to stress corrosion cracking
• Excellent performance in aggressive environments

Material Selection Engineering Logic

Criteria	Material Choice
High Pressure	Alloy Steel / Duplex
Corrosive Environment	SS316 / Duplex
Low Temperature	A350 LF2
High Temperature	F11 / F22
General Service	A105 / SS304

Material Comparison Table

Grade	Yield Strength (MPa)	Tensile Strength (MPa)	Temperature Range	Corrosion Resistance	Typical Industry Use
A105	~250	~485	-29°C to 425°C	Low	Oil & Gas, general piping
A350 LF2	~250	~485	Down to -46°C	Low	Cryogenic / low temp systems
F304	~205	~515	Up to 870°C	Moderate	Water, chemical
F316	~205	~515	Up to 870°C	High	Marine, offshore
F11	~275	~515	Up to 550°C	Moderate	Power plants
F22	~415	~620	Up to 600°C	Moderate	High temp service
Duplex F51	~450	~620	-50°C to 300°C	Very High	Offshore, chemical
Super Duplex F53	~550	~750	-50°C to 300°C	Excellent	Severe corrosion environments

6. Heat Treatment Information

Heat treatment ensures:

• Mechanical strength
• Microstructural stability
• Weldability
• Resistance to cracking

Normalizing

• Refines grain structure
• Improves toughness
• Used for carbon steel fittings

Quenching & Tempering (Q&T)

• Increases strength and hardness
• Controls ductility
• Common for alloy steels (F11, F22)

Stress Relieving

• Reduces residual stresses after forging/machining
• Improves dimensional stability
• Critical for thick-section fittings

Solution Annealing (Stainless Steel)

• Dissolves carbides
• Restores corrosion resistance
• Prevents intergranular corrosion

Heat Treatment Impact on HAZ

Heat treatment affects:

• Weld performance
• Crack resistance
• Fatigue life

Proper heat treatment ensures:

• Stable Heat Affected Zone (HAZ)
• Reduced hardness gradients

Impact Testing (Charpy V-Notch)

Applicable for:

• Low temperature service (LF2, Duplex)

Ensures:

• Toughness under impact loading
• Resistance to brittle fracture

7. Manufacturing Process

Manufacturing of Weldo / Nipolet fittings follows a controlled, traceable, and inspection-driven process.

Raw Material Inspection

• Verification of Mill Test Certificates (MTC)
• Chemical composition check
• PMI (Positive Material Identification)

Forging of Outlet Body

• Closed-die forging
• Controlled deformation
• Grain flow alignment with geometry

Contour Machining

• CNC machining of saddle profile
• Matching curvature to run pipe OD

Critical for:

• Proper fit-up
• Stress distribution

Heat Treatment

• Applied as per material grade
• Ensures mechanical property compliance

CNC Machining

• Precision outlet sizing
• Dimensional tolerance control

Threading (For Nipolet)

• NPT / BSP threading
• Gauging as per standards

Bevel Preparation (For Weldolet)

• Butt-weld bevel angle machining
• Ensures weld penetration

Surface Finishing

• Shot blasting
• Surface cleaning
• Coating application

Inspection & Testing

• Dimensional inspection
• NDT (UT, MPI, DPT)
• Hardness testing

Marking & Traceability

• Heat number
• Material grade
• Size and rating
• Manufacturer identification

Ensures:

• Full traceability to raw material
• Compliance with EPC documentation requirements

8. Surface Finish Options

Surface protection is selected based on:

• Environment
• Storage duration
• Corrosion exposure

Anti-Rust Coating

• Temporary protection during transport
• Suitable for carbon steel

Black Oxide Coating

• Minimal corrosion resistance
• Used for indoor applications

Hot-Dip Galvanizing

• Zinc coating for corrosion protection
• Suitable for outdoor and humid environments

Passivation (Stainless Steel)

• Removes free iron
• Enhances corrosion resistance

PTFE / Special Coatings

• Chemical resistance
• Low friction surface
• Used in aggressive environments

Corrosion Protection Logic

Environment	Recommended Finish
Indoor Storage	Black oxide
Marine	SS + passivation
Outdoor	Galvanized
Chemical	PTFE coated
Export	Anti-rust oil + wrapping

Engineering Tables & Dimensional Logic

Size Combination Table (Run Pipe vs Branch Size)

The selection of Weldolet / Nipolet fittings is governed by compatibility between:

• Run pipe (header) size
• Branch size
• Schedule (wall thickness)
• Outlet configuration

Typical Size Combinations

Run Pipe Size (NPS)	Branch Size (NPS)	Outlet Type	Schedule Compatibility
2″	1/2″	Nipolet	Sch 80 / 160
3″	1″	Weldolet	Sch 40 / 80
4″	2″	Weldolet	Sch 40 / 80
6″	2″	Weldolet	Sch 80 / 160
8″	3″	Weldolet	Sch 40 / 80
10″	4″	Weldolet	Sch 40 / 80
12″	6″	Weldolet	Sch 40
16″	8″	Weldolet	Sch 40
24″	12″	Weldolet	Sch 30 / 40
36″	16″	Weldolet	Custom

Engineering Notes:

• Branch size is typically ≤ 50% of run pipe size
• Nipolets are preferred for ≤ 2″ branch connections
• Schedule compatibility must ensure pressure integrity

Dimensional Design Logic (MSS SP-97 Basis)

Key dimensional parameters:

• Run pipe OD matching: Saddle curvature must match header OD
• Branch outlet bore: Matches branch pipe ID
• Reinforcement thickness: Exceeds minimum required area
• Projection (Nipolet): Ensures threading or socket engagement

Critical Considerations:

• Improper contour matching leads to stress concentration
• Dimensional mismatch affects weld fit-up and integrity
• Schedule mismatch can lead to pressure rating inconsistency

Pressure Rating & Temperature Table

Pressure classes for Weldolet / Nipolet fittings are derived from:

• Pipe schedule
• Material strength
• Code allowable stress

Typical Pressure Class Table (Nipolets)

Class	Approx Pressure Rating (Bar)	Temperature Limit (°C)	Typical Use
3000	~207 bar	Up to 425°C	Instrument connections
6000	~414 bar	Up to 425°C	High-pressure piping
9000	~620 bar	Up to 425°C	Severe service

Weldolet Pressure Logic

Weldolets do not have fixed pressure classes. Their rating depends on:

• Matching pipe schedule
• Material allowable stress
• Design temperature

Engineering Principle:

The branch connection must have equal or greater pressure rating than the run pipe.

Reinforcement Area Calculation

Code Basis (ASME B31.3)

Branch reinforcement must satisfy:

Area removed by branch opening ≤ Area available for reinforcement

Fundamental Equation



Where:

• (A_r) = Required reinforcement area
• (A_a) = Available reinforcement area

Detailed Area Components

Area Removed (Ar):



Where:

• (d) = Diameter of branch opening
• (t) = Wall thickness of run pipe

Available Reinforcement Area (Aa):



Where:

• (A_1) = Excess thickness in header
• (A_2) = Excess thickness in branch
• (A_3) = Contribution from Weldolet

Sample Calculation

Given:

• Run pipe: 10″ Sch 40
• Branch: 4″
• Run thickness: 9.27 mm
• Branch opening diameter ≈ 114 mm

Step 1: Area Removed



Step 2: Available Reinforcement

• Header excess thickness: 400 mm²
• Branch excess thickness: 250 mm²
• Weldolet contribution: 600 mm²



Step 3: Compliance Check



Result: Reinforcement requirement satisfied.

Engineering Interpretation

• Weldolet provides significant reinforcement contribution
• Eliminates need for reinforcement pad
• Ensures compliance with ASME B31.3

9. Stress Intensification Factor (SIF) Explanation

Definition

SIF represents:

• Increase in stress due to geometric discontinuity
• Ratio of actual stress to nominal stress

SIF in Branch Connections

Typical SIF values:

Connection Type	SIF
Stub-in	High (2.0–3.0)
Tee	Moderate (1.5–2.0)
Weldolet	Lower (1.2–1.5)

Engineering Impact

Higher SIF leads to:

• Increased fatigue risk
• Higher stress concentration
• Reduced lifecycle

Why Weldolets Reduce SIF

• Smooth contour geometry
• Gradual stress transition
• Reduced weld discontinuity

Flexibility Considerations

Weldolets provide:

• Improved flexibility at junction
• Reduced stiffness mismatch
• Better performance under thermal expansion

Mechanical Property Table

Material	Yield Strength (MPa)	Tensile Strength (MPa)	Hardness (HB)	Elongation (%)	Impact Value (J)
A105	250	485	187	22	27
A350 LF2	250	485	187	22	40 (low temp)
F304	205	515	201	30	50
F316	205	515	217	30	50
F11	275	515	197	20	30
F22	415	620	217	18	27
Duplex F51	450	620	290	25	60
Super Duplex F53	550	750	310	25	65

Corrosion Resistance Table

Material	Marine	Acidic	Hydrocarbon	High Temperature
Carbon Steel	Poor	Poor	Good	Moderate
SS304	Moderate	Moderate	Good	Good
SS316	Good	Good	Excellent	Good
Alloy Steel	Moderate	Poor	Excellent	Excellent
Duplex	Excellent	Excellent	Excellent	Moderate

10. Inspection & Quality Control Methods

Quality assurance for Weldo / Nipolet fittings is aligned with EPC and third-party inspection requirements.

Positive Material Identification (PMI)

• Verifies alloy composition
• Ensures correct material grade

Ultrasonic Testing (UT)

• Detects internal defects
• Ensures forging integrity

Magnetic Particle Inspection (MPI)

• Surface and near-surface crack detection
• Applicable for ferromagnetic materials

Dye Penetrant Testing (DPT)

• Surface defect detection
• Used for stainless steel

Dimensional Inspection

• Verification of MSS SP-97 dimensions
• Tolerance compliance

Hardness Testing

• Confirms heat treatment effectiveness
• Ensures material property compliance

Visual Inspection

• Surface finish
• Machining quality
• Marking verification

Documentation & Certification

EN 10204 Certification

• 3.1 Certificate: Manufacturer test report
• 3.2 Certificate: Third-party validated report

Third-Party Inspection

Common agencies:

• TUV
• SGS
• BV
• DNV

Inspection Scope:

• Raw material verification
• In-process inspection
• Final inspection
• Documentation review

Traceability Requirements

Each fitting is traceable through:

• Heat number
• Batch number
• Material certificate

Ensures:

• Full lifecycle traceability
• Audit readiness for EPC projects

11. Industries Served

Weldo / Nipolet Flanges (Weldolet / Nipolet branch outlet fittings) are deployed across industries where pressure integrity, fatigue resistance, and code-compliant branch reinforcement are mandatory.

Oil & Gas (Upstream, Midstream, Downstream)

Upstream (Exploration & Production)

• Wellhead piping systems
• Flowlines and gathering systems
• High-pressure choke and kill lines

Engineering Requirement:

• High pressure containment
• Resistance to cyclic loading
• Corrosion resistance in sour service (H₂S environments)

Midstream (Transportation & Storage)

• Transmission pipelines
• Pumping and compression stations

Use Cases:

• Instrumentation take-offs via Nipolets
• Branch connections for metering lines

Downstream (Refining & Processing)

• Process piping units
• Reactor feed systems
• Utility networks

Key Requirement:

• Reliable branch connections under high temperature and pressure

Refineries

Weldolets are widely used in:

• Hydrocarbon processing units
• Distillation columns
• Cracking units

Engineering Focus:

• Resistance to thermal cycling
• Compatibility with corrosive process fluids

Petrochemical Plants

Applications include:

• Polymer processing lines
• Chemical transfer piping
• Reactor systems

Material Preference:

• Stainless steel and duplex grades for corrosion resistance

Power Generation

Thermal Power Plants

• High-pressure steam lines
• Feedwater systems

Nuclear Power (Non-safety class applications)

• Auxiliary piping

Critical Requirements:

• High temperature strength
• Creep resistance (F11, F22 materials)

LNG Terminals

• Cryogenic piping systems
• LNG transfer lines

Engineering Requirements:

• Low temperature toughness
• Impact resistance (LF2, Duplex)

Offshore Platforms

• Compact piping layouts
• Weight-sensitive installations

Advantages of Weldolets:

• Reduced structural load
• Minimal space requirement
• Improved fatigue resistance under wave-induced vibrations

Chemical Processing Industry

• Acid transfer lines
• Corrosive fluid systems

Material Selection:

• SS316, Duplex, Super Duplex

Export Capability & Global Supply

Super Industries supplies Weldo / Nipolet Flanges to EPC contractors and project sites across multiple international regions.

Global Supply Regions

• United States
• Europe (EU)
• Middle East (UAE, Saudi Arabia, Qatar, Kuwait)
• Southeast Asia
• Africa

Export Packaging Standards

Packaging is aligned with:

• Long-distance sea freight requirements
• Corrosion protection during transit

Typical Packaging Methods:

• Wooden crates (ISPM 15 compliant)
• Palletized loads
• Individual wrapping with anti-rust protection
• End protection caps for threaded outlets

Documentation Package

Each shipment is supported with EPC-compliant documentation:

• Mill Test Certificates (EN 10204 3.1 / 3.2)
• Inspection Test Plan (ITP)
• Dimensional inspection reports
• NDT reports (UT, MPI, DPT)
• Heat treatment charts
• Material traceability records

Project Logistics Capability

• Bulk supply for large-scale projects
• Lot-wise traceability management
• Coordination with EPC procurement schedules
• Multi-size consolidated shipments

Compliance with Global Procurement Standards

• Alignment with international piping specifications
• Third-party inspection acceptance
• Documentation readiness for consultant approval

12. Procurement & Installation Engineering View

Pre-Installation Considerations

• Verification of material grade (PMI)
• Dimensional check against drawings
• Surface condition inspection

Weld Preparation & Fit-Up

Weldolet Installation

• Proper alignment with run pipe curvature
• Accurate marking of branch location
• Hole cutting on header using approved methods

Fit-Up Requirements:

• Gap control for full penetration weld
• Bevel angle verification
• Root alignment accuracy

Branch Alignment

• Axis of branch must be perpendicular (unless specified otherwise)
• Misalignment leads to:
  • Increased stress concentration
  • Weld defects
  • Reduced fatigue life

Welding Sequence

Typical Procedure:

1. Tack welding for positioning
2. Root pass (full penetration)
3. Fill passes
4. Cap pass

Welding Methods:

• GTAW (TIG) for root
• SMAW / FCAW for fill and cap

NDT Requirements During Installation

• Radiography (RT) or Ultrasonic Testing (UT) for weld integrity
• MPI/DPT for surface defects

Inspection Checkpoints

• Pre-weld inspection
• In-process weld inspection
• Post-weld NDT
• Final dimensional verification

Post-Weld Heat Treatment (PWHT)

Applicable when:

• Required by material grade (e.g., alloy steels)
• Specified in project code

Ensures:

• Reduction of residual stress
• Improved weld toughness

Field Installation Practices

• Avoid excessive heat input
• Maintain interpass temperature control
• Ensure clean weld surfaces
• Protect against contamination (especially SS and duplex)

13. Custom Engineering Capabilities

Super Industries supports project-specific customization for Weldo / Nipolet fittings.

Non-Standard Outlet Sizes

• Custom branch-to-run size combinations
• Large diameter headers with small bore outlets

Special Schedule Matching

• Thick wall headers (Sch 160, XXS)
• Custom reinforcement requirements

High-Pressure Custom Outlets

• Beyond standard MSS SP-97 configurations
• Designed for severe service conditions

Special Threading Options (Nipolet)

• NPT (ASME B1.20.1)
• BSP (BS standards)
• Custom threading as per project requirement

Large Diameter Branch Solutions

• Engineered outlet fittings for large pipelines
• Stress-optimized geometry for high load conditions

Project-Specific Engineering Support

• Dimensional customization
• Material selection assistance
• Code compliance verification

Final Engineering Conclusion

Weldo / Nipolet Flanges (Weldolet / Nipolet branch outlet fittings) are critical engineered components for branch connections in pressurized piping systems.

Their adoption in EPC projects is based on:

• Self-reinforced design compliant with ASME B31.3
• Reduced stress intensification compared to stub-in connections
• Optimized geometry for pressure and fatigue performance
• Compact and weight-efficient configuration
• Compatibility with high-pressure, high-temperature systems

From an engineering evaluation perspective, these fittings provide:

• Reliable pressure boundary continuity
• Controlled weld geometry
• Reduced installation complexity
• Long-term structural integrity under cyclic loading

Super Industries manufactures these fittings in accordance with:

• MSS SP-97 dimensional standards
• ASTM material specifications
• ASME piping design principles

with full traceability, inspection compliance, and export-ready documentation aligned to global EPC project requirements.
