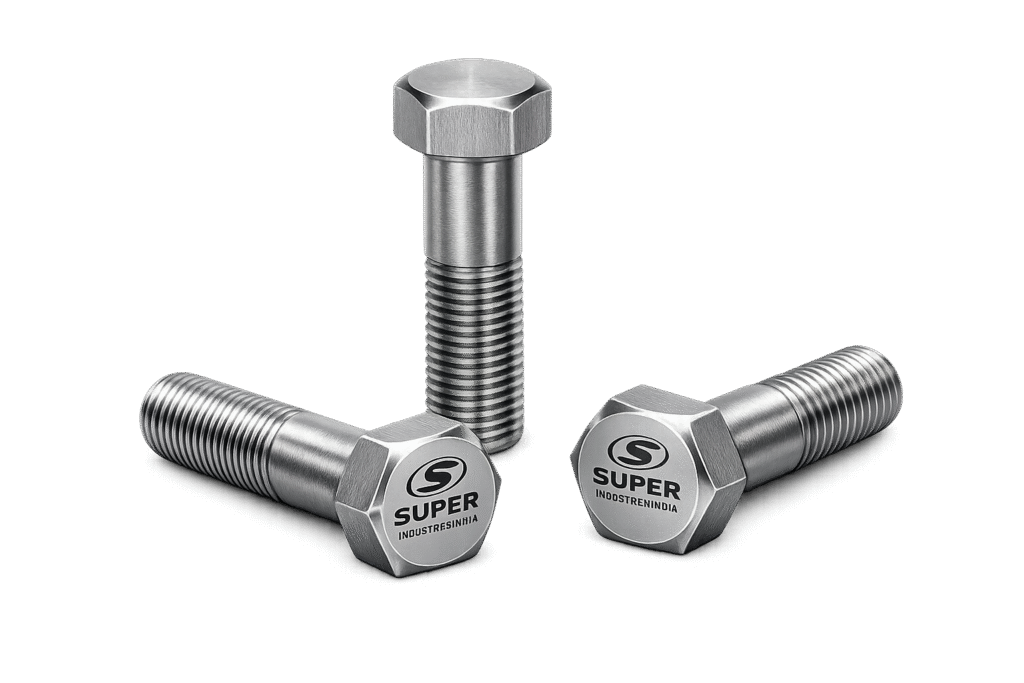

Hex Cap Bolts

Super Industries
“Global Manufacturer of Heavy & Custom Engineered Fasteners for Oil & Gas, Power & EPC Contractors.”

1. Industry Context & System Relevance

Role of Hex Cap Bolts in Industrial Mechanical Assemblies

Bolted joints represent one of the most widely used mechanical fastening systems in industrial engineering. Within this category, Hex Cap Bolts are commonly specified for applications requiring:

Controlled clamping force
High structural load capacity
Field-serviceable mechanical joints
Compatibility with standard wrenching tools
Repeatable installation in industrial environments

A hexagonal head geometry provides consistent wrench engagement while the threaded shank generates clamping force through torque application. This combination enables hex cap bolts to function as primary structural fasteners in heavy mechanical and structural assemblies.

Industrial systems rely on these fasteners because they allow disassembly for maintenance, while still maintaining the structural integrity required for load-bearing applications.

Typical Industrial Applications

Oil & Gas Facilities

In upstream and downstream oil & gas operations, hex cap bolts are used extensively in:

Equipment skid assemblies
Pipe supports and structural frames
Compressor foundations
Pump housings
Pressure vessel accessories
Heat exchanger supports

The fasteners must withstand vibration, thermal expansion, and cyclic loading while maintaining joint integrity.

Structural Steel Assemblies

Structural engineering projects frequently specify hex cap bolts for:

Steel beam connections
Equipment support structures
Machinery platforms
Crane runway assemblies
Structural bracing systems

In these assemblies, the bolts function as load-transferring connectors, distributing tensile and shear forces across structural joints.

Power Generation Facilities

Power plants incorporate large quantities of heavy-duty bolting systems. Hex cap bolts are commonly installed in:

Turbine support frames
Generator housings
Structural steel supports
Cooling tower assemblies
Auxiliary equipment mounts

Power generation environments require fasteners capable of maintaining preload under thermal cycling and vibration.

Refineries and Petrochemical Plants

Refineries require mechanically reliable fastening solutions due to:

high operating temperatures
hydrocarbon exposure
cyclic equipment loading

Applications include:

pump assemblies
mechanical skids
steel pipe racks
rotating equipment foundations

Wind Turbine Systems

Modern wind turbines rely on high-strength bolts for mechanical integrity. Hex cap bolts are used in:

nacelle equipment mounting
generator support assemblies
gearbox frames
auxiliary mechanical systems

Wind energy applications demand fasteners capable of withstanding dynamic fatigue loads generated by continuous rotor operation.

Heavy Machinery & Mining Equipment

Mining and heavy equipment manufacturers utilize hex cap bolts in:

bucket assemblies
equipment chassis
mechanical housings
gearboxes
hydraulic structures

These applications require fasteners that resist loosening under vibration and shock loading.

Steel Plants and Industrial Infrastructure

Industrial infrastructure projects commonly incorporate hex cap bolts for:

furnace structures
conveyor systems
material handling equipment
plant maintenance assemblies

Such installations prioritize mechanical robustness and ease of maintenance.

Why Hex Cap Bolts Are Used in High-Load Bolted Joints

The widespread adoption of hex cap bolts in industrial assemblies is linked to several engineering characteristics:

1. Wrench Accessibility

The hexagonal head configuration provides six flat surfaces that enable torque application using standard tools such as:

open-end wrenches
box wrenches
socket tools
hydraulic torque wrenches

This design supports consistent installation torque and allows bolt tightening in confined spaces.

2. High Preload Capability

Hex cap bolts are capable of generating substantial clamping force when tightened to specified torque levels. Preload produced during tightening compresses the joint members, creating friction that resists separation or sliding under service loads.

3. Structural Joint Stability

When installed correctly, hex cap bolts produce a preloaded joint in which:

the clamped components carry operational loads through friction
bolt tension remains within allowable limits
joint separation is prevented under service loads

This behavior is fundamental in structural steel connections and machinery assemblies.

Comparison with Other Fastener Types

Hex Cap Bolts vs Stud Bolts

Stud bolts are threaded rods without a head, commonly used with nuts on both ends.

Comparison:

Characteristic	Hex Cap Bolts	Stud Bolts
Head	Hexagonal	None
Installation	One-sided access possible	Requires nuts both sides
Typical Use	Machinery & structural assemblies	Flanged piping systems
Torque Application	Through bolt head	Through nut

Stud bolts are often preferred for pressure flange connections, while hex cap bolts are used for general mechanical assemblies.

Hex Cap Bolts vs Carriage Bolts

Carriage bolts have a rounded head with a square neck designed to prevent rotation in wood or soft materials.

Comparison:

Characteristic	Hex Cap Bolts	Carriage Bolts
Head shape	Hexagonal	Round
Anti-rotation feature	Not required	Square neck
Applications	Structural steel, machinery	Wood structures

Carriage bolts are not typically used in high-load industrial joints.

Hex Cap Bolts vs Socket Head Bolts

Socket head bolts feature an internal hex recess for tightening with Allen keys.

Super Industries

Global Manufacturer of Heavy & Custom Engineered Fasteners & Flanges

R.F.Q.

2. Technical Definition

Engineering Definition of Hex Cap Bolts

A Hex Cap Bolt is a headed externally threaded fastener designed for use with a nut or in a tapped hole, featuring:

a hexagonal head for torque application
a washer bearing surface beneath the head
a machine-threaded shank
controlled dimensional tolerances according to recognized fastener standards

The fastener functions by generating clamping force between two or more components when torque is applied.

Key Geometric Characteristics

Hexagonal Head

The hex head geometry provides six wrenching flats allowing uniform torque transmission.

Key parameters include:

across-flat dimension
head height
chamfer geometry

These parameters are defined in ASME B18.2.1 and equivalent international standards.

Washer Face Bearing Surface

A machined bearing surface under the bolt head distributes the clamping force across the joint surface.

Functions include:

reducing localized stress concentrations
minimizing embedment deformation
improving torque-to-tension consistency

Machine-Threaded Shank

The threaded portion of the bolt engages with a nut or tapped hole to convert applied torque into axial tension.

Threads are typically produced by:

thread rolling
precision machining

Thread profiles conform to:

Unified Thread Standard (UTS)
ISO metric threads

Fully Threaded vs Partially Threaded Bolts

Fully Threaded Hex Cap Bolts

A fully threaded bolt contains threads extending from the head to the end of the shank.

Advantages:

greater thread engagement flexibility
adjustable grip length

Limitations:

reduced shear strength in unthreaded joint zones.

Partially Threaded Hex Cap Bolts

Partially threaded bolts incorporate a smooth shank section between the head and threaded portion.

Advantages include:

improved shear capacity
better load distribution across joint members
reduced stress concentration in threads.

Bolt Head Geometry

The geometry of the hex head influences:

torque transmission capability
wrench engagement
structural clearance

Typical head characteristics include:

chamfered top edges
flat bearing surface
controlled head height.

Bearing Surface Function

The bearing surface beneath the head transfers compressive force into the clamped joint members.

Key functions include:

preventing material indentation
ensuring even load distribution
stabilizing the joint interface.

Generation of Clamping Force

Clamping force is produced when tightening torque causes the bolt to stretch elastically.

This elongation generates axial tension in the bolt which compresses the joint components together.

The clamping force must exceed the external loads acting on the joint to prevent separation.

Hex Bolts vs Hex Cap Screws

In industrial practice, the terms hex bolt and hex cap screw are sometimes used interchangeably, but standards distinguish them based on tolerances and installation method.

Hex Bolts

Typically used with nuts
Looser dimensional tolerances
Suitable for structural joints.

Hex Cap Screws

Defined by ASME B18.2.1 with tighter tolerances.

Characteristics include:

precision head dimensions
washer-face bearing surface
designed for use in tapped holes.

Tolerance Differences in ASME Standards

ASME standards specify dimensional tolerances that influence interchangeability and mechanical performance.

Key controlled dimensions include:

across-flat head size
head height
thread class tolerance
shank diameter

These tolerances ensure compatibility between bolts, nuts, and joint components across international manufacturing systems.

3. Mechanical Fastening Principle

Bolt Preload Generation

When a hex cap bolt is tightened, torque applied to the head produces rotational movement of the threads. This rotation converts torque into axial tension, elongating the bolt.

The bolt behaves like an elastic spring, storing mechanical energy in the form of tensile strain.

Preload is the initial tensile force generated in the bolt during tightening.

Clamping Force Mechanics

The tensile force generated in the bolt produces an equal compressive force on the joint members. This compression clamps the components together, creating friction at the interface.

The friction force prevents:

sliding between components
joint separation under service loads.

Thread Friction vs Bearing Friction

During tightening, applied torque is divided between two primary friction zones:

Thread friction between bolt and nut threads
Bearing friction between the bolt head and joint surface

Typically:

40–50% of torque is consumed by thread friction
40–50% by bearing friction
only 10–15% contributes to bolt tension.

This distribution explains why lubrication significantly affects torque-tension relationships.

Torque-to-Tension Relationship

The relationship between torque and preload is commonly approximated by:

[

$T = K \times F \times d$

Where:

T = tightening torque
F = desired bolt preload
d = bolt diameter
K = torque coefficient (dependent on friction)

This relationship forms the basis for torque charts used in field installation.

Joint Stiffness Interaction

The stiffness of the bolt and clamped components determines how loads are distributed.

Two elements behave like springs:

the bolt (in tension)
the joint members (in compression)

Load applied to the joint is shared between these elements depending on their stiffness ratio.

Load Distribution Across Bolt Groups

In assemblies with multiple bolts, external loads are distributed among the bolts based on:

bolt spacing
joint geometry
stiffness characteristics

Proper bolt layout ensures even load distribution and prevents localized overloading.

Prevention of Joint Separation

A correctly preloaded bolt maintains compression between joint members even when external loads are applied.

Joint separation occurs if external tensile forces exceed the preload force.

Maintaining adequate preload ensures:

structural integrity
reduced fatigue risk
improved joint stability.

Role of Washers

Washers are commonly used with hex cap bolts to:

distribute load across softer materials
prevent embedment into joint surfaces
improve torque consistency.

Common washer types include:

flat washers
hardened structural washers.

Embedment Loss

After installation, microscopic surface irregularities between joint components may compress under load.

This phenomenon is called embedment loss, resulting in a small reduction in bolt preload.

Mitigation methods include:

hardened washers
controlled tightening procedures
re-torque after initial loading.

Slip-Critical Joints

Slip-critical joints rely on friction between joint surfaces to resist shear loads.

High bolt preload generates friction that prevents sliding between connected plates.

These joints are commonly used in:

structural steel bridges
crane supports
heavy machinery frames.

Pre-Tensioned Joints

In pre-tensioned joints, bolts are intentionally tightened to a specified tension level.

Pre-tensioned connections are used where:

dynamic loads exist
fatigue resistance is required
joint separation must be prevented.

Typical applications include:

rotating machinery
heavy structural assemblies
high-load mechanical systems.

4. Applicable Standards (ASTM / ISO / DIN / ASME)

Industrial Hex Cap Bolts are governed by a structured set of dimensional and mechanical standards that ensure interchangeability, predictable strength characteristics, and global procurement compatibility.

These standards define:

bolt geometry
thread tolerances
mechanical properties
material grades
heat treatment requirements
testing protocols

Compliance with recognized fastener standards is essential for EPC procurement evaluation, structural engineering approval, and third-party inspection acceptance.

ASME Fastener Dimensional Standards

ASME B18.2.1 — Hex Bolts and Hex Cap Screws

The primary dimensional standard for inch-series hex cap bolts is ASME B18.2.1.

This specification defines:

• Head dimensions
• Across-flat sizes
• Head height tolerances
• Thread length
• Washer face geometry
• Chamfer requirements

The standard distinguishes between:

Hex Bolts
Hex Cap Screws

Hex cap screws generally have tighter dimensional tolerances and are commonly used in precision mechanical assemblies and tapped-hole applications.

ASTM Mechanical Property Standards

ASTM specifications define the material chemistry, mechanical strength, and heat treatment conditions required for industrial fasteners.

ASTM A307 — Carbon Steel Bolts

ASTM A307 covers low and medium strength carbon steel bolts used in general structural applications.

Typical characteristics:

moderate tensile strength
general-purpose structural use
suitable for non-critical joints.

Grades include:

• A307 Grade A
• A307 Grade B

ASTM A325 — High Strength Structural Bolts

ASTM A325 bolts are heat-treated structural fasteners used in steel construction.

Key characteristics:

quenched and tempered alloy steel
high tensile strength
slip-critical joint compatibility.

Common applications include:

steel building frames
bridge connections
heavy industrial structures.

ASTM A490 — Ultra High Strength Structural Bolts

ASTM A490 bolts provide higher mechanical strength than A325.

Typical characteristics:

alloy steel construction
high tensile strength
designed for critical structural joints.

Applications include:

heavy structural assemblies
high-load steel structures.

ASTM A193 B7 / B7M — Alloy Steel Bolting for High Temperature Service

ASTM A193 B7 is widely used in pressure equipment and high-temperature service.

Material characteristics include:

chromium-molybdenum alloy steel
quenched and tempered microstructure
high tensile and yield strength.

Applications include:

pressure vessels
refinery equipment
power plant systems
heat exchangers.

B7M is a modified version providing controlled hardness for sour service environments.

ASTM A320 L7 — Low Temperature Alloy Steel Bolting

ASTM A320 L7 bolts are used in cryogenic and low-temperature applications.

Key characteristics:

alloy steel construction
impact tested at low temperatures
controlled toughness properties.

Typical service environments include:

LNG facilities
cryogenic piping
cold climate installations.

International Fastener Standards

Industrial projects often require compliance with ISO and DIN fastener standards to support global sourcing and equipment interchangeability.

ISO 4014 — Hex Bolts (Partially Threaded)

ISO 4014 defines:

metric hex bolts
partial thread configurations
dimensional tolerances.

These bolts are widely used in structural and mechanical assemblies across Europe and Asia.

ISO 4017 — Fully Threaded Hex Bolts

ISO 4017 covers fully threaded hex bolts used where maximum thread engagement is required.

Applications include:

machinery assemblies
maintenance fasteners
equipment structures.

DIN 931 — Partially Threaded Hex Bolts

DIN 931 is a widely used German standard defining partially threaded hex bolts.

Key parameters include:

head geometry
thread length
tolerance classes.

DIN bolts are widely used across European industrial equipment.

DIN 933 — Fully Threaded Hex Bolts

DIN 933 defines fully threaded metric hex bolts.

Typical applications include:

equipment assembly
mechanical fastening systems
maintenance hardware.

EN ISO Fastener Standards

European standards harmonize ISO and EN requirements.

Examples include:

EN ISO 4014
EN ISO 4017
EN ISO 898 (mechanical properties).

These standards support European structural engineering codes and equipment directives.

Relationship Between Standards and Application Type

Different standards are selected based on mechanical load conditions and environmental service requirements.

Application	Typical Standard
Structural steel joints	ASTM A325 / A490
Pressure equipment	ASTM A193 B7
Cryogenic service	ASTM A320 L7
General machinery	ISO 4014 / DIN 931
Metric industrial assemblies	ISO 4017 / DIN 933

Proper specification ensures that the fasteners meet the mechanical and environmental demands of the application.

5. Material & Grade Options

Material selection for Hex Cap Bolts depends on:

mechanical load requirements
environmental exposure
operating temperature
corrosion risk.

Common industrial fastener materials include carbon steel, alloy steel, stainless steel, and duplex stainless steel.

Carbon Steel Hex Cap Bolts

Carbon steel bolts are widely used in general structural and mechanical assemblies.

Typical standards:

ASTM A307
ASTM A325.

Characteristics:

moderate tensile strength
economical material cost
suitable for non-corrosive environments.

Carbon steel bolts are typically protected using zinc plating or galvanizing when corrosion resistance is required.

Alloy Steel Hex Cap Bolts

Alloy steels provide higher mechanical strength and improved temperature resistance.

Common grades include:

ASTM A193 B7
ASTM A193 B16.

ASTM A193 B7

Material composition typically includes:

chromium
molybdenum
carbon.

These elements enhance:

high-temperature strength
creep resistance
mechanical durability.

Typical service range:

refinery equipment
pressure vessels
steam systems.

ASTM A193 B16

B16 provides higher temperature capability compared with B7.

Typical applications include:

high-temperature piping
petrochemical reactors
steam turbine assemblies.

Stainless Steel Hex Cap Bolts

Stainless steels are used where corrosion resistance is required.

Common grades include:

ASTM F593
A2-70
A4-80.

A2-70 (Equivalent to SS304)

Characteristics:

good corrosion resistance
non-magnetic properties
moderate mechanical strength.

Applications include:

food processing equipment
marine hardware
chemical plant structures.

A4-80 (Equivalent to SS316)

A4-80 bolts contain molybdenum, improving resistance to:

chloride corrosion
marine environments
chemical exposure.

Typical uses include:

offshore platforms
marine structures
chemical processing plants.

Duplex Stainless Steel Bolts

Duplex stainless steels combine:

high mechanical strength
superior corrosion resistance.

Common grades include:

F51 (UNS S31803)
F55 (UNS S32760).

These materials are used in environments involving:

seawater exposure
offshore installations
aggressive chemical service.

Material Comparison Table

Grade	Yield Strength	Tensile Strength	Temperature Range	Corrosion Resistance	Typical Industry Use
ASTM A307	~240 MPa	~415 MPa	-20°C to 200°C	Low	Structural assemblies
ASTM A325	~660 MPa	~830 MPa	-20°C to 400°C	Moderate	Structural steel joints
ASTM A193 B7	~720 MPa	~860 MPa	-29°C to 450°C	Moderate	Pressure equipment
ASTM A193 B16	~760 MPa	~950 MPa	up to 540°C	Moderate	High-temperature systems
A2-70 (SS304)	~450 MPa	~700 MPa	-200°C to 425°C	High	Chemical equipment
A4-80 (SS316)	~600 MPa	~800 MPa	-200°C to 500°C	Very High	Marine & offshore
Duplex F51	~450 MPa	~620 MPa	-50°C to 300°C	Very High	Offshore structures
Super Duplex F55	~550 MPa	~750 MPa	-50°C to 300°C	Excellent	Seawater equipment

6. Heat Treatment

Heat treatment processes are used to achieve the required mechanical properties and microstructure in hex cap bolts.

These processes influence:

tensile strength
hardness
ductility
fatigue resistance.

Quenching and Tempering

Quenching and tempering is commonly applied to alloy steel fasteners such as ASTM A193 B7.

Process steps:

Heating steel above critical transformation temperature
Rapid cooling (quenching) in oil or water
Controlled reheating (tempering).

This process produces a tempered martensitic microstructure, providing high strength combined with acceptable ductility.

Normalizing

Normalizing involves heating the steel above the transformation temperature followed by air cooling.

This process refines grain structure and improves:

toughness
dimensional stability.

Stress Relieving

Stress relieving reduces residual stresses generated during manufacturing operations such as forging and thread rolling.

This process improves dimensional stability and fatigue resistance.

Solution Annealing (Stainless Steel)

Stainless steel bolts undergo solution annealing to:

dissolve carbide precipitates
restore corrosion resistance
achieve uniform microstructure.

After heating, the material is rapidly cooled to retain the desired phase structure.

Hardness Control

Heat-treated bolts must maintain hardness levels within specified limits defined by ASTM standards.

Hardness testing methods include:

Rockwell hardness testing
Brinell hardness testing.

Proper hardness ensures:

required mechanical strength
resistance to brittle fracture.

Temper Embrittlement Prevention

Certain alloy steels may become brittle when exposed to intermediate temperatures.

Control methods include:

controlled tempering temperatures
chemical composition limits
post-heat-treatment testing.

Charpy V-Notch Impact Testing

For applications involving low temperatures or dynamic loading, Charpy V-Notch testing is performed.

This test measures the impact energy absorbed during fracture, indicating material toughness.

Industries requiring impact-tested bolts include:

LNG plants
offshore installations
cold climate structures.

7. Manufacturing Process

Production of Hex Cap Bolts follows a controlled manufacturing sequence designed to ensure dimensional accuracy and mechanical reliability.

1. Raw Material Inspection

The manufacturing process begins with inspection of incoming raw materials.

Verification includes:

chemical composition testing
mill test certificate review
dimensional inspection of bars.

Material traceability is maintained throughout the production cycle.

2. Hot Forging of Bolt Heads

Bolt heads are produced through hot forging operations.

Steps include:

heating steel bars to forging temperature
forming hexagonal head geometry in forging dies
trimming flash material.

Hot forging improves grain flow and mechanical strength around the bolt head.

3. Thread Rolling or Machining

Threads are typically produced by thread rolling, which plastically deforms the material to form the thread profile.

Advantages include:

improved fatigue strength
smooth surface finish
consistent thread geometry.

For large diameter bolts, threads may be produced through precision machining.

4. Heat Treatment

Depending on the required grade, bolts undergo:

quenching and tempering
normalizing
stress relieving.

Heat treatment ensures the required mechanical properties defined by ASTM standards.

5. Surface Finishing

After heat treatment, bolts may receive protective coatings such as:

galvanizing
zinc plating
phosphate coating
PTFE coatings.

Surface finishing improves corrosion resistance and installation characteristics.

6. Dimensional Inspection

Dimensional verification ensures compliance with specified standards.

Inspection includes:

head dimensions
thread pitch and profile
shank diameter
overall length.

Measurement tools include:

thread gauges
micrometers
coordinate measuring instruments.

7. Mechanical Testing

Mechanical property verification includes:

tensile testing
proof load testing
hardness testing
impact testing when required.

These tests confirm compliance with specified mechanical property standards.

8. Marking and Traceability

Industrial bolts are marked to indicate:

manufacturer identification
material grade
heat treatment condition.

8.Engineering Tables, Torque Charts, Preload Calculations, Surface Finishes, and Inspection

This section provides engineering reference tables and calculation guidance for the selection, installation, and verification of Hex Cap Bolts used in structural and mechanical assemblies.

The data presented supports:

structural joint design
field installation torque control
EPC procurement evaluation
third-party inspection review

Values presented are typical engineering references and must be verified against applicable project specifications, applicable standards, and joint design calculations.

A. Hex Cap Bolt Dimension Table

Dimensional parameters of hex cap bolts are governed by standards such as ASME B18.2.1, ISO 4014, and DIN 931 / DIN 933.

These standards define head geometry, thread pitch, and dimensional tolerances to ensure interchangeability between bolts, nuts, and washers.

Typical Hex Cap Bolt Dimensions (Metric Series)

Bolt Diameter	Thread Pitch	Head Size (Across Flats)	Head Height	Thread Length	Standard Reference
M6	1.0 mm	10 mm	4 mm	18 mm	ISO 4017
M8	1.25 mm	13 mm	5.3 mm	22 mm	ISO 4017
M10	1.5 mm	17 mm	6.4 mm	26 mm	ISO 4017
M12	1.75 mm	19 mm	7.5 mm	30 mm	ISO 4014
M16	2.0 mm	24 mm	10 mm	38 mm	ISO 4014
M20	2.5 mm	30 mm	12.5 mm	46 mm	ISO 4014
M24	3.0 mm	36 mm	15 mm	54 mm	ISO 4014
M30	3.5 mm	46 mm	18.7 mm	66 mm	ISO 4014

Dimensional tolerances control:

head geometry
thread engagement
bolt alignment
wrench accessibility.

For structural assemblies, the across-flat dimension must remain within standard tolerance to ensure compatibility with installation tools and hydraulic torque equipment.

B. Mechanical Strength Table

Mechanical properties for Hex Cap Bolts depend on the specified material grade and heat treatment condition.

Grade	Proof Load	Yield Strength	Tensile Strength	Elongation
ASTM A307	240 MPa	240 MPa	415 MPa	18%
ASTM A325	660 MPa	660 MPa	830 MPa	14%
ASTM A490	940 MPa	940 MPa	1040 MPa	12%
ASTM A193 B7	720 MPa	720 MPa	860 MPa	16%
ASTM A193 B16	760 MPa	760 MPa	965 MPa	14%
A2-70 Stainless	450 MPa	450 MPa	700 MPa	20%
A4-80 Stainless	600 MPa	600 MPa	800 MPa	18%

Proof Load

Proof load represents the maximum tensile load that a bolt can sustain without permanent deformation.

Proof load verification is performed through controlled mechanical testing during manufacturing quality control.

C. Torque Chart for Hex Cap Bolts

Torque values represent typical installation torque levels required to achieve adequate preload.

Actual torque values depend on:

lubrication condition
surface finish
thread friction
washer condition.

Typical Torque Reference (Carbon / Alloy Steel Bolts)

Bolt Diameter	Grade	Dry Torque	Lubricated Torque
M8	8.8	25 Nm	18 Nm
M10	8.8	50 Nm	36 Nm
M12	8.8	85 Nm	60 Nm
M16	8.8	210 Nm	150 Nm
M20	8.8	410 Nm	290 Nm
M24	8.8	710 Nm	500 Nm
M30	8.8	1420 Nm	1000 Nm

Lubricated bolts require lower torque because friction between threads and bearing surfaces is reduced.

Field installation must follow project torque procedures and calibrated torque tools.

D. Preload Calculation Guide

Preload calculations are used to determine the required clamping force generated during bolt tightening.

These calculations form the basis for torque specifications in EPC installation procedures.

Bolt Stress Formula

$\sigma = \frac{F}{A}$

Where:

σ = bolt stress
F = applied tensile force
A = tensile stress area of bolt thread

The formula defines the relationship between bolt load and resulting stress in the fastener cross-section.

Preload Equation

$Fp = 0.75 \times Sp \times At$

Where:

Fp = preload force
Sp = proof strength of bolt material
At = tensile stress area

A common engineering practice is to set preload at approximately 70–75% of proof load to ensure sufficient clamping without exceeding elastic limits.

Torque–Tension Relationship

T = KFd

Where:

T = tightening torque
K = torque coefficient (friction factor)
F = preload force
d = nominal bolt diameter

The torque coefficient varies depending on lubrication and surface condition.

Typical values:

dry threads: 0.18–0.22
lubricated threads: 0.12–0.16.

Sample Engineering Calculation

Example:

Bolt: M20 ASTM A193 B7

Parameters:

tensile stress area ≈ 245 mm²
proof strength ≈ 720 MPa

Preload:

F = 0.75 × 720 × 245
F ≈ 132 kN

If K = 0.18 and d = 20 mm:

T = 0.18 × 132000 × 0.02
T ≈ 475 Nm

This value corresponds closely with typical torque tables used in field installation.

Safety Margin Philosophy

Bolted joint design typically includes safety margins for:

torque variation
friction uncertainty
preload loss due to embedment
thermal expansion effects.

These margins ensure that the bolt remains within the elastic deformation region while maintaining sufficient joint clamping force.

E. Mechanical Property Table

Mechanical properties influence the suitability of Hex Cap Bolts for specific service conditions.

Grade	Yield Strength	Tensile Strength	Hardness	Elongation	Impact Value
ASTM A307	240 MPa	415 MPa	120–180 HB	18%	Not specified
ASTM A325	660 MPa	830 MPa	24–34 HRC	14%	Moderate
ASTM A490	940 MPa	1040 MPa	33–39 HRC	12%	Moderate
ASTM A193 B7	720 MPa	860 MPa	24–35 HRC	16%	27 J typical
A2-70	450 MPa	700 MPa	200 HV	20%	Good
A4-80	600 MPa	800 MPa	250 HV	18%	Good

Impact values become critical in applications involving low temperatures or dynamic loading.

F. Corrosion Resistance Comparison Table

Environmental exposure significantly influences fastener material selection.

Material	Marine Environment	Chemical Exposure	High Humidity	Hydrocarbon Service
Carbon Steel	Low	Low	Moderate	Good
SS304 (A2)	Moderate	Moderate	High	Good
SS316 (A4)	High	High	High	Good
Duplex Stainless	Very High	Very High	Very High	Excellent

Duplex stainless steels provide superior resistance to chloride corrosion and stress corrosion cracking.

9. Surface Finish Options

Surface finishes provide corrosion protection and friction control for hex cap bolts.

Selection depends on:

environmental exposure
installation conditions
project specifications.

Black Oxide

Black oxide coatings provide minimal corrosion resistance but improve surface appearance and lubricity.

Applications include:

indoor mechanical equipment
machinery assemblies.

Zinc Plating

Electroplated zinc coatings provide moderate corrosion protection.

Typical thickness:

5–12 microns.

Used for:

general industrial applications
indoor or controlled environments.

Hot-Dip Galvanizing

Hot-dip galvanizing applies a thick zinc coating through immersion in molten zinc.

Typical thickness:

50–80 microns.

Advantages:

excellent corrosion protection
long service life in outdoor environments.

Applications include:

structural steel
infrastructure projects.

Phosphate Coating

Phosphate coatings improve lubricity and corrosion resistance.

These coatings are commonly used in combination with oil-based lubricants.

Applications include:

automotive assemblies
machinery components.

PTFE Coating

PTFE coatings reduce thread friction and improve corrosion resistance.

Applications include:

chemical processing equipment
offshore installations.

Mechanical Galvanizing

Mechanical galvanizing applies zinc coatings through mechanical bonding processes.

Advantages include:

uniform coating thickness
reduced hydrogen embrittlement risk.

Stainless Steel Passivation

Stainless steel bolts undergo passivation treatment to remove free iron and enhance corrosion resistance.

This process improves the natural chromium oxide protective layer on the material surface.

10. Inspection & Quality Control

Industrial fastener production requires multi-stage inspection procedures to verify compliance with mechanical and dimensional requirements.

Positive Material Identification (PMI)

PMI testing verifies the chemical composition of fasteners using spectrometers or X-ray fluorescence equipment.

PMI ensures the correct alloy grade is used in critical applications.

Ultrasonic Testing (UT)

UT detects internal defects such as:

inclusions
voids
internal cracks.

This method is particularly used for large diameter fasteners.

Magnetic Particle Testing (MT)

Magnetic particle inspection detects surface and near-surface defects in ferromagnetic materials.

Typical defects identified include:

forging cracks
heat treatment cracks.

Dye Penetrant Testing (PT)

PT inspection is used for detecting surface defects on:

stainless steel bolts
non-magnetic alloys.

Hardness Testing

Hardness tests confirm proper heat treatment.

Common testing methods include:

Rockwell hardness testing
Brinell hardness testing.

Tensile Testing

Tensile testing determines:

ultimate tensile strength
yield strength
elongation.

These properties confirm compliance with specified material standards.

Proof Load Testing

Proof load testing verifies that bolts can sustain specified loads without permanent deformation.

This test is critical for structural and pressure equipment bolts.

Dimensional Inspection

Dimensional verification includes measurement of:

bolt length
head dimensions
thread pitch
thread profile.

Thread gauges are used to verify compliance with ISO or Unified thread standards.

Third-Party Inspection (TPI)

Many EPC projects require independent inspection agencies to witness manufacturing and testing.

Typical inspection agencies include:

Lloyd’s Register
Bureau Veritas
SGS
TÜV.

Third-party inspection ensures compliance with project specifications and international standards.

Inspection Documentation

Industrial fastener supply often includes inspection certificates according to EN 10204.

EN 10204 3.1 Certificate

Issued by the manufacturer confirming material properties and test results.

EN 10204 3.2 Certificate

Issued when inspection is validated by an independent third-party inspector.

11. Industries Served

Industrial Hex Cap Bolts are used across a wide range of heavy engineering sectors where mechanical reliability and predictable load-bearing performance are required. Their geometry allows installation using standard torque tools while maintaining the preload necessary for structural and mechanical joint stability.

The following industries represent typical application environments.

Oil & Gas Production Facilities

Oil and gas installations contain extensive mechanical equipment and structural support systems that rely on bolted joints for assembly and maintenance access.

Common applications include:

pump and compressor skid assemblies
structural equipment frames
pipe support structures
valve mounting assemblies
instrumentation brackets
mechanical equipment bases.

Fasteners used in these environments must maintain preload under:

vibration from rotating equipment
thermal cycling
hydrocarbon exposure.

For pressure equipment and high-temperature service, alloy steel grades such as ASTM A193 B7 hex cap bolts are frequently specified.

Refineries and Petrochemical Plants

Refineries involve high-temperature process equipment and heavy mechanical infrastructure.

Hex cap bolts are used in:

reactor support structures
furnace frameworks
pipe rack assemblies
heat exchanger structures
mechanical pump foundations.

Fasteners used in refinery environments must be compatible with:

elevated temperatures
corrosive atmospheres
dynamic mechanical loads.

Alloy steel and stainless steel bolt materials are commonly selected depending on the service conditions.

Power Generation Facilities

Power plants contain large mechanical assemblies where high-strength bolted connections provide structural integrity and serviceability.

Typical installation points include:

turbine support frames
generator housings
structural steel platforms
auxiliary equipment mounts
cooling tower structural members.

Bolts used in power plants must maintain preload during:

continuous vibration
thermal expansion cycles
operational maintenance activities.

Alloy steel fasteners with controlled heat treatment are typically used in these applications.

Structural Steel Fabrication

Structural engineering projects rely on high-strength fasteners to connect load-bearing steel components.

Hex cap bolts are commonly used in:

steel building frames
industrial platforms
equipment support structures
maintenance access platforms
heavy machinery bases.

In many structural systems, the bolts operate in pre-tensioned or slip-critical joint configurations, where bolt preload contributes to joint friction and load transfer.

Offshore Platforms

Offshore structures operate in environments with severe corrosion exposure and continuous mechanical loading.

Hex cap bolts used in offshore structures must withstand:

marine atmospheric corrosion
saltwater exposure
dynamic loading from wave and wind forces.

Stainless steel or duplex stainless steel bolts are frequently specified for such installations.

Wind Energy Systems

Wind turbine assemblies contain multiple mechanical subsystems that require reliable fastening.

Hex cap bolts are used in:

nacelle structural components
generator mounting assemblies
gearbox housings
service access equipment.

Wind energy installations involve cyclic fatigue loading, making bolt preload control critical for long-term structural reliability.

Mining Equipment and Heavy Machinery

Mining operations rely on heavy equipment subjected to severe mechanical loading and vibration.

Applications include:

excavator structural assemblies
conveyor equipment
crusher housings
drilling equipment frames
material handling systems.

Fasteners used in mining equipment must tolerate:

shock loads
continuous vibration
abrasive environments.

Infrastructure and Industrial Facilities

Large infrastructure projects incorporate extensive steel assemblies where hex cap bolts serve as structural connectors.

Examples include:

bridge equipment supports
industrial conveyor systems
steel fabrication plants
maintenance access structures
heavy industrial installations.

In these applications, fasteners must meet both structural engineering requirements and long-term durability expectations.

12. Export Capability & Global Supply

Industrial fasteners used in large engineering projects are frequently sourced through international procurement channels. Manufacturers supplying Hex Cap Bolts for EPC projects must support global logistics, documentation, and packaging requirements.

Super Industries supplies hex cap bolts to international markets supporting capital projects and equipment manufacturing.

Regions Served

Industrial fastener exports commonly support projects across the following regions:

United States

Applications include:

oil and gas infrastructure
power plant construction
equipment manufacturing.

Compliance with ASTM and ASME standards is typically required for projects in this region.

Europe

European industrial projects typically specify:

ISO fastener standards
EN material specifications.

Common applications include structural steel assemblies and industrial machinery manufacturing.

Middle East

The Middle East contains extensive oil, gas, and petrochemical infrastructure.

Hex cap bolts are used in:

refinery expansion projects
offshore platforms
LNG facilities
pipeline infrastructure.

These projects often require compliance with both ASTM and project-specific specifications.

Southeast Asia

Industrial development across Southeast Asia involves major infrastructure and manufacturing projects.

Applications include:

power plants
steel production facilities
petrochemical plants
heavy equipment manufacturing.

Export Packaging

Industrial fasteners must be packaged to prevent corrosion and mechanical damage during international transport.

Packaging methods typically include:

wooden export crates
moisture-resistant packing materials
sealed polybags for corrosion-sensitive materials.

Packaging design must account for:

long shipping durations
port handling
container transport conditions.

Container Loading Discipline

Efficient container loading practices reduce the risk of product damage and ensure traceability.

Typical loading methods include:

palletized crates
labeled batches according to heat numbers
secured container bracing.

Proper container loading ensures that fasteners arrive at project sites in traceable and verifiable condition.

Documentation Support

International fastener supply typically includes documentation required for project compliance and customs clearance.

Documentation may include:

mill test certificates
inspection reports
material traceability records
packing lists
certificates of origin.

Such documentation is essential for EPC procurement validation and third-party inspection approval.

Procurement & Installation View

Proper installation practices are essential to ensure that Hex Cap Bolts achieve the intended clamping force and maintain joint integrity during service.

Bolt Tightening Sequence

When multiple bolts are used in a joint, tightening should follow a cross-pattern sequence to ensure uniform preload distribution.

The process typically includes:

initial snug tightening
intermediate torque stage
final torque application.

This staged approach minimizes distortion of joint components.

Cross Tightening Pattern

Cross tightening distributes clamping forces evenly across the joint surface.

This method is commonly used in:

flange assemblies
structural plate connections
machinery housings.

The pattern ensures that preload is applied gradually and symmetrically.

Torque Control Methods

Several methods are used in industrial bolt installation.

Manual Torque Wrench

Used for smaller diameter bolts where torque values are relatively low.

Hydraulic Torque Wrench

Used for large bolts in structural and heavy equipment assemblies.

Advantages include:

higher torque capability
controlled torque application.

Tensioning Methods

In certain structural applications, hydraulic bolt tensioners are used to directly apply axial force rather than torque.

This method provides more accurate preload control.

Re-Torque Practice

After initial installation, some assemblies require re-torque after a settling period.

This compensates for preload loss caused by:

embedment
surface flattening
gasket compression.

Re-torque procedures are commonly applied in pressure equipment and structural joints.

Washer Selection

Washers are often used with hex cap bolts to improve load distribution and protect joint surfaces.

Typical washer types include:

hardened structural washers
flat washers.

Washers are particularly important when bolts clamp softer materials.

Inspection Checkpoints

Installation inspection typically verifies:

correct bolt grade
proper torque application
correct washer placement
thread engagement length.

Inspection records may be required for quality assurance during project construction.

Storage and Handling

Proper storage of hex cap bolts prevents corrosion and contamination before installation.

Recommended practices include:

storage in dry environments
sealed packaging for stainless steel bolts
protection from moisture and chemical exposure.

Handling procedures should prevent damage to threads and head geometry.

Custom Engineering Capabilities

Industrial projects frequently require fasteners that differ from standard catalog dimensions.

Manufacturing capability for Hex Cap Bolts may include customized engineering specifications.

Non-Standard Bolt Lengths

Custom bolt lengths may be required to accommodate specific joint thicknesses.

Manufacturers can produce bolts with:

extended shank lengths
special grip dimensions.

Custom Thread Forms

Certain applications require non-standard thread configurations.

Examples include:

fine pitch threads
special thread tolerances
left-hand threads.

These designs support specialized mechanical assemblies.

Special Head Markings

Industrial fasteners are often marked for traceability.

Custom head markings may include:

manufacturer identification
project codes
material grade identification.

High-Temperature Bolts

Applications involving elevated temperatures may require specialized alloy steels or stainless steels with controlled heat treatment conditions.

Typical examples include:

petrochemical reactors
steam turbine equipment.

Large-Diameter Bolts

Heavy industrial assemblies may require bolts exceeding standard diameters.

Manufacturers can produce large-diameter hex cap bolts for structural and mechanical applications.

Custom Coatings

Surface treatments may be selected to address specific environmental conditions.

Examples include:

PTFE coatings for chemical environments
heavy galvanizing for marine exposure
specialized anti-corrosion coatings.

Engineering Conclusion

Hex cap bolts remain one of the most widely used fastening solutions in industrial mechanical and structural systems due to their combination of geometric simplicity, torque accessibility, and reliable preload generation.

Their performance in service depends on several engineering factors including:

material selection
heat treatment control
dimensional accuracy
correct installation procedures.

Industrial standards such as ASME B18.2.1, ASTM mechanical property specifications, and ISO dimensional standards provide the framework for ensuring that hex cap bolts used in engineering projects meet predictable mechanical performance requirements.

For EPC contractors, structural engineers, and equipment manufacturers, proper specification and installation of Hex Cap Bolts is essential for maintaining the structural integrity and long-term reliability of mechanical assemblies across industries including oil and gas, power generation, structural steel construction, and heavy machinery manufacturing.

When manufactured in accordance with recognized standards and verified through appropriate inspection procedures, hex cap bolts provide a repeatable and serviceable fastening solution for high-load industrial bolted joints.
